Make Your Own Stethoscope

1
2
3
4
5
39 reviews

Summary

Active Time
20-30 minutes
Total Project Time
20-30 minutes
Key Concepts
stethoscopes, health, exercise, heartbeat, heart rate
Credits
Teisha Rowland, PhD, Science Buddies
A DIY stethoscope made from a funnel and cardboard tube

Introduction

Have you ever wondered what happens to the heart as we exercise intensely? How does its beating change? A doctor can figure this out by using a tool called a stethoscope, which is a long, thin plastic tube that has a small disc on one end and earpieces on the other end. In this activity, you will make a homemade stethoscope and use it to measure peoples' heart rates at rest and after exercising.
This activity is not recommended for use as a science fair project. Good science fair projects have a stronger focus on controlling variables, taking accurate measurements, and analyzing data. To find a science fair project that is just right for you, browse our library of over 1,200 Science Fair Project Ideas or use the Topic Selection Wizard to get a personalized project recommendation.

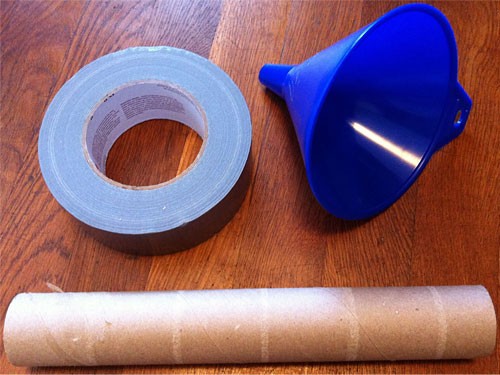

Materials

  • Duct tape or other strong tape
  • Scissors
  • Plastic funnel
  • A cardboard tube from a paper-towel roll
  • Stopwatch or clock that counts seconds
  • A volunteer who can safely exercise intensely for one minute

Instructions

  1. Put the narrow end of the funnel into the cardboard tube.

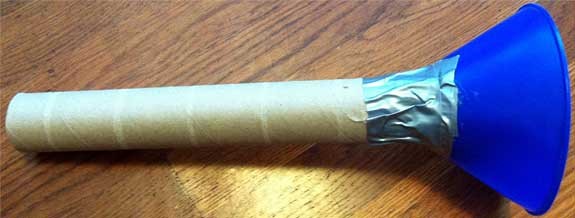

  2. Using a strip of duct tape or other strong tape, tape the funnel and cardboard tube together. Make sure there are no gaps or spaces where you tape them together.

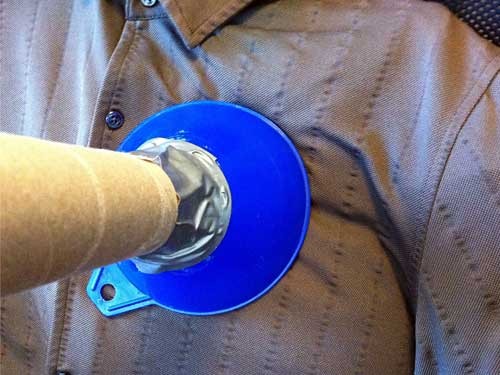

  3. Your stethoscope is now ready to use! Practice listening to the heartbeat of a volunteer by putting the funnel on the left side of the volunteer's chest. Make sure the funnel is flat against their chest. Put your ear against the hole at the end of the cardboard tube. Do you hear the heartbeat?
  4. Tip: If it is noisy or the volunteer is wearing thick clothing, it may be hard to hear the heartbeat, so you may need to adjust conditions accordingly.
  5. After the volunteer has been resting in a chair for a few minutes, listen to the heartbeat and count how many times it beats in 10 seconds.
  6. Multiply this number by six. This is the resting heart rate of the volunteer in beats per minute (bpm).
    Think about:
    What is the volunteer's resting heart rate?
  7. Ask the volunteer to exercise in place for one minute by doing jumping jacks or running in place. Right after the volunteer has stopped exercising, listen to the heartbeat and count how many times it beats in 10 seconds.
    Think about:
    Why do you think you count heartbeats for only 10 seconds? What happens if you count for a longer period of time after exercising?
  8. Multiply this number by six. This is the heart rate right after exercising in bpm.
    Think about:
    What is the volunteer's heart rate now? How did the heart rate change after exercise? Why do you think it changed like it did?
  9. Think about how regularly exercising may change a person's heart. If a person regularly exercised, how do you think this would change his or her heart rate? How do you think that person's heart rate during rest and exercise would be different?

What Happened?

When people exercise, their bodies need more oxygen, and consequently their hearts beat faster and their heart rates increase. This is why you most likely found that when your volunteer exercised, the heart rate increased compared to the resting heart rate. In addition, genetics, gender, age, and health all affect people's heart rates. The heart rates in people who exercise regularly usually will not increase as much during exercise. Regular exercise strengthens the heart so that it does not need to work as hard to do the same amount of exercise.

While you can determine someone's resting heart rate by counting the number of beats in 15 seconds and multiplying by four to get the beats per minute (bpm), to calculate a heart rate immediately after exercise it is better to count the number of beats for 10 seconds and multiply that value by six (to get the bpm). Because the heart will quickly slow down after exercise, the heart rate should be measured immediately after a person has stopped exercising (or while they exercise, if possible).

Digging Deeper

You are probably familiar with how a doctor uses a stethoscope from visits to your own doctor — the doctor puts the stethoscope's flat disc or hollow cup on a patient's body, and the earpieces go into the doctor's ears. But how does the stethoscope work? How does it allow the doctor to hear sounds inside of the patient's body?

The disc and the tube of the stethoscope amplify small sounds, such as the sound of a patient's lungs, heart, and other small sounds within the body, making them sound louder. The amplified sounds travel up the stethoscope's tube to the earpieces that the doctor listens through. Heartbeats can easily be heard using a good stethoscope. Every time a person's heart beats, the heart, which is a powerful pump, contracts and pushes blood through the body. This blood is full of oxygen, so the heart helps deliver oxygen to the rest of the body, while picking up nutrients and delivering them to other parts of the body.

icon scientific method

Ask an Expert

Curious about the science? Post your question for our scientists.

For Further Exploration

  • There are several different ways you can make a homemade stethoscope. For example, instead of a cardboard tube you could use a short piece of garden hose or plastic tubing. Or you could try varying the length of the tube. You could even try different sized funnels. What homemade stethoscope design works the best? What goes into making a good stethoscope design?
  • In this activity you only tested one person's heart rate, but you could try your stethoscope on several different people. How do different peoples' heart rates compare to each other? Do they all change a lot after exercising, or do some change only a little bit or not at all? Does the heart rate correlate with a factor such as age, gender, or BMI?
  • A person should use at least 50% of their maximum heart rate when they are exercising for the activity to qualify as exercise. You can find out more about maximum and target heart rates and then apply this information to create an exercise routine. Based on this information, what physical activities does a given person do that qualifies as exercise?
