Electric Play Dough Project 1: Make Your Play Dough Light Up, Buzz, & Move!

Difficulty
Time Required Average (6-10 days)
Prerequisites None
Material Availability A kit for this project is available from the Science Buddies Store.
Cost Low ($20 - $50)
Safety Never connect the battery pack's terminals directly to each other; this is called a short circuit and can make the batteries and wires get very hot. Do not connect the LEDs directly to the battery pack without using play dough; this will burn out the LEDs.

Abstract

Do you like playing with play dough; or modeling clay? Wouldn't it be cool if you could add lights, sound, or even motion to your play dough creations? In this project, you will use play dough that conducts electricity, which will allow you to connect lights, motors, and buzzers to your sculptures!

This project is the first in a three-part series on play dough circuits, which can all be done with the same materials. We recommend doing the projects in order.

Objective

Use play dough and modeling clay to create a simple circuit that lights an LED (light-emitting diode), buzzer, or motor.

Credits

Ben Finio, PhD, Science Buddies

This Project Idea is based on work done by Dr. AnnMarie Thomas at St. Thomas University.

  • Play-Doh® is a registered trademark of Hasbro.

Cite This Page

MLA Style

Science Buddies Staff. "Electric Play Dough Project 1: Make Your Play Dough Light Up, Buzz, & Move!" Science Buddies. Science Buddies, 13 Oct. 2016. Web. 6 Dec. 2016 <http://www.sciencebuddies.org/science-fair-projects/project-ideas/Elec_p073/electricity-electronics/squishy-circuits-project-1?from=Blog>

APA Style

Science Buddies Staff. (2016, October 13). Electric Play Dough Project 1: Make Your Play Dough Light Up, Buzz, & Move!. Retrieved December 6, 2016 from http://www.sciencebuddies.org/science-fair-projects/project-ideas/Elec_p073/electricity-electronics/squishy-circuits-project-1?from=Blog

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Last edit date: 2016-10-13

Introduction

Do you like making things with play dough or modeling clay? Then this project is perfect for you! It turns out that play dough conducts electricity. Electricity powers many of the things you use every day, like the lights in your house, and the computer you are reading this on. Once you learn more about this simple electric circuit, you can add cool things like lights, buzzers, or motors to your artistic creations.

When you add electricity to playdough to make creations with light, sound, and motion you are making a circuit. What is a circuit (pronounced "ser-kit")? A circuit is like a path through which electricity flows. A circuit needs to be made out of a conductor, which is a material that electricity can flow through easily. Conductors are usually made out of metals like copper. An insulator is the opposite of a conductor; electricity cannot flow through it. Many everyday materials—like wood, plastics, and rubber—are insulators. In this project, you will make two different materials: a conductor (Play Doh) and an insulator (modeling clay).

All circuits need to get their electricity from somewhere. Many appliances in your house (like your TV, computer, and lights) get electricity from plugs in the wall, which are connected to wires that deliver electricity to your house from power plants. Many smaller, portable circuits (such as electronic toys and cell phones) are powered by batteries, which store electricity. Batteries have two ends; one is called positive and is marked with a plus sign symbol (+). The other is called negative, and the symbol for negative is a minus sign (-), but this symbol is usually not printed on batteries.

In order for electricity to flow, there needs to be a conductive path connecting the positive end of a battery to the negative end. This is called a closed circuit. Along the way, the electricity can flow through things like lights (to make them light up), or motors (to make them spin). Figure 1 shows a photo of a playdough circuit powering an LED (which stands for "light-emitting diode" and is a type of tiny lightbulb found in many electronic devices) with a battery pack.

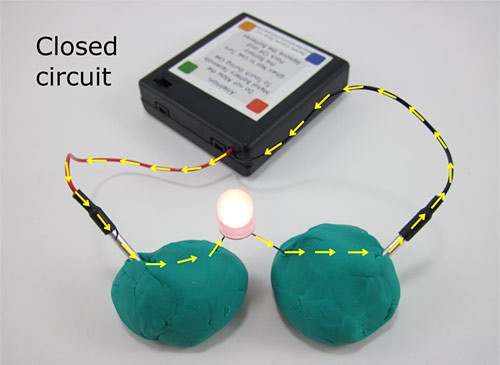

closed circuit picture squishy circuits
Figure 1. A closed circuit with a battery pack and an LED. The yellow arrows represent the flow of electricity. The electricity can flow through the playdough because playdough is a conductor.

If there is not a complete path through which electricity can flow, it is called an open circuit. In an open circuit, the path that electricity follows has been broken somehow. This means that there is no way for electricity to flow in a complete loop, and the LED does not light up. Figure 2 shows a picture of an open circuit.

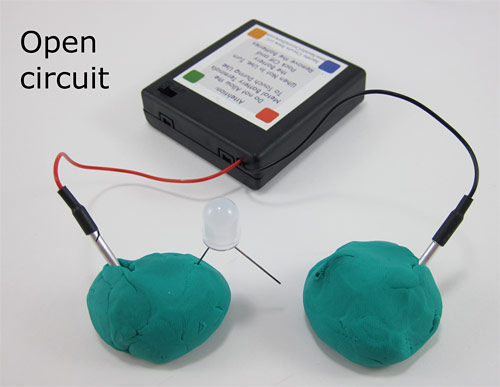

open circuit squishy circuits
Figure 2. A picture of an open circuit. Since there is no complete path for electricity to flow, the LED does not light up.

Electricity likes to take the "easiest" possible path. If you add an easier conductive path to the circuit than the one that was already there (such as squishing the playdough into one ball instead of two), the electricity will flow through that conductive material instead of through the LED, and the LED will not light up. This is called a short circuit. Figure 3 shows a picture of a short circuit.

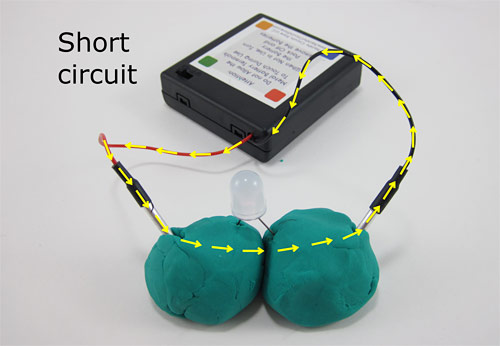

short circuit squishy circuits
Figure 3. A picture of a short circuit. The yellow arrows represent the flow of electricity. It can take the "path of least resistance" directly through the playdough, so the LED does not light up.

There are two different kinds of dough: conductive and insulating. You can use insulating dough (or modeling clay) to help prevent short circuits by putting it in between your two lumps of conductive playdough. This is shown in Figure 4.

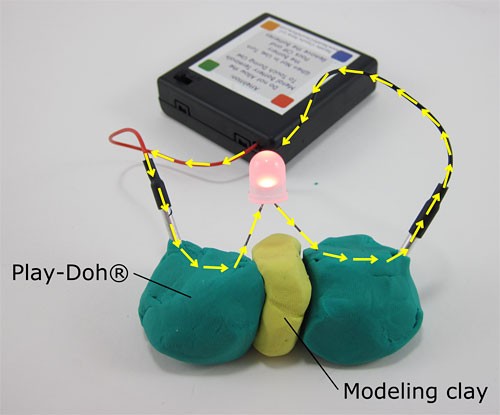

insulating dough labeled squishy circuits
Figure 4. Insulating dough or modeling clay (yellow) can be used to help prevent short circuits by keeping clumps of conductive dough (green) from touching each other. This ensures that the electricity has to flow through the LED.

Now that you know all about playdough circuits, you are ready to start building your own! You can also read even more about electricity in the Science Buddies Electricity, Magnetism, & Electromagnetism Tutorial. Once you have finished this project, you may be inspired to try even cooler things with your electric playdough with these science projects:

Terms and Concepts

  • Electricity
  • Circuit
  • Conductor
  • Insulator
  • Battery
  • Positive
  • Negative
  • Closed circuit
  • Open circuit
  • Short circuit

Questions

  • What are some examples of objects that are powered by electricity?
  • What are some examples of conductors and insulators?
  • Which ingredients determine whether homemade play dough is conductive or insulating?
  • What is the difference between closed, open, and short circuits?
  • What artistic play dough creations do you think you can make that involve a light, motor, or buzzer?

Bibliography

If you want to learn more about circuits, here are some additional resources.

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

These specialty items can be purchased from the Science Buddies Store:

  • Electric Play Dough Kit (1). Includes:
    • DC hobby motor
    • Piezoelectric buzzer
    • Mechanical buzzer
    • 4 AA Battery pack
    • Jumbo LEDs (25 total — 5 each in red, green, white, yellow, and blue)
    • Conductive play dough recipe
    • Insulating play dough recipe

You will also need to gather these items:

  • AA batteries (4)
  • Play-Doh®
  • Modeling clay

Optional: instead of using store-bought Play-Doh and modeling clay, you can make your own conductive dough (replaces Play-Doh) and insulating dough (replaces modeling clay). See Electric Play Dough Recipes for materials and directions for making your own dough.

Recommended Project Supplies

View Kit
Project Kit: $24.95

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Experimental Procedure

  1. Optional: if you are making your own homemade conductive and insulating dough instead of using store-bought Play-Doh and modeling clay, follow the instructions on Electric Play Dough Recipes.
  2. Insert the four AA batteries into the battery pack that came with your kit. Make sure the "+" signs on the batteries line up with the "+" signs inside the battery pack. Ask an adult if you need help making sure they are in the correct way.
  3. Make two lumps of Play-Doh (or homemade conductive dough) and one lump of modeling clay (or homemade insulating dough). Stick them together, with the modeling clay in the middle; make sure the two lumps of Play-Doh are not touching each other.
  4. Stick each metal rod from the battery pack (there should be one attached to a black wire, and one attached to a red wire) into its own lump of Play-Doh.
  5. Pick an LED from your kit. The two pieces of metal sticking off the LED are called "leads" (pronounced "leeds"). Insert one lead into each lump of Play-Doh. Important: Electricity can only flow through LEDs in one direction. The LED has one lead that is slightly longer than the other one; this is the positive lead, and it should be inserted into the lump of Play-Doh with the red wire. The shorter lead should be inserted into the lump of Play-Doh with the black wire.
  6. Use the built-in switch to turn on your battery pack. Your LED should light up! If it does not, do not worry; you probably just plugged your LED in backwards. Flip your LED around and try again (if it still does not light up, open your battery pack and make sure you inserted each battery facing the correct direction, paying attention to the "+" symbols). If you are still having trouble, read the FAQ section for help.
  7. Congratulations! You have made your first play dough circuit. It should look similar to the one in Figure 5.

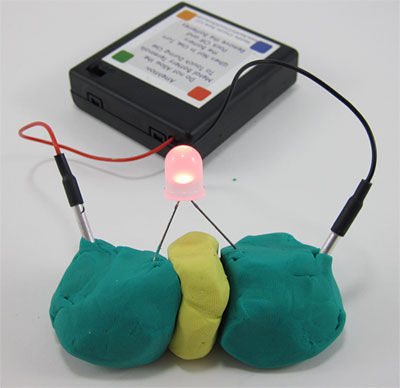

insulating dough squishy circuits
Figure 5. Your first play dough circuit should look like this.
  1. Now it is time to get creative! The shape of the Play-Doh lumps does not matter when connecting the LEDs (although it does for the motors and buzzers, see note in step 8), as long as there is a closed circuit for electricity to flow. Figure 6 shows two Play-Doh "people" holding hands with an LED; can you come up with your own fun designs for your own circuits?

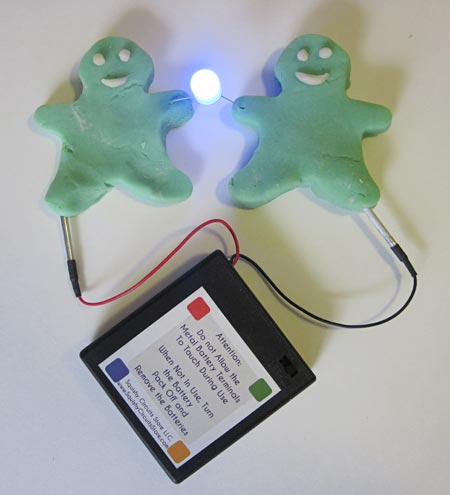

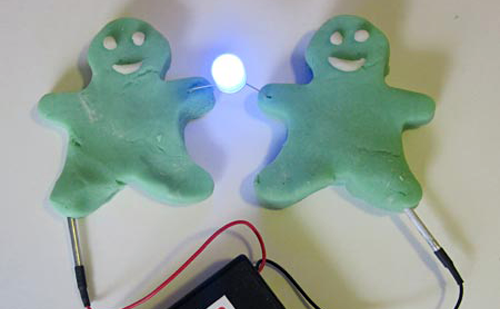

squishy circuit cookie cutouts holding hands with LED
Figure 6. The shape of the Play-Doh pieces does not matter when connecting LEDs; as long as there is a closed circuit for electricity to flow (and no short circuit), the LED will still light up.
  1. Now, try using the buzzers and motor that came with your kit instead of the LED. Does it matter which way you connect the red and black wires, or do they work in both directions? You can use a table like Table 3 to keep track of your results, and check the appropriate box for each item.
    1. Note: make sure you use short, thick lumps of Play-Doh to connect the buzzers and motor to your battery pack. If you use long, thin rolls of Play-Doh, they will not work. This is because they require more electricity to operate than the LEDs, and it is harder for electricity to flow through long, thin rolls of Play-Doh.
Circuit Part Only Works in One Direction Works in Both Directions
LED
Motor
Piezoelectric buzzer
Mechanical buzzer
Table 3. An example data table to help you keep track of which items from your kit only work when plugged in in the correct direction, and which ones work in either direction. The "piezoelectric buzzer" and "mechanical buzzer" have different shapes; they are labeled on the inside of the lid of your kit box.
  1. If you used store-bought Play-Doh, return it to its plastic containers so it does not dry out. Store modeling clay and homemade dough in airtight plastic bags or containers. The FAQ section has more information about how long homemade dough will last in storage.

Troubleshooting

For troubleshooting tips, please read our FAQ: Electric Play Dough Project 1: Make Your Play Dough Light Up, Buzz, & Move!.

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Variations

  • This science project is the first in a three-part series on circuits, which can all be done with the same materials. The next two science projects are
  • Curious about the chemistry behind this project? Research what ingredient or ingredients make the homemade doughs conductive or insulating, then try changing the recipes to see what it does to the conductive and insulating properties of the dough. For instance, how much salt do you need for the conductive dough to conduct electricity?

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.
Q: My homemade dough is too sticky or too dry.
A: If your homemade dough is too wet and sticky, you can slowly knead in extra flour to dry it out. If your dough is too dry and crumbly, you can slowly knead in extra water.

If you are making a new batch of dough, the best way to prevent these problems is to follow the directions carefully and measure the appropriate amount of each ingredient. Some steps require you to slowly add small amounts of water until the desired consistency is formed, instead of adding the entire amount all at once.

Q: I'm not sure if my Squishy Circuits Kit is working.
A:
  1. Make sure you properly inserted the batteries into the battery pack. Each battery is marked with a "+" symbol on one end. Make sure these symbols line up with the "+" symbols on the inside of the battery pack.
  2. Make sure you turn the switch on your battery pack to the "on" position when you are testing your circuit.
  3. As a simple test, try connecting the motor leads directly to the battery pack leads using short, thick lumps of Play-Doh. The motor should spin regardless of which way you connect the leads.
  4. Make sure your Play-Doh is tightly secured around the metal leads for your battery pack and motor. If you wiggle them around a lot and they come loose, then they will not be in good contact, and it will be difficult for electricity to flow.
  5. If you have a multimeter, you can use it to measure the voltage from your battery pack. Four AA batteries should provide about 6 volts (V). If the voltage is lower than 6 V, your batteries might be dead. Consult the Science Buddies Multimeter Tutorial if you need help using a multimeter.
  6. If your motor still does not spin after trying all the steps above, try putting new batteries in the battery pack.
Q: My LEDs won't light up.
A:
  1. Remember that LEDs have a polarity, meaning they only work in one direction. The longer LED lead should be connected toward the positive side of your circuit, which is the side with the red wire protruding from the battery pack. If one LED in your circuit is not lighting up, but others are, you probably just have that LED plugged in backwards. Try reversing its direction and see if it lights up.
  2. Make sure your Play-Doh is tightly packed around the metal leads for your battery pack. If you wiggle them around a lot and they come loose, then they will not be in good contact, and it will be difficult for electricity to flow.
  3. Make sure you do not have a short circuit. For more information about short circuits (including pictures and diagrams), refer to the Introduction of the first Squishy Circuits project.
  4. If your circuit has two or more LEDs, make sure they are wired in parallel and not in series. Wiring multiple LEDs in series will quickly cause them to become very dim. For more information about the difference between series and parallel circuits (including pictures and diagrams), refer to the Introduction of the second Squishy Circuits project.
  5. Make sure you are not using very long pieces of conductive play dough to connect your battery terminals to your LEDs. The conductive play dough has a fairly high resistance, which causes the voltage to drop as electricity travels through it. If you use very long pieces of conductive dough, the voltage might drop so much that the LEDs will not light up. To learn more about voltage and resistance, check out the Science Buddies Electronics Primer Introduction.
  6. Never connect your LEDs directly to the battery pack leads without using Play-Doh in between. Connecting LEDs directly to the battery pack will cause them to burn out; too much current will flow, permanently destroying the LED. If you have LEDs that do not light up at all despite trying all the steps above, you might have accidentally burned them out at some point.
Q: Some parts of my circuit work and some don't.
A:
  1. In general, follow the same steps as in FAQ 3. For a big circuit, it is possible to have a short circuit in only part of the circuit; some LEDs might light up, while others stay dark. You might have also accidentally wired some LEDs in series, and some in parallel. Remember to always avoid short circuits, check the direction your LEDs are plugged in, and make sure your LEDs are wired in parallel.
  2. You can test individual parts of your circuit, one at a time. You can do this by breaking them away from the rest of your circuit and connecting them to the battery pack separately, or by sticking the battery pack leads into different parts of your circuit. This will let you identify problem areas in your circuit.
  3. Remember that it is possible to burn out LEDs by connecting them directly to the battery pack. If nothing else works, try swapping in a new LED.
Q: How should I store my homemade dough? How long will it last?
A:
  1. Both types of homemade dough (conductive and insulating) should be stored in air-tight plastic containers or plastic bags. You can put it in the refrigerator to make it last even longer.
  2. The conductive play dough contains salt, so will last for several weeks or months if kept in an air-tight container. Eventually, you may still see spots of mold or bacteria growing on it.
  3. Insulating play dough contains sugar, which bacteria and other microorganisms thrive on. You may start to see mold or bacteria growing on it after several days or a week, but it will last longer if refrigerated.
  4. If your play dough develops spots of visible mold or bacteria, you should throw it away and make a new batch.
Q: I can get the LEDs to work, but not the motor or the buzzers.
A:
  1. Make sure you use short, thick lumps of Play-Doh to connect the motor and buzzers to your battery pack. The motor and buzzers require much more electricity to operate than the LEDs. Long, thin strips of Play-Doh have a higher electrical resistance, making it difficult for enough electricity to flow through them.
  2. The buzzers have polarity, just like the LEDs. Their red wires need to be connected to the battery pack's red wire, and their black wires connected to the battery pack's black wire. The motor will work in either direction—reversing the wires will just reverse the direction the motor spins.
