What Makes Candies So Colorful? Investigate How Gel Electrophoresis Unlocks the Color Code!

Difficulty
Time Required Short (2-5 days)
Prerequisites None
Material Availability This project requires a Bio-Rad kit. See the Materials and Equipment list for details.
Cost High ($100 - $150)
Safety Use caution when heating the agarose. Never connect more than five 9-volt (V) batteries together for this project.

Abstract

Imagine that you want to create your own brand of colored candies. You know they would be a success if only you could figure out how to make a certain color, such as purple. How can you do this when government regulators have approved just a few food dyes? First, you will need to find out how your competitors make all of their colors from these few dyes. Do different candy brands use the same or different dyes? This can be figured out with gel electrophoresis, a technique commonly used in laboratories to investigate DNA, proteins, and other molecules. In this science project you will use a kitchen-science version of gel electrophoresis to investigate how candies can have such different colors.

Objective

Use gel electrophoresis to investigate food dyes used in candies.

Credits

Teisha Rowland, PhD, Science Buddies

This science project was adapted from Bio-Rad's STEM Electrophoresis Kit.

  • M&M's is a registered trademark of Mars, Incorporated.
  • Skittles is a registered trademark of Wm. Wrigley Jr. Company.
  • Runts is a registered trademark of Société des Produits Nestlé S.A.
  • Reese's Pieces is a registered trademark of The Hershey Company.
  • Red Hots is a registered trademark of Ferrara Pan Candy Company.
  • Hot Tamales is a registered trademark of Just Born, Inc.
  • Mike & Ike is a registered trademark of Just Born, Inc.
  • Kool-Aid is a registered trademark of Kraft Foods.
  • JELL-O is a registered trademark of Kraft Foods.

Cite This Page

MLA Style

Science Buddies Staff. "What Makes Candies So Colorful? Investigate How Gel Electrophoresis Unlocks the Color Code!" Science Buddies. Science Buddies, 16 Feb. 2013. Web. 22 July 2014 <http://www.sciencebuddies.org/science-fair-projects/project_ideas/BioChem_p039.shtml>

APA Style

Science Buddies Staff. (2013, February 16). What Makes Candies So Colorful? Investigate How Gel Electrophoresis Unlocks the Color Code!. Retrieved July 22, 2014 from http://www.sciencebuddies.org/science-fair-projects/project_ideas/BioChem_p039.shtml

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Last edit date: 2013-02-16

Introduction

Ever wanted to create your own brand of colored candies? One of the first things you will want to do is figure out how your competitors make all of their colors using the few approved food dyes. Do all candy companies use the same food dyes to make the same colors, or do they use different dyes? (To find out which food dyes are approved in the United States, see the U.S. Food and Drug Administration reference in the Bibliography below.)

How can you figure out which dyes are used in differently colored candies? By using gel electrophoresis, a technique that scientists apply in laboratories all the time to investigate DNA, RNA, proteins, and other macromolecules and molecules, including food dyes. It is a powerful technique with a wide range of applications. For example, because it can be used to analyze DNA samples, forensic scientists working with police detectives employ it to determine who is a possible suspect based on a blood sample from a crime scene. A forensic scientist can use an enzyme to cut the DNA in the sample at a particular spot, and this creates pieces of DNA unique in size and number to one individual. The scientist can then use gel electrophoresis to "see" the pattern made by these DNA pieces to figure out if two DNA samples match, meaning they both came from the same person.

So how does gel electrophoresis enable a person to investigate and see macromolecules — "large" molecules such as DNA, RNA, and proteins — and molecules, such as food dyes? During gel electrophoresis, samples of macromolecules (or molecules) are put into a gel and then an electrical current is applied to the gel (and to the macromolecules in it). This causes the macromolecules to become separated in the gel, based on their mass and electrical charge. For example, DNA and RNA are negatively charged, so when they are in an electric field, they move away from the negative end and toward the positive end. The gel is usually made of agarose and has many microscopic holes. This causes small macromolecules to travel through the gel faster than large ones, which get stuck more as they move through the gel.

Gel electrophoresis using proteins is similar to gel electrophoresis using DNA, except that proteins are not always negatively charged. But they need to be negatively charged to move through the gel, so how do scientists solve this problem? The proteins are forced to denature, or unfold, in the presence of a chemical that coats them in negative charges. This is how proteins can be separated based on their size using gel electrophoresis.

The equipment for gel electrophoresis is fairly simple. A chamber (often called a "gel box") holds the actual gel. The samples are loaded into the gel in "wells," small holes made on one end of the gel. There is a positive electrode on one end of the chamber, and a negative electrode on the opposite end of the chamber. When the electrodes are connected to a power source, an electric field is created in the chamber. Because the gel is immersed in a buffer solution, it can use the ions in the buffer to provide the current for the gel. Figure 1 below shows the gel electrophoresis setup you will use in this science project.

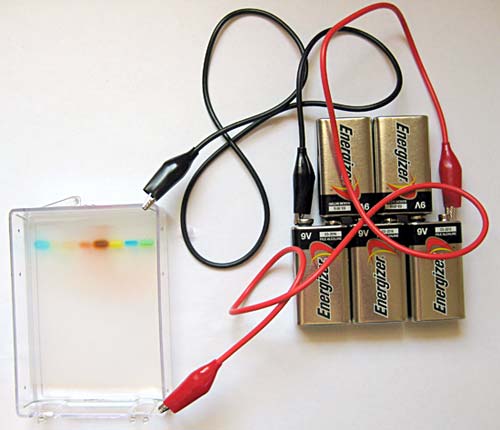

gel electrophoresis setup
Biotechnology science project
Figure 1. This picture of the gel electrophoresis setup you will create in this science project shows how the agarose gel inside of a gel box has a negative electrode at the top and a positive electrode at the bottom (both electrodes made of paperclips). The power source will be five 9-volt (V) batteries, connected to the electrodes using black and red alligator clips. Each well will contain a color sample.

Aside from the forensics crime-scene example above, gel electrophoresis has many other uses. Gel electrophoresis can help determine how many different macromolecules are in a sample of many macromolecules. The size of a macromolecule can be determined by using a sample that is a mixture of molecules of known sizes, called a ladder, in the same gel. By looking at how far the macromolecule travels in comparison to the molecules in the ladder, you can determine the approximate size of the macromolecule. A single type of macromolecule can even be purified by using gel electrophoresis; because the macromolecule is "trapped" in the gel, the region of the gel containing the macromolecule can be cut out and then other techniques can be used to separate the gel from the macromolecule. It can then be purified and used for further experimentation. Watch the video below to see how scientists perform gel electrophoresis in a research laboratory. Note: The differences between how you will undertake gel electrophoresis in this project and how it is shown in the video are numerous. This is because you will be performing a kitchen-friendly version of gel electrophoresis without the expensive laboratory equipment. But the scientific concepts are identical.

Video on using fungus for packaging materials.
This video
shows how DNA gel electrophoresis is done in a research laboratory. Note: The gel electrophoresis shown here is very different from how you will do it in this project.

As mentioned earlier, gel electrophoresis can also be used to figure out which food dyes are in differently colored candies. Food dyes are made up of dye molecules. These are what make some candies, like the M&M's® and Skittles®, shown in Figure 2 below, so colorful. These different dye molecules can be separated using gel electrophoresis based on the sizes of the molecules. Only a few synthetic dyes are certified and approved for use in the United States by the Federal Food, Drug, and Cosmetic Act (or FD&C), and all of these dyes are negatively charged, like DNA and RNA, so in an electric field they will move away from the negative end and toward the positive end. You can find these dyes in the ingredients list on the packaging of products that use them, often listed as "FD&C" followed by a color and number, such as "FD&C Blue No. 1," or sometimes just listed as "blue 1."

Picture of M&Ms and Skittles.
Biotechnology science project
Figure 2. Food dyes make candies, such as the M&M's® and Skittles® pictured here, brilliantly colorful.

In this science project, you will use gel electrophoresis to investigate the food dyes used in candy. How many different types of dye molecules are used to make a certain candy, such as an M&M®, a certain color, such as brown? Is only one type of dye molecule necessary to color it brown, or are there multiple types? Do different types of candy use the same types of dye molecules to get the same color, or do they use different types? You might be surprised by the results!

Terms and Concepts

  • Gel electrophoresis
  • DNA
  • Proteins
  • Macromolecules
  • Electrical current
  • Mass
  • Charge
  • Agarose
  • Denature
  • Electrode
  • Ladder
  • Food dyes

Questions

  • What is gel electrophoresis?
  • What are the components of a gel electrophoresis chamber?
  • For what kinds of investigations can scientists use gel electrophoresis?
  • Which FD&C dyes do you expect are used to make a green M&M®? What about a brown one? Hint: Look at the ingredients on the packaging.

Bibliography

Materials and Equipment

  • STEM Electrophoresis Kit, can be purchased from Bio-Rad Laboratories.
  • Metric ruler
  • Permanent marker
  • Distilled water (500 mL)
  • Graduated cylinders, 10 mL and 100 mL, or measuring teaspoon and measuring cup. 10 mL graduated cylinders and 100 mL graduated cylinders can be purchased at Amazon.com.
  • Large glass jar that can hold at least 500 mL (approximately 2 cups). Make sure it is clean. Alternatively, you can use a bowl or any other container, although one with a leak-proof lid is easiest.
  • Optional: Scale and scissors. The scale must be able to measure accurately 1.2 g. Such a digital scale (the Fast Weigh MS-500-BLK Digital Pocket Scale) is available from Amazon.com.
  • Wax paper (2 sheets, each large enough to easily cover the entire top of the microwave-safe bowl)
  • Microwave-safe bowl, such as a Pyrex® mixing bowl
  • Microwave oven
  • Oven mitts
  • Plastic ruler, plastic knife, or butter knife
  • M&M's® and Skittles® candies:
    • Brown, yellow, blue, red, and green candies (3 candies of each color)
    • Any additional colors you want to test (3 candies of each color)
    • Include some M&M's® and Skittles® that are the same, or a similar, color. For example, a red M&M® and red Skittle®.
    • You can test up to eight different candy colors/types at once, and a total of 32 colors/types with the kit if you run multiple trials.
  • Plastic cups (at least 8)
  • 9-V batteries, new or fully charged (3-10 depending on number of gels and running speed of each gel); 3-5 batteries can be used per gel where more batteries means a faster run time (see the Procedure for details).
  • Clock or timer
  • Optional: camera
  • Lab notebook

Disclaimer: Science Buddies occasionally provides information (such as part numbers, supplier names, and supplier weblinks) to assist our users in locating specialty items for individual projects. The information is provided solely as a convenience to our users. We do our best to make sure that part numbers and descriptions are accurate when first listed. However, since part numbers do change as items are obsoleted or improved, please send us an email if you run across any parts that are no longer available. We also do our best to make sure that any listed supplier provides prompt, courteous service. Science Buddies does participate in affiliate programs with Amazon.comsciencebuddies, Carolina Biological, and AquaPhoenix Education. Proceeds from the affiliate programs help support Science Buddies, a 501( c ) 3 public charity. If you have any comments (positive or negative) related to purchases you've made for science fair projects from recommendations on our site, please let us know. Write to us at scibuddy@sciencebuddies.org.

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Experimental Procedure

Note: Bio-Rad Kits are sold directly to schools. To purchase, please have your school contact Bio-Rad at 800-424-6723 to verify account information and to place the order for you. Existing accounts will have orders processed within a day, and establishing an account will take approximately 48 hours.

Preparing the Gel Box and Pouring the Agarose Gel

Before starting the project, read through the instruction manual that comes with the Bio-Rad kit. The procedure that you follow in this project will be slightly different from the one described in that manual, so do not be surprised when the procedure here is different. This procedure has been adapted to be more kitchen friendly and not require as many laboratory supplies. To start this project, you will assemble your gel box and pour the agarose gel.

  1. The hinged plastic box that comes with the Bio-Rad kit will be used as two gel boxes. Carefully separate the box bottom and top so that you have two gel boxes.
    1. Open the hinged plastic box and remove its contents.
    2. Gently pull the two halves of the box apart at the hinges, being careful not to crack or break either half. Do not worry if the hinge piece breaks off.
  2. Use the permanent marker to mark the gel boxes. You will be marking where to put the gel comb and where to cut the gel to insert the electrodes later.
    1. At the end where the hinges are, use the ruler and marker to make a mark 1 centimeter (cm) from the end. Do this on both sides of the hinged end, for each gel box.
    2. At the other end of the gel boxes (where there are no hinges), make marks at 1 cm and 3 cm from the end. Again, do this on both sides of the end with no hinges, for each gel box.
  3. Using the 50x TAE concentrate that comes with the Bio-Rad kit, make up 500 mL of 1x TAE buffer with distilled water.
    1. To a large glass jar (or other bowl/container if you do not have a jar), add 10 milliliters (mL) (or 2 teaspoons [tsp.]) of 50x TAE buffer.
    2. Then add 490 mL (or 2 cups) of distilled water to the jar.
    3. If the jar has a lid, put it on tightly and shake the solution to mix it. If it does not have a lid, use a stirrer to mix it.
    4. You now have a jar with 500 mL of 1x TAE buffer.
  4. Prepare enough 1% agarose solution (using the 1x TAE buffer) to make two agarose gels. To make a 1% agarose solution, use 1 gram (g) of agarose (included in the Bio-Rad kit) for every 100 mL of 1x TAE buffer. To make two agarose gels, make 120 mL of 1% agarose solution. How many grams of agarose will you need to make 120 mL of 1% agarose solution?
    1. From one of the wax-paper sheets, cut a square that is 8 x 8 cm.
    2. On top of the small wax paper square, slowly weigh out 1.2 g of agarose (1% of 120 = 1.2) on the digital scale, as shown in Figure 3 below. Add the agarose to the microwave-safe bowl.
      1. If you do not have a digital scale, measure about 1/3 tsp. of agarose and add it to the bowl.

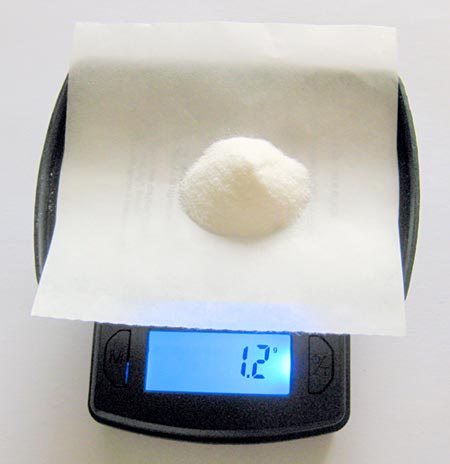

    3. Picture of a scale weighing 1.2 grams of agarose
Biotechnology science project
      Figure 3. Measure out 1.2 g (or approximately 1/3 tsp.) of agarose and add this to a microwave-safe bowl.
    4. Add 120 mL (or 0.5 cups) 1x TAE buffer to the bowl.
    5. Heat the agarose solution in the microwave to dissolve the agarose.
      1. Put a sheet of wax paper over the bowl, covering the entire top of the bowl. Fold the edge of the wax paper over the edge of the bowl slightly, to keep the wax paper in place.
      2. Microwave the solution for one minute.
      3. Put on oven mitts and slowly swirl the solution between your hands, being careful not to spill any of it.
      4. Continue microwaving the solution, stopping it every 20 to 30 seconds to swirl. If you see the solution bubbling, stop it and swirl it, or it may overflow.
      5. Stop microwaving the solution when all of the small transparent agarose particles have dissolved.
        • You will probably need to microwave the solution for anywhere from one and a half to three minutes before all of the agarose has dissolved.
    6. Tip: The agarose solution may have lost a little liquid due to evaporation during microwaving. Because the bowl was covered with wax paper, very little evaporation should have occurred, and this should not be a concern. However, if it looks like the agarose solution lost significant volume, you can pour distilled water into the bowl until it is at its original volume (120 mL) and try to re-microwave the agarose solution, repeating step 4d.
  5. In each gel box, put an 8-well comb (included in the Bio-Rad kit) between the 1 cm and 3 cm marks you made on one end in step 3.
    1. Make sure the comb is standing straight up, with the teeth facing down. Center the teeth of the comb so that they are not touching the box.
    2. Your box should now look like Figure 4 below.
Picture of gel box and comb.
Biotechnology science project
Figure 4. In each gel box, place the comb so that it is centered between the 1 cm and 3 cm marks (seen as black dots on the right side of the gel box) and the comb teeth are facing straight down.
  1. Carefully pour the hot agarose solution into each gel box.
    1. Fill each box with enough agarose solution so that it rises part of the way up the comb's teeth.
      1. In each box, you will probably use around half of the agarose solution you prepared.
      2. The more the teeth are covered with solution, the deeper the wells will be, and the larger amount of sample you will be able to put in the gel. However, if the gel is too thick, it may be hard to see your samples.
    2. Try to distribute the agarose solution evenly between the two gel boxes. This will make the gels similar in thickness.
  2. Wait for the gels to solidify. This will take about 10 to 20 minutes at room temperature.
    1. Tip: When the gel has solidified, it should be firm to the touch and a little cloudy, or a little opaque.
  3. When you are sure that the gel is completely set, gently pull the comb up and out of the gel. The wells that were made by the comb will serve as reservoirs for your samples.
  4. At the 1 cm marks you made on both ends of the box halves, use a plastic ruler, plastic knife, or butter knife to cut a slab off both ends of the gels. The cut should go from the 1 cm mark on one side to the same mark on the other side.
    1. Press directly down with the ruler or knife, going all the way through the gel and to the bottom of the box.
    2. Do not slice the gel, but pierce it multiple times across the width of the gel.
    3. Carefully lift the slab out and discard it.
    4. When you are finished, both gel boxes should be missing a 1 cm strip of gel at opposite ends.
  5. Add enough 1x TAE buffer to each gel box to just barely submerge the gel. You should be able to see slight indentations in the surface of the 1x TAE buffer on the top of the gel where some of the wells are.
    1. If there is too much 1x TAE buffer in the gel boxes, this could make it harder to load your samples into the gel. If so, pour the extra 1x TAE buffer back into your 1x TAE buffer container.
    2. If there is not enough 1x TAE buffer, an electric current will not be able to go through the entire gel. Add more buffer to barely submerge the gel.

Extracting Dyes from Candies

In this part of the science project you will extract dye from the candies you have selected to test.

  1. Decide on and select the colors of M&M's® and Skittles® candies you want to test.
    1. Include brown, yellow, blue, red, and green M&M's® or Skittles®, in addition to whatever other colors you want to test.
    2. For some of the colors you test, include both M&M's® and Skittles® of that color. For example, maybe test both green M&M's® and green Skittles®.
    3. You can test at least eight different candy colors.
    4. For each candy type and color you want to test, pick three. For example, if you want to test green M&M's®, pick three green M&M's®.
  2. Using the permanent marker, label plastic cups with the candy types and colors you selected.
  3. Using a medicine dropper, add 10 drops (approximately 0.5 mL) of the dye extraction solution (included in the Bio-Rad kit) into each cup.
  4. Place three of each kind of candy (which you picked in step 1d) into the appropriate cup.
  5. Swirl each cup a little.
    1. Make sure that all the candy pieces get some dye extraction solution on them.
    2. Swirl each cup multiple times until it looks like the color coating has dissolved off of the candies and you mostly see the white or brown layer below it. The cups can sit momentarily between each time you swirl them.
  6. If you are not going to perform your gel electrophoresis immediately, you can save the candy dyes to test later by pouring them into the microcentrifuge tubes included in the Bio-Rad kit. Be sure to label the tubes according to type of candy and color. Otherwise, go to the next section.

Agarose Gel Electrophoresis

In this part of the science project, you will run your extracted candy dyes on the gel electrophoresis apparatus you constructed. You will run these samples with the reference dyes to help you figure out what dyes are in your samples.

  1. Carefully unfold the four paperclips that came with the Bio-Rad kit so that each paper clip has a long flat section and a short piece sticking straight up on either end (one end piece will be slightly longer than the other). See Figure 5 below for how to do this.
    1. Make the long section as flat as possible.
    2. These paperclips will be your electrodes.

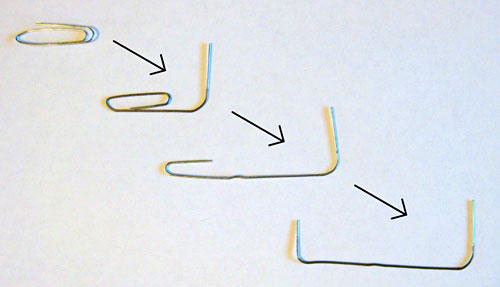

Picture of how to unfold a paperclip to make an electrode.
Biotechnology science project
Figure 5. Unfold the paperclips until each paperclip has a long flat section in the middle and a short piece sticking straight up on either end (one end piece will be slightly longer than the other).
  1. Place the flattened paperclips inside the gel boxes, with the end pieces sticking straight up. Put one on either end of each box.
    1. Place them as far from the gel as possible (close to the ends of the box).
    2. The slightly longer ends of the paperclips should be on the same side in each gel box.
  2. Tap each tube with the reference dyes (which came with the kit) firmly on a hard surface.
    1. This should help remove dye from the inside part of the lid of the tube, knocking it down into the rest of the dye. Keep tapping the tubes until the lids have very little, or no, dye on them.
    2. If you saved your extracted candy dyes in microcentrifuge tubes, tap these tubes too.
  3. In your lab notebook, make a table that shows the order in which you will load your samples into the gel, similar to Table 1 below. Include rows to record your observations.
    1. Make a separate table for each gel.
    2. For each gel you will load the four reference dyes and four samples.
      1. The four reference dyes are the four most commonly used food dyes: Blue 1, Yellow 5, Yellow 6, and Red 40. More information is available on these reference dyes in the instruction manual. You will be comparing the results using the reference dyes with the results using your samples. Doing this you should be able to figure out which of these common food dyes are used in your samples.
Well # 1 2 3 4 5 6 7 8
Dye Blue 1 reference dye Yellow 5 reference dye Yellow 6 reference dye Red 40 reference dye Yellow M&M® sample Blue M&M® sample Green M&M® sample Green Skittle® sample
Number of bands
Migration distance of each band (cm)
Color of the bands
Table 1. In your lab notebook, make a table like this one for each gel. Each gel will include four reference dyes and four samples. Make a table for each gel. (In your table write the names of your actual samples.)
  1. Using a medicine dropper, load your samples into each gel according to the table in your lab notebook.
    1. Well #1 should be on the far left, while well #8 should be on the far right.
    2. Load only a very small amount of dye into each well, less than one drop.
      1. Using the medicine dropper, suck up a drop or less of the dye, hold the dropper slightly compressed so that you do not suck up any air, and then squeeze out less than a drop into the well.
      2. If you release too much dye, it may leak into nearby wells and contaminate them with the wrong dye. If you do not release enough dye, your results may look faint.
      3. If you have any extra dye, squeeze it back out into the container it came from.
      4. If some dye leaks into a nearby well and contaminates it, make a note of this in your lab notebook.
    3. Fill a cup full with distilled water and between loading different samples rinse your medicine dropper out in the water, sucking in and squirting out water several times until the dropper looks clean.
      1. If you do not do this, you might contaminate wells with the wrong dye.
  2. Connect your 9-V batteries together in series by snapping the positive (+) terminal of one into the negative (-) terminal of another until you have formed a battery pack with all three or five batteries, as shown in Figure 6 below. There should be one positive and one negative terminal left exposed.
    1. You can run one gel with three to five batteries. Using three batteries should take at least 20 minutes to run. Using five batteries should take about 15 to 20 minutes.
    2. Note: Never use more than five batteries to run one gel. The apparatus is designed to work only at low voltages (≤45 volts; 45 volts is supplied by five 9-V batteries).
    3. If you do not want to wait until your first gel is done to start running the second gel, use 6 batteries total and run one gel with three batteries and the second with another three batteries.

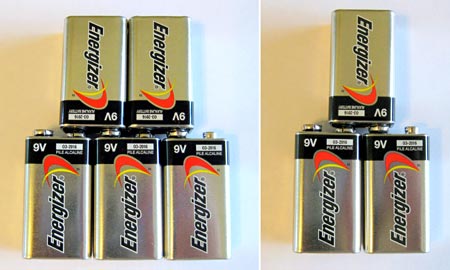

Picture of battery packs using 5 or 3 batteries.
Biotechnology science project
Figure 6. Form a battery pack using all three or five 9 V batteries, as shown here.
  1. Using the alligator clip leads, attach the battery pack to the paperclips (electrodes) in the gel box. The negative terminal of the battery pack should be connected to the electrode at the end of the gel box nearest the wells, and the positive terminal should be connected to the electrode farthest from the wells; you want the dye to migrate towards the positive terminal as the dye separates. When it is all connected, it should look similar to Figure 1 in the Introduction.
    1. As you connect the electrodes to the battery pack, make sure the flattened part of the electrodes stays submerged in the buffer, on the bottom of the gel box, with the ends of the electrodes above the buffer surface. Keep the electrodes as far away from the gel as you can.
      1. It may take some patience to keep the electrodes positioned so that they do not fall over when connected to the alligator clip leads.
    2. When the battery pack and electrodes are all properly connected, you should see bubbles forming around the electrodes in the buffer.
    3. If you do not see bubbles, recheck all your electrical connections. Make sure the batteries are properly placed in series, and that they are fresh and fully charged.
  2. Check on your gel in 15 to 20 minutes. Once you see good migration and separation of the dyes, you can stop the gel by disconnecting it from the battery pack.
    1. Note: For some of the dyes you should be able to see the dye separate into multiple distinct bands of color that make it up. Check that you see this before stopping the gel.
  3. Look at the results on your gel and fill out the data table in your lab notebook.
    1. The same dye in different samples should have the same migration distance of each band (as measured from the well to the band) and have bands of the same color. Knowing this and knowing what dyes are in the reference dyes, which dyes are used for each colored candy?
    2. Do some candies have multiple dyes? If so, do the different dyes they have make sense? Are you surprised by any of your results?
    3. Did the manufacturers of M&M's® and Skittles® use the same dyes to make the same colors?
    4. Which dyes do you think may be the largest, and which may be the smallest? Hint: Re-read the Introduction.
    5. If you see a dye for a candy that does not look like it matches any of the reference dyes (it is a different size and/or color), look at the ingredients on the packaging for that candy and think about what other dye it might be.
    6. If you have a camera, take a picture of your gel.
  4. Once you have finished running your first gel, repeat steps 3-9 with the second gel.
    1. If your electrophoresis chamber does not work as well as it did the first time, try replacing the batteries with fresh, fully charged ones. Running the electrophoresis chamber can drain the batteries.
  5. If you want to test more than eight samples, you can repeat this entire project. The Bio-Rad kit comes with enough supplies to run approximately eight gels total. At four samples per gel, this means you can run 24 more samples.

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Variations

  • What dyes do other kinds of candies use? Repeat this science project using candies other than M&M's® and Skittles® (such as Runts®, Reese's Pieces®, jawbreakers, Red Hots®, Hot Tamales®, or Mike and Ike®). Do all candies use the same dyes for the same colors, or do they use different dyes? Do any candies use dyes that are not among the four reference dyes in the Bio-Rad kit? How often does a candy use at least two different dyes?
  • Food dyes are added to many foods other than candies. Some other foods you could test with this science project include Kool-Aid® drink mixes and JELL-O® dessert mixes. Repeat this science project using these mixes (dissolve each in a little bit of distilled water). Which food dyes are used in the drink mixes? Do your results match the dyes listed on the packaging? If multiple dyes are used in a drink mix, is more of one of the dyes used than the other(s)?
  • What variables affect the rate of electrophoresis separation? There are many variables to explore. Several to start with might be the type of electrode, the amount of power, and the agar percentage of the gel.
  • Use your gel electrophoresis to determine if two different types of plants use the same molecules for pigment. To prepare your samples, take the flowers from each plant, grind them up, add a little bit of isopropyl alcohol, and continue grinding. Once the solids settle, pour the pigment-tinted alcohol from each flower into a separate container. Let most of the alcohol evaporate and then add a drop or two of your 1x TAE buffer solution to reconstitute the pigments from each flower.
  • How does the composition of the gel affect how your samples run? Make an agarose gel that is greater than 1%, and one that is less than 1%, then compare how the same samples run on the gels.
  • In this science project you used agarose in your gel electrophoresis, but can substances other than agarose, such as gelatin, also be used in gel electrophoresis? Try this project again using a gel made of 10% gelatin (12 grams of gelatin with 120 mL of 1x TAE buffer). How is doing the gel electrophoresis using gelatin different than using agarose? Does one seem to work better than the other? What other substances might work as well, or better than, gelatin and agarose in making a gel for gel electrophoresis?
  • The pH of a solution depends on how many hydrogen ions are present. You can do this science project and carefully measure the pH (using pH paper) near the positive electrode and the negative electrode while the gel is running. What is the pH at both ends? What does this say about the number of hydrogen ions at both ends? Can you make sense of your results?
  • This project uses a gel electrophoresis kit to explore dyes in foods, but you can do many other projects easily at home that explore gel electrophoresis or DNA, which is often investigated using gel electrophoresis. Here are some additional related Science Buddies projects:

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Ask an Expert

The Ask an Expert Forum is intended to be a place where students can go to find answers to science questions that they have been unable to find using other resources. If you have specific questions about your science fair project or science fair, our team of volunteer scientists can help. Our Experts won't do the work for you, but they will make suggestions, offer guidance, and help you troubleshoot.

Ask an Expert

Related Links

If you like this project, you might enjoy exploring these related careers:

biological technician working at laboratory bench

Biological Technician

What do the sequencing of the human genome, the annual production of millions of units of life-saving vaccines, and the creation of new drought-tolerant rice varieties have in common? They were all accomplished through the hard work of biological technicians. Scientists may come up with the overarching plans, but the day-to-day labor behind biotechnology advances is often the work of skilled biological technicians. Read more
forensic science technician analyzing samples

Forensic Science Technician

Guilty or not guilty? The fate of the accused in court lies with the evidence gathered at the crime scene. The job of the forensic science technician is to gather evidence and use scientific principles and techniques to make sense of it. It can be a grueling and graphic job, but very rewarding. If you like the idea of using science to help deliver justice, then you should investigate this career. Read more
clinical technician testing blood types

Medical & Clinical Laboratory Technician

Doctors need information to decide if a person is healthy or sick, if a baby's earache is bacterial or viral, or if the man next door needs medication to lower his cholesterol and prevent a heart attack. The information often comes in the form of results from lab tests. Medical and clinical laboratory technicians are the people who perform these routine medical laboratory tests, giving the doctors the information needed to diagnose, treat, and prevent disease. Read more
scientist performing experiments

Biochemist

Growing, aging, digesting—all of these are examples of chemical processes performed by living organisms. Biochemists study how these types of chemical actions happen in cells and tissues, and monitor what effects new substances, like food additives and medicines, have on living organisms. Read more

Looking for more science fun?

Try one of our science activities for quick, anytime science explorations. The perfect thing to liven up a rainy day, school vacation, or moment of boredom.

Find an Activity
