# Circles, Tangent Lines and Triangles

## Abstract

Here is a project that combines Computer Science and Mathematics. The semicircle has two tangent lines that meet at point*T*. You need to prove that a line drawn from

*A*to

*T*bisects

*CD*. You'll also learn how to create an interactive diagram to illustrate your proof, using an applet that runs in your Web browser. If you like solving problems and thinking logically, you'll like this project.

## Objective

The figure below shows a semicircle, with diameter *AB*. Two tangent lines are drawn: one which touches the semicircle at *B*, the other at any point, *C*, on the semicircle. A line, *CD*, perpendicular to *AB* is dropped from the tangent point *C*. The two tangent lines intersect at the point *T*. The objectives of this project are to:

- prove that the line
*AT*bisects*CD*, and - illustrate the proof with a dynamic figure created with the Geometry Applet.

## Credits

Andrew Olson, Ph.D., Science Buddies

## Cite This Page

### MLA Style

*Science Buddies*. Science Buddies, 7 Oct. 2013. Web. 10 Oct. 2015 <http://www.sciencebuddies.org/science-fair-projects/project_ideas/CompSci_p009.shtml>

### APA Style

*Circles, Tangent Lines and Triangles.*Retrieved October 10, 2015 from http://www.sciencebuddies.org/science-fair-projects/project_ideas/CompSci_p009.shtml

## Share your story with Science Buddies!

I Did This Project! Please log in and let us know how things went.Last edit date: 2013-10-07

## Introduction

**Important: You will need the current version of Java installed on your computer for this project.**If you do not have Java, some figures and images in this project may not display properly in your browser. To check for the current version of Java on your machine, visit Java.

This is an ancient problem in geometry, posed and proved by the great Greek mathematician Archimedes in his *Book of Lemmas*.

The figure below shows a semicircle, with diameter *AB*. Two tangent lines are drawn: one which touches the semicircle at *B*, the other at any point, *C*, on the semicircle. A line, *CD*, perpendicular to *AB* is dropped from the tangent point *C*. The two tangent lines intersect at the point *T*. The goals of this project are to:

- prove that the line
*AT*bisects*CD*, and - illustrate the proof with a dynamic figure created with the Geometry Applet.

*C*falls on the semicircle. Click and drag on the point to see for yourself!

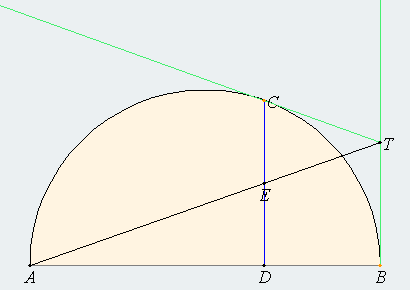

**Figure 1.**Prove that line

*AT*bisects

*CD*.

### Notes on How to Manipulate the Diagram

The diagram is illustrated using the Geometry Applet (by kind permission of the author, see Bibliography). If you have any questions about the applet, send us an email at: scibuddy@sciencebuddies.org. With the help of the applet, you can manipulate the diagram by dragging points.

In order to take advantage of this applet, be sure that you have enabled Java on your browser. If you disable Java, or if your browser is not Java-capable, then an image may display stating "This plugin is disabled" or the diagram may appear— but as a plain, still image.

If you click on a point in the diagram, you can usually move it in some way. The free points, usually colored red, can be freely dragged about, and as they move, the rest of the diagram (except the other free points) will adjust appropriately. Sliding points, usually colored orange, can be dragged about like the free points, except their motion is limited to either a straight line, a circle, a plane, or a sphere, depending on the point. Other points can be dragged to translate the entire diagram. If a pivot point appears, usually colored green, then the diagram will be rotated and scaled around that pivot point. (Note that diagrams will often use only one or two of the above types of points.)

You can't drag a point off the diagram, but frequently parts
of the diagram will be moved off as you drag other points around.
If you type **r** or the **space** key while the cursor is over the
diagram, then the diagram will be reset to its original configuration.

You can also lift the diagram off the page into a separate window.
When you type **u** or **return** the diagram is moved to its own window.
Typing **d** or **return** while the cursor is over the original window
will return the diagram to the page. Note that you can resize the floating
window to make the diagram larger.

To learn how to use the Geometry Applet to create your own dynamic diagrams, see: Getting Started with the Geometry Applet

## Terms and Concepts

To do this project, you should do research that enables you to understand the following terms and concepts:

- tangent line,
- right triangles,
- semicircle of a right triangle,
- intersection of a line with parallel lines,
- similar triangles.

### Questions

- If a line is tangent to a circle, what do you know about the relation between the tangent line and the radius of the circle drawn to the tangent point?
- What is special about a triangle inscribed inside a semicircle, with one side of the triangle equal to the diameter of the semicircle?
- Given a right triangle, if you drop a line from the vertex of the right angle, perpendicular to the opposite base, you create two new right triangles within the larger one. What is special about these triangles?
- If a line intersects parallel lines, what do you know about the angles that are produced?

## Bibliography

- The Math Forum at Drexel University has some good advice on how to build a mathematical proof:

http://mathforum.org/library/drmath/view/54693.html - There are many more examples in their FAQ section:

http://mathforum.org/dr.math/faq/faq.proof.html - For help with the programming the Geometry Applet, see:

Geometry Applet How-to Pages - The Geometry Applet was kindly provided to Science Buddies by its author, Professor David Joyce, who wrote it for illustrating an amazing online edition of Euclid's
*Elements*. Here are some specific references that you may find useful for this project:
