Make Your Own Low-Power AM Radio Transmitter

Time Required Average (6-10 days)
Prerequisites None
Material Availability Specialty items
Cost Average ($50 - $100)
Safety No issues


Have you ever wondered how an AM radio station works? In this project you will learn the basics of how your favorite songs are transmitted by a radio station, by building your own simple AM radio transmitter. You will learn the basics of how a transmitter works, and how you are able to tune to your favorite station and listen to music.


The goal of this project is to build a simple AM radio transmitter and to test its broadcast range with a radio receiver.


Written by Niraj Subba, AMD logo

Edited by Andrew Olson, Ph.D., Science Buddies


Cite This Page

MLA Style

Science Buddies Staff. "Make Your Own Low-Power AM Radio Transmitter" Science Buddies. Science Buddies, 14 Jan. 2015. Web. 28 May 2015 <>

APA Style

Science Buddies Staff. (2015, January 14). Make Your Own Low-Power AM Radio Transmitter. Retrieved May 28, 2015 from

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Last edit date: 2015-01-14


Electromagnetic radiation is all around us. For example, light is electromagnetic radiation and so are x-rays. When you listen to an AM or FM radio station, the sound that you hear is transmitted to your radio by the station using electromagnetic radiation as a carrier—radio waves. Electromagnetic radiation is a propagating wave in space with electric and magnetic components. In a vacuum, electromagnetic waves travel at the speed of light.

Electromagnetic waves such as light, x-rays, and radio waves are classified by their frequency or wavelength. For example, electromagnetic radiation at frequencies between about 430 terahertz (THz) and 750 THz can be detected by the human eye and are perceived as light. Electromagnetic radiation at frequencies ranging from 3 hertz (Hz) to 300 gigahertz (GHz) are classified as radio waves. Radio waves are divided into many sub-classifications based on frequency. AM radio signals are carried by medium frequency (MF) radio waves (530 to 1710 kilohertz (kHz) in North America, 530 to 1610 kHz elsewhere), and FM radio signals are carried by very high frequency (VHF) radio waves (88 to 108 megahertz (MHz)).

So how does a radio wave carry sounds such as voice or music to your radio receiver? The radio station broadcasts a carrier wave at the station's assigned frequency. The carrier wave is modulated (varied) in direct proportion to the signal (e.g., voice or music) that is to be transmitted. The modulation can change either the amplitude or the frequency of the carrier wave. The "AM" in AM radio stands for "amplitude modulation," and the "FM" in FM radio stands for "frequency modulation." A radio receiver removes the carrier wave and restores the original signal (the voice or music). Figure 1, below shows graphically how amplitude modulation works.

Elec science project Illustration of amplitude modulation of a carrier wave by a signal.
Figure 1. Illustration of amplitude modulation of a carrier wave by a signal. The top diagram shows a carrier wave at a set frequency and amplitude (green) and a signal to be broadcast (red). The signal is used to modulate the amplitude of the carrier wave. The bottom diagram shows the resulting output signal (blue). Note how the peaks of the output trace (its envelope) follow the form of the input signal. (Wikipedia contributors, 2006a)

In this project, you will make a simple low-power broadcast circuit, using a crystal oscillator integrated circuit and an audio transformer. You can connect the circuit to the headphone jack of a portable music player (e.g. mp3, CD or cassette tape player). You'll see that you can receive the signal through the air with an AM radio receiver. Although the circuits used in radio stations for AM broadcasting are far more complicated, this nevertheless gives a basic idea of the concept behind a broadcast transmitter. Plus it is a lot of fun when you actually have it working!

Terms and Concepts

To do this project, you should do research that enables you to understand the following terms and concepts:

  • Electromagnetic radiation and waves
  • Electromagnetic spectrum
  • Wave model
  • Speed of light
  • Wavelength
  • Frequency
  • Amplitude
  • Crystal oscillator
  • Transformer
  • Amplitude modulation
  • Heterodyne


This site has a cool way of explaining the electromagnetic phenomena of electromagnetic radiation and waves:

Another electromagnetic site:

Amplitude modulation:

Information on crystal oscillators:

Information on AM (medium wave) radio:

News Feed on This Topic

, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment

To do this experiment you will need the following materials and equipment:

  • Music-playing device with an audio output jack like a smartphone, mp3 player, or computer
  • Crystal oscillators (2), notes:
    • Each oscillator should be at a different frequency, within the AM broadcast band (0.53 to 1.71 MHz in North America, 0.53 to 1.61 MHz elsewhere). For use with the solderless breadboard in this project, you want the 'full can' package. For example:
    • 1 MHz oscillator available from Mouser Electronics
    • 1.2288 MHz oscillator available from Mouser Electronics
  • Solderless breadboard, available from Mouser Electronics
  • 1000 ohm to 8 ohm audio transformer, available from Mouser Electronics
  • 3.5 mm stereo phone plug, available from Mouser Electronics. Note: some older devices might have a mono audio output instead of stereo. If you are using a mono device, you will need a mono plug instead, also available from Mouser Electronics.
  • 1.5 V AA batteries (4)
  • Alligator jumpers, available from Mouser Electronics.
  • Jumper wires for breadboard. Various options for jumper wires are available from Mouser Electronics. You will only need a handful of wires for this project, but they come in handy for future electronics projects. This jumper wire kit is a good option that contains 70 wires of various lengths.
  • An AM radio for listening to your broadcasted signal

Disclaimer: Science Buddies occasionally provides information (such as part numbers, supplier names, and supplier weblinks) to assist our users in locating specialty items for individual projects. The information is provided solely as a convenience to our users. We do our best to make sure that part numbers and descriptions are accurate when first listed. However, since part numbers do change as items are obsoleted or improved, please send us an email if you run across any parts that are no longer available. We also do our best to make sure that any listed supplier provides prompt, courteous service. Science Buddies does participate in affiliate programs with Amazon.comsciencebuddies, Carolina Biological, and AquaPhoenix Education. Proceeds from the affiliate programs help support Science Buddies, a 501( c ) 3 public charity. If you have any comments (positive or negative) related to purchases you've made for science fair projects from recommendations on our site, please let us know. Write to us at

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Experimental Procedure

Note Before Beginning: This science fair project requires you to hook up one or more devices in an electrical circuit. Basic help can be found in the Electronics Primer. However, if you do not have experience in putting together electrical circuits you may find it helpful to have someone who can answer questions and help you troubleshoot if your project is not working. A science teacher or parent may be a good resource. If you need to find another mentor, try asking a local electrician, electrical engineer, or person whose hobbies involve building things like model airplanes, trains, or cars. You may also need to work your way up to this project by starting with an electronics project that has a lower level of difficulty.

Building the Circuit

Before we get into the step-by-step instructions for building the circuit, we'll first go over the circuit design and show you how the solderless breadboard works.

Figure 2, below, shows the connections you need to make to build the circuit. The transformer isolates the music player from the rest of the circuit, couples the music player and the crystal oscillator, and "steps up" the signal voltage from the music player in proportion to the ratio of 1 kilo-ohm to 8 ohms. The stepped up signal from the secondary coil of the transformer modulates the power to the oscillator chip (+ power at pin 14 and - power at pin 7). A wire connected to the oscillator output (pin 8) serves as the antenna for broadcasting the amplitude-modulated radio wave.

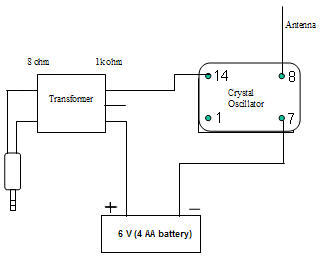

Simple AM transmitter circuit diagram.
Figure 2. Simple AM transmitter circuit diagram. The square corner of the oscillator corresponds to pin 1. The pins are numbered according to standard positions for a 14-pin integrated circuit.

Figure 3, below shows a small breadboard. The breadboard has a series of holes, each containing an electrical contact. Holes in the same column (examples highlighted in yellow and green) are electrically connected. When you insert wires into the holes in the same column, the wires are electrically connected. The gap (highlighted in orange) marks a boundary between the electrical connections. A wire inserted in one of the green holes would not be connected to a wire inserted in one of the yellow holes. Integrated circuits, such as the oscillator used in this project, should be inserted so that they span the gap in the breadboard. That way, the top row of pins is connected to one set of holes, and the bottom row of pins is connected to another set of holes. If the integrated circuit was not spanning a gap in the breadboard, the pins from the two rows would be connected together (shorted), and the integrated circuit wouldn't work. Finally, the two single rows of holes at the top and bottom (highlighted in red and blue) are power buses. All of the red holes are electrically connected and all of the blue holes are electrically connected. These come in handy for more complicated circuits with multiple components that need to be connected to the power supply. If you have never used a breadboard before you may want to take a look at a beginning breadboard activity, Electronics Primer: Use a Breadboard to Build and Test a Simple Circuit, before you start this science project.

Now let's build the circuit!

  1. Connect the terminals of the phone plug to the 8 ohm side of the transformer. You can either use alligator clips or a soldering iron to do this. See Figure 4 below for an example.
    1. Note: a stereo phone plug has three cables, two for signals (left and right audio channels) and one for ground. The audio wires are covered in colored plastic insulation, and the ground wire has no insulation. You should connect the ground wire and one of the audio wires to the transformer. Leave the second audio wire disconnected. Figure 4, below, shows a mono phone plug, so there are only two wires.

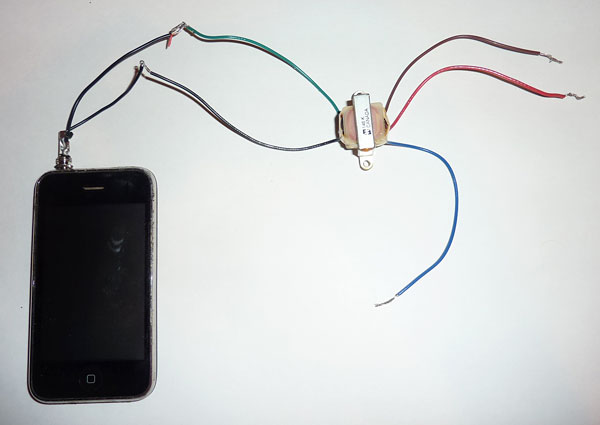

Elec science project phone plug and transformer connected during building of AM radio transmitter
Figure 4. The terminals of the phone plug should be connected to the 8 ohm side of the transformer either by soldering or using alligator clips. In this picture the phone plug has also been plugged in to an iPod. The iPod serves as a music source.

  1. Insert the 1 MHz oscillator across the gap in the breadboard, so that pins 1 and 7 are on one side of the gap, and pins 8 and 14 are on the other. You can identify pin 1 of the oscillator because it is next to the square corner (the other three corners are rounded). Be careful not to bend the pins. See Figure 5 below.

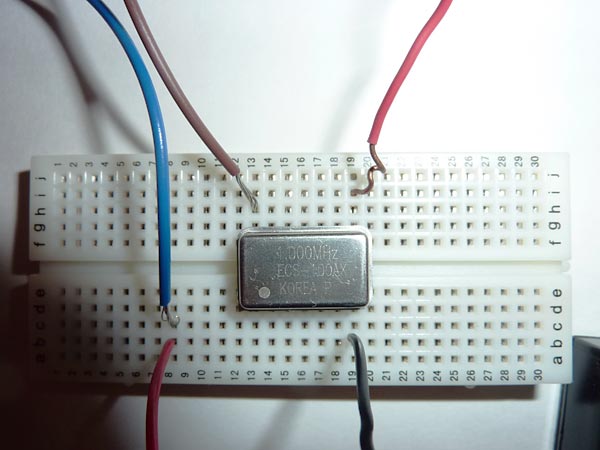

Elec science project oscillator connected to breadboard during building of AM radio transmitter
Figure 5. The oscillator should be inserted across the gap in the breadboard.

  1. Use the breadboard to connect the positive and negative terminals of the battery holder and the 1000 ohm side of the transformer as shown in the diagram and in Figure 6 below. Note that the 1000 ohm side of the transformer has a center tap which is not used in this project.

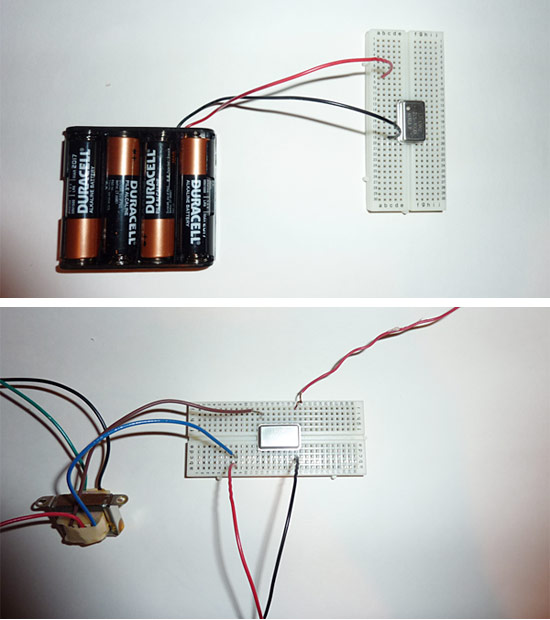

Elec science project
top: battery holder connected to breadboard during building of AM transmitter
bottom: completed circuit for AM radio transmitter
Figure 6. The positive and negative terminals of the battery holder are connected to the breadboard (top). Then the 1000 ohm side of the transformer is wired into the breadboard and the antenna jumper wire is added (bottom).

  1. Connect a long jumper wire to the output of the crystal oscillator (pin 8). This will serve as the antenna. See Figure 6 above.
  2. Double-check to make sure that all of your connections correspond to the circuit diagram.
  3. Figure 7, below, shows a photograph of the completed setup including an iPod for generating the music and an AM radio receiving the signal.

Elec science project
completed experimental setup for AM radio transmitter testing
Figure 7. The completed circuit looks like this. In order to test the circuit you will need to connect the phone plug to a music source, for example an iPod as shown here, and use an AM radio to receive the signal.

Experimenting with the Circuit

Now that you have built the circuit, here is the fun part—experimenting with it!

  1. Connect the phone plug to the output (headphone) jack of your mp3 or CD player and tune your AM radio to 1 MHz. Bring the antenna within an inch of your radio antenna. Can you hear the music that you are playing on your mp3 or CD on the radio?
  2. Now tune your AM radio to a different frequency say 700 kHz. Can you still hear your music?
  3. Tune your radio back to 1 MHz where you can hear your music. But this time remove the 1 MHz crystal oscillator and in its place put the 1.2288 MHz oscillator. Can you still hear your music?
  4. Without changing the oscillator back to 1 MHz, instead tune your radio now to 1.23 MHz. Can you hear your music?
  5. Use 1 MHz crystal oscillator and tune your radio to 1 MHz. Adjust the volume control of your mp3 or CD player, is there any change in the quality of the sound you hear in your radio?
  6. Until now you have kept your antenna within an inch of your radio antenna, now move your transmitter's antenna further away slowly and hear what happens. Does the quality of your sound improves or gets worse? Why?
  7. Rotate the radio receiver antenna relative to your transmitter's antenna (or vice versa). Does this affect the quality of the sound? Why?
  8. Try using a longer wire for the antenna. Does this affect the quality of the sound? Does this affect the broadcast range for your transmitter? Why?

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


  • Try receiving the signal from your AM transmitter with a crystal radio that you build yourself. You can explore how the relative placement of the receiving and transmitting antennas affects signal strength at the receiver. To see how to build a crystal radio receiver, see the Science Buddies project Build Your Own Crystal Radio.
  • Try using a 9 V transistor radio battery instead of 4 AA batteries. What differences do you notice in the signal?
  • Advanced. If you have access to oscilloscope in school, try to see the signals coming out from the antenna with your mp3 turned OFF and then ON. Also connect the +6V of the battery directly to the oscillator bypassing the transformer and look at the signal. What difference or similarities do you see between these three signals?
  • Advanced. This is an extremely rudimentary transmitter and therefore the sound quality is not going to be good. However, you could add more blocks to the present circuit and make improvements. What could you possibly add to the present circuit so that you are able move your antenna further away from your radio and still hear the music? For a slightly more complex circuit, try the following link: Bowden, B., 2006. "Micro Power AM Broadcast Transmitter," Bowden's Hobby Circuits [accessed August 1, 2011] How does this circuit compare to the simpler one in the project? How does the broadcast range compare? Can you relate the difference in performance to the difference in the circuits?
