Smart Medicine Cabinet: Build a Sensor That Reminds Patients When to Take Medication *

Time Required Short (2-5 days)
Prerequisites None
Material Availability If you decide to extend the sensor project, you will have to purchase a microcontroller board and LEDs.
Cost Average ($50 - $100)
Safety Always wear safety goggles when operating and using tools. Adult supervision is recommended.
*Note: This is an abbreviated Project Idea, without notes to start your background research, a specific list of materials, or a procedure for how to do the experiment. You can identify abbreviated Project Ideas by the asterisk at the end of the title. If you want a Project Idea with full instructions, please pick one without an asterisk.


Have you ever had to take prescription medicine to get over an illness? To get better, it is important to take the medication in the proper manner and at the proper time. Wouldn't it be cool if there were a tool or piece of automated equipment that held your medicine and reminded you to take it? A tool that would know when you picked up the bottle and took your medicine? Building a smart medicine cabinet is what this science project is all about!


Michelle Maranowski, PhD, Science Buddies

This science project is based upon the following Clever Scientist award-winning project: Balasingam, Arjun. (2010). Smart Medicine Cabinet: Using Homemade Sensors, a Microcontroller, and a Laptop to Help Patients Take Their Medicines on Time.

Cite This Page

MLA Style

Science Buddies Staff. "Smart Medicine Cabinet: Build a Sensor That Reminds Patients When to Take Medication" Science Buddies. Science Buddies, 24 Oct. 2014. Web. 25 Oct. 2014 <http://www.sciencebuddies.org/science-fair-projects/project_ideas/Elec_p067.shtml?from=Blog>

APA Style

Science Buddies Staff. (2014, October 24). Smart Medicine Cabinet: Build a Sensor That Reminds Patients When to Take Medication. Retrieved October 25, 2014 from http://www.sciencebuddies.org/science-fair-projects/project_ideas/Elec_p067.shtml?from=Blog

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Last edit date: 2014-10-24


Making a new tool can be a daunting experience, but if you think about it in pieces, it becomes more manageable. For example, the medicine cabinet should contain some kind of sensor that senses when the medicine bottle has been picked up. It should have a microcontroller that monitors the "pickups," and a computer that takes input from the microcontroller and issues information and alerts.

This science project can be as simple or as involved as you'd like it to be. You could simply demonstrate a sensor that registers when a medicine bottle has been placed on it. Or add to the sensor by attaching a microcontroller, an Getting Started with Arduino would be a good choice, that interfaces with a computer. Then you could write a computer program that displays instructions to the user to remind him or her of the medication schedule. An interface would allow the user to input the medication schedule and signal to the user that it is time to take a medication. Finally, you could add LEDs (light emitting diodes) that act as indicators to the user.

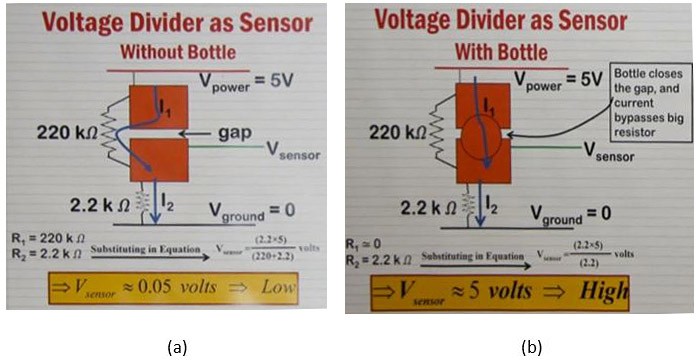

Regardless of how complex you decide to make this science project, the first step is to build an electrical sensor that senses when a medicine bottle has been picked up or placed on it. This sensor should be based on a voltage divider. A voltage divider is a circuit that is used to supply a voltage that is different than the available battery or power supply. Figure 1, below, shows the sensor circuit in two modes. The red squares are conductive metal pads. Figure 1.a. shows the sensor when there is no bottle in place. Here, since there is no connection between the metal pads, current moves through the two resistors (the voltage divider). Figure 1.b. shows the sensor when a bottle is in place. In this case, the bottle bridges the gap and current flow is through the metal pads and the lesser of the two resistors. If you decide to stop with building the electrical sensor, then you will need a digital multimeter to monitor the voltage change (if you need help using a multimeter, check out the Science Buddies Multimeter Tutorial).

Electricity Science fair project These diagrams illustrate one way the smart medicine cabinet sensors could  function.

Figure 1. These diagrams illustrate one way the smart medicine cabinet sensors could function. (1.a.) The sensor without the bottle. (1.b.) The sensor with the bottle. (Courtesy of Arjun Balasingam and Wen Phan, 2010.)

If you would like to extend the science project with a microcontroller board, you can learn more about the Arduino Uno, a popular microcontroller, on the Science Buddies Getting Started with Arduino page. The tutorial will step you through how to buy and set up an Arduino.

Building a smart medicine cabinet might sound complicated, but remember, every big project can be broken down into smaller more manageable pieces! And this is a project that could certainly be a big help to you or to anyone you know who is taking medication.


If you need clarification on electronics terminology, take a look at Science Buddies' electronics primer. The following is a link to the Introduction. At the bottom of the Introduction are links to other helpful pages.
