Here Today, Gone Tomorrow: Saving Migratory Animals

Difficulty
Time Required Short (2-5 days)
Prerequisites None.
Material Availability This science project requires a computer you can use to download and save data sets, and install Google Earth, a free mapping program. See the Materials and Equipment list for details.
Cost Very Low (under $20)
Safety No issues

Abstract

Extinct might be a word you associate with animals that lived long ago, like the dinosaurs, but did you know that over 18,000 species are classified as "threatened" (susceptible to extinction) today? Scientists involved in wildlife conservation have a tough job; they're in charge of determining what needs to be done to prevent a species from becoming extinct. Habitat, food supply, and impacts of local human populations are just a few of the factors these scientists take into account. It's a lot to keep track of for a single location, but the job becomes even harder when it's a migratory animal. In this science project, you'll get a firsthand look at their job. You'll access real data about migratory birds and use satellite images to analyze their habitats, then come up with a conservation plan to protect the species from extinction.

Objective

Determine the migratory path for a bird species and investigate whether the habitats in its summer and winter locations are similar or different. Based on this information, come up with a recommendation for which locations should be conserved to protect this species.

Credits

Dr. Roland Kays, Dr.Stephen Blake, Sebastian Cruz, Dr. Wolfgang Fiedler, Dr. Bart Kranstauber, Carolina Proanio, Rolf Weinzierl, Dr. Martin Wikelski, and the MIGRATE NSF RCN, in conjunction with Sandra Slutz, PhD, Science Buddies

Cite This Page

MLA Style

Science Buddies Staff. "Here Today, Gone Tomorrow: Saving Migratory Animals" Science Buddies. Science Buddies, 11 Oct. 2014. Web. 23 Oct. 2014 <http://www.sciencebuddies.org/science-fair-projects/project_ideas/EnvSci_p057.shtml?from=Blog>

APA Style

Science Buddies Staff. (2014, October 11). Here Today, Gone Tomorrow: Saving Migratory Animals. Retrieved October 23, 2014 from http://www.sciencebuddies.org/science-fair-projects/project_ideas/EnvSci_p057.shtml?from=Blog

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Last edit date: 2014-10-11

Introduction

Did you know that the United Nations estimates that the worldwide human population will increase from 6.5 billion in 2009 to 8 billion people by 2025? As the human population increases, so does the sheer amount of land needed to support all these people. Existing cities grow larger, build taller, and spread into the countryside. Transportation infrastructures like roads, railways, and shipping routes are added, and more farmland is required to feed the population. These changes often mean taking existing wilderness—like a forest, field, or jungle—and converting it into either agricultural or urban land. But there can be environmental consequences to those actions. For example, if you take away the only habitat that sustains a particular animal, that animal might die off if it is unable to adapt to a different habitat. Collaborations between urban planners, environmental scientists, and wildlife biologists can be helpful in avoiding these types of consequences and determining which lands can be developed with the least impact on the animals and plants.

In this science project, you'll determine which locations would need to be conserved in order to protect a specific migratory bird species. The migration, or regular seasonal journey between two or more areas, takes birds from their breeding grounds to their wintering grounds, and then back again, every year. Some species fly almost nonstop between their breeding and wintering grounds, while others have stopovers. Stopovers are pit stops for a bird to rest and eat before continuing its journey. They're analogous to stopping at a rest stop to stretch your legs, eat some lunch, and fuel up the car before continuing on a long road trip. Migratory birds—or for that matter, all animals that migrate—are harder to protect than nonmigrants. Why? Because you need to protect at least two major locations, the breeding and wintering grounds, as well as the migration corridor. Since the locations can be literally thousands of miles apart, it might require international cooperation.



Female Kirtland's warbler sitting in pine treeGoogle Earth map showing Kirtland's warbler migratory route

Figure 1. The Kirtland's warbler ( Dendroica kirtlandii), is a critically endangered North American songbird. It breeds in Michigan and then travels over 1,200 miles south to its wintering grounds in the Bahamas. Saving this warbler from extinction requires cooperation from local governments in Michigan and in the Bahamas. (Kirtland's warbler photo by Dominic Sherony, 2009.)



In order to protect migratory birds, it is important to identify and evaluate all the locations that are relevant to the birds: the breeding ground, stopover sites, and wintering grounds. Where are these sites? If there are stopover sites, are they unique to individual birds or are they common to the species? Do the birds use the same habitats in both the breeding and wintering grounds? What about the habitats of the stopover sites? In this science project, you'll use real bird tracking data to explore these questions for one bird species, and then use those answers to make a recommendation about which lands should be conserved in order to protect the species. You'll access the data through Movebank, an archive of animal movement data collected by scientists in the course of their studies. Many scientists have agreed to share their real data with Science Buddies for you to analyze. You'll be using the same data that scientists are using in their own experiments!

Some of the most important data that scientists who focus on migratory animals collect is where the birds are, and when they are there. This type of information is called spatio-temporal data where spatio refers to the space or location of the bird and the temporal information is the time (month, day, hour) that the bird was determined to be at that specific location. To collect this data, scientists put tracking tags on birds. The three most commonly used tags to track migratory birds are banding, global positioning system (GPS) tags, and Argos Doppler tags. Table 1, below, shows the different advantages and disadvantageous of the three tagging systems.



Type of Tag Description Advantages Disadvantages

Band or ring

European robin being banded

small band is being carefully closed around this European robin's leg. (Photo courtesy of Wolfgang Fiedler©.)

A physical tag, with no electronic components, that is attached to the animal. Each individual has a unique number code on its band.

These tags are inexpensive, and can be attached by trained volunteers, making it easy to tag many individual birds.

These tags can be lightweight enough for even the smallest animals, like hummingbirds.

Collecting information requires someone to physically make an observation that a banded animal is at a specific location and report that data back to the banding center indicated on the tag.

GPS

Toucan with GPS tag on its back
A GPS tag attached to the back of a toucan. (Photo courtesy of Martin Wikelski©.)

An electronic tag where the tag itself calculates, using GPS technology, the exact location of the animal at specific time intervals.

These tags convey the most precise time and location data and do not rely on a person to make a physical observation.

Tags are expensive and cannot be attached by volunteers; this limits the number of individual animals tagged in a study.

Compared to Argos Doppler tags, they might have shorter working life spans.

Argos Doppler

European Cuckoo with a 5gm Argos Doppler tag
A 5-gram Argos Doppler tag on a European cuckoo. (Photo courtesy of Roine Strandberg©.)

An electronic tag that transmits signals to the Argos satellite at specific time intervals. The satellite then calculates the geographic location based on the tag signal.

These tags convey time and location data and do not rely on a person making a physical observation.

These are the smallest electronic tags that are currently available and can be used for smaller animals.

Tags are expensive and cannot be attached by volunteers; this limits the number of individual animals tagged in a study.

The geographic location data is less precise than with a GPS tag.

Table 1.


The Experimental Procedure, below, will show you how to access the spatio-temporal data stored in Movebank and then use Google Earth to map the migratory paths of individual birds. From the map you can identify the breeding, stopover, and wintering sites, and classify the habitats at each of those locations. Who knows, what you find out might someday help save a bird's life!

Terms and Concepts

  • Habitat
  • Migration
  • Area
  • Wintering grounds
  • Breeding grounds
  • Spatio-temporal data
  • Animal tracking tags
  • Boundary
  • Wildlife conservation plant

Questions

  • How do scientists attach tracking tags to animals?
  • What types of data do tracking tags give scientists?
  • Why do animals migrate?
  • What are the criteria for classifying an animal as endangered?
  • What kind of information do scientists need in order to come up with a wildlife conservation plan?
  • According to your background reading, in what habitat(s) does the bird species you've chosen to study for this science project live?

Bibliography

For more information about what a wildlife conservation plan is look through this website:

Additional information about how bird migrations are tracked can be found at:

A Movebank tutorial is available at:

Help information for Google Earth can be found here:

The human population figures in the Introduction came from this source:

Materials and Equipment

  • Computer with the following requirements:
    1. Internet access
    2. A spreadsheet program, such as Microsoft® Excel®
    3. Permission to download a free version of the Google Earth software
  • Lab notebook

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Experimental Procedure

In this science project, you'll download real bird migration data from Movebank.org. Then you'll look at the migration route in Google Earth and analyze the habitats that the birds are using to determine which lands need to be conserved to protect the species.

Setting Up and Downloading the Migration Data

  1. To do this science project, you'll need to install Google Earth on the computer you are using. Google Earth is a program that allows you to map locations and look at satellite images of places all around the world. Be sure you have permission to do this from the computer's owner before beginning.
    1. A free version of Google Earth can be downloaded from http://earth.google.com/
    2. You might find it useful to try one of the tutorials or consult the Google Earth User's Guide to familiarize yourself with Google Earth. The Google Earth general help page, http://earth.google.com/support/ is a useful starting point if you have questions about how to use different parts of the program.
  2. Next, you'll need to decide which species you're interested in studying for this science project. Table 2, below, shows a list of species that have available data sets suitable for this project. Additional species data sets on Movebank might also work for this project, but the ones listed in Table 2 are the only ones that have been tested.


Species Name Study Name
Swainson's Hawk (Buteo swainsoni) Swainson's Hawks
Turkey Vulture (Cathartes aura) Turkey Vulture Acopian Center USA GPS
Golden Eagle (Aquila chrysaetos) Golden Eagle Migration, Denali, Alaska, McIntyre
Osprey (Pandion haliaetus) NYS DEC Raptor Tracking

Table 2. The above Movebank data sets will work for this science project. New data sets are continually added to Movebank and some of those might also work, but you'll need to determine this for yourself. Tip: Make sure that the satellite views on Google Earth have the necessary resolution for you to evaluate the habitat. Not all parts of the world are available at the same resolution.


  1. Once you've decided on a species, go to www.movebank.org to access the data. You'll need the study name, listed in Table 2, to find the data. Follow the instructions in the Science Buddies guide to Using Movebank for Science Projects to open the Google Earth file containing the migration path of the species in which you're interested.

Identifying the Migration Path and Bird Habitats

  1. Once the Google Earth file has opened, you'll see location points (dots) connected by migration tracks (lines). Each animal in the study will have a single color. All the dots corresponding to the location of a specific animal will be in the same color. In Figure 2, below, the migration paths of two birds are shown. One bird's data is color-coded orange and the other is color-coded blue.
    1. Note: The location points mark coordinates reported by the bird's tag. The tracks are generated by making the shortest possible line between the two location points that are closest together in time. The tracks are the "best guess" of the path the birds took, but only the location points are precise data.


Google Earth image of the migratory track of two ospreys

Figure 2. Partial view, in Google Earth, of the migratory track of two ospreys. The dots show locations where they were tracked using Argos Doppler tags. The lines connect temporally sequential locations in an approximation of the bird's flight path. (Data shown here was collected by Nye, P. and accessed through Movebank.)



  1. Not all the tracks in a study might be good for analysis. Some tracks might have ended prematurely if the tag fell off the animal, if the animal died, or if the tag stopped functioning for technical reasons. Choose a good track for your analysis.
    1. Look at each track individually. To do this in Google Earth, go to the menu on the left-hand side of your screen. Under "Places" you'll see the study data. It'll have a name like "study_[some number].kmz". To see the different birds in the study, click the box with a plus (+) next to the study's name. Now you'll see a separate ID for each bird. Click the box next to the bird's ID to select (box is checked) or un-select (box is un-checked) each bird. See Figure 3, below, for details. Bird tracks with selected (checked) IDs will be displayed on the map.
      • Make sure the track visually appears complete.
    2. Underneath each bird's ID in Google Earth are the number of location events (n) recorded for that bird and the time span over which the data was collected. For example, in Figure 3, 88 locations were recorded from bird 3H's Argos tag from July 10, 1999 through September 4, 2000. The best tracks for analysis will:
      • Span a year, or more, of time, thus giving you a view of where the bird is throughout the entire year.
      • Have a normal or high number of recorded location events compared to other birds in the study.
      • Write down in your lab notebook the tracks you consider to be complete and good for analysis.


Google Earth screenshot

Figure 3. In this case, birds 3H and 3K are selected (checked) and their tracks would be displayed on the map. Bird 3D would not be displayed because its ID has not been selected.



  1. Once you have a list of good tracks for analysis, take a careful look at the first one using Google Earth. Determine where the wintering and breeding grounds are, and where the migratory path is.
    1. Look for places on the map with relatively dense clusters of location points on either end of a migratory route. These are the wintering and breeding grounds. Write down all your assumptions and your final decision in your lab notebook.
    2. If you click on a location point, it'll tell you more information about that point, including the timestamp. The timestamp is when the tag recorded the bird at that location. Using the timestamps determine:
      • Which is the wintering ground and which is the breeding ground. Hint You might need to research something about the climate at each location during different times of the year.
      • Approximately how long the bird spent at each location and how long it spent migrating.
    3. Using the polygon tool in Google Earth, you can draw the boundaries for the summer and wintering grounds. The tool will then calculate the area for each. How large is the bird's wintering grounds? How about its breeding grounds?
      • To learn how to use the polygon tool, consult the Google Earth's help page on Drawing Paths and Polygons.
      • You can also measure the total length (in miles or kilometers) of the migratory path.
  2. Look at the migratory path and determine if there are any stopover sites along the migratory path. Remember, stopover sites are places where the bird spends a longer amount of time refueling and resting so that it is ready to continue on its migration.
    1. Some birds engage in stopover behavior and others don't. The bird whose data you are analyzing might or might not, you'll have to look at the data and decide for yourself. You'll create your own criteria for evaluating whether somewhere is a stopover site or not.
      • One indicator of a stopover site might be a denser cluster of location points. If a bird is staying in a smaller geographic region for a day or more, this might be a stopover. You'll need to evaluate it in the context of the larger migration pattern to be sure.
    2. Write down in your lab notebook the criteria you use to evaluate what is and isn't a stopover site. Make sure you apply this same criteria at each location you evaluate in the migratory path.
  3. Once you've identified the wintering grounds, breeding grounds, and stopover sites (if there are any) for that bird's track, you're ready to determine what the habitat is like at each of these locations. The first step is to decide what variables you'd like to evaluate to describe the habitats. You can choose any combination of variables you think are important. Try to choose at least two or three variables. Below you can see an example of three variables that can be used in combination to describe the type of land, and how much impact humans have on the local environment. Table 3, below, provides an example of the type of categories and measurements you could make for each variable.
    1. Land use: For what does the land appear to be used?
    2. Number of buildings: The greater the number of buildings, the greater the human impact.
    3. Roads: These are another form of human impact.


Land Use Buildings Roads
Urban (e.g. many houses or a city) None (0) Absent (0)
Agricultural (e.g. farm land) Scattered Present (1 or more)
Forest Moderate (10–100)
Grass/Shrublands Intense (>100)
Water (e.g. pond, lake, or ocean)

Table 3. Here are three possible variables that can be used to describe the habitat. The options for each variable are listed in descending order of human impact. For example, a natural setting with no buildings or roads would have the least human impact, while an urban setting with intense building coverage and roads would have the most human impact.


  1. Pick five representative data points at each of the locations (if there are not five points available, then choose as many as are available). For each of these location points, complete these steps:
    1. In a data table in your lab notebook, record whether the location is representative of wintering grounds, breeding grounds, or a stopover site.
    2. Double-click on the location point to center it in your map view. Continue to zoom in or out until you're viewing the satellite image from an eye altitude of approximately 1 kilometer (km) (3,280 feet). Eye altitude is displayed in the lower right-hand corner of the Google Earth screen; see the red circle in Figure 4 for a visual reference.

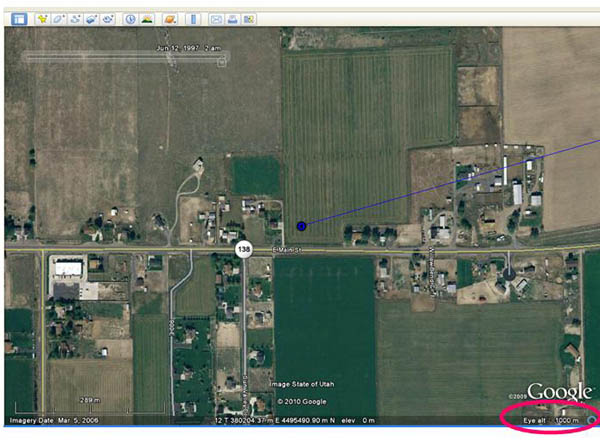

      Google Earth satellite image of bird breeding ground

      Figure 4. The image is centered on a breeding ground location (blue dot) at an eye altitude of 1 km (circled in pink). This habitat would be classified as agricultural, with roads, and moderate building coverage.



    3. Look at the picture and categorize the habitat according to the variables you defined in step 5. Enter your findings into a data table in your lab notebook.
      • Note: Google Earth will automatically show you the most recent satellite imagery for a location. However, if the bird tracking study took place several years ago, the habitat might have been different then. To ensure that your image analysis is as accurate as possible, use the historical image button to find a satellite image that is closest in time to the date of the migration study. For more information about using the historical image button, see Figure 5 below, and Google Earth's article about historical imagery.


Screen shot of how to access Google Earth historical satellite images

Figure 5. Historical satellite images can be accessed by clicking the button with the clock icon (circled in pink). Use the slider to find the satellite image that was captured as close to the date of the migration study as possible.



  1. Repeat steps 3–6 for the other good bird migration tracks. You should analyze a minimum of three bird tracks.

Analyzing the Habitat Data

  1. For the first bird track you evaluated, graph the habitat data for the wintering grounds. Create a pie chart for each variable you scored. For example, if you scored land use, number of buildings, and presence or absence of roads, you'd create three pie charts. See Figure 6, below, for an example.


Example pie charts of habitat data

Figure 6. These pie charts are examples of the types of graphs you'll create for each bird, at each habitat (wintering, breeding, and stopover).



  1. Create similar pie charts for the breeding grounds and stopover locations (if there are any).
  2. Looking at one variable at a time, compare each of the habitats. Write down your observations in your lab notebook. For example, compare land use at the breeding, wintering, and stopover areas. Are they similar? Does the bird show a strong preference for one type of habitat versus others at any of the locations?
  3. Repeat steps 1–3 for each bird track you evaluated.
  4. How similar or different are the habitat choices of the individual birds. Can you make any general statements about the habitat needs of the species?
  5. Based on your conclusions, what types of land need to be conserved to preserve the species? What kind of land use and human impact may be tolerated by the species?

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Variations

  • The Experimental Procedure above relies on categorical data to draw conclusions. Can you think of a way to convert the categorical data into quantitative data and assign a human impact value to the various locations?
  • Compare different migratory bird species. Do they use similar or different habitats? Do they have the same range of tolerance for human impact, or are some more adaptable?
