The Physics of Baseball and Hit Charts

1
2
3
4
5
50 reviews

Abstract

In baseball, coaches use hit charts to track the results of every hit each player makes, giving a measure of the player's performance. Have you ever wondered what things affect where a baseball goes when a player hits it with a bat? In this project you will set up an experiment to hit a ping pong ball in a controlled manner using a toy catapult, then learn about the physics of baseball by making your own hit chart.

Summary

Areas of Science
Difficulty

Time Required
Very Short (≤ 1 day)
Prerequisites
To do this project, you should understand what a coordinate system is and know how to make a simple scatter plot.
Material Availability
This science project requires a kit available from our partner Home Science Tools. See the Materials section for details.
Cost
Average ($40 - $80)
Safety
Never launch projectiles at people or animals. Be careful not to get your fingers caught in the moving parts of the catapult.
Credits

Ben Finio, Ph.D., Science Buddies

  • Excel is a registered trademark of Microsoft Corporation.

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.

View Kit

Objective

Use a toy catapult to swing a baseball "bat" (wooden dowel) at a ping pong ball in a controlled manner, and measure how different variables affect where the ball lands.

Introduction

In baseball, coaches use a hit chart (also called a spray chart) to keep track of where a player's hits are fielded by a player on the opposite team, along with other information about the hit (for example, the type of pitch, or the result of the hit). You can find hit charts for different players, stadiums, and seasons on a variety of baseball websites — Figure 1 shows some examples.

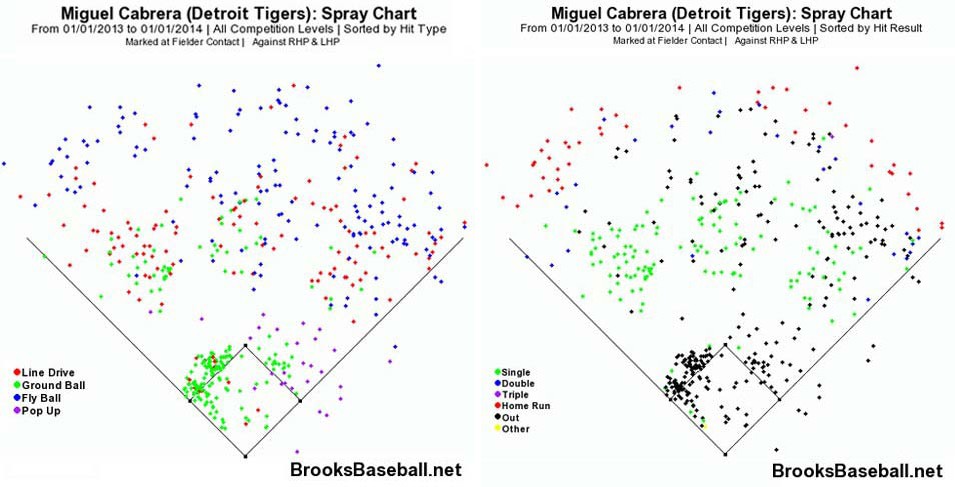

Hit chart in baseball shows how balls were hit and the resulting runs

Spray charts for Miguel Cabrera of the Detroit Tigers. The left chart shows hits by hit type: Line drive (red), ground ball (green), fly ball (blue), and pop up (purple). The right chart shows hits by hit result: single (green), double (blue), triple (purple), home run (red), and out (black).


Figure 1. Two examples of a hit chart for a single player (Miguel Cabrera). Each dot represents where a player on the opposite team fielded the ball, not where it landed. In the chart on the left, the dots are color-coded by hit type (line drive, ground ball, fly ball, pop up), and in the chart on the right, they are color-coded by hit result (single, double, triple, home run, out, other). (BrooksBaseball.net, 2013)

Baseball is a great example of the science of projectile motion, or the study of how an object like a ball moves through the air when it is launched (or thrown, or hit with a bat). Projectile motion lets you predict a ball's trajectory, or the exact path the ball will take through the air and where it will land. A ball's trajectory is influenced by forces like gravity and air resistance. In baseball, many other factors determine a ball's trajectory and where it will eventually land, where a player catches it, or where it comes to a stop — like the type of pitch, how hard and in what way the batter swings the bat, and whether the ball bounces or rolls on the ground after landing, just to name a few.

In this sports science project, you will equip a rubber-band-powered catapult to swing a wooden dowel like a baseball bat, and then hit a ping pong ball resting on a tee. Over many trials, you will measure the distance of where each ball comes to a stop and use this information to plot your own hit chart. Figure 2 shows a simple diagram of the experiment:

A baseball hit is simulated with a ping pong ball and a wooden dowel

A wooden dowel is attached to a rotating arm which attaches to an achored base. This wooden dowel acts as a baseball bat and a ping pong ball is placed on a golf tee in front of the wooden dowel to simulate a baseball. The wooden dowel can be pulled backward and swung forward to hit the ping pong ball off of the tee.


Figure 2. A diagram showing a top-down view of the experiment. The image at left shows a close-up view of the experiment setup. A rubber-band-powered toy catapult swings a wooden dowel, just as a player swings a baseball bat, to hit a ping pong ball sitting on a golf tee. The image on the right shows a zoomed-out view of the entire experiment area. Depending on exactly how you hit the ball with the wooden dowel, it may end up in a different location (represented by the arrows and different colored balls).

In a real game of baseball, a player can change several different variables to influence in what direction, and how far, the ball is hit. But it is hard to separate the effect of one variable at a time. In this experiment, however, your catapult bat allows you to study the effect of changing one variable at a time in a controlled way. First, you can change the tee position by moving the tee forward or back, as shown in Figure 3. This simulates a late swing or an early swing in baseball. In a real game, if the batter swings too early, he will hit the ball while it is farther forward. If he swings too late, he will hit the ball while it is farther back.

A ping pong ball is repositioned so it can be hit at different angles by a wooden dowel

The wooden dowel can only swing backward and forward, so a way to change the angle which it hits the ping pong ball is to move the ping pong ball forward or backward. Moving the ball backward will cause the dowel to hit before it is fully extended, while moving the ball forward will cause it to hit after it passes the point of full extension.


Figure 3. The forward/back tee position is one variable you can change to influence where the ball goes when hit. This corresponds with a late swing (tee farther back) or an early swing (tee farther forward) in real baseball.

You can also change the swing angle of the wooden dowel to change how hard it hits the ball, as shown in Figure 4. This works because the catapult is powered by rubber bands. The farther you stretch the rubber bands, the more energy they store. That energy is transferred into the swinging wooden dowel, and then transferred to the ball when hit. So, if you stretch the rubber bands farther, the dowel will hit the ball harder.

Pulling further back on a wooden dowel to increase the impact as it swings forward

As a rubber band is stretched, its potential energy increases which correlates into higher kinetic energy when it contracts. Pulling the wooden dowel further back will increase the swing angle, it will also stretch the rubber band holding the dowel more and creates more force when the dowel is released to hit the ball.


Figure 4. The swing angle is another variable you can change in this experiment. With the rubber-band-powered catapult, if you increase the swing angle, the dowel will hit the ball harder, representing a harder hit in baseball.

Look at Figures 3 and 4 and think about how changing these variables will affect which direction the ball goes and how far it goes. This will help you formulate your hypothesis for this project.

Terms and Concepts

Questions

Bibliography

Materials and Equipment Buy Kit

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.

View Kit

Disclaimer: Science Buddies participates in affiliate programs with Home Science Tools, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity, and keep our resources free for everyone. Our top priority is student learning. If you have any comments (positive or negative) related to purchases you've made for science projects from recommendations on our site, please let us know. Write to us at scibuddy@sciencebuddies.org.

Experimental Procedure

Set Up Your Experiment

  1. In this section, you will set up your experiment as shown in Figure 5, below. Read the following steps for detailed directions.

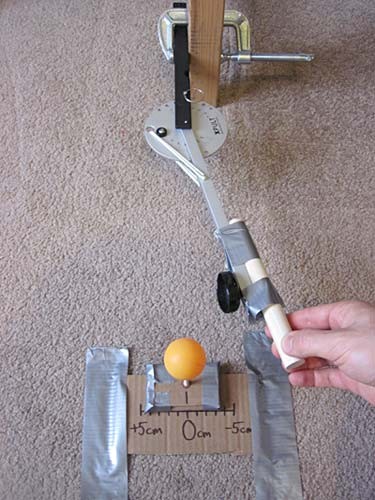

A wooden dowel attached to a base and rubber band is setup to hit a ping pong ball
Figure 5. In the setup for this experiment, a rubber-band-powered catapult is mounted sideways (shown here using a C-clamp). It swings a wooden dowel like a baseball bat to hit a ping pong ball resting on a golf tee. Imagine the area where you set up the tee as "home plate" on a toy-sized baseball field.
  1. Watch this video to learn how to use your catapult. Note that in this project you will mount the catapult sideways.
  1. Assemble your catapult.
    1. Get the catapult, metal pin, and a single rubber band from your catapult kit, as shown in Figure 6, below (top left).
    2. Push the pin through the hole in the base of the catapult (the black part) to lock the circular metal disc in place, so the 45 on the disc is showing just below the black bar (see Figure 6, top right). Notice that the metal disc has multiple holes, so you have to push the pin through the right hole to line up the 45 just below the black bar.
    3. There is a large hole at the top of the aluminum disc. Push a rubber band through this hole and hook each end of the rubber band around the pin that sticks through the catapult's launch arm (see Figure 6, bottom left).
    4. When you have finished, the assembled catapult should look like the bottom right image in Figure 6.

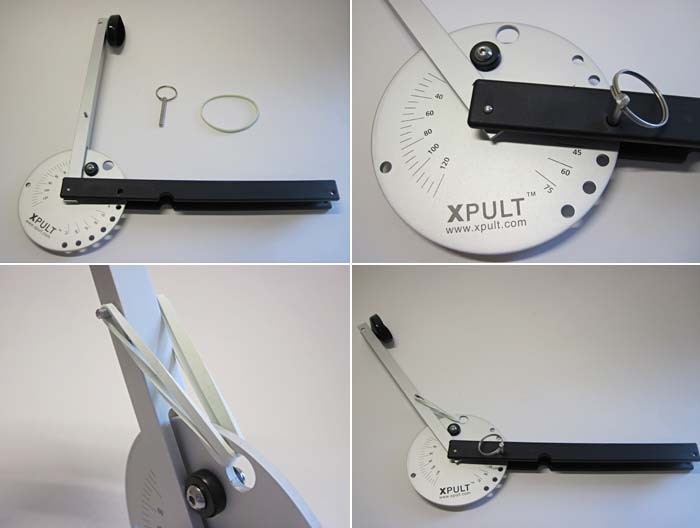

Assembling a catapult from xpult.com
Figure 6. The catapult, rubber band, and pin (top left). Use the pin to lock the metal disc in place relative to the base of the catapult (top right), lining it up with the 45. Loop a rubber band through the large hole in the metal disc, and hook each end of the rubber band to the pin sticking through the launch arm (bottom left). The assembled catapult (bottom right).
  1. Attach the "bat" to your catapult.
    1. Use duct tape to attach your wooden dowel to the back of the catapult arm, as shown in Figure 7, below.

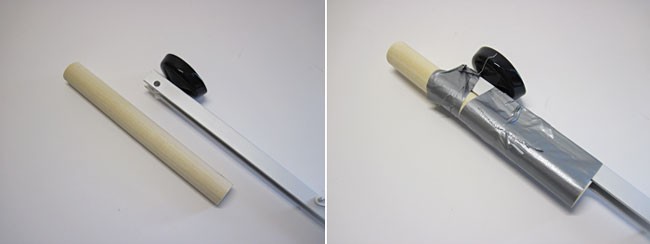

Using duct tape to attach a wooden dowel to the end of a catapult
Figure 7. Use duct tape to attach the wooden dowel to the catapult arm.
  1. Build your tee (Figure 8, below).
    1. From the sheet of corrugated cardboard, cut out a rectangle roughly 5 centimeters (cm) wide and 20 cm long.
    2. Fold the cardboard rectangle over on itself three times in roughly equal parts, to make a stack four layers thick.
    3. Use duct tape to hold the cardboard stack flat.
    4. Puncture the top three layers of cardboard with the golf tee.
    5. Superglue the golf tee in place.
    6. Important: Depending on where you set up your experiment, you might need to adjust the height of your tee. You can do this by placing it on a stack of books or small cardboard boxes if you need to.

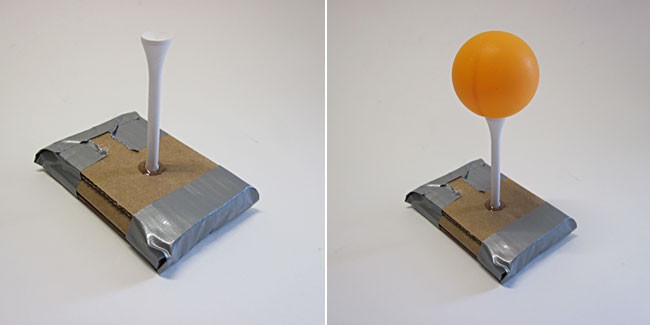

A golf tee stuck into cardboard holds up a ping pong ball
Figure 8. Cardboard, duct tape, and a golf tee make a simple tee to hold the ping pong ball. Use superglue to hold the base of the tee in place.
  1. Create a cardboard ruler.
    1. You will use this ruler to measure the location of the tee as you move it forward and back, to simulate an early swing or a late swing.
    2. From the remaining cardboard, cut a rectangle about 20 x 8 cm.
    3. Use a metric ruler to make marks at 1 cm increments on the strip of cardboard, as shown in Figure 9, below.
    4. Label the marks with 0 in the middle, positive numbers on one side, and negative numbers on the other side, as shown in Figure 9.
      1. Note: whether you make your number line go negative to positive from left to right, or right to left, will depend on the orientation of your setup. Using the orientation shown in Figure 5, it was easier to read the number line with negative numbers on the right and positive on the left.

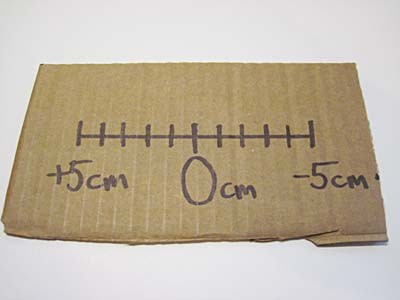

Number line drawn on cardboard from negative 5 to 5 centimeters
Figure 9. Cardboard ruler you will use to set the position of your tee (refer back to Figure 3 in the Introduction). The rule should have marks in 1 cm increments ranging from -5 to +5 (whether you go left to right or right to left depends on the orientation of your catapult when clamped to furniture, and the direction you will be hitting).
  1. Clamp your catapult sideways to a sturdy object like the leg of a table or a fence post, as shown in Figure 10, below.
    1. Make sure you have a large, open area to work with. You should have at least 6 meters (m) of open space in front of the catapult, preferably more, especially if you are working on carpet, and 3 m on either side.
    2. A C-clamp will work better than the spring clamp that came with your catapult kit. You can buy a C-clamp with a wider opening, which enables you to clamp the catapult to thicker objects like fence posts. You can also tighten a C-clamp very well, so the catapult does not wobble between hits.
    3. If you do not want to scratch the furniture, use a paper towel or a dish towel as padding between the clamp and the furniture.
    4. Clamp your catapult to the object so that the height of the bat will roughly line up with the height of the ball when it is sitting in the tee. You will make exact adjustments to the position later.

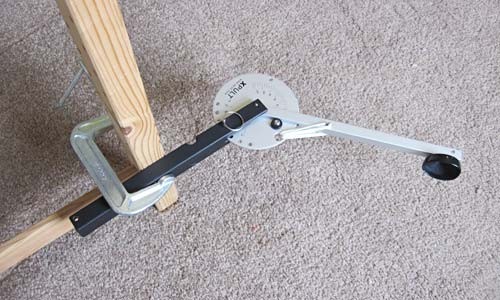

A C-clamp secures a catapult to the leg of a table
Figure 10. Catapult clamped to the leg of a table using a C-clamp.
  1. Align your catapult and tee.
    1. Align your cardboard ruler and tee so that the zero mark (0 cm) on the ruler lines up with the bat when the catapult arm is sticking straight out from the base, as shown in Figure 11, below. The ruler will be perpendicular to the bat arm. Make sure the positive side of the ruler is facing outward, in the direction the ball will be hit.
    2. Secure the ruler to the ground so it does not move. It is important that the ruler stays in the same place throughout the entire experiment and does not slide around.
      1. If you are working outside, you may need to come up with a creative way to hold the ruler in place, like using something heavy to weigh it down while not obscuring the centimeter marks or interfering with the dowel hitting the ball.
      2. If you are working inside, you may be able to use duct tape to secure the ruler to the floor surface. Check with an adult before you do this, to make sure the tape will not damage the floor.
    3. If necessary, adjust the vertical position of your catapult so the bat lines up with the equator of the ball, as shown in Figure 11. You will need to loosen and then retighten the C-clamp to do this.
      1. You can also adjust the height of your tee by putting a book or more cardboard under it. The bat should touch the ball directly in the center, as shown in Figure 11, below.

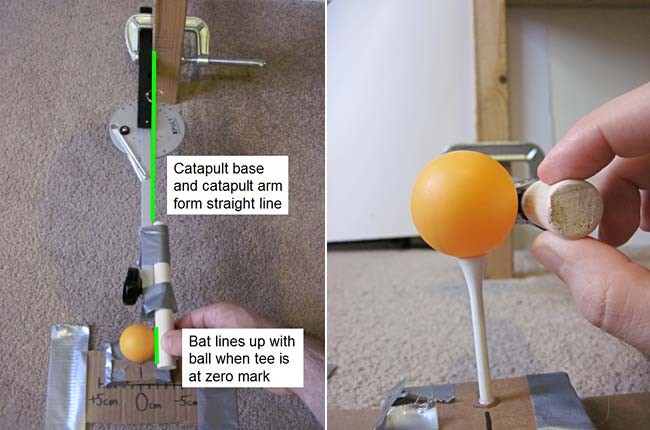

A ping pong ball is placed inline with a catapult so it will be hit when the catapult is fully extended
Figure 11. Line up the catapult and tee so the bat will hit the ball correctly. Left image: Place the ruler such that the zero mark lines up with the bat when it is sticking straight out from the catapult base (the black part). Right image: adjust the vertical position of the catapult so the center of the ball lines up with the center of the bat.
  1. Take some practice swings.
    1. Pull the catapult arm back, place the ball on the tee, and release the bat, as shown in Figure 12. Watch closely to make sure the bat hits the ball straight on. If it does not, go back to step 8 and realign your catapult and tee.
    2. You may need to reset the tee if it gets knocked over. Take a couple of practice swings to make sure your setup is working properly. Try different swing angles and tee positions.
    3. Practice reading the swing angle from the marks printed on the metal disc (see Figure 13, below). This is the angle the bat swings through before it comes to a stop. Try releasing the bat from several different swing angle positions.
    4. If you are having trouble hitting the ball consistently, make any necessary adjustments to your tee or the clamped position of your catapult before continuing.

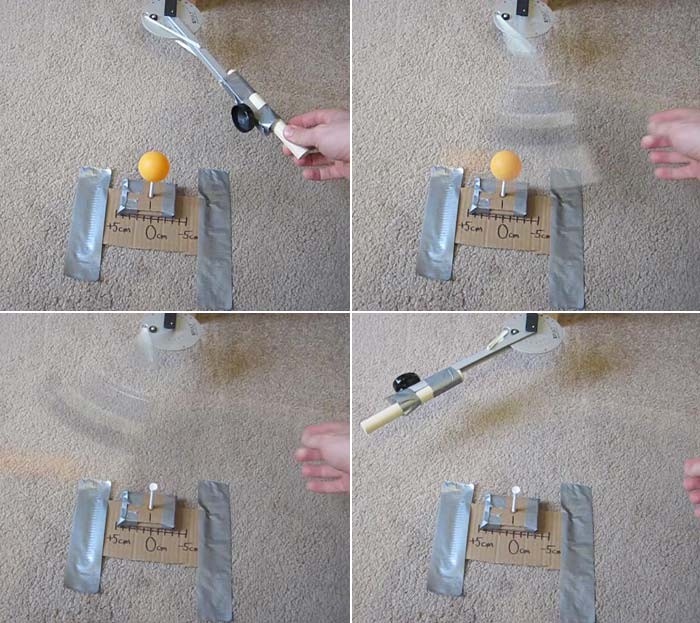

A ping pong ball is hit when the arm of the catapult is pulled back and released
Figure 12. Pull the catapult arm back and release it to hit the ball. This figure shows four frames from a video of the ball before and after being hit.

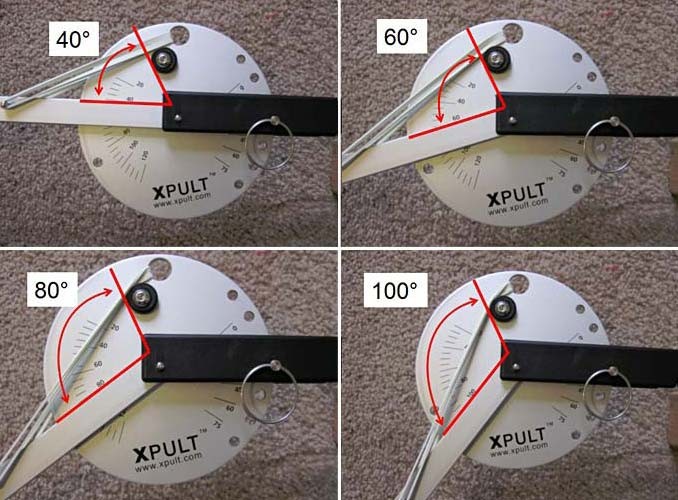

Catapult arm being pulled back at angles of 40, 60, 80, and 100 degrees
Figure 13. Use the markings on the metal disc to measure the swing angle. The swing angle is the angle the bat travels from when it is pulled all the way back until it hits the rubber stopper, not the angle it travels until it hits the ball. Make sure you take your angle reading from the front edge of the catapult arm, not the back.

Collect Data

  1. Make a data table like Table 1, below, in your lab notebook, or use a spreadsheet program like Microsoft Excel® if available (this will make it easier to plot your data later).
    1. You should pick a series of tee positions (for example -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, and +5 cm) and swing angles (for example 80°, 100°, 120°) to test, and do at least three trials for each possible combination. If you have extra time, you can pick more combinations (for example, test angles every 10° instead of every 20°), or you can do more trials (for example, five or ten trials instead of three).
    2. Important: You may need to adjust the swing angles you use depending on the amount of space you have available. Only use swing angles that keep the ball inside your available space (i.e., exclude swing angles where balls keep hitting walls or other objects).
    3. Note: In baseball, distances are measured using English units (feet). However, scientists always use metric units. For this science project, you should measure distance in metric units. For example, measure your tee position in centimeters, and the distance the ball travels in meters.
Trial Tee Position (centimeters) Swing Angle (degrees) Ball X Position (meters) Ball Y Position (meters)
1 -580
2 -580
3 -580
4 -5100
5 -5100
6 -5100
7 -5120
8 -5120
9 -5120
10 -480
11 -480
12 -480
.........

Table 1. An example data table. The table is not filled out completely — you will need to add rows for each combination of settings discussed above.
  1. Collect your data.
    1. Starting with the first row of your data table, set the tee position and pull back the catapult arm to the swing angle.
    2. Carefully place the ball on the tee, then release the catapult arm to hit the ball. Wait for the ball to come to a complete stop.
    3. Use a tape measure to record the X (left/right) and Y (forward) position of the ball, as shown in Figure 14, below.
      1. Important: The diagram in Figure 14 represents a coordinate system. In order for your measurements to be consistent for each trial, the origin (or point where X = 0 and Y = 0) of the coordinate system must remain the same. Here, we choose the "0" mark on your cardboard ruler as the origin. Always make sure that you take your measurements from this "0" mark, not from the current tee location. For example, if the tee is currently set at the +2 cm mark, you would still start out your measurement for the Y direction at the 0 cm mark on your ruler.
      2. Important: You need to measure the X and Y distances separately, so you can make a plot of the ball's position later. Do not just measure the straight-line distance from the origin to the ball.
      3. Optional: If it will help you make more accurate measurements, try laying out pieces of string, tape, or wire on the ground to line up with your X and Y axes, as they are shown in Figure 14. This may help you make sure that your X and Y measurements are always perpendicular to each other.

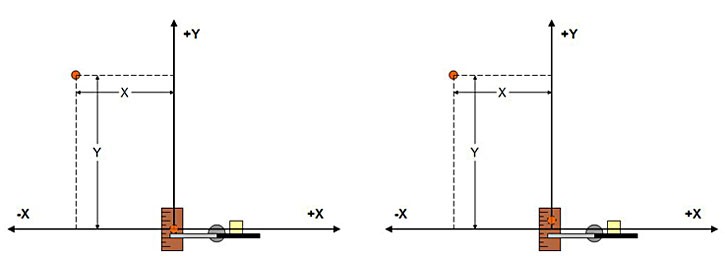

Drawing an x and y coordinate graph to measure the distance a ball is hit from its starting point
Figure 14. The coordinate system used to measure the X and Y location of the ball after it comes to rest. Notice how in the image on the left, the tee is placed at the origin of the coordinate system. In the image on the right, the tee has been moved to a different position, but the origin of the coordinate system stays in the same place. This is very important.
  1. Repeat step 2 for each row of your data table. Remember that if you have time, you can always do extra trials or try new settings and add those to your data table.
  2. Make two separate scatter plots of your data using the X and Y position columns of your data table.
    1. Color-code one plot by tee position.
    2. Color-code the other plot by swing angle.
    3. Note: Do not forget to add a legend to each plot, explaining what the colors represent.
  3. Analyze your results.
    1. How does tee position appear to affect where the ball goes? Does it have an obvious impact on either direction (left, right, or center field in the imaginary baseball field that your experiment represents) or distance (how far the ball goes from "home plate," the origin of your coordinate system), or both?
    2. How does swing angle appear to affect where the ball goes? Does it have an obvious impact on either direction (left, right, or center field) or distance (how far the ball goes from home plate), or both?
  4. The experiment you set up in this project is a simplification of a real baseball swing. How, if at all, do the variables you tested in this experiment relate to what happens during a real baseball game? Could you suggest some changes so your experiment would represent the real situation better? Here some questions to get you started:
    • In a real game, the ball is pitched; in this experiment, you hit the ball off a tee. How could that affect your experiment?
    • In real baseball, players sometimes hit the ball in an upward arc, and not straight out. How would this make your results different?
    • In a real hit chart, the dots mark the location where the ball was fielded (caught or picked up by a defending player), not where it rolls to a stop. How do you think that affects the appearance of a hit chart?
    • What other variables could you not test in this experiment?

Troubleshooting

For troubleshooting tips, please read our FAQ: The Physics of Baseball and Hit Charts.

icon scientific method

Ask an Expert

Do you have specific questions about your science project? Our team of volunteer scientists can help. Our Experts won't do the work for you, but they will make suggestions, offer guidance, and help you troubleshoot.

Variations

  • In this experiment, you changed the forward/back position of the tee. What happens if you change the left/right position (along the x-axis) of the tee instead?
  • Instead of measuring the X and Y position of the ball, also called Cartesian coordinates, use polar coordinates (radius and angle) to measure the ball's position.
    • You do not need to redo the experiment. If you know trigonometry, look up formulas to convert Cartesian coordinates to polar coordinates.
    • Alternatively, you can redo the experiment and use a protractor and string to measure the angle from home plate (the origin of your x-y coordinate system) to the ball, and a tape measure to measure the direct distance from home plate to the ball (not the separate x and y distances).
    • Either way, make scatter plots of both radius and angle of the ball versus tee position and swing angle. Do you see any correlation between the variables?
  • The pin in the catapult sets the "stopping angle" for the bat. What happens if you change this angle?
  • Can you angle the bat so that it swings in an upward or downward arc? How does this angle affect the experiment? How is it more or less similar to a real baseball swing?
  • Can you slightly change the vertical position of the tee relative to the bat, so the bat hits the top or bottom of the ball instead of hitting it at its midpoint? How is this similar to what could occur in real baseball?
  • Can you use a fan to simulate windy conditions and see how it affects the results? What about doing the experiment outside on a windy day, where you cannot control the wind? Does that introduce more variability in your results?

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.
Q: The clamp that came with the kit does not open wide enough to attach the catapult to a table leg, fence post, etc.
A: This clamp was intended to attach the catapult to the edge of a table, which is relatively thin. We recommend purchasing a C-clamp instead. See the Materials list for details.
Q: I'm doing the science project inside, and the ball keeps hitting the walls.
A: If possible, try doing the science project in a larger room. Also try to do the project on a carpeted surface and a hard floor where the ball will continue to roll. Finally, try decreasing the swing angle so you do not hit the ball as hard.
Q: My "bat" (wooden dowel) doesn't line up properly with the height of the ball when it is sitting on the tee.
A: Try adjusting the vertical position of the clamp to move your entire catapult up or down slightly. If this is not possible, try creating a taller (or shorter) tee, or stacking the tee on top of something like a book.
Q: I'm doing this science project outside, and would actually like to hit the ball farther. Can I do that?
A: Yes. Your catapult kit comes with three rubber bands. Try adding one or two more rubber bands to the catapult, as shown in Figure 6 of the procedure. This will make the bat swing harder and hit the ball farther.
Q: I'm having trouble measuring the X and Y location of the ball with a tape measure.
A: Try laying out long pieces of string on the ground to represent the X and Y axes. Then make sure you keep your tape measure parallel to the respective axis when you take a measurement.
Q: Wouldn't this science project make more sense with polar coordinates?
A: Most students learn about Cartesian (x-y) coordinates before they learn about polar (r-θ) coordinates, so the directions for the science project are written using Cartesian coordinates. However, if you are familiar with polar coordinates, you can use them instead.
Q: The ball doesn't go to the exact same location each time, even when I use the exact same settings (tee location and swing angle).
A: This is okay. Even if you do your best to use the exact same swing angle and tee position on two sequential trials, there will always be small, uncontrollable variations in the experiment that will affect where the ball goes.

Careers

If you like this project, you might enjoy exploring these related careers:

Career Profile
Physicists have a big goal in mind—to understand the nature of the entire universe and everything in it! To reach that goal, they observe and measure natural events seen on Earth and in the universe, and then develop theories, using mathematics, to explain why those phenomena occur. Physicists take on the challenge of explaining events that happen on the grandest scale imaginable to those that happen at the level of the smallest atomic particles. Their theories are then applied to… Read more
Career Profile
Mechanical engineers are part of your everyday life, designing the spoon you used to eat your breakfast, your breakfast's packaging, the flip-top cap on your toothpaste tube, the zipper on your jacket, the car, bike, or bus you took to school, the chair you sat in, the door handle you grasped and the hinges it opened on, and the ballpoint pen you used to take your test. Virtually every object that you see around you has passed through the hands of a mechanical engineer. Consequently, their… Read more
Career Profile
Sports injuries can be painful and debilitating. Athletic trainers help athletes, and other physically active people, avoid such injuries, while also working to improve their strength and conditioning. Should a sports injury occur, athletic trainers help to evaluate the injury, determine the treatment needed, and design a fitness regime to rehabilitate the athlete so he or she is ready to go out and compete again. Read more
Career Profile
You use mechanical devices every day—to zip and snap your clothing, open doors, refrigerate and cook your food, get clean water, heat your home, play music, surf the Internet, travel around, and even to brush your teeth. Virtually every object that you see around has been mechanically engineered or designed at some point, requiring the skills of mechanical engineering technicians to create drawings of the product, or to build and test models of the product to find the best design. Read more

Contact Us

If you have purchased a kit for this project from Science Buddies, we are pleased to answer any question not addressed by the FAQ above.

In your email, please follow these instructions:
  1. What is your Science Buddies kit order number?
  2. Please describe how you need help as thoroughly as possible:

    Examples

    Good Question I'm trying to do Experimental Procedure step #5, "Scrape the insulation from the wire. . ." How do I know when I've scraped enough?
    Good Question I'm at Experimental Procedure step #7, "Move the magnet back and forth . . ." and the LED is not lighting up.
    Bad Question I don't understand the instructions. Help!
    Good Question I am purchasing my materials. Can I substitute a 1N34 diode for the 1N25 diode called for in the material list?
    Bad Question Can I use a different part?

Contact Us

News Feed on This Topic


, ,

Cite This Page

General citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.

MLA Style

Science Buddies Staff. "The Physics of Baseball and Hit Charts." Science Buddies, 20 Nov. 2020, https://www.sciencebuddies.org/science-fair-projects/project-ideas/Sports_p060/sports-science/physics-of-baseball-hit-charts. Accessed 19 Mar. 2024.

APA Style

Science Buddies Staff. (2020, November 20). The Physics of Baseball and Hit Charts. Retrieved from https://www.sciencebuddies.org/science-fair-projects/project-ideas/Sports_p060/sports-science/physics-of-baseball-hit-charts


Last edit date: 2020-11-20
Top
We use cookies and those of third party providers to deliver the best possible web experience and to compile statistics.
By continuing and using the site, including the landing page, you agree to our Privacy Policy and Terms of Use.
OK, got it
Free science fair projects.
