Paper Circuits: Make Electrifying Art

1
2
3
4
5
73 reviews

Abstract

"Paper circuits" are a fun way to mix electronics and art by adding lights directly to a painting or drawing. These lights need a battery to power them, and typically you would use wires to connect them. In paper circuits, though, many materials can be substituted as "wire," including special types of paint, ink, and even aluminum foil. There are also different options for what type of battery you can use. Which materials do you think will work best? Try this project to find out!

Summary

Areas of Science
Difficulty

Time Required
Average (6-10 days)
Prerequisites
None
Material Availability
This project requires special circuit materials. See the Materials and Equipment list for details. Estimated project time includes time for shipping specialty materials.
Cost
Average ($40 - $80)
Safety
No issues
Credits
Ben Finio, PhD, Science Buddies
  • Scotch® is a registered trademark of 3M.

Objective

Discover what type of battery and "wire" material will work best to set up lights in a paper circuit.

Introduction

Have you ever made a painting or drawing that included lights, like light from the sun, or from the windows of a house at night? Do you think it would be fun if those light sources could actually light up? That is what paper circuits allow you to do—build real lights directly into your drawings or paintings, like the one in Figure 1.

paper circuit LED flowers
Figure 1. An example of a paper circuit that includes real lights in the centers of the flowers.

An electrical circuit is a loop where electricity can flow. A basic circuit requires a battery, which stores electricity (other types of circuits can get electricity from other places, like a wall outlet). The battery must be connected to a light with materials that let electricity flow easily (kind of like water flowing easily through a pipe). These materials are called conductors (materials that do not let electricity flow easily are called insulators). Figure 2 shows a diagram of a basic circuit.

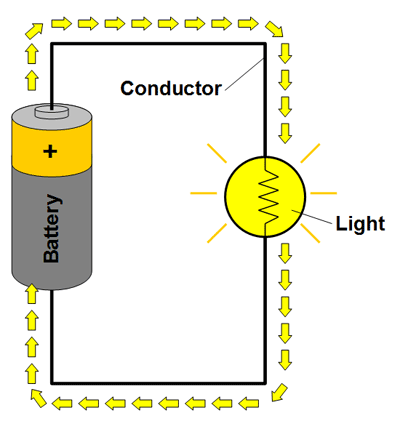

Drawing of a simple closed circuit with a battery, conductor and light
Figure 2. A diagram of a basic circuit. Electricity is supplied by the battery. It flows in a loop through the conductor (which, in this figure, is a wire), to the light, and then back to the battery.

Conductors for most circuits (like the wires for the lights in your house, or inside a computer) are made out of copper wire, because copper is a very good conductor. However, there are many different options for conductive materials in paper circuits, as shown in Figure 3.

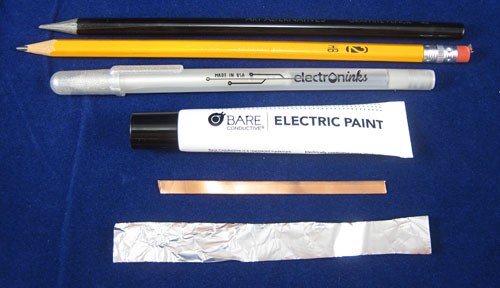

A graphite pencil, a number two pencil, conductive ink, electric paint, copper tape and a strip of aluminum foil
Figure 3. The conductive materials you might test in this project. From top to bottom: artist's graphite pencil, #2 pencil, conductive ink, electric paint, copper tape, and aluminum foil.

There are also different types of batteries, as shown in Figure 4. You might be familiar with AA or AAA batteries, commonly used in toys and electronic devices. Coin cell batteries—the type found in watches—are tiny, flat, and lightweight. 9 volt batteries are bigger and heavier, but have a higher voltage, which is how hard the battery "pushes" on the electricity (the coin cell batteries in this project are only 3 volts [V]). A higher voltage can "push" electricity through a less conductive material, whereas a low voltage requires a very conductive material in order to push a lot of electricity through.

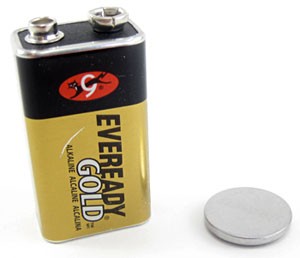

A nine volt battery next to a coin cell battery
Figure 4. A 9 V battery (left) and a coin cell battery (right).

In this project, you will test each of the conductive materials shown in Figure 3 with the batteries in Figure 4, to light up a tiny light called an LED (which stands for light-emitting diode). Which materials do you think will work with which battery? What combination do you think will be the "best" overall for an art project? Read the Questions and Bibliography sections to get started making your hypothesis.

Terms and Concepts

Questions

Bibliography

For help creating graphs, try this website:

  • National Center for Education Statistics, (n.d.). Create a Graph. Retrieved June 25, 2020.

Materials and Equipment

The following materials are available from SparkFun Electronics:

The following materials are available from home or an art supply store:

Disclaimer: Science Buddies participates in affiliate programs with Home Science Tools, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity, and keep our resources free for everyone. Our top priority is student learning. If you have any comments (positive or negative) related to purchases you've made for science projects from recommendations on our site, please let us know. Write to us at scibuddy@sciencebuddies.org.

Experimental Procedure

Learning How to Make a Paper Circuit with a Coin Cell Battery

Before you start your experiment, you will learn how to make a basic paper circuit by following these steps.

  1. Place the coin cell battery near the corner of a sheet of paper. Trace a circle around the battery. Then, holding the battery and paper together, fold the corner of the paper and the battery over, and release the battery onto the large area of blank paper. Now, trace a circle around the battery in its new location, as shown in Figure 5.

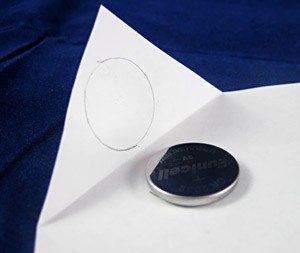

A coin cell battery is traced on the corner of a piece of paper
Figure 5. Trace two circles around a coin cell battery, one on each side of a fold line near a corner of the paper. The circle on the left should be drawn first, then the paper and battery folded over so the battery is in its new position for tracing the second circle, as shown here.
  1. Draw a 100 mm line, parallel to the edge of the paper, from the center of the bottom circle, as shown in Figure 6. Draw a second line from the center of the top circle, parallel to and ending where the first line does (this line will be slightly longer than 100 mm).

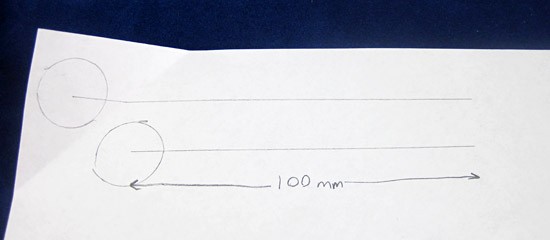

A circle with a line drawn outward from its center is drawn twice on a piece of paper
Figure 6. Draw a 100 mm line from the center of the bottom circle and a parallel line from the center of the top circle.

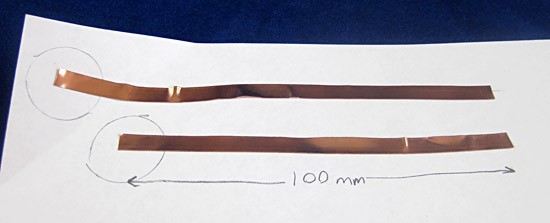

  1. Lay a strip of copper tape over each of the lines, as shown in Figure 7.
Two strips of copper tape of different lengths on a piece of paper
Figure 7. Cover both lines with strips of copper tape.
  1. Pick either a red, green, or yellow (not blue) LED. You will use this color for all of your trials. Spread the legs of the LED outward slightly, then bend them both sideways, as shown in the left part of Figure 8. Use Scotch tape to tape the legs of the LED down to the copper tape.
    1. Note: LEDs have two legs, called leads (pronounced "leeds"). One of them is longer than the other. The longer leg is the positive (+) side of the LED, and the shorter one is the negative (-) side of the LED. The longer lead should be closer to the edge of the paper, as shown in Figure 8 (this will connect to the positive side of the battery in a later step).
    Technical Note

    Red, green, and yellow LEDs only require about 2.4 V to light up, so they can be powered by the 3 V coin cell battery. Blue LEDs require 3.4 V, so they will not light up at full brightness (or not light up at all) when using a 3 V coin cell battery.

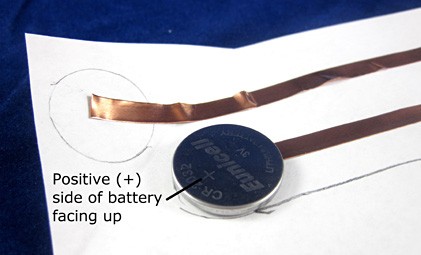

  2. Place the coin cell battery on the traced circle on the bottom strip of copper tape, with its positive (+) side facing up, as shown in the right part of Figure 8.

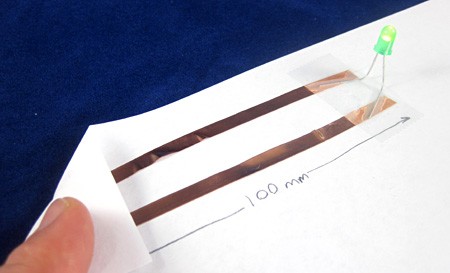

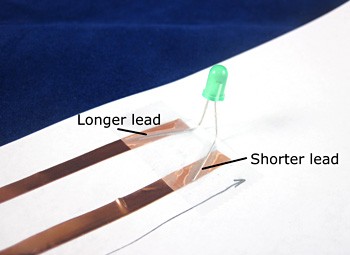

Leads of an LED are bent and taped to different strips of copper tape on a piece of paper   A coin cell battery is placed on a strip of copper tape on a piece of paper
Figure 8. (Left) Gently spread and bend the leads of the LED 90 degrees and tape each lead to the copper tape, as shown. (Right) Place the coin cell battery on the traced circle on the bottom strip of copper tape, with the positive (+) side facing up.
  1. Your circuit should now look like the one in the left part Figure 9. Double-check to make sure you have everything connected, as shown in Figure 9.
  2. Fold the corner of the paper over and press down on the coin cell battery, as shown in the right side of Figure 9. Your LED should light up; you have just made your first paper circuit! Now you are ready to move on and conduct your experiment. If your LED does not light up:
    1. Try pressing down firmly on the leads of the LED, to make sure they are in contact with the copper tape.
    2. Try flipping the battery around (reversing the positive and negative connections), just in case you hooked up the LED backwards.

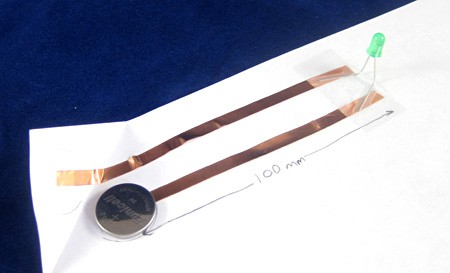

A paper circuit made from a battery, copper tape and an LED   Leads of an LED are taped to strips of copper tape on a piece of paper
Figure 9. Fold the corner of the paper over and press down on top of the battery to make the LED light up.

Testing Different Conductive Materials with a Coin Cell Battery

  1. First you will test each material with the 3 V coin cell battery. Use your lab notebook to create a table, like Table 1, in which to record your results.
Coin Cell Battery Data
Material Trial 1 Trial 2 Trial 3 Total
Copper tape
Aluminum foil
Electric paint
Conductive ink
6B graphite pencil
HB #2 pencil
Table 1. Table in which to record whether or not the LED lights up when using the coin cell battery (you may need to fill in different letters/numbers, depending on what types of pencils you use).
  1. Test the copper tape with the coin cell battery, using the circuit you made in the previous section, Learning How to Make a Paper Circuit with a Coin Cell Battery.
    1. Use a pencil or pen to label the circuit "Trial 1" on the piece of paper.
    2. In Table 1, write "yes" or "no" in the column for Trial 1 for the copper tape, depending on whether or not the LED lights up.
    3. Important: Before you record that the LED does not light up, do some quick troubleshooting to make sure you did not make an error when connecting your circuit.
      1. Try pressing down firmly on the leads of the LED to make sure they are in contact with the copper tape.
      2. Try flipping the battery around (reversing the positive and negative connections), just in case you hooked up the LED backwards.
      3. If you try both of these things and the LED still does not light up, then record "no" in the appropriate place in Table 1.
    4. Write down any additional observations you make about lighting up the LED. For example, does the LED seem very bright or very dim? Did you have to press down extra hard to get it to light up?
  2. Repeat step 2 two more times with the copper tape.
    1. Each time, use a new corner of the same piece of paper, so all your copper tape trials are on the same piece of paper.
    2. Label each new circuit "Trial 2" and "Trial 3," respectively.
    3. You can reuse the same battery and LED. If your tape starts to lose its stickiness, use a new piece of tape.
    4. Remember to fill in the appropriate column in Table 1.
  3. Repeat steps 2–3 for each of your other conductive materials.
    Important: Here are some notes to follow when testing the other materials:
    1. Use a new piece of paper for each new material, and one corner of the paper for each of the three trials. Remember to label each circuit "Trial 1," "Trial 2," or "Trial 3," respectively.
    2. You can continue to reuse the same battery and LED. Use new pieces of tape as needed.
    3. Use a ruler to make sure your strips of material are 5 mm wide, matching the width of the copper tape.
    4. Use scissors to cut a strip of aluminum foil. Use Scotch® tape to stick the aluminum foil to the paper, but make sure you leave exposed sections of aluminum foil (meaning not covered in tape) at the ends so you can connect the battery and LED (this is necessary because Scotch tape is an insulator).
    5. Be sure to use newspaper to protect your work surface, especially when painting.
    6. For the electric paint, use a thin paintbrush to paint a 5 mm wide, thin, even layer on the pencil lines. Wait at least 15 minutes for the electric paint to dry before testing. If the paint is still not dry to the touch after 15 minutes, wait until it is completely dry.
    7. For the conductive ink, make sure to completely fill in a 5 mm wide strip; do not leave any white spots on the paper.
    8. For the pencils, make sure you fill in 5 mm strips darkly by pressing down hard, and drawing back and forth over the same area multiple times.
    9. Remember to fill in the correct row of Table 1 for each trial.
  4. Fill in the last column of Table 1 with the total number of times you could get the LED to light up for each material. For example, if you wrote "yes, yes, no" for three trials, you would write "2" in the "Total" column.

Learning How to Make a Paper Circuit with a 9 V Battery

The procedure to use a 9 V battery is slightly different than using a coin cell battery. Follow these steps to learn how to use a 9 V battery.

  1. Lay down newspaper to protect your work surface, then paint two parallel strips of electric paint—each 100 mm long by 5 mm wide—about 15 mm apart, starting from the edge of a piece of paper, as shown in the left side of Figure 10.
    1. Make sure you paint thin, even layers. Squeeze a little bit of paint out of the tube, then use a paintbrush to spread it.
  2. Wait 15 minutes for the paint to dry.
  3. Bend the legs of an LED and tape them to the paint, as shown on the right side of Figure 10.
    1. With the edge of the paper from which your two painted lines began facing you, attach the longer (positive) lead of the LED to the left strip of paint with Scotch tape.
    2. Now attach the shorter (negative) lead of the LED to the right strip of paint with Scotch tape.
    3. Note: When you are done with your trials and want to do a more permanent project with the electric paint, you can paint over the legs of the LED to stick them to the paper, instead of using tape.

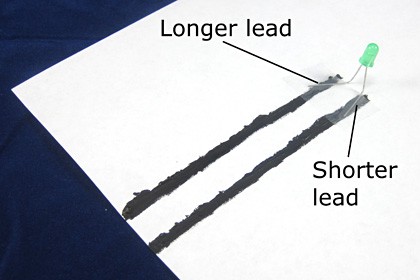

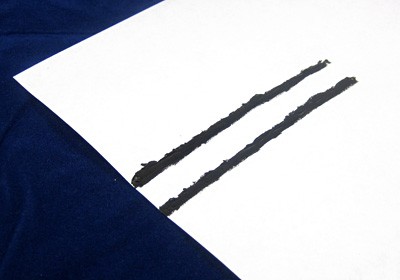

Two parallel lines of black paint on a piece of paper   Leads of an LED are taped to conductive ink lines on a piece of paper
Figure 10. Paint two strips of electric paint and tape down an LED.
  1. Clip the alligator clip leads onto the terminals of the 9 V battery, as shown in the left part of Figure 11.
    1. Attach the red lead to the positive (+) terminal of the battery.
    2. Attach the black lead to the negative (-) terminal of the battery.
    3. Note: If you bought alligator clip leads from SparkFun, they come in a 10-pack with multiple colors. In electronics, red is typically used to represent positive, and black is typically used to represent negative. However, if you do not have red and black alligator clip leads available, you can use any color.
  2. Attach the other ends of the alligator clip leads to the strips of electric paint, as shown in the right part of Figure 11.
    1. Attach the red alligator clip (positive) to the left strip of electric paint.
    2. Attach the black alligator clip (negative) to the right strip of electric paint.

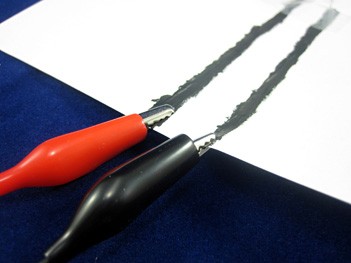

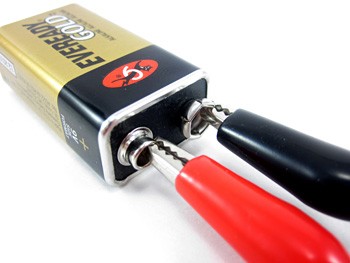

Two alligator clips attached to the terminals of a nine volt battery   Alligator clips attached to two lines of conductive ink on a piece of paper
Figure 11. Attach alligator clip leads to the battery terminals and to the strips of electric paint.
  1. Your completed circuit should now look like the one in Figure 12. Double-check to make sure you have connected everything correctly, then move on to the next section to record your data (if your LED does not light up, see the troubleshooting suggestions in the next section).

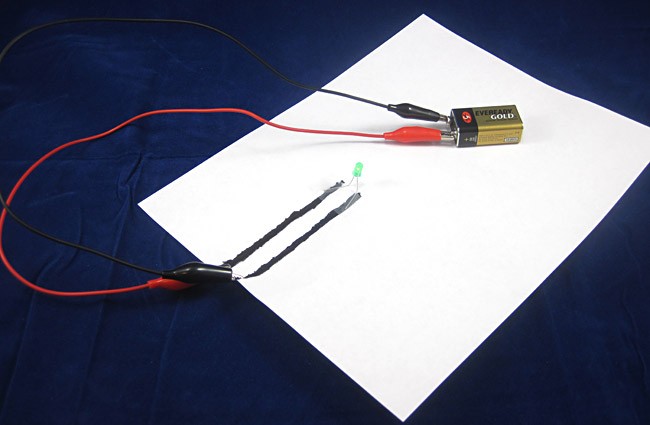

A paper circuit made from a battery, alligator clips, electric paint and an LED
Figure 12. A completed circuit with a 9 V battery, alligator clips, electric paint, and an LED.

Testing Different Conductive Materials with a 9 V Battery

  1. Create a data table, like Table 2, in which to record your results. Make sure you clearly label the new table as the "9V Battery Data."
    1. Important: Note that you will not be testing the copper tape and aluminum foil with the 9 V battery. These materials are very good conductors; so good, in fact, that they let too much electricity flow from a 9 V battery, which will burn out the LED.
9 V Battery Data
Material Trial 1 Trial 2 Trial 3 Total
Copper tape XXXX
Aluminum foil XXXX
Electric paint
Conductive ink
6B graphite pencil
HB #2 pencil
Table 2. Table in which to record whether or not the LED lights up when using the 9 V battery. Remember that you will not test the copper tape or aluminum foil with the 9 V battery.
  1. You should already have your first trial with electric paint set up from the previous section. Record whether or not the LED lights up in Table 2. Important: Before you record that the LED does not light up, do some quick troubleshooting to make sure you did not make any errors when connecting your circuit.
    1. Try pressing down firmly on the leads of the LED to make sure they are in contact with the electric paint.
    2. Try flipping around the alligator clip connections on the paint (not on the battery), just in case you connected the LED backwards.
    3. If you try both of these things and the LED still does not light up, then record "no" in the appropriate place in Table 2.
    4. Write down any additional observations you make about lighting up the LED. For example, does the LED seem very bright or very dim? Did you have to press down extra hard to get it to light up?
  2. Repeat step 2 two more times, for a total of three trials with the electric paint.
    1. Each time, use a new section of the same piece of paper, so all your electric paint trials are on the same piece of paper.
    2. Label each new circuit "Trial 2" and "Trial 3," respectively.
    3. You can reuse the same battery and LED. If your tape starts to lose its stickiness, use a new piece of tape.
    4. Remember to fill in the appropriate column in Table 2.
  3. Repeat steps 2–3 for each of your other conductive materials, except the copper tape and aluminum foil. Important: Before you test your other conductive materials, carefully review these notes:
    1. Use a new piece of paper for each different material.
    2. You can continue to reuse the same battery and LED.
    3. Use a ruler to make sure all your strips of material are 5 mm wide.
    4. For the conductive ink, make sure to completely fill in the two 5 mm wide strips; do not leave any white spots on the paper.
    5. For the pencils, make sure you fill in the 5 mm wide strips darkly by pressing down hard, and drawing back and forth over the same area multiple times.
    6. Remember to fill in the correct row of Table 2 each time.
  4. Fill in the last column of Table 2 with the total number of times you could get the LED to light up for each material. For example, if you wrote "yes, yes, no" for three trials, you would write "2" in the "Total" column.

Analyzing Your Results

  1. Based on Table 1, which material(s) worked the best with the coin cell battery?
    1. Did any materials light up the LED brightly all three times?
    2. Did any materials only light up the LED a few times, or only cause the LED to light up dimly?
    3. Did any materials not work at all?
    4. How do these results compare to your predictions?
  2. Make a graph using the data in Table 1. Put the type of conductive material on the x-axis (horizontal), and the number of times the LED lit up on the y-axis (vertical). Refer to the Create a Graph website if you need help making a graph.
  3. Based on Table 2, which material(s) worked the best with the 9 V battery?
    1. Did any materials light up the LED brightly all three times?
    2. Did any materials only light up the LED a few times, or only cause the LED to light up dimly?
    3. Did any materials not work at all?
    4. How do these results compare to your predictions?
  4. Make a graph using the data in Table 2. Put the type of conductive material on the x-axis (horizontal), and the number of times the LED lit up on the y-axis (vertical).
  5. Based on all of your results, which type of conductive material and which type of battery would you want to use to make a paper circuit? Why?

Optional: Making Your Own Paper Circuit Art Project

Now that you know the basics of making a paper circuit, you can pick which conductive material and type of battery you want to use based on the results of your experiment. Are there any qualitative aspects of the materials you want to consider; for example, what the materials look like, or how easy they are to use? For directions to make a circuit with multiple LEDs using a coin cell battery and copper tape, see the Make a Paper Circuit activity. Based on the results of your experiment, can you substitute in other materials or use a 9 V battery instead?

Technical Note

Batteries are not only rated by their voltage, but by how much current they can provide. For example, AA batteries provide about 1.5 V each, and you can combine two of them to provide 3 V. This is the same voltage as the coin cell battery in this project, but AA batteries can provide much more current. See the Variations section for a project idea based on this concept.

icon scientific method

Ask an Expert

Do you have specific questions about your science project? Our team of volunteer scientists can help. Our Experts won't do the work for you, but they will make suggestions, offer guidance, and help you troubleshoot.

Global Connections

The United Nations Sustainable Development Goals (UNSDGs) are a blueprint to achieve a better and more sustainable future for all.

This project explores topics key to Industry, Innovation and Infrastructure: Build resilient infrastructure, promote sustainable industrialization and foster innovation.

Variations

  • In addition to painting or drawing, do you like making sculptures? You can also make circuits with LEDs using play dough sculptures. See the following Science Buddies projects to learn how to make "squishy circuits":
  • Electronic textiles, or e-textiles for short, refer to electronics that are embedded in fabrics or clothing. They are similar to paper circuits because they typically use alternative circuit materials instead of copper wire, and they can add a fun "artistic" twist to an electronics project. For an example e-textiles project, see the Science Buddies project LED Dance Glove: Get the Party Started with Your Own Interactive Light Show.
  • What happens if you change the length or width of your strips of conductive material? This will affect their electrical resistance, or how much they resist the flow of electricity. For a more-advanced version of this project, which involves measuring resistance, see Electric Paint: Light Up Your Painting.
  • What happens if you compare different types of batteries that all provide 3 V? For example, you can compare the 3 V coin cell battery to two AAA batteries, two AA batteries, and two D batteries (all 1.5 V each; 3 V when combined in series). You will need to do some research and problem solving to figure out how you can hook all these batteries up to a paper circuit. (Hint: Search for "battery holders" from an electronics vendor like Jameco Electronics). Despite having the same voltage, do the batteries give different results? Can you look up the data sheets for the batteries to explain why?

Careers

If you like this project, you might enjoy exploring these related careers:

Career Profile
Electrical engineering technicians help design, test, and manufacture electrical and electronic equipment. These people are part of the team of engineers and research scientists that keep our high-tech world going and moving forward. Read more
Career Profile
Have you always loved art? Do you have a good eye for beauty, balance, and form? How would you like to see your designs show up in toy stores? Or in a sporting goods store? Or at a car dealer? Commercial and industrial designers create the shape and form of every type of manufactured good that you can think of—from toys, sporting goods, and medical equipment to high technology products, furniture, toothbrushes, and toasters. They design the form of new products that are as beautiful and… Read more
Career Profile
If you've ever watched a cartoon, played a video game, or seen an animated movie, you've seen the work of multimedia artists and animators. People in these careers use computers to create the series of pictures that form the animated images or special effects seen in movies, television programs, and computer games. Read more
Career Profile
Electricians are the people who bring electricity to our homes, schools, businesses, public spaces, and streets—lighting up our world, keeping the indoor temperature comfortable, and powering TVs, computers, and all sorts of machines that make life better. Electricians install and maintain the wiring and equipment that carries electricity, and they also fix electrical machines. Read more

News Feed on This Topic


, ,

Cite This Page

General citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.

MLA Style

Finio, Ben. "Paper Circuits: Make Electrifying Art." Science Buddies, 11 May 2021, https://www.sciencebuddies.org/science-fair-projects/project-ideas/Elec_p085/electricity-electronics/paper-circuits. Accessed 19 Mar. 2024.

APA Style

Finio, B. (2021, May 11). Paper Circuits: Make Electrifying Art. Retrieved from https://www.sciencebuddies.org/science-fair-projects/project-ideas/Elec_p085/electricity-electronics/paper-circuits


Last edit date: 2021-05-11
