Hello,

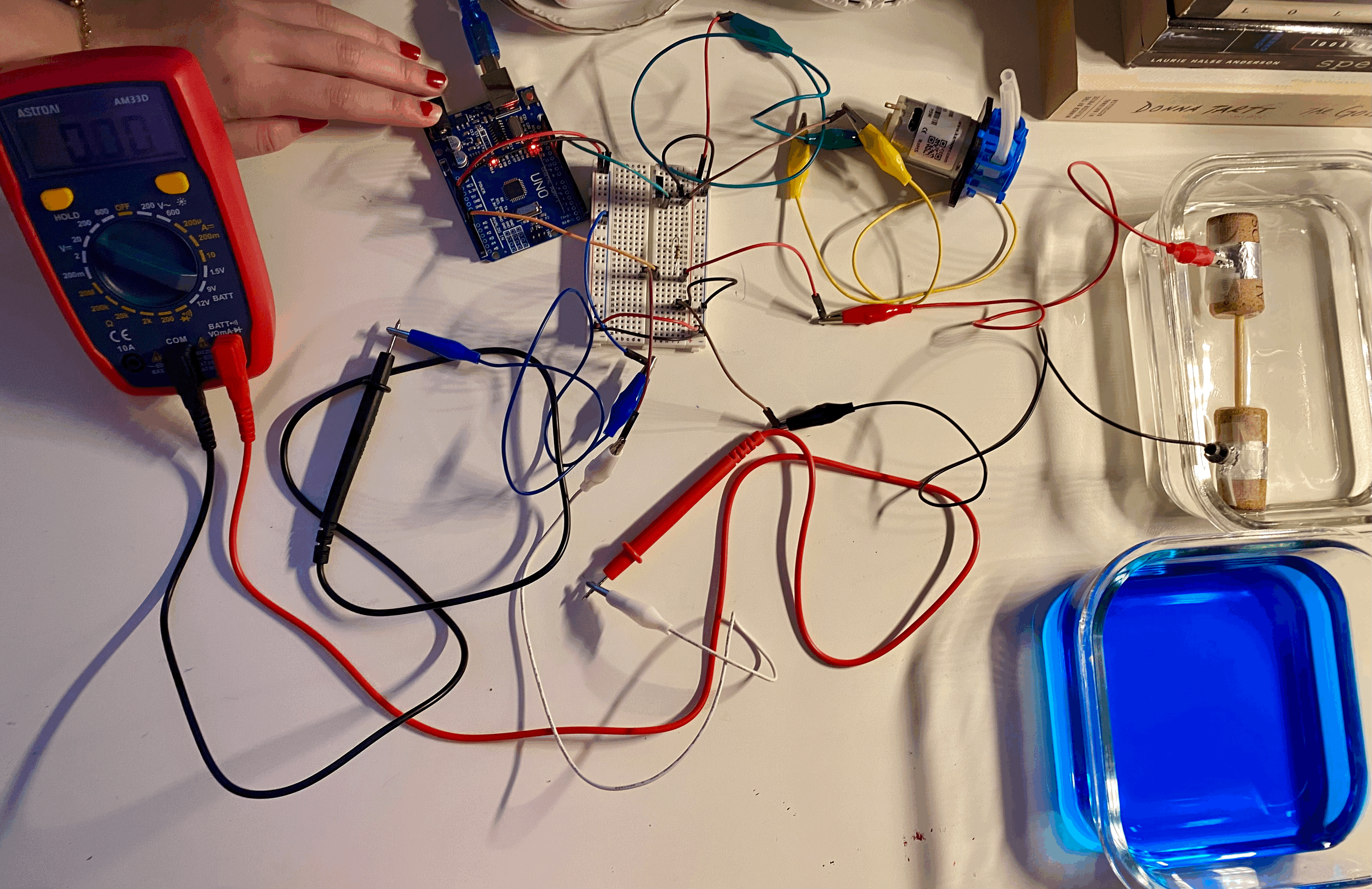

I set up my circuit as directed in the pictures for this project, however my multimeter is not measuring any volts at all, and is staying at 0. What can I do to fix this?
Thank you.
[Administrator edit: Project url: https://www.sciencebuddies.org/science- ... l-pancreas ]
Question on Dealing With Diabetes: The Road to Developing an Artificial Pancreas
Moderators: kgudger, bfinio, MadelineB, Moderators
-
leniswirl
- Posts: 1
- Joined: Sun Nov 17, 2024 3:21 pm
- Occupation: Student
Question on Dealing With Diabetes: The Road to Developing an Artificial Pancreas
- Attachments
-
- tempImage1XjmFm.gif (4.4 MiB) Viewed 4516 times
-
bfinio
- Expert
- Posts: 964
- Joined: Mon Aug 12, 2013 2:41 pm
- Occupation: Lead Staff Scientist, Science Buddies
- Project Question: Expert
- Project Due Date: n/a
- Project Status: Not applicable
Re: Question on Dealing With Diabetes: The Road to Developing an Artificial Pancreas
Hi,
The positive lead of your multimeter is connected to row E20 in the breadboard (the red multimeter probe to the white alligator clip to the red jumper wire), which is an empty row that is not connected to anything else. My guess is that you intended to connect it to row 20 on the other side of the breadboard - the holes are not connected across the gap in the middle of the breadboard.
However, at a glance, there is at least one other problem with your circuit. The resistor is a "dead end" in row 15. If you double check the diagram you will see that there should be a jumper wire connecting the resistor to the positive bus: https://www.sciencebuddies.org/hUcbjsem ... iagram.png
If you haven't already, I would strongly recommend watching the video on our How to Use a Breadboard page before you continue: https://www.sciencebuddies.org/science- ... breadboard
Hope that helps,
Ben
