Cybersecurity: Denial-of-Service Attack

Background Information for Teachers

If you follow the news, you have probably read about cyber-attacks or hacks against individuals, companies, and governments. The results vary widely, ranging from leaks of embarrassing personal photos to identity theft or leaking of top secret information. The backgrounds and motives of perpetrators are also diverse, ranging from teenagers who just want to cause some disruption to serious criminals. One type of cyber-attack is the denial-of-service (DoS) attack. A DoS attack typically floods a server with so much traffic that it is overwhelmed and unable to respond to legitimate users. To regular visitors, the site appears very slow or not functional at all. Unlike other types of cyber-attacks, the goal of a DoS attack is not to steal confidential information. DoS attacks may be used by activists to damage the target organization's reputation or limit its visibility at a critical time; or by criminals who demand a ransom payment to allow a website to come back up.

Before you can explore how DoS cyber-attacks work, you need a basic understanding of how information travels from the client (the computer or program you use to connect to the Internet) to a server (a machine that hosts a website). The server processes requests from the client. For example, when you click a button in a web browser to load a new page, your computer (the client) sends a request to the server for the files needed to load and view that new page. A posted request passes firewalls and routers as it travels through the Internet. A router sends the request to the correct server. There, it is placed in a queue to be processed when the server has a chance. For this activity, the process will be simplified to the process shown in Figure 1.

Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies

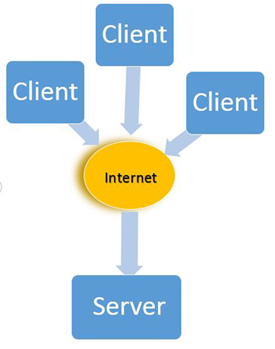

Figure 1. In its simplest form, requests posted by a client travel over the Internet to a server, which then processes the requests.

One way to launch a DoS attack is to send the target server many (fake) requests in a short time span (for example, requesting to load the same page over and over again). This floods the server with requests so it is unable to process them in a timely way. This type of DoS attack is a good example because it is simple, identifying it is easy (requests from a particular client come at an abnormally high rate), and intercepting it could be straightforward (disregard all requests from the attacking client). Once this is understood, more sophisticated types of DoS attacks, which might be harder to detect, can be explored.

The task of cybersecurity staff is to safeguard their employer's Information technology (IT) network and its related data. This includes protecting services against DoS attacks. The ideal defense mechanisms let all legitimate traffic through, while blocking illegitimate requests without slowing down the process. In real life, compromises are often necessary. Several protection mechanisms are used. Implementing a good firewall, which can identify and disregard illegitimate requests, is often the first step. Another tactic is to increase the capacity of the network to handle requests. Although this might not intercept attacks, it makes the service less vulnerable, as it is able to handle the additional load of illegitimate requests.

In this lesson, students act out the network shown in Figure 1 without using computers or the Internet. Some students will act as clients, writing colored cards representing "requests" or information to be sent to the server. Other students will serve as the Internet, collecting and transporting these cards (requests) to the server. One student acting as the server will receive the requests and process them. A student (the guard) will initially oversee the process and can later be used to represent a firewall. One student will serve as attacker and flood the system with requests to simulate a DoS attack. Although this greatly simplifies the information flow happening in real life, it is an easy way to show how a successful DoS attack can be launched, how it affects the network, and ways cybersecurity professionals can counter the attack. Let your students be the cybersecurity personnel, identify cyber-attacks, and find creative ways to protect the service against the attacks.

Additional Background Links

• Cybersecurity, Science Buddies
• Cyber Attack Statistics, HACKMAGEDDON
• Twitter Crippled by Denial-of-Service Attack., CNet
• Google Removes 300 Apps Used to Launch DDoS Attacks From Play Store, Gizmodo

Prep Work (10-20 minutes)

Divide the number of students into groups of 9–12. For each group:

1. Prepare the materials:
   1. Write "Dropped" on one box and "Processed" on the other box.
   2. Cut the construction paper in 1 ½ by 2 inch cards so you have at least 350 cards of one color and 140 cards per color of all other colors. This template can help you cut faster. To find the number of colors you need for a group, subtract 4 from the number of students in the group. Note, if you have colorblind students in your class, you can use cards of different shapes instead of cards of different colors.
   3. Tape or glue the three pages of the Server Queue printout together.
   4. Cut one paper card of each color into small pieces and tape or glue one piece at the top of a column on each processing paper.
   5. The results should look like Figure 2.

Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies

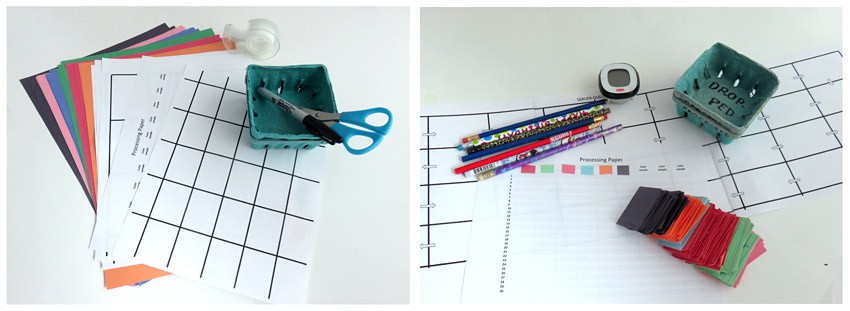

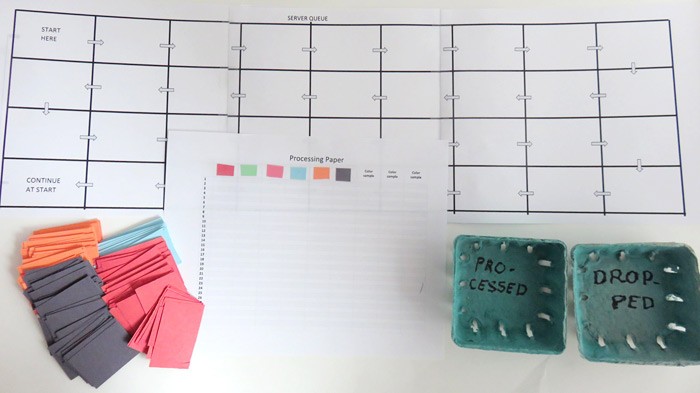

Figure 2. Materials ready to begin this DoS cybersecurity science activity.

2. Arrange the desks and materials:
   1. Arrange the desks so the Internet students can easily walk between all the clients and the server. A setup as depicted in Figure 3 works well. Note: Three students in each group (one representing the guard and two representing the Internet ) do not need a desk for the activity, but might still like to use a desk to fill in their worksheet.
   2. Arrange the materials on the desks, as listed in Table 1.
   3. Keep the additional server queue and processing papers to yourself; they will be needed later in the activity.
   4. You can place a worksheet on each desk or pass out the worksheets later.

Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies

Seven student desks each have a chair, stack of cards, and pen. They represent clients on a network. A larger single desk has the list for the server queue, processing paper, a pen, and two boxes for dropped and processed papers.

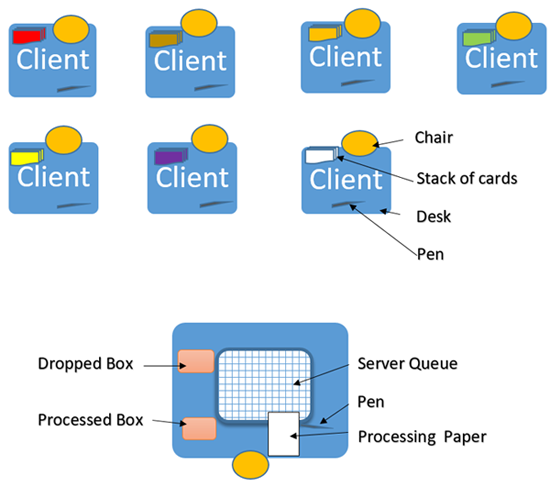

Figure 3. Small-group setup diagram.

Swipe left to see more

Role

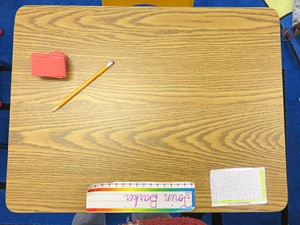

Clients  ( 5–8 )	Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies	Each client has: A stack of cards (350 for one client and 140 for all other clients), a different color for each client. A pen or pencil
Server ( 1 )	Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies	The server has: An assembled server queue Empty "Dropped" box next to the queue A prepared processing paper "Processed" box next to the processing paper Pen or Pencil

Table 1. Cybersecurity DoS activity setup checklist for each small group of students.

Engage (5 minutes)

1. Use following questions to connect to students' personal experiences not being able to access websites, games, or online services.

   Can you remember when you last connected to the Internet (other than at school)?

   Probably, most students will have connected to the Internet recently.

   Can you remember a time where you wanted to, but were not able to connect to the Internet or a certain website? How did it feel?

   Probably most students had this experience and felt deprived, irritated or frustrated.

   What website would you miss most if it was unavailable for a few hours?

   Students might come up with a variety of services they would miss. Social media, YouTube and games might make it to the top of their list.

2. Make students aware of the potential consequences of a website being offline for a company or organization. Following questions can help.

   You clearly think you are suffering when the Internet or a website is out. How long would you wait for a site like Netflix or Wikipedia to become available before giving up or going somewhere else? What happens if MILLIONS of people all get tired of waiting and go to a different website? What impact do you think this has on the company? How would they suffer if their website is temporarily unavailable or malfunctioning? (Note: Feel free to replace Netflix and Wikipedia with any website you think your students use frequently, but be sure it is a site that has alternatives available.)

   Students might mention a variety of answers. Financial loss, decreased customer satisfaction, loss of trust might make it to the top of their list.

3. Introduce the job of cybersecurity personnel. Explain that, as part of safeguarding their employer's information technology (IT) networks and data, it is the cybersecurity personnel's job to prevent a company's website from being unavailable or slow. A company's IT network could include their public websites, the internal computer network they use, and any stored data about customers, employees, and products, etc. This is not an easy job and they sometimes fail.

   Has anyone heard of a cybersecurity breach or "hack" in the news?

   Some students will probably remember a cybersecurity breach that made it in the news. These might not be denial-of-service attacks, so we advise not to go into details here.

4. Introduce the denial-of-service attack as a type of attack which has as its goal, bringing a website down or limiting its services. To do this, the attacker usually floods the targeted system with useless traffic. As a result, the computer serving the attacked site is overloaded and the website appears slow or unavailable.

   Why do you think someone would launch a denial-of-service attack? Think of how these attacks can damage a company, a governmental site, or a political organization?

   Students might provide possible motives including demanding a ransom to restore the website, political activism, harming an organization's reputation, etc.

   How do you think organizations protect themselves against denial-of-service attacks?

   Students might provide ideas. Either briefly write them down or invite them to remember their ideas as they will be useful later in the lesson. It is fine if they do not have any ideas now, the first part of the activity might spark their imagination.

5. Tell the students they will act out a denial-of-service attack and then take the role of cybersecurity personnel with the task of finding and implementing ways to protect the network against the attack.

Explore (40 minutes)

The Activity: Preparation

Walk your students through the following steps:

1. Divide them into groups of 9–12 students. Each group should have the items listed in Table 1 ready. Adjustments for smaller or larger groups are listed in the Materials section.
2. Explain that first, they will explore a way to act out a client sending data (e.g. a request to open a web page) to a website (server) via the Internet. In a second stage, they will add a denial-of-service attack into the model and see its effect. In the third stage, they will invent cybersecurity protection measures and test them using the model.
3. Go over the model and its information technology (IT) analogy. The slideshow can help you convey the information.

   In the IT world, clients (e.g. you at your computer) issue requests like asking to open a web page. That request travels via the Internet to a server (the computer that hosts the web page). The server then processes the requests and generally, a response finds its way back to the client. The web page is loaded and displayed on your computer.

   The figure included in the worksheet and slide 3 of the slideshow displays how requests —modeled by cards—move around in the activity. It starts with a client issuing a request. In the model, a person acting as a client writes his or her name on a colored card. The person acting as the Internet then picks up the colored card and delivers it to the server by placing the colored card in the server queue. The card sits in the queue until the person acting as the server processes the card. For this activity, we do not model the response sent back to the client from the server.

   Once the students understand the global model, you can introduce the following details. If your class is IT savvy, you can ask if they know what these parts of the model represent.

   • Occasionally, the server queue is full and requests never get processed. You might receive the message "The server at [website] is taking too long to respond." on your computer. In the model, colored cards will land in a "Dropped" box when the server queue is full.
   • In the real world, requests will usually pass a firewall scanning for any malicious requests before allowing requests to enter the server queue. In the activity, the person modeling the Guard will oversee the process, but will not scan the requests until (possibly) Stage 3.

Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies
Figure 4. Illustration of how the Internet moves requests (colored cards) issued by a client to the server.

4. For each small group, assign one student to the server role, one student to the guard role, two students to the Internet role, and the remaining students to the client role. Be sure to adjust the materials in case the student with the server role is color-blind. See the Prepare Work section for ideas on how to adjust the materials.
5. Go over the tasks assigned to each role in the activity, as listed in Table 2.

Swipe left to see more

Role		Tasks

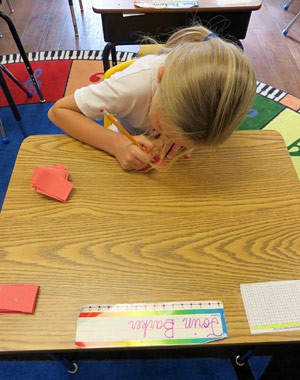

Clients  ( 5–8 )	Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies	Takes a card from their stack, writes their full name on the card, and places the card on the corner of their desk where the Internet person will pick them up.
Internet  ( 2 )	Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies	Picks up request cards from the clients (top picture in this row); picks up all cards that a client has ready and picks up from a maximum of three clients before delivering. Delivers request cards to the server by placing them on the next free slot(s) in the server queue (bottom picture in this row). When all slots are full, counts to 10, places request cards in slots that became available while counting, and drops the remaining request cards in the "Dropped" box. Returns to pick up new requests. Note: Second Internet person starts when the first Internet person arrives at the server queue.
Guard  ( 1 )		Observes how the activity is going. Stops the activity when the teacher indicates it is time to stop, and does the following: Instantly stops the Internet from delivering any more requests. Asks the clients to stop writing requests. Counts to 10. Asks the server to stop processing requests.

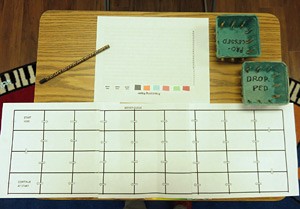

Server  ( 1 )	Image Credit: Sabine De Brabandere, Science Buddies / Science Buddies	Takes requests, one by one, in order, from the server queue. Writes a checkmark in the column corresponding to the color of the request card on the processing paper. Starting from the top line, one checkmark per line. Places the card in the "Processed" box.
