Drones in High-Tech Farming (Grades 6-8)

Summary

Grade Range
6th-8th
Active Time
3 hours
Total Time
3 hours
Area of Science
Aerodynamics & Hydrodynamics
Physics
Agricultural Technology
Key Concepts
drones, agriculture, gravity, lift, rotors, sheep
Credits

Overview

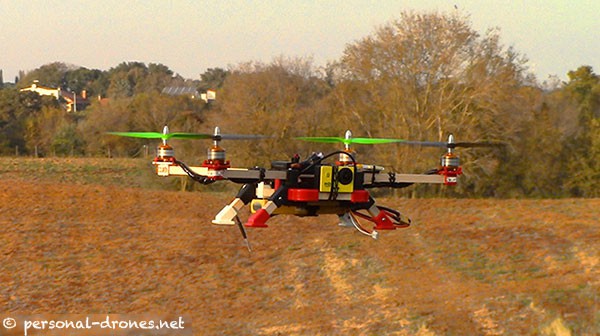

Agricultural drone hovering over a brown farm field.
(Image credit: by ackab1, via Flickr. Creative Commons).

Students will discover the science behind how a drone works, explore how drones are used in agriculture, and program and operate a drone for the purpose of monitoring grazing sheep.

NGSS Alignment

This lesson helps students prepare for these Next Generation Science Standards Performance Expectations:
This lesson focuses on these aspects of NGSS Three Dimensional Learning:

Science & Engineering Practices
Asking Questions and Defining Problems. Asking questions and defining problems in grades 6-8 builds on grades K-5 experiences and progresses to specifying relationships between variables, and clarifying arguments and models.

Define a design problem that can be solved through the development of an object, tool, process or system and includes multiple criteria and constraints, including scientific knowledge that may limit possible solutions.
Disciplinary Core Ideas
ETS1.A: Defining and Delimiting Engineering Problems. The more precisely a design task’s criteria and constraints can be defined, the more likely it is that the designed solution will be successful. Specification of constraints includes consideration of scientific principles and other relevant knowledge that are likely to limit possible solutions.
Crosscutting Concepts
Influence of Science, Engineering, and Technology on Society and the Natural World. All human activity draws on natural resources and has both short and long-term consequences, positive as well as negative, for the health of people and the natural environment.

The uses of technologies and limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions.
Materials Needed

Interest Approach — Engagement:

  • Gymnasium or large field free of trees or overhead wires
  • Quadcopter drone (We tested the Ryze Tello drone. If using a different drone, feel free to adapt the instructions to meet your drone's specifications.)
  • Piece of cardboard, wood, foam, or rubber mat for drone takeoff and landing (optional)

Activity 1: How Does a Drone Fly?

Activity 2: Drones in Agriculture

Activity 3: Drone Mission

Vocabulary Words

drone: an unmanned aircraft guided by remote control or onboard computers

force : a push or a pull on an object

Global Positioning System (GPS): a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth

gravity: the natural force that causes things to fall toward the Earth

hover: remain in one place in the air

lift: the force that directly opposes the weight of an aircraft and holds the aircraft in the air

pitch: movement of a drone up or down on a lateral axis

precision agriculture: an information technology-based site-specific farm management system that collects and responds to data ensuring that crops receive exactly what they need for optimum health and productivity

propulsion: the force that moves something forward

quadcopter: a drone with four rotors

remote control: a device used to control machines from a distance

roll: rolling movement of a drone sideways left or right on a longitudinal axis

rotor: a set of rotating blades that turn around a central point and lift an aircraft off the ground

satellite: a spacecraft placed in orbit around the Earth, moon, or another planet used to send signals and information as part of a communications system

survey: to measure and examine an area of land

thrust: the force that causes an aircraft to move forward

yaw: rotating movement of an aircraft clockwise or counterclockwise on a vertical axis

Background

A drone, also known as an unmanned aerial vehicle (UAV), is an unmanned aircraft guided by remote control or onboard computers. Most agricultural drones have either fixed wings or rotors. Drones with four rotors are called quadcopters

Drone applications in precision agriculture include mapping, surveying, monitoring, planting, crop dusting, and spraying. Drones can increase yields, save time and money, and assist with animal and crop monitoring, planning, and management. The birds-eye-view of a drone can improve production, efficiency, and yields by identifying small problems before they become big problems. Real-time footage can be used to prevent costly losses and ensure the success of the crops.

Drone map creation provides farmers with an accurate view of their fields. Drones equipped with near infrared camera sensors allow the drones to see the spectrum of light that plants use to absorb light for photosynthesis. Using this information, farmers can identify the health of their crop. Drones can create detailed Global Positioning System (GPS) maps for planning the location of planting to maximize land, water, and fertilizer usage. Precise soil analysis maps produced by drones help direct seed planting patterns, irrigation, and nitrogen-level management. Nutrients, moisture levels, and overall crop health is monitored in real time by drones equipped with hyper-spectral, multispectral, and thermal sensors. Scanning crops with visible and infrared (IR) light, drones can identify plants infected by bacteria or fungus, helping to prevent disease from spreading to other crops. This technology enables detection of some diseases before they are visible to the human eye.

Drone cameras can take high-resolution images with clear detail. Drones equipped with thermal cameras can assist with irrigation decisions by identifying areas of pooling water or insufficient soil moisture. Thermal imaging cameras can also monitor livestock by checking the herd for injured, sick, missing, or birthing livestock. Drones provide greater resolution than satellites or airplanes because they can be flown lower and more precisely.

Crop spraying drones can carry fertilizer, herbicides, pesticides, or fungicides in large liquid storage reservoirs. Applications using drones are less expensive than manual vehicle applicators or crop dusters. Drones follow pre-mapped flight paths and spray crops with precision and accuracy, which can reduce waste and over spraying.

Drones can be operated by remote control or by onboard computers with a preset flight path. The flight path of a drone is created by the user on a ground control device (a laptop, tablet, or smartphone). The line of flying is drawn on a map, and the information is transferred or uploaded wirelessly from the ground control device to the drone. The drone follows this flight path, and the user has the option to perform manual overrides if necessary.

Drones with rotors, like quadcopters, use the rotors for propulsion and control. A rotor is like a fan. Spinning blades push air down. Two of the rotors diagonally opposite of each other are spinning clockwise while the other two rotors are spinning counterclockwise. According to Newton's third law of motion, for every action there is an equal and opposite reaction, all forces come in pairs. As the rotor pushes down on the air, air pushes up on the rotor. In order for the drone to fly into the air, a force that equals or exceeds the force of gravity must be created. This is called lift. The faster the rotors spin, the greater the lift. Drones can hover, climb, or descend. To hover, the thrust of the rotors pushing the drone up must be equal to the gravitational force pulling it down. By increasing the thrust (speed of the rotors), the upward force is greater than the force of gravity and the drone will climb. By decreasing the thrust, the drone will descend.

Yaw is the rotating of the the drone either clockwise or counterclockwise on a vertical axis. A drone with four rotors can rotate by changing the power to the four rotors. Decreasing the spin of two rotors diagonally opposite from each other and increasing the spin of the other two rotors causes the drone to rotate while hovering.

Pitch is the movement of the drone either up or down on a lateral axis. Moving the front of the drone up requires increasing the rotation rate of the back two rotors and decreasing the rate of the front two rotors. Decreasing the rotation rate of the back two rotors and increasing the rate of the front two rotors will move the front of the drone down.

Roll is the rolling movement of the drone sideways, either to the left or the right, on a longitudinal axis. Increasing the rotation rate of the right two rotors and decreasing the rate of the left two rotors will move the drone to the left. Decreasing the rotation rate of the right two rotors and increasing the rate of the left two rotors will move the drone to the right.

The ascent, descent, yaw, pitch, and roll on most quadcopters can be controlled by the throttle sticks on the remote control or by programming a flight plan.

All drones that weigh more than .55 pounds (250 grams) must be registered with the Federal Aviation Administration (FAA). Unmanned aircraft should stay below 400 feet. Everyone flying drones should follow these basic safety guidelines at all times:

  • Keep the drone in eyesight at all times, and use an observer to assist if needed.
  • Remain well clear of and do not interfere with manned aircraft operations. See and avoid other aircraft and obstacles at all times.
  • Do not intentionally fly over unprotected persons or moving vehicles. Remain at least 25 feet away from individuals and vulnerable property.
  • Contact the airport and control tower before flying within five miles of an airport or heliport.
  • Do not fly in adverse weather conditions such as high winds or reduced visibility.
  • Do not fly under the influence of alcohol or drugs.
  • Ensure that the operating environment is safe and that the operator is competent and proficient in the operation of the drone.
  • Do not fly near or over sensitive infrastructure or property such as power stations, water treatment facilities, correctional facilities, heavily traveled roadways, government facilities, etc.
  • Check and follow all local laws and ordinances before flying over private property.
  • Do not conduct surveillance or photograph persons in areas where there is an expectation of privacy without the individual's permission.

Before using drones within an educational setting, consult with district administration to evaluate district and school policies, local regulations, and legal implications. Laws surrounding drone use change frequently. For up-to-date information specific to drones in an educational setting go to the FAA's Educational Users page and check the FAA mobile app B4UFLY to verify that your planned flight location is not in a no-fly zone.

Prior to teaching this lesson, familiarize yourself with flying the Tello drone and programming using the DroneBlocks App. The DroneBlocks App is free and is compatible with most DJI drones including Phantom 3, Phantom 4, Mavic Pro, Mavic Air, Spark, and Tello.

Interest Approach - Engagement

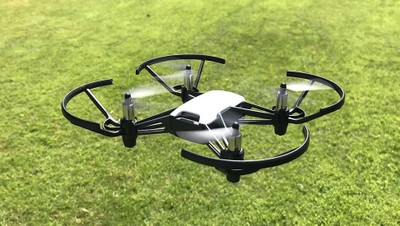

  1. drone hovering Take the class to a large field free of trees or overhead wires or into a gymnasium.
  2. Show the students the quadcopter drone. Explain that drones either have fixed wings or rotors. Drones with four rotors are called quadcopters.
  3. Perform a demonstration of the drone's capabilities including take off, hover, maneuvers in the air, filming video, taking photographs, and landing. (If flying the drone outside, a cardboard, wood, foam, or rubber landing pad is recommended. Long grass can interfere with the drone's rotors.)
  4. Arrange the students into small groups. Ask the groups to make a list of different ways in which a drone might be useful to people.
  5. Have each group share their ideas with the class.
  6. Explain to the students that, in this lesson, they will discover how a drone flies, explore how drones are used in agriculture, and program and operate a drone to survey a field.
Procedures

Activity 1: How Does a Drone Fly?

  1. Ask the students, "How do drones fly?" After listening to their responses, lead a discussion about gravity and lift. Integrate the following points into the discussion:
    • Gravity is the natural force that causes things to fall toward the Earth.
    • Lift is the force that directly opposes the weight of the aircraft and holds the aircraft in the air.
    • Quadcopter drones use rotors to help the drone lift off the ground and fly.
    • As the rotor pushes down on the air, air pushes up on the rotor.
    • In order for the drone to fly into the air, a force that equals or exceeds the force of gravity must be created. This is called lift.
    • The faster the rotors spin, the greater the lift.

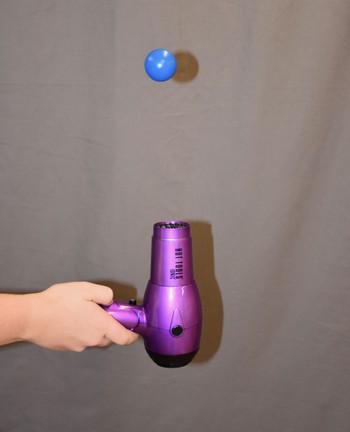

  2. hair dryer ping pong ball Turn on a hair dryer and aim it towards the ceiling. Place a ping pong ball into the stream of air. Ask the students, "Why is the ping pong ball floating?" (The force of the air pushing up on the ball is equal to the force of gravity pushing down on the ball, so the ball is hovering in the air.)
  3. Ask the students what they think will happen to the ping pong ball if the hair dryer is turned off. Turn the hair dryer off to show the students that the ball will fall to the ground. Ask the students, "Why does the ping pong ball fall when the hair dryer is turned off?" (The force of the air pushing up on the ball is less than the force of gravity pushing down on the ball.)
  4. Hand out two copies of the whirlybird rotor template and a paper clip to each student. Instruct the students to cut out both of the whirlybird rectangles. Have them crumple one of the rectangles into a ball and follow the template's instructions to make a rotor with the other piece of paper.

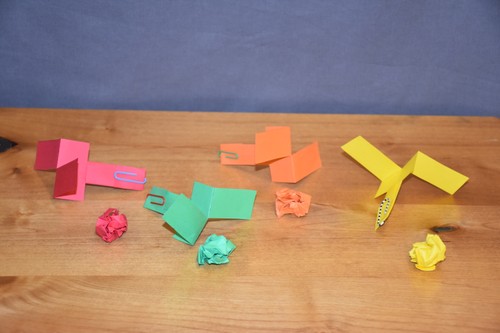

    folded paper examples
  5. Have the students carefully stand on their chairs and drop their crumpled ball and their rotor (paper clip facing down) at the same time from the same height.
  6. Ask the students, "Which stayed in the air the longest, the crumpled ball or the rotor?" (the rotor) "Why did the rotor stay in the air longer?" (The design of the rotor causes the blades to spin as it falls through the air. The spinning blades generate enough lift to slow the rotor down.)
  7. Show the students the rotors on the quadcopter drone. Clarify that, unlike the paper rotor, the drone's rotors are powered by motors that can create and maintain a force that is equal to or greater than the force of gravity. The rotors help the drone lift off the ground and fly.
  8. Show the students the video How Do Drones Fly? for an explanation of how rotors help drones move in different directions.
  9. Provide a demonstration about how to fly the class drone using a smartphone or tablet as a remote control. Include an explanation of the safety guidelines listed in the Background Agricultural Connections section of this lesson.

Activity 2: Drones in Agriculture

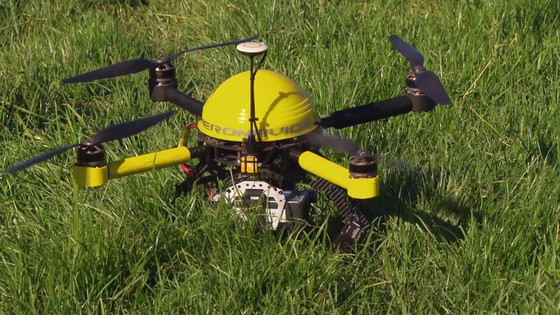

  1. Watch the Drones for Farm Tasks video as a class. Before watching the video tell students that there are three roles you want them to look out for. One is the role of the drone, the second is the role of the software, and the third is the role of the humans. After watching the video discuss these questions as a class.
    • What does the drone physically do? It flies over the farmland taking images.
    • How do drones improve the lives of the sheep farmers? They save the farmers time by decreasing the amount of time farmers spend commuting on the farm. This decrease in commuting also improves farmer safety as the commuting is what is most likely to result in an accident. The drones also increase the profits of the farm by helping them manage the dry matter (dried grasses and other foliage that the sheep eat) so that the lambs get nutrients to grow more quickly and get to market more quickly.
    • What tasks do the sheep farmers in the video use their drone for? Monitoring water troughs and looking for any leaks in the water system, monitoring the health and location of their sheep, counting sheep, and monitoring the types and quantity of ground cover ranging from weeds and thistles to dry matter that the sheep can graze on.
  1. After the video discussion, have students read Sky shepherding: Using drones to herd sheep ethically and discuss what the University of New South Wales team found about the benefits of using drones for shepherding (ie. It is less stressful, as measured by heartrate, for the sheep than traditional herding). Alternatively, if your students are up for a challenge, have them read the original research paper first. If students are reading the original research paper it may also be helpful to share with them the Science Buddies How to Read a Scientific Paper guide.

Activity 3: Drone Mission

  1. Prior to beginning Activity 3, identify a large, rectangular field or gymnasium to represent a sheep ranch.
  2. Organize the class into groups of four students. Assign each group a number 1-9. Hand out a Drone Mission Activity Packet to each student.
  3. Read the farming challenge aloud to the class. "Imagine that you are a rancher, and you raise sheep. Your 25 sheep are grazing in a large, hilly area surrounded by fences. The area is so large that it is difficult to monitor the entire area even with horses or all-terrain vehicles. You have just purchased a drone to help monitor the sheep. You will need to program a flight plan for the drone and take aerial photographs and videos of the grazing area. Examine the images captured by the drone's camera to identify problems, and determine how to resolve the problems."
  4. Model for the students how to fly the drone manually and capture video by flying the drone around the perimeter of the ranch. Fly and video three separate drone missions. Before each mission, set up the field or gymnasium floor according to the following instructions:
    • Groups 1, 2, & 3: Sheep Cards onto different spots on the field or gymnasium floor. Place 4 pieces of colored poster paper onto different spots along the perimeter of the ranch. Attach 4 "broken fence" Ranch Problem Signs onto each poster.
    • Groups 4, 5, & 6: Place 27 Sheep Cards and 4 pieces of colored poster paper onto different spots on the field or gymnasium floor. Attach 4 "lambing ewe" Ranch Problem Signs onto each poster.
    • Group 7, 8, & 9: Place 24 Sheep Cards and 4 pieces of colored poster paper onto different spots on the field or gymnasium floor. Attach 1 "leaking water trough," 1 "coyote sighted," and 2 "sick sheep" Ranch Problem Signs onto the each poster.
  5. Have the groups use their video footage to gather the following information:
    • Count the number of sheep. Are any sheep missing? Have any lambs been born?
    • Map out the problem areas in the rectangle under Step 1 in the Drone Mission Activity Packet.
    • Assign a number 1-4 to each problem area.
  6. Have each group take turns manually flying the drone over the ranch taking an aerial photo of each problem area. Each student in the group will fly the drone over and photograph one of the four problem areas. The first person will fly over and photograph problem area 1, the second person will fly over and photograph problem area 2, and so on. Reset the field or gymnasium according to the instructions in Procedure 4.
  7. The groups will examine their photographs and record the problems and the solutions they come up with in the Drone Mission Activity Packet.
  8. Explain to the students that the missions they just flew were flown manually using a remote control (smartphone or tablet). Sometimes farmers manually fly drones over their farms. Other times farmers program flight plans so that the drone can repeat flight paths without having to be flown manually.
  9. Explain to the students that they are going to work in their groups to program flight paths over the problem areas. Have the groups choose from the flight commands in the Drone Mission Activity Packet to create their flight path. The flight path should meet the following requirements:
    • The drone may begin at any location along the perimeter of the field.
    • The drone must take off and land at the same location.
    • The drone must fly over every problem area and hover for 5 seconds. (Students will not have the ability to capture videos or photographs during the programmed flight.)
  10. Check each group's flight plan for any commands which could result in an unsafe situation or damage to the drone. Have the groups make any necessary adjustments.
  11. Have each group enter their flight plan into the DroneBlocks App by dragging, dropping, and connecting the command blocks.
  12. Allow time for each group to test their flight plan by launching their mission. The groups should check the boxes in step 4 of their Drone Mission Activity Packet for each requirement that was successfully met during the test. Adjustments should be made and tested until each box can be checked off.
    • Tech Tip: On occasion, the Tello drone will fail to respond to a particular programmed command from DroneBlocks. Adding a 2 second hover before the failed command may solve the problem. The DroneBlocks Community on Facebook can be a helpful troubleshooting resource.
  13. As a class, discuss the benefits of using a drone to have a birds-eye-view of a farm. Integrate the following points into the discussion:
    • Farmers can monitor large areas that would be difficult to otherwise monitor.
    • The birds-eye-view of a drone can improve production, efficiency, and yields by identifying small problems before they become big problems.
    • Solutions can be applied with precision and accuracy saving time, money, and resources.

Concept Elaboration and Evaluation

After conducting these activities, review and summarize the following key concepts:

  • A drone is an unmanned aircraft guided by remote control or onboard computers.
  • In order for a drone to fly in the air, a force that equals or exceeds the force of gravity must be created. This is called lift.
  • Drone applications in agriculture include mapping, surveying, monitoring, planting, crop dusting, and spraying.
  • Agricultural drones can increase yields, save time and money, and assist with animal and crop monitoring, planning, and management.
Author

Adapted from Drones in High-Tech Farming (Grades 6-8) found within the National Agricultural Literacy Curriculum Matrix.

Original author: Lynn Wallin

Organization Affiliation

National Center for Agricultural Literacy
