# Ping Pong Pickup Challenge for Grades 3-5

1
2
3
4
5
12 reviews

## Summary

3rd-5th
Group Size
1-4 students
Active Time
2-3 hours
Total Time
2-3 hours
Area of Science
Mechanical Engineering
Engineering Challenge
Key Concepts
simple machines, material properties, engineering design
Credits
Ben Finio, PhD, Science Buddies

## Overview

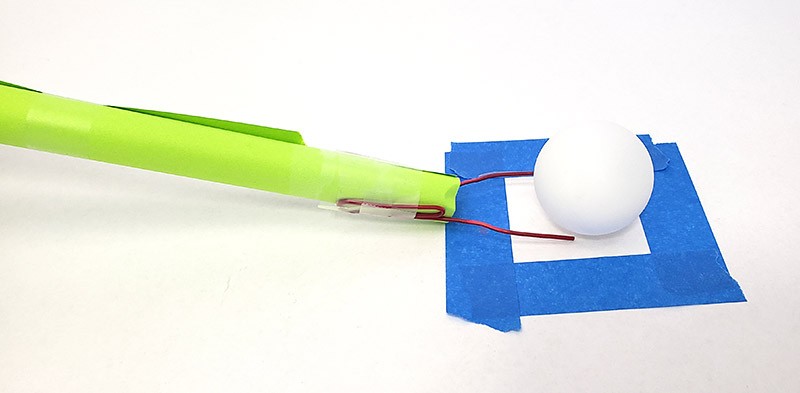

In this fun engineering lesson plan, your students will build devices from paper, tape, string, and paper clips to pick up and retrieve a ping pong ball. The challenge is to pick up the ball from as far away as possible! Middle school and high school versions of this lesson plan are also available. The 2023 competition is over, but you can see what students built and learn about the winners on the 2023 Engineering Challenge summary page.

## Learning Objectives

• Make designs for a device based on specific criteria
• Choose which design will perform better based on the criteria
• Build and iteratively test a device

## NGSS Alignment

This lesson helps students prepare for these Next Generation Science Standards Performance Expectations:
• 3-5-ETS1-2. Generate and compare multiple possible solutions to a problem based on how well each is likely to meet the criteria and constraints of the problem.
This lesson focuses on these aspects of NGSS Three Dimensional Learning:

 Science & Engineering Practices Constructing Explanations and Designing Solutions. Generate and compare multiple solutions to a problem based on how well they meet the criteria and constraints of the design problem. Disciplinary Core Ideas ETS1.B: Developing Possible Solutions. At whatever stage, communicating with peers about proposed solutions is an important part of the design process, and shared ideas can lead to improved designs. Crosscutting Concepts Scale, Proportion, and Quantity. Standard units are used to measure and describe physical quantities such as weight, time, temperature, and volume.

## Materials

For the 2023 Engineering Challenge, students were only allowed to use the materials listed in the table to build their devices.

Material Dimensions/type allowed Maximum quantity Points Cost
Paper Printer, construction, graph, or notebook paper (letter, A4 size, 9"x12" or 22x30 cm sizes are all allowed)

Cardstock and newspaper are not allowed.
30 sheets 5 points per sheet, rounded up to the nearest whole sheet
Paper clips Any size up to 50 mm (2 inch), metal (coated or non-coated) 10 1 point each
String Any type up to 3 mm in diameter (dental floss, fishing line, cotton string, twine, yarn, etc.) 10 meters 1 point per 50 cm (must round up to the closest 50 cm)
Tape Maximum 1 inch (2.5 cm) wide, clear office tape, masking tape, or painter's tape.

Duct tape, packing tape, and electrical tape are not allowed.
One roll Free
Ping pong ball Standard 1 Free - required for testing

They can also use the following tools for building and testing their devices (the tools cannot be part of the device):

• Scissors
• Ruler
• Tape measure or meterstick
• Pencil
• Tape for marking the floor (does not count toward the one roll used in device construction)

## Background Information for Teachers

This section contains a quick review for teachers of the science and concepts covered in this lesson.

You can use devices like the one in Figure 1 to pick up trash, reach things on shelves, or even just grab something from a chair if you are too lazy to get up! They can also save you from touching dirty things with your hands. The tools need to be sturdy enough to reach for things that are far away without bending or breaking, but also light enough that they are easy for people to use. They also need to maintain a firm grip on whatever you are picking up so you do not drop it.

Figure 1. A trash grabber picking up a plastic bottle.

The 2023 Engineering Challenge is inspired by devices like the one in Figure 1. The goal is to build a device using nothing but paper, tape, string, and paper clips that can pick up and retrieve a ping pong ball from a distance. The farther away the ball is, and the fewer materials you use to build your device, the higher the score will be.

You can use this challenge to explore several different topics in physics and engineering with your students. How you approach the project is up to you. First, it is a good way to practice the engineering design process. You can also explore simple machines and various mechanisms with your students. They can apply knowledge about material properties like mass, stiffness, and friction, and use that knowledge to make informed decisions about how they build their devices.
