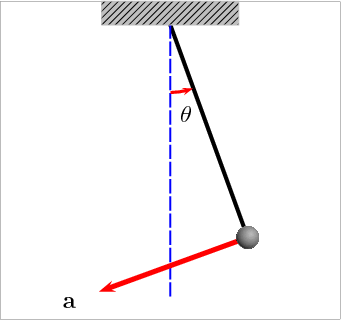

Swinging Pendulum

Summary

Grade Range

6th-8th

Group Size

Total Time

45 minutes

Area of Science

Physics

Key Concepts

Conservation of energy, potential energy, kinetic energy, speed

Credits

Science Buddies is committed to creating content authored by scientists and educators. Learn more about our process and how we use AI.

Overview

This activity demonstrates how potential energy (PE) can be converted to kinetic energy (KE) and back again. Given a pendulum height, students calculate and predict how fast the pendulum will swing by understanding conservation of energy and using the equations for PE and KE. The equations are justified as students experimentally measure the speed of the pendulum and compare theory with reality.

Engineering Connection

Mechanical engineers design a wide range of consumer and industry devices—transportation vehicles, home appliances, computer hardware, factory equipment—that use mechanical motion. The design of equipment for demolition purposes is another example. Like the movement of a pendulum, when an enormous wrecking ball is held at a height, it possesses potential energy, and as it falls, its potential energy is converted to kinetic energy. As the wrecking ball makes contact with the structure to be destroyed, it transfers that energy to take down the structure.

NGSS Alignment

This lesson helps students prepare for these Next Generation Science Standards Performance Expectations:

MS-PS3-5. Construct, use, and present arguments to support the claim that when the kinetic energy of an object changes, energy is transferred to or from the object.
MS-PS3-2. Develop a model to describe that when the arrangement of objects interacting at a distance changes, different amounts of potential energy are stored in the system.

This lesson focuses on these aspects of NGSS Three Dimensional Learning:

Science & Engineering Practices

Engaging in Argument from Evidence. Construct, use, and present oral and written arguments supported by empirical evidence and scientific reasoning to support or refute an explanation or a model for a phenomenon.

Scientific Knowledge is Based on Empirical Evidence. Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Developing and Using Models. Develop a model to describe unobservable mechanisms.

Disciplinary Core Ideas

PS3.C: Relationship Between Energy and Forces. When the motion energy of an object changes, there is inevitably some other change in energy at the same time.

When two objects interact, each one exerts a force on the other that can cause energy to be transferred to or from the object.

PS3.A: Definitions of Energy. A system of objects may also contain stored (potential) energy, depending on their relative positions.

Crosscutting Concepts

Energy and Matter. Energy may take different forms (e.g. energy in fields, thermal energy, energy of motion).

Systems and System Models. Models can be used to represent systems and their interactions—such as inputs, processes and outputs—and energy and matter flows within systems.

Learning Objectives

After this activity, students should be able to:

Explain the concepts of potential and kinetic energy.
Use the concepts of kinetic energy, potential energy and conservation of energy to perform an experiment to determine an object's velocity.
Describe how the concepts of conservation of energy, kinetic energy and potential energy are used extensively in engineering design.

Materials List

Each group needs:

2 stopwatches; borrow from other teachers or ask students to bring from home
masking tape; not scotch tape
10 feet of string or fishing line
heavy object or weight, to tie to string
(if mass of heavy object is unknown) scale; one per class; groups can share
calculator
Swinging Pendulum Worksheet A (with algebra) or Swinging Pendulum Worksheet B (without algebra), one per student

Introduction/Motivation

Remember that an object's potential energy is due to its position (height) and an object's kinetic energy is due to its motion (velocity). Potential energy can be converted to kinetic energy by letting the object fall (for example, a roller coaster going down a big hill or a book falling off a shelf). This energy transformation also holds true for pendulums, as illustrated in the Figure 1. As a pendulum swings, its potential energy converts to kinetic and back to potential. Recall the concept of conservation of energy—that energy may change its form, but have no net change to the amount of energy.

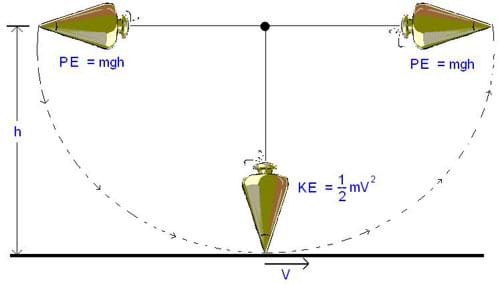

A diagram shows a swinging pendulum to illustrate that the pendulum's potential energy, when at its highest point at the left, is converted into kinetic energy as it drops to its lowest point, and converted back to potential energy as it reaches its highest point to the right.

In this activity, you will prove that the transformation of energy occurs by calculating the theoretical value of velocity at which a pendulum should swing and comparing it to a measured value.

You will use three equations (write them on the classroom board):

$PE \:=\: m \: g \: h$

$KE \:=\: \frac{1}{2} \: m \: V_t^2$

$V_m \:=\: \frac{distance}{time}$

where m is mass (kg), g is gravity (10 m/s²), h is height (meters), V_t is the calculated velocity (m/s), and V_m is the measure velocity (also m/s). To make the calculations simpler, use the metric system for measurements and calculations. This way, we can approximate gravity as 10 m/s² and not worry about the English system's wacky units of mass.

Procedure

Before the Activity

Gather materials and make copies of the worksheet, either Swinging Pendulum Worksheet A (with algebra) or Swinging Pendulum Worksheet B (without algebra).
Depending on class size, designate several areas for pendulums to swing.
Tie the string(s) or line(s) to the ceiling about 2 inches from a wall, leaving enough slack to reach the ground.

With the Students

Divide the class into groups of four students each. Hand out the worksheet.
Have each group measure and record the mass of its object or weight.
Have each group pick an arbitrary height at which to release its pendulum. Limit the heights to 15 to 40 cm (.15 to .4 m) from the floor.
Calculate the potential energy. Direct each team member to do this as a way to verify the result.
Calculate the theoretical velocity, V_t , at the bottom of the swing.

Remember, KE at the bottom of the swing equals PE at the top of the swing.
If students do not know algebra yet, derive V_t for them (see the Troubleshooting Tips section).

Have each group move to a designated area and tie its weight to the string/line so that it barely misses the ground while hanging.
Place two pieces of tape on the wall on opposite sides of the hanging pendulum and record the distance between the two pieces.

Set it up so the distance ranges from 30 to 50 cm (.3 to .5 m). Choose a larger distance for a higher height, that is, h = 40 cm → distance = 50 cm.
Set it up so the pendulum rests in the middle of the two pieces of tape.

Have one or two students pull back the weight until it reaches that arbitrary height chosen before (in step 3). Note: This should put it well beyond the piece of tape.
Have two students synchronize two stopwatches, each holding one, and start timing as soon as the pendulum passes the first piece of tape and ending as it passes the second piece.
The first student stops his/her stopwatch when the pendulum passes the opposite piece of tape and the second student stops his/her watch when it returns back to the initial piece of tape.
Record both times and calculate the difference in time.
Repeat the experiment four times so students can perform each role.
Direct students to complete the worksheet.
Conclude with a class discussion to share and compare results. How close were the values for the theoretical velocity and the measured velocity?

Assessment

Pre-Activity Assessment

Question/Answer: Ask the students and discuss as a class:

Where will the pendulum have the greatest potential energy? (Answer: When it is pulled back.)
Where will it have the greatest kinetic energy? (Answer: At the bottom/middle of the swing.)

Prediction: Ask the students to predict:

Will pendulums at higher heights go faster or slower? (Answer: They should go faster.)

Activity Embedded Assessment

Question/Answer: Ask the students and discuss as a class:

What happens to the potential energy as the pendulum swings down? (Answer: It turns into kinetic energy.)
When the pendulum swings to the other side, what happens to the kinetic energy? (Answer: It turns back into potential energy.)

Post-Activity Assessment

Question/Answer: Ask the students and discuss as a class:

If engineers can use potential energy (height) of an object to calculate how fast it will travel when falling, can they do the reverse and calculate how high something will rise if they know its kinetic energy (velocity)? (Answer: Yes, as long as you know either height or velocity, you can calculate the other.)
For what might an engineer use this information? (Answer: Other amusement park rides besides roller coasters, or determining how high to build the next hill on a roller coaster, or how to launch something, etc.)

Safety Issues

Make sure students do not use the weighted pendulum to swing at other students.

Troubleshooting Tips

If students have not learned algebra yet, use the Worksheet Version B with V_t already derived.

An approximation is used for calculating measured velocity, V_m . If the tape markers are too far apart, the approximation will not hold true. However, if they are too close together, it may be difficult for students to clock a difference in time. The distance should range from 30 to 50 cm (.3 to .5m). Choose a larger distance for a higher height; that is, h = 40 cm → distance = 50 cm.

Activity Extensions

So far, students have calculated the mechanical energy when it is either completely potential or kinetic energy. What about when the mechanical energy is composed of both? Assign students to create a table and/or graph (depending on their skill level) showing the potential and kinetic energies of their pendulum at heights of 0, ¼h, ½h, ¾h, and h. (Hint: They already know the values at heights 0 [purely kinetic] and h [purely potential].)

Activity Scaling

For lower grades, work through the calculation of average time. Also, explain and derive V_t for them and use Worksheet B, the version without algebra.
For upper grades, use Worksheet A, with algebra.

Copyright

2004 by Regents of the University of Colorado

Contributors

Chris Yakacki, Malinda Schaefer Zarske, Denise W. Carlson

Supporting Program

Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Acknowledgements

The contents of this digital library curriculum were developed under grants from the Fund for the Improvement of Postsecondary Education (FIPSE), U.S. Department of Education and the National Science Foundation (GK-12 grant no. 0338326). However, these contents do not necessarily represent the policies of the Department of Education or National Science Foundation, and you should not assume endorsement by the federal government.
