Abstract
Microfluidic devices are small tools used in different fields like engineering and biomedicine. Scientists and engineers use these devices to work with very tiny amounts of fluids for various experiments. These experiments can include things like biomedical research, creating new medicines, and even applications in the car industry. In this project, you will create and test your own microfluidic device design and compare it to other designs.
Summary
No prerequisites are required, although an understanding of fluid dynamics would be helpful.
Specialty items include polystyrene shrink plastic, which can be picked up at an arts and crafts store or ordered online.
Adult supervision is required. Be careful when handling hot objects!
Objective
In this chemical engineering project, you will design and build a model microfluidic device to test how different designs affect the flow of food dye through microchannels.
Introduction
Microfluidic devices are small devices containing tiny channels that fill with fluid. Fluid is easily pushed through these small spaces due to the laws of fluid dynamics. These principles allow scientists to study microscopic or very small things, including chemicals or cells. Microfluidic devices were created in the early 2000s and have gained popularity due to their many different applications. They have been used to study chemical reactions, drug efficacy, and cellular compartments or parts.

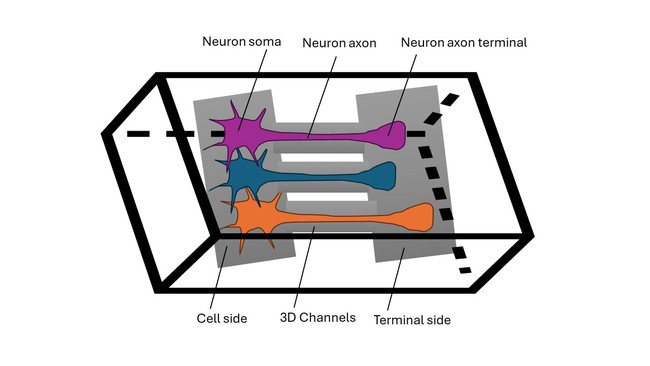

One example of how microfluidic devices can be used in biomedical research is to study the different parts of a nerve cell called a neuron. The neuron has 3 parts: the cell body (soma), axon terminals, and axon. The axon connects the soma to the axon terminals, allowing for long-distance electrical communication within the cell. These special cells that are part of the nervous system communicate with other cells by sending electrical signals from the soma down the axon to the axon terminals. These terminals are the regions that chemically communicate with other neuron cells. The different compartments of a neuron can be separated using a microfluidic device to separate each part into a different compartment (Figure 1). Due to this feature of microfluidic devices, scientists can use these devices to study how axons grow or project their axons and see how this changes over time to study human neurological diseases. An example of this experiment is seen in Figure 2.

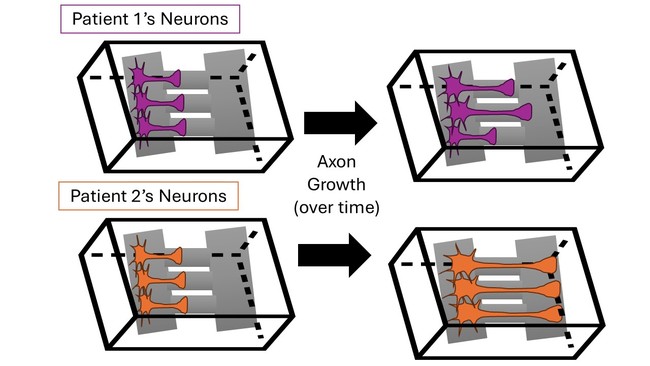

Image showing comparison of patient neurons overall axon growth using microfluidic devices as a tool.
Microfluidic devices are commonly used for research and clinical testing in the field of biomedicine. For example, a spiral microfluidic device design detects rare circulating tumor cells typically due to cancer metastasis or spreading. Beyond this example, microfluidic devices are used in many other industries. They are used in the pharmaceutical industry to quickly test new prescription drugs. These devices are even used in the car industry as one-directional car valves. Now you see that these devices have many different uses! But how is a microfluidic device designed and made?
Creating microfluidic devices can require lasers and hard-to-produce materials. Some of these common materials include glass, silicon, and metal. Lasers are used to create tiny channels for fluid to pass through. However, engineering advances have allowed plastic 3D-printed molds to be used instead. Producing these microfluidic devices has become easier and more affordable with the discovery of simpler materials such as polymers or plastic. What type of polymers can be used at home? One popular example is polystyrene! Polystyrene shrinks and hardens when heated, unlike other plastics that just melt. Why does polystyrene shrink when it is heated?
Polystyrene is made up of building blocks called monomers. These monomers bond together to create a long chain called a polymer. These polymers crosslink or chemically bond together to form a sheet of plastic. Polystyrene is unlike other plastics since it goes from a more organized, less stable structure to a less organized, more stable structure when heated. This disorganization expands the polystyrene thickness but decreases the length. This abnormal chemical characteristic of polystyrene is what gives it the unique ability to harden instead of melt and allows us to create a microfluidic device! In this chemical engineering project, you use polystyrene plastic to test multiple microfluidic designs. You will compare and contrast each design and determine how the design and width of the channels impact the speed of fluid through microchannels.
Terms and Concepts
- Microfluidic device
- Channels
- Fluid dynamics
- Microscopic
- Neuron
- Polymers
- Monomers
- Crosslink
Questions
- What are microfluidic devices?
- What are microfluidic devices used for?
- What career areas use microfluidic devices?
- Why is polystyrene a good material for making a model microfluidic device at home?
Bibliography
- Chen, C., et al. (2007, December 10). Shrinky-Dink microfluidics: 3D polystyrene chips. Retrieved June 26, 2024
- Warkiani, M. (2016, January). Ultra-fast, label-free isolation of circulating tumor cells from blood using spiral microfluidics. Retrieved June 26, 2024.
- Carnegie Mellon University. (n.d.). Shrinky Dinks (R). Retrieved June 27, 2024.
- Niculescu, Adelina-Gabriela. (2021, February) Fabrication and Applications of Microfluidic Devices: A Review. Retrieved June 20, 2024.
Materials and Equipment
-
Permanent marker
-
Super glue
-
Sheet pan or cookie tray
-
Hot pad or oven mitt
-
Oven
-
Slotted spatula/turner
-
Scissors
-
Hole punch
-
Food coloring (3 colors)
Disclaimer: Science Buddies participates in affiliate programs with Home Science Tools®, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity, and keep our resources free for everyone. Our top priority is student learning. If you have any comments (positive or negative) related to purchases you've made for science projects from recommendations on our site, please let us know. Write to us at [email protected].
Experimental Procedure

Experimental Background
In this chemical engineering project, you will design and test your own microfluidic device and investigate how the channels' design and thickness impact the liquid's ability to flow through the microfluidic channels of the device. Microfluidic devices consist of multiple microscopic channels that allow fluid to go through them. Many different designs have been used to take advantage of different fluid dynamics and biochemical properties for many applications. In this project, you will test and compare two designs to a new design you create using polystyrene plastic sheets.

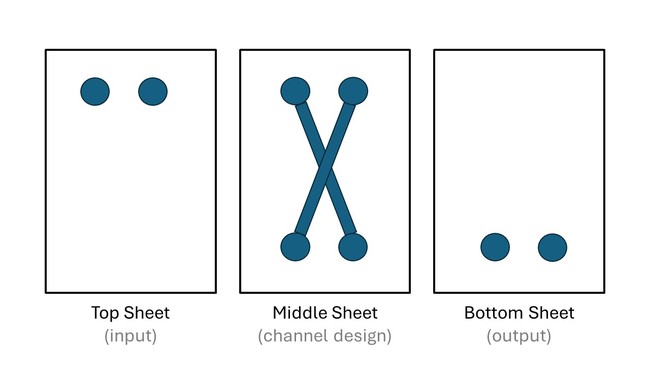

Image showing 2-hole design, 3-hole design, and example design to test.
Experimental Protocol

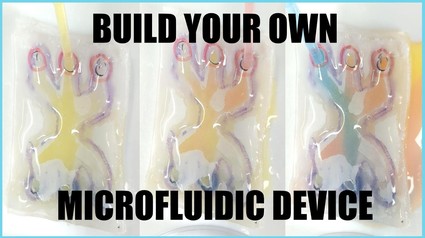

Before you build your microfluidic device, develop a design you want to test. You can test multiple different designs, and we have provided a few examples in Figure 3 above. If you want a visual representation of these instructions, check out the video instructions at the top of this page. Polystyrene's shrinking process can be unequal, and bubbles can form in the microchannels. Therefore, to ensure reliable results, we recommend creating 6 microfluidic devices of each design to obtain 3 functional microfluidic devices to test.
- Cut the shrink plastic sheets into three similarly sized rectangles (minimum 5 by 7 inches).
- Use a permanent marker to draw your design on one of the sheets; this will be the middle sheet. It should contain 2-3 holes at the top and bottom, connected by a channel that the fluid will travel through. See Figure 3 above for design examples and ideas, and Figure 4 below for how the 3 sheets should be created to align to allow fluid through them.
- After you draw your design on the middle sheet, cut it out with a hole punch or scissors.
- Place the top sheet on the middle sheet and trace where the holes align. Hole punch the holes in the top sheet of shrink plastic.
- Place the bottom sheet over the middle sheet and trace where the bottom holes align.
- Hole punch the holes in the bottom sheet of the shrink plastic.
- Use a permanent marker to trace the microchannels on the middle sheet and the holes on the middle, top, and bottom sheet. This will make the channels and holes easier to see and align while gluing.
- Turn the middle sheet upside down or rough side up and trace the super glue around the channels, holes, and outer edges of the sheet, being careful not to get glue in the channels.
- Note: Gluing around the channels and the edges of the sheets will help ensure that the polymers crosslink and fuse together during the shrinking process.
- Place the middle sheet glue side down onto the bottom sheet, carefully aligning the output or drainage holes.
- Wait for the glue to dry before proceeding with the next steps.
- Put glue on the top of the middle sheet by tracing the super glue around the channels, holes, and outer edges of the sheet, being careful not to get glue in the channels.
- Place the top sheet onto the top of the exposed glue of the middle sheet, carefully aligning the input holes.
- Wait for the glue to dry before proceeding to shrink the plastic.

Image showing 2 holes in top sheet that align with 2 holes and inner channel design or middle sheet, and 2 holes at bottom of middle sheet aligning with 2 holes of bottom sheet.
Shrinking Your Microfluidic Devices
- Preheat the oven to 330 degrees Fahrenheit with a metal baking tray inside to preheat it.
- Note: Preheating the baking tray will prevent uneven heating of the tray and plastic, aiding in more similar shrinking across the microfluidic device.
- While you wait, measure each channel's thickness and the dimensions (length, width, height) of the perimeter of your microfluidic device and record them in your data table like the one below (Table 1).
- Gently place the dry microfluidic device in the oven for 1-3 minutes or until the plastic polymer stops moving.
- Record the time it took for the device to shrink in your data table (Table 1).
- With a hot pad, safely and carefully remove the baking tray and microfluidic device from the oven.
- CAUTION: Be careful! The baking tray and microfluidic device will be hot!
- Note: If your device is not laying flat, you can very gently press down the microfluidic device to the baking tray with a slotted spatula/turner or other flat kitchen utensil. Do not press hard! This can close the channels and prevent fluid from passing through them.
- Carefully remove the microfluidic device from the baking tray by gently putting a slotted spatula/turner or other flat device under the device to remove it from the baking surface.
- Allow the device to cool before touching or observing the device fully.
- Measure the final dimensions of the microfluidic device after shrinking and record the measurements in your data table (Table 1).
- Before testing, note any imperfections in the design or during the shrinkage process in your data table (Table 1).
- Calculate the percent shrinkage of the microfluidic device with the equation below and record your calculation in your data table (Table 1):
- (( Final length - initial length ) / initial length ) * 100
- (( Final width - initial width ) / initial width ) * 100
- (( Final height - initial height ) / initial height ) * 100
| Microfluidic device design | Thickness of each channel before shrinking (cm) | Initial length, width, and height of microfluidic device (cm) | Shrink time (min: sec) | Final length, width, and height of microfluidic device (cm) | Observations after baking (ex: holes, channels color) | Percent shrinkage of length (L), width (W), and height (H) (%) |
|---|---|---|---|---|---|---|
| 2-hole X shape interconnected channels | ||||||
| 3-hole interconnected channels | ||||||
| Your Design! |
Table 1: Example data table for microfluidic device shrinkage
Testing Your Microfluidic Device
- Dilute 2 drops of dye into 1 cup of water to create a dye solution before using it. This will help prevent the dye from sticking to the plastic, allowing you to see it and remove it more easily for multiple trials.
- With a pipette, push the diluted dye through each input hole individually and watch which channel the fluid goes through and if it exits one or multiple of the output holes.
- Measure the time it takes for the fluid to pass from the input holes through the channels and out the output holes.
- Note: This test fails if the fluid does not go through the channels or exit one of the output holes.
- Give each channel a function score and write down your observations of how many channels are working. To give each trial a score, rate them as follows: 0 = all channels failed, 1 = some channels worked, 2 = all channels worked.
- Note: Channels that work allow fluid to go through them. This can be impacted by bubbles, the thickness of the channels, or hydrodynamic forces through the channels from the micropipette. Note any of these observations in your data table below if they occur.
- Record the number of working channels over the total number of channels for each design.
- To ensure reliable results, test and score your microfluidic device multiple times and create a few of the same designs. We recommend creating at least 3 devices of each design and testing each device at least 3 times. Between each trial, flush out the dye with clear water and then air so each time the fluid flows through the channels, it is not impacted by previous experimental trials.
- Rank each design based on your results. Consider the time to go through each channel (the shorter the time, the better), the channel functional score, the number of working channels, and any dye mixing observations (backflow to input is bad, flow through channels is good, flow through to output is great).
- Record in your data table what worked and did not work well in the designs. Iteratively test any new designs with another round of experiments. Create a separate data table for each trial. We recommend doing 3 trials for each design.
| Microfluidic device design | Time to go through channels (sec) | Total channel function score | Number of working channels / total channels | Dye mixing observations |
Design rank |
Ideas for redesign or improvements |
|---|---|---|---|---|---|---|
| 2-hole X shape interconnected channels | ||||||
| 3-hole interconnected channels | ||||||
| Your design! |
Table 2: Example data table for microfluidic device testing and redesign ideas
Conclusion
- How big do the channels need to be (before shrinking) for fluid to be able to flow through them after shrinkage?
- How did the thickness and rigidity of the polystyrene change with heat? How much did your microfluidic device shrink? Which dimensions shrank and which didn't?
- Do the dyes mix in the microchannels? If so, where do they mix, and why do you think that is? Do different microfluidic device designs or devices have variations in mixing?
- Does the number of interconnected channels increase or decrease the functionality of each channel in the microfluidic device design?
- How long or short can you make a channel and still make the channels functional?
- Which designs work better than others? How many different designs can you test?
Ask an Expert
Global Goals
The United Nations Sustainable Development Goals (UNSDGs) are a blueprint to achieve a better and more sustainable future for all.
Variations
- Do straight or curved lines create more functional channels in microfluidic device designs?
- Does not gluing the plastic shrink sheets together allow for consistent polymer cross-linking, or does the glue help with this process? Test this hypothesis by comparing unglued and glued sheets of the same design.
- How much do the channels shrink? (Hint: Use the shrinking equation for length, height, and width). Measure the dimensions of each channel part and shrink them without a top and bottom layer to easily measure the channel change. Do channels shrink more or less if they are closer to the edges or middle of the sheet?
- Do channels with variations in width perform better than others? For example, starting wide and getting thinner or vice versa.
- Can you create etched channels with a needle tip and still get the dye through the channels? Do you have to adapt your setup to include tubing and syringes to force the fluid through your microfluidic device?
- What other materials can you use to make microfluidic devices? Check out this article to find out if you can test other materials!
