Charles's Law: Volume vs. Temperature of a Gas at Constant Pressure
|Areas of Science||
|Time Required||Short (2-5 days)|
|Material Availability||Specialty items|
|Cost||Very Low (under $20)|
|Safety||Minor injury possible: this experiment involves heating water on a stove. Adult supervision recommended.|
AbstractThis is a modern version of a classic experiment by Jacques Charles on the volume of a gas at different temperatures. Charles discovered the relationship between volume and temperature of gases that now bears his name. This project shows you a simple method for re-creating this famous experiment.
ObjectiveThe goal of this project is to measure the relationship between the volume of a gas and its temperature, when the pressure of the gas is held constant.
- Gabel, Dorothy, 1996. "Learning Sequence Item 929: Gas Laws" in Scope, Sequence and Coordination: A National Curriculum Project for High School Science Education. Arlington, VA: National Science Teachers Association. Available online at: http://dev.nsta.org/ssc/pdf/v4-0929s.pdf.
- Gardner, Robert, 1990. Famous Experiments You Can Do. New York, NY: Franklin Watts (pp. 103–104).
- Blauch, D., 2004. "Gas Laws: Pressure", Department of Chemistry, Davidson College. [accessed January 23, 2006] http://www.chm.davidson.edu/ChemistryApplets/GasLaws/Pressure.html.
Cite This PageGeneral citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.
Last edit date: 2020-01-12
This is a modern version of a classic experiment by Jacques Charles (who was also interested in flying balloons). Charles studied the volume of a sample of air—sealed in a glass tube with a U-shaped curve—as he systematically changed the temperature by immersing the tube in a water bath. The air was trapped by a column of mercury, added to the open end of the tube. By changing the amount of mercury in the tube, Charles could maintain a constant pressure on the trapped air as the temperature was changed. Charles's apparatus was an example of a manometer, a device used to measure pressure.
The following diagram and description, from Prof. David N. Blauch, of Davidson College, explain how a manometer works.
"A manometer is a device employed to measure pressure. There are a variety of manometer designs. A simple, common design is to seal a length of glass tubing and then bend the glass tube into a U-shape. The glass tube is then filled with a liquid, typically mercury, so that all trapped air is removed from the sealed end of the tube. The glass tube is then positioned with the curved region at the bottom. The mercury settles to the bottom (see the picture at the left).
"After the mercury settles to the bottom of the manometer, a vacuum is produced in the sealed tube (the left tube in the picture). The open tube is connected to the system whose pressure is being measured. In the sealed tube, there is no gas to exert a force on the mercury. In the tube connected to the system, the gas in the system exerts a force on the mercury. The net result is that the column of mercury in the left (sealed) tube is higher than that in the right (unsealed) tube. The difference in the heights of the columns of mercury is a measure of the pressure of gas in the system.
"In the example at the left, the top of the left column of mercury corresponds to 875 mm on the scale. The top of the right column of mercury corresponds to 115 mm. The difference in heights is 875 mm − 115 mm = 760. mm, which indicates that the pressure is 760. mm Hg or 760. torr." (Blauch, 2004).
You can learn more about how manometers work, and even run a simulated Charles's Law experiment by visiting the Chemistry Applet website (see Bibliography). This would be excellent preparation for doing the experiment on your own, so we highly recommend it. Note: to calculate the volume of gas in the applets, you will need to know that the inside diameter of the applet's manometer tube is 4.286 cm.
You can repeat Charles's experiments for yourself with an inexpensive, modern apparatus based on a disposable plastic syringe and a water bath. (Mercury is a dangerous neurotoxin, so we'll avoid working with it.)
Terms and ConceptsTo do this project, you should do research that enables you to understand the following terms and concepts:
- Charles's Law,
- ideal gas,
- atmospheric pressure,
- absolute zero.
- What assumption is made about the pressure of the gas in this experiment?
- What is the relationship between the degrees Celsius and kelvins?
- Here are the Chemistry Applet webpages mentioned in the Introduction. These will really help your understanding of Charles's Law if you take the time to do the virtual experiments! To calculate the volume of gas in the applets, you will need to know that the inside diameter of the applet's manometer tube is 4.286 cm.
- Blauch, D., 2004. "Gas Laws: Pressure", Department of Chemistry, Davidson College. [accessed January 23, 2006] http://www.chm.davidson.edu/ChemistryApplets/GasLaws/Pressure.html,
- Blauch, D., 2004. "Gas Laws: Charles's Law", Department of Chemistry, Davidson College. [accessed January 23, 2006] http://www.chm.davidson.edu/ChemistryApplets/GasLaws/CharlesLaw.html.
- The Sizes.com website has an exhaustive index of units of measure, including both degrees Celsius and kelvins:
- Editor, Sizes.com, 2000. "centigrade and Celsius temperature scales" [accessed January 23, 2006] http://www.sizes.com/units/temperature_centigrade.htm
- Editor, Sizes.com, 2000. "kelvin" [accessed January 23, 2006] http://www.sizes.com/units/temperature_kelvin.htm
News Feed on This Topic
Materials and EquipmentTo do this experiment you will need the following materials and equipment:
- 30 mL syringe, available from Carolina Biological (item # 697780)
- a homemade clamp to hold syringe underwater, which can be made with:
- two sturdy chopsticks (or two sturdy wood dowels) longer than the diameter of your cooking pot,
- two rubber bands,
- a weight (e.g., a can of soup);
- small piece of wire
- thermometer, available from Carolina Biological (item # 745390)
- cooking pot, deeper than syringe is tall
Disclaimer: Science Buddies participates in affiliate programs with Home Science Tools, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity, and keep our resources free for everyone. Our top priority is student learning. If you have any comments (positive or negative) related to purchases you've made for science projects from recommendations on our site, please let us know. Write to us at email@example.com.
Experimental ProcedureExperimental Apparatus

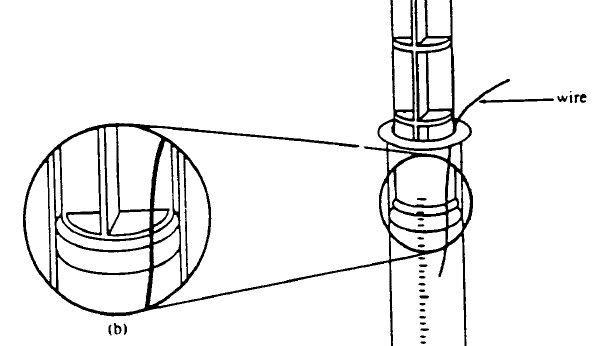

Diagram showing how to set up the syringe. The thin wire between the plunger tip and the inner syringe wall allows air to escape from in front of the plunger in order to equalize pressure. It is removed before starting the experiment.
