Introduction

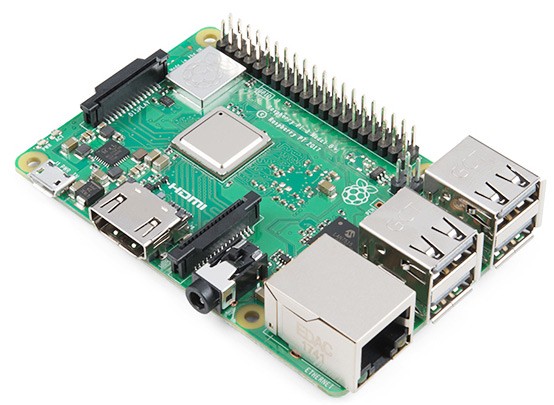

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the light-up piano in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.

raspberry pi 3B+
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).

You can do this project as a fun activity, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your light-up piano to be able to do, then work through the rest of the design process until you have a completed piano to show off at your science fair.

If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the light-up piano as a tool to help answer. For example, it is known that both colors and music affect people's moods. Do some research to see what kinds of music (hint: research the effects of major and minor keys on mood) and what kinds of colors make people feel happy or sad. If you give people a choice between a sad song with happy-colored lights and a sad song with sad-colored lights, using your light-up piano, will they feel that the lights and the music match better in one case than in the other?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:

To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):

  • TV or computer monitor with HDMI input*
  • USB keyboard and mouse

*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.

To do this specific project, you will need the following circuit parts from your kit:

  • LEDs (4)
  • 330 ohm resistors (4)
  • Male-male jumper wires (5)

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.
Project Kit: $199.95
View Kit

Experimental Procedure

Introduction

This project will let you program different keys on your keyboard to play sounds and activate lights. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this quick video for a demonstration.

Writing Your First Program

To get started, you will need to learn how to write programs in Scratch. Scratch is a beginner-friendly programming environment that lets you write computer code by dragging together colored blocks. Open Scratch 2 by double-clicking the desktop icon. You can also find it by clicking the Raspberry Pi logo in the upper-left corner of your screen, then Programming. Make sure you select Scratch 2 and not Scratch. This video will show you how to write a program in Scratch 2:

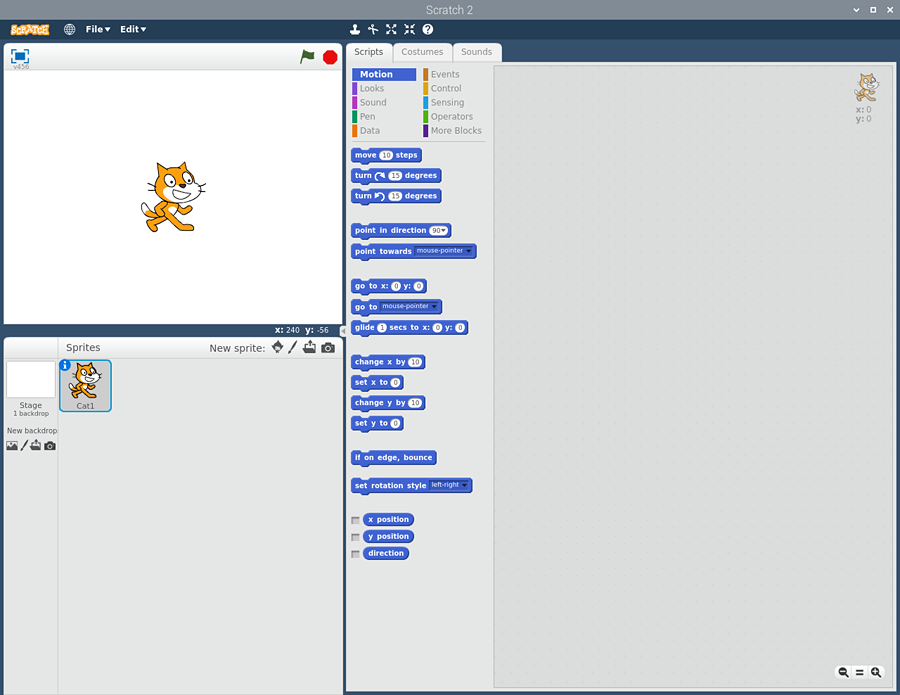

After you open Scratch 2, you should see a screen that looks like this:

Scratch main screen 1.1
Figure 2

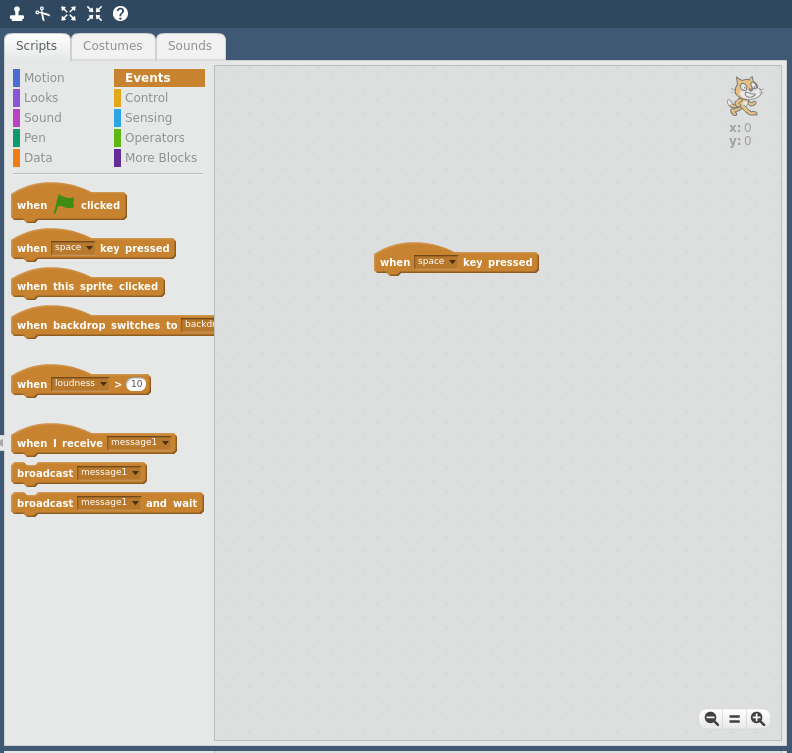

Click Events, then click and drag a when space key pressed block into the open area on the right side of the screen. This is where you will write your program.

Scratch screen 1.2
Figure 3

Then click Sound and drag a play sound meow block so it snaps on to the bottom of the when space key pressed block.

Scratch screen 1.3
Figure 4

Congratulations—you just wrote your first program! Press the space key and you should hear a meow sound. Now is a good time to save your program. It is important to save your work frequently in case of a computer crash or power outage. Select File→Save Project to save your program.


icon learn

Learn More About:  Inputs and Outputs

  [Show]

icon trouble

Troubleshooting:  I do not hear any sound!

  [Show]

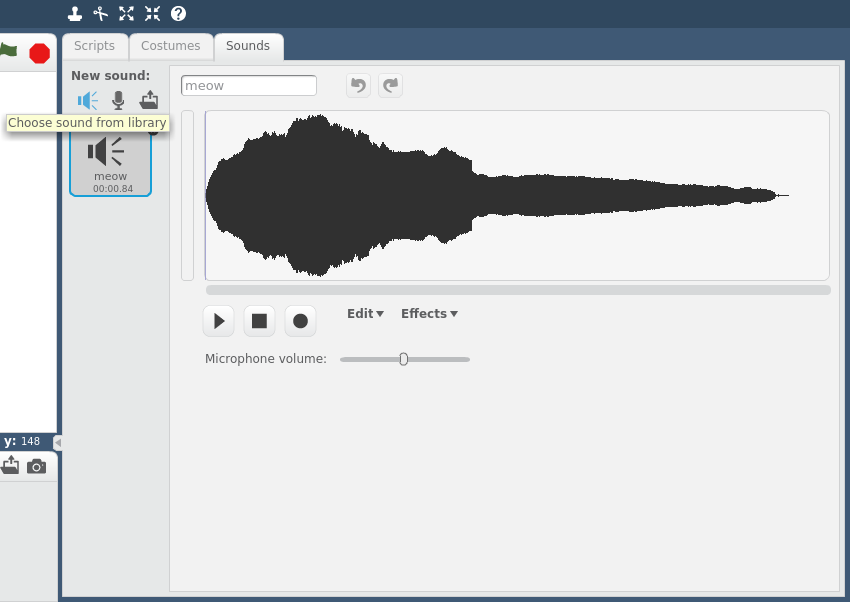

What if you want more sounds? Click the Sounds tab toward the top of your screen, then click the speaker icon to choose existing sounds from the library.

Scratch screen 1.4
Figure 5

Click the Scripts tab to go back to your program. Try adding more keys that play different sounds using the when ____ key pressed and play sound ____ blocks. To choose a different key or sound, use the drop-down menu on the block. Can you write a program like this? Hint: to copy sections of code, right click a block and select duplicate.

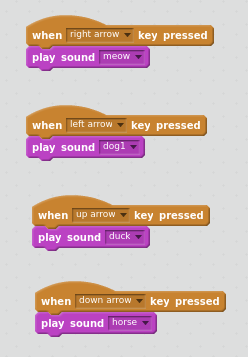

Scratch screen 1.5
Figure 6

Building Your First Circuit

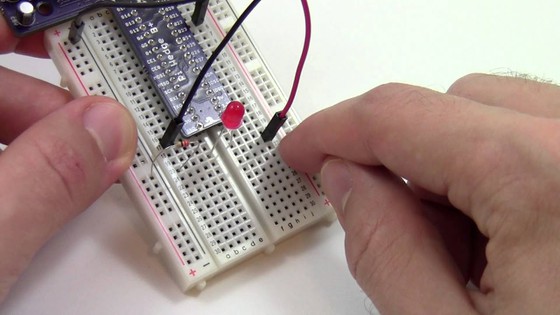

Next, you will learn how to use your Raspberry Pi to control an external circuit. To do that, you will need to learn how to use a breadboard. Watch this video for an introduction to breadboards:

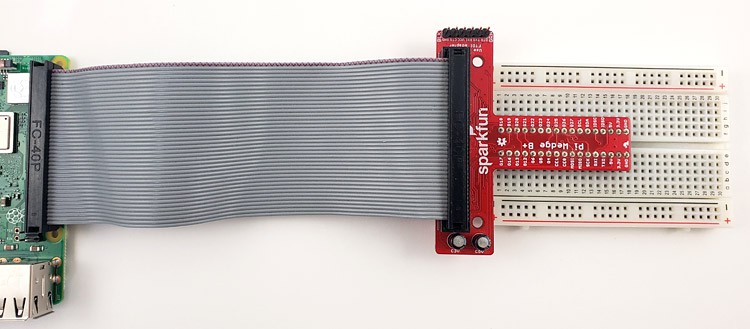

The Pi Wedge is a special part that allows you to connect your Raspberry Pi to a breadboard. Use the gray ribbon cable in your kit to connect the Raspberry Pi to the Pi Wedge as shown here. The pins on the Pi Wedge should go into columns E and F on the breadboard, starting in row 1 and going to row 17.

The Pi Wedge plugged into a breadboard and connected to the Raspberry Pi with a ribbon cable.
Figure 7

To build your circuit, you will need jumper wires, LEDs, and resistors from your kit.

M-M jumper wires
Figure 8
LEDs multi-colored
Figure 9
330 resistors
Figure 10

icon learn

Learn More About:  Jumper wires

  [Show]

icon learn

Learn More About:  LEDs

  [Show]

icon learn

Learn More About:  Resistors

  [Show]

Connect two jumper wires, an LED, and a resistor, as shown in the table and diagram below. Remember that you can use the breadboard's grid system of labeled rows and columns to know exactly where to insert a component's leads (pronounced "leeds" — leads are the tiny metal legs on the end of each component). Watch the video above if you need a reminder of how to use a breadboard.

Part Picture Reference First Hole Second Hole
Red M-M jumper wire red M-M jumper J5
(Pi Wedge G22)
J20
Black M-M jumper wire black M-M jumper A17
(Pi Wedge GND)
Ground bus
(left side)
Red LED LED red F20
(long lead)
E20
(short lead)
Resistor resistor 330 A20 Ground bus
(left side)

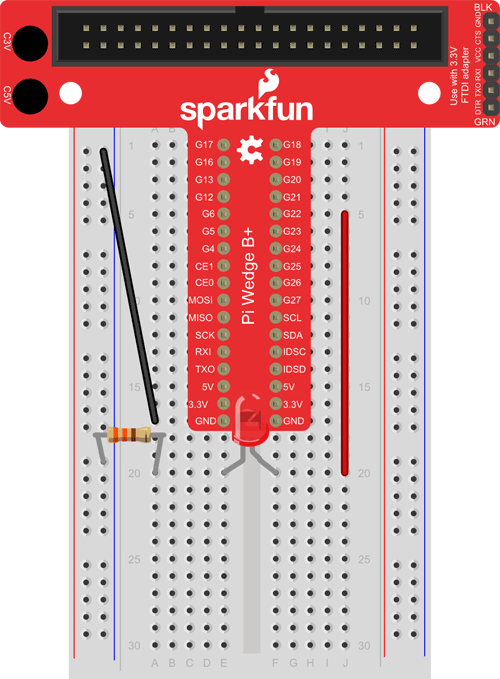

piano breadboard 1 LED
Figure 11

This breadboard diagram was made with Fritzing, a free circuit design tool. You can learn more about Fritzing or use it yourself at fritzing.org.

Your circuit should look like this:

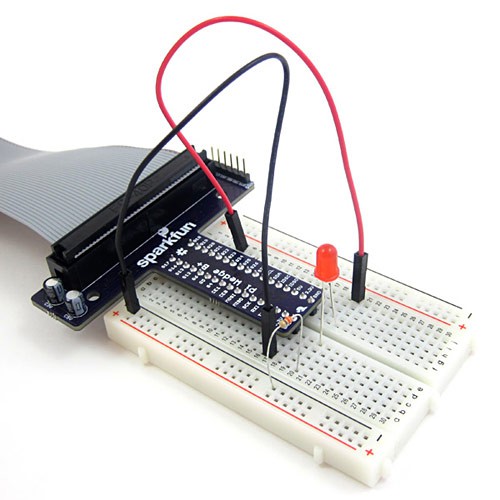

piano circuit 1 LED
Figure 12

icon learn

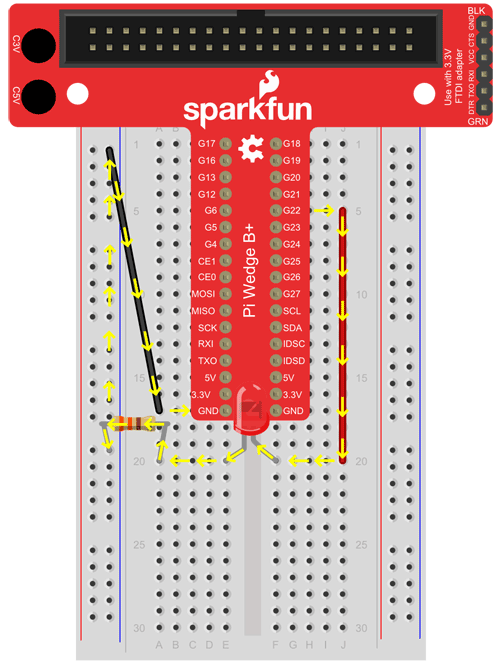

Learn More About:  Completing a circuit

  [Show]

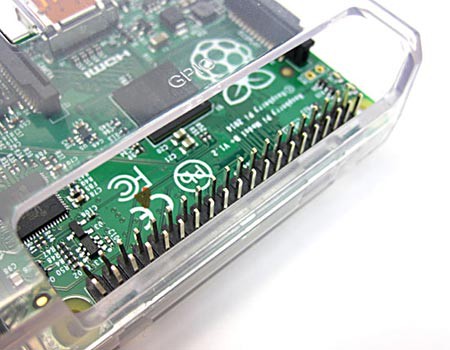

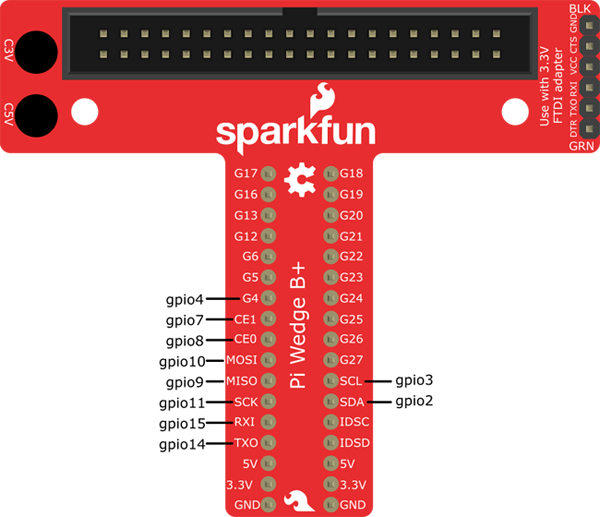

You might be wondering what all those labels on your Pi Wedge (like "G22") stand for. These labels correspond to your Raspberry Pi's General Purpose Input and Output, or GPIO, pins. Your Scratch program can control these pins and make them interact with external circuits; for example, by turning an LED on and off.


icon learn

Learn More About:  Raspberry Pi GPIO pins

  [Show]

Modifying Your Scratch Program

Now you will modify your Scratch code to light up the LED, in addition to playing a sound. You can do this by using Scratch to control the Raspberry Pi's GPIO pins. Click on More Blocks then Add an Extension:

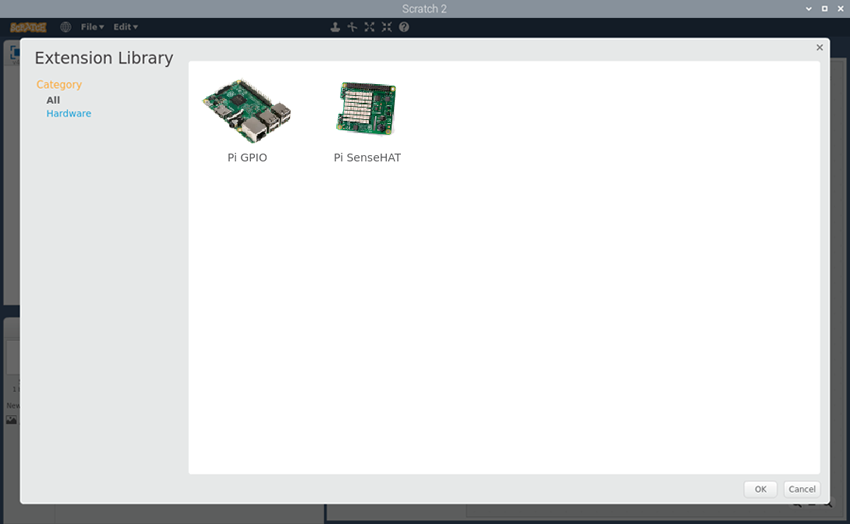

Scratch screen 1.12
Figure 13

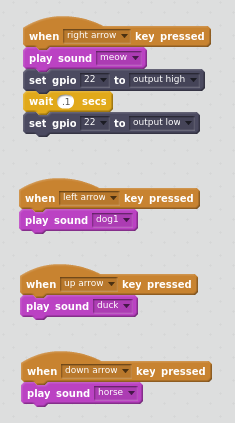

Select Pi GPIO then click OK. You should now have two new blocks in the More blocks section: set gpio __ to output high and gpio __ is high?. These blocks can be used to set and read GPIO pin values. Use these blocks, along with the wait block (under Control), to make your program look like this:

Scratch screen 1.13
Figure 14

Now, try pressing the key. Your "piano" should light up in addition to playing a sound!


icon trouble

Troubleshooting:  My LED does not light up!

  [Show]

Adding More LEDs

Now you want to add even more LEDs to your light-up piano. First, add more jumper wires, LEDs, and resistors to your circuit, as shown below.

Part Picture Reference First Hole Second Hole
Green LED LED green F22
(long lead)
E22
(short lead)
Blue LED LED blue F24
(long lead)
E24
(short lead)
Yellow LED LED yellow F26
(long lead)
E26
(short lead)
Green M-M jumper wire green MM jumper J6
(Pi Wedge G23)
J22
Blue M-M jumper wire blue MM jumper J7
(Pi Wedge G24)
J24
Yellow M-M jumper wire yellow MM jumper J8
(Pi Wedge G25)
J26
Resistor resistor 330 A22 Ground bus
(left side)
Resistor resistor 330 A24 Ground bus
(left side)
Resistor resistor 330 A26 Ground bus
(left side)

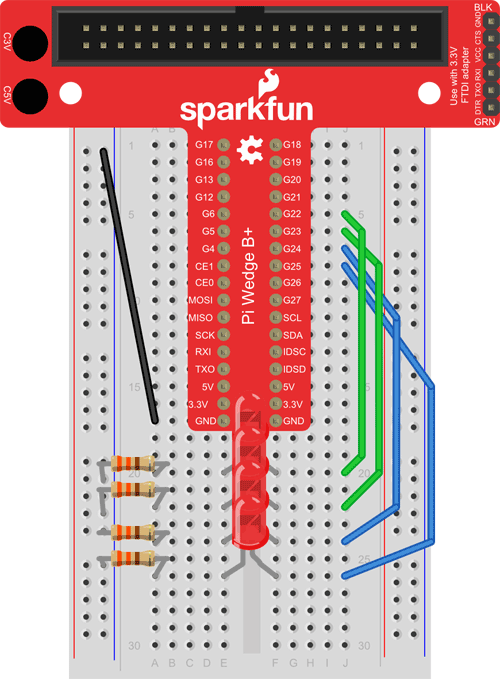

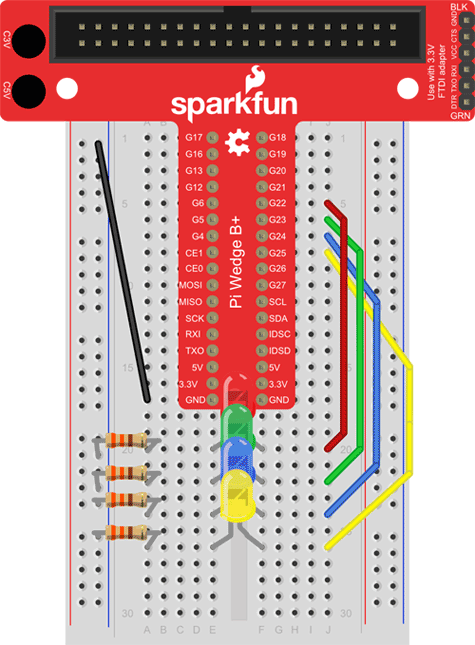

piano breadboard 4 LEDs
Figure 15

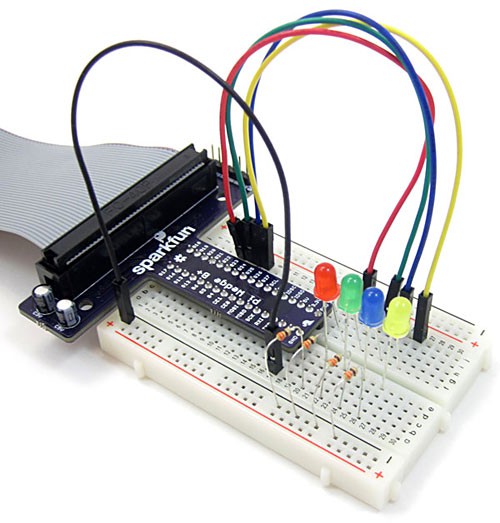

Your circuit should look like this:

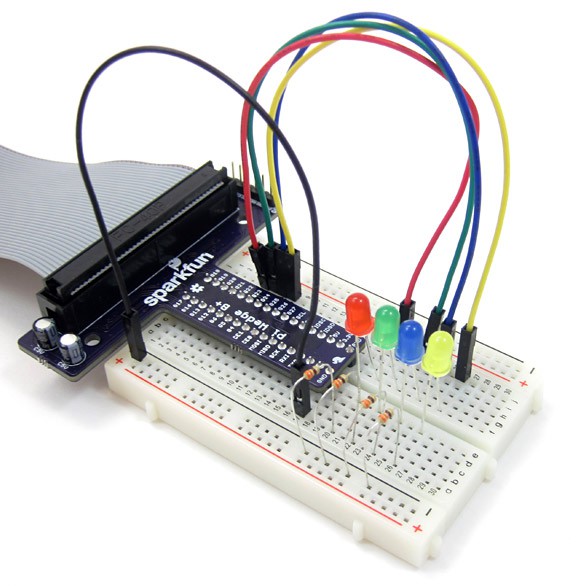

piano circuit 4 LEDs
Figure 16

icon learn

Learn More About:  Using different color LEDs

  [Show]

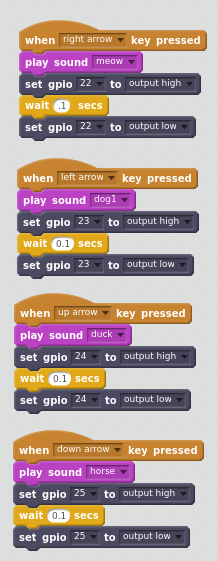

Now, you need to modify your Scratch program to control multiple LEDs. Modify your program to look like this:

Scratch screen 1.14
Figure 17

Now, try playing all of your piano's keys to make sure the LEDs light up. If any individual LED does not light up, go back to the Troubleshooting: My LED does not light up! section above and check each of the LEDs individually. Once you have everything working, have fun playing your light-up piano! When you are ready, you can go back to Raspberry Pi Projects Kit to select a new project, or continue reading below to tinker with your piano.

Going Further

Try expanding your program to add even more sound effects to more keys, or make each key play multiple sounds. If you want to add more LEDs, you need to read a little more about how the Raspberry Pi's GPIO pins interact with Scratch. Read the section below to learn more.


icon learn

Learn More About:  Which GPIO pins can I use?

  [Show]

.

Troubleshooting

For troubleshooting tips, please read our FAQ: Build an Electronic Piano with a Raspberry Pi.

If you like this project, you might enjoy exploring these related careers:

NASA flight software engineer

Computer Software Engineer

Are you interested in developing cool video game software for computers? Would you like to learn how to make software run faster and more reliably on different kinds of computers and operating systems? Do you like to apply your computer science skills to solve problems? If so, then you might be interested in the career of a computer software engineer. Read more
electrical engineer aligning laser

Electrical & Electronics Engineer

Just as a potter forms clay, or a steel worker molds molten steel, electrical and electronics engineers gather and shape electricity and use it to make products that transmit power or transmit information. Electrical and electronics engineers may specialize in one of the millions of products that make or use electricity, like cell phones, electric motors, microwaves, medical instruments, airline navigation system, or handheld games. Read more
Computer programmer typing on a keyboard

Computer Programmer

Computers are essential tools in the modern world, handling everything from traffic control, car welding, movie animation, shipping, aircraft design, and social networking to book publishing, business management, music mixing, health care, agriculture, and online shopping. Computer programmers are the people who write the instructions that tell computers what to do. Read more


Share your story with Science Buddies!

I did this project Yes, I Did This Project! Please log in (or create a free account) to let us know how things went.

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.

Kit General Questions

Setting Up and Using Your Raspberry Pi FAQ

These answers apply to the Raspberry Pi Model 3B+ which comes with the Raspberry Pi Projects Kit. If you are using a different Raspberry Pi model you will need to do some research on your own—we suggest starting with the Raspberry Pi Foundation's Setting up your Raspberry Pi page.

Kit General Answers

Q: Who is the kit appropriate for?
A: The kit is meant for anyone (ages 8 and up) who wants to learn some basic programming and electronics skills while having fun. Students up to age 10, or older if their reading skills are behind grade level, may need adult assistance in reading and following the on-screen instructions. The projects included in the kit were beta tested and approved by students ages 8 to 16.

Q: Are the kit parts reusable?
A: Yes, all the electronics components in the kit can be re-used to do new projects or to repeat the projects.

Q: Aren't there other Raspberry Pi kits on the market? How is yours different?
A: Yes, there are other Raspberry Pi kits, and some of them are quite good! The Raspberry Pi Projects Kit and Raspberry Pi Circuit Parts Only Kit have been designed to contain the specific materials needed to do the accompanying Science Buddies Raspberry Pi projects. Our kit and associated projects are specifically meant for people who have no prior experience programming or connecting circuits. The projects are 100% beginner friendly with clear on-screen instructions, pictures, and videos. We think the kit, with its associated projects, is one of the most fun kits out there! But, if you are already an ace programmer or electronics guru, you may not find this the best fit for your own personal use. Even so, it may be a fun way for you to introduce others to programming and electronics.

Q: I already have a Raspberry Pi. Can I just buy the circuit parts separately?
A: Yes! We sell two different kits: the Raspberry Pi Projects Kit which includes a Raspberry Pi and the required accessories, and the Raspberry Pi Circuit Parts Only Kit, which only contains the additional circuit parts you need to do the Science Buddies projects. Both kits contain an SD card with the Raspbian operating system and a desktop shortcut to the Science Buddies project instructions.

Q: What programming language do the projects use?
A: The projects use Scratch 2. Scratch is a "graphical" programming language developed by the MIT Media Lab. It allows you to write code by clicking, dragging, and snapping together color-coded blocks. This allows beginners to write working code without worrying about formatting or typos. On the Raspberry Pi, Scratch allows you to control the general purpose input and output (GPIO) pins so your program can interact with a circuit in the physical world.

Note: three different versions of Scratch (1, 2, and 3) are available for the Raspberry Pi. The instructions for the Science Buddies projects (including example code) are specifically written for Scratch 2, which runs well on the Raspberry Pi model 3B+. If you have an older model Raspberry Pi, Scratch 2 may run more slowly, or may not run at all. If you want to use a different version of Scratch, you will need to consult the official documentation for Scratch 1.4 or Scratch 3 and modify the programming steps accordingly.

Setting Up and Using Your Raspberry Pi FAQ Answers

Q: How do I connect my Raspberry Pi to my TV or computer monitor?
A: The easiest way to set up your Raspberry Pi is to use an HDMI cable (included in the Science Buddies Raspberry Pi Projects Kit) to connect to a TV or computer monitor that has built-in speakers. If you are using a computer monitor with an HDMI port but no built-in speakers, you will also need separate speakers or headphones with a 3.5 mm audio plug (a regular "headphone jack").

If your TV or monitor does not have an HDMI port, you will need an HDMI to DVI or HDMI to VGA adapter (see pictures in table below). DVI and VGA do not transmit sound, so you will need separate headphones or speakers if you are using one of those options.

HDMI DVI VGA
HDMI port
DVI port
VGA port

Q: Can I use a laptop as a display and/or keyboard?
A: The short answer is "not easily." Many newer laptops have HDMI ports, but they only function as HDMI out, to send a video signal from the laptop to a television or projector. They do not work as HDMI in to display an external signal on the laptop's screen. The laptop's keyboard is only designed to work with the laptop itself, not as a standalone keyboard for an external device like the Raspberry Pi.

The longer answer is that, similar to the Remote Desktop feature on Windows and Mac computers, you can use special software to remotely operate a Raspberry Pi that is connected to the internet. This would allow you to control a Raspberry Pi using your laptop's screen and keyboard. This option is only recommended for advanced users, and you can find instructions here.

Q: How do I connect my Raspberry Pi to the internet?
A: Unlike earlier models, the Raspberry Pi 3B+ contains built-in Wi-Fi functionality. It does not require an external USB Wi-Fi adapter. You can connect your Raspberry Pi to the internet by clicking the internet icon in the taskbar and searching for available Wi-Fi networks, just like you would on a Windows or Mac computer. Your Raspberry Pi also has an ethernet port, which you can use to plug directly into a router for a hardwired connection.

Q: How do I shut down or reboot my Raspberry Pi? There's no power button!
A: Unlike most computers, the Raspberry Pi does not have a power button. You can shut down or reboot by clicking the raspberry icon in the upper left corner of your desktop, then select Shutdown. After the Raspberry Pi has shut down, it is safe to unplug the micro-USB power cable. Plug the cable back in to reboot. Important: never unplug the power cable while the Raspberry Pi is still running. This can corrupt the SD card.

Q: How can I adjust the Raspberry Pi's display resolution?
A: Click the Raspberry Pi logo in the top-left corner of your desktop. Select Preferences, then Raspberry Pi Configuration, then click the Set Resolution... button on the System tab.

Q: I have everything connected properly. Why can't I hear any sound?
A: Right-click the speaker icon on the desktop taskbar. This allows you to manually select HDMI or analog (the headphone jack) for sound output. Make sure you have the proper output selected. Also, make sure your Scratch program is set to play a sound. You can write a simple program to test if your sound is working using the "when space key pressed" and "play sound meow" blocks.

Q: Why won't my Raspberry Pi turn on?
A: If your Raspberry Pi will not turn on (the screen remains blank after everything is plugged in), go through this checklist to make sure everything is set up properly.
  1. Make sure your SD card is pushed in all the way (see Figure 1).
  2. Make sure the red power LED on your Raspberry Pi (labeled "PWR," near the micro-USB port, see Figure 2) is on. This means the Raspberry Pi is receiving power from the micro-USB port. If the LED is not on, make sure you pushed the micro-USB connector into the micro-USB port all the way.
  3. When you first plug the micro-USB cable in, the green LED (labeled "ACT," next to the PWR LED, see Figure 2) should flash several times. This LED flashes when the Raspberry Pi reads data from the SD card. After the Raspberry Pi is done booting up, it should turn off. If it does not flash at all, your SD card might not be inserted properly. Go back to step 1.
  4. Make sure your display (television or monitor) is turned on. If your display is turned off, you will not see anything on the screen, even if the Raspberry Pi is on.
  5. Make sure your display is set to the correct input. Many modern TVs have more than one HDMI input, and some computer monitors have DVI or VGA inputs in addition to HDMI.

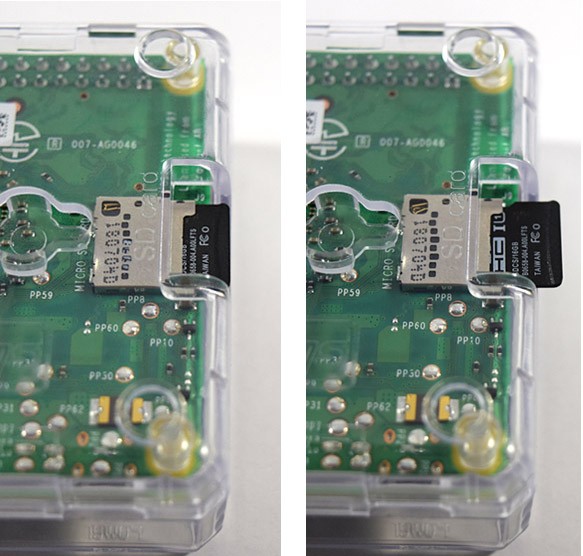

Raspberry Pi SD card inserted properly and not all the way in
Figure 1. A micro-SD card that is inserted properly (left) and one that is not pushed in all the way (right).

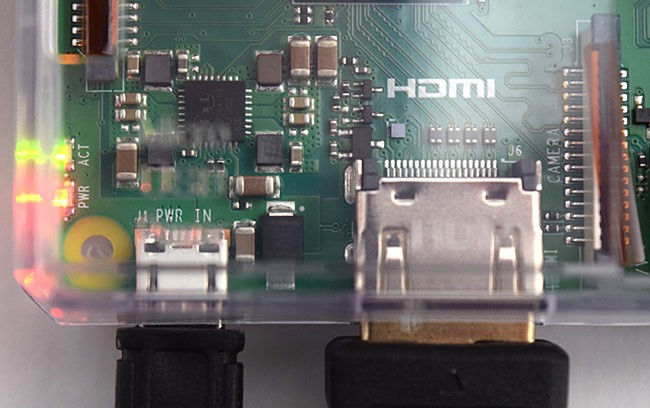

Raspberry Pi status LEDs
