Make a Motion Sensor Alarm with a Raspberry Pi

Recommended Project Supplies
Get the right supplies — selected and tested to work with this project.
View Kit
Areas of Science Computer Science
Difficulty
Time Required Very Short (≤ 1 day)
Prerequisites None
Material Availability This project requires a Complete Raspberry Pi Projects Kit, available from our partner Home Science Tools. The kit can be used to do seven other projects.
Cost Very High (over $150)
Safety No issues

Abstract

Have you ever wished you could create an alarm system to guard your stuff? Or what about throwing a surprise party for someone and automatically playing music and flashing lights when they walk in the door? You can do either of these things using the Raspberry Pi Projects Kit. The kit includes a motion sensor, which can detect when people move in front of it. Check out the video to see what this simple, but fun, project looks like:

Share your story with Science Buddies!

I did this project Yes, I Did This Project! Please log in (or create a free account) to let us know how things went.

Credits

Ben Finio, PhD, Science Buddies

Cite This Page

General citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.

MLA Style

Finio, Ben. "Make a Motion Sensor Alarm with a Raspberry Pi." Science Buddies, 22 Nov. 2019, https://www.sciencebuddies.org/science-fair-projects/project-ideas/CompSci_p055/computer-science/motion-sensor-alarm-raspberry-pi. Accessed 16 Dec. 2019.

APA Style

Finio, B. (2019, November 22). Make a Motion Sensor Alarm with a Raspberry Pi. Retrieved from https://www.sciencebuddies.org/science-fair-projects/project-ideas/CompSci_p055/computer-science/motion-sensor-alarm-raspberry-pi


Last edit date: 2019-11-22

Introduction

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the motion alarm in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.

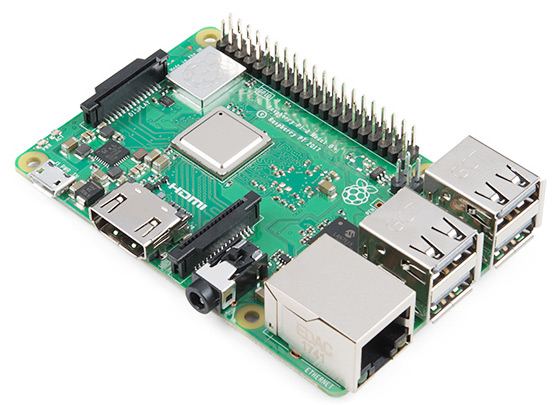

raspberry pi 3B+
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).

You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your motion-sensing circuit to be able to do, then work through the rest of the design process until you have a completed alarm to show off at your science fair.

If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the motion-sensing circuit as a tool to help answer. For example, you could do a human behavior project to see how people react to the alarm (or surprise!). Or you could do an electronics project to test the abilities of the motion sensor. How close do people need to be in order to trigger the alarm? Does the sensor still work in different lighting conditions?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:

To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):

  • TV or computer monitor with HDMI input*
  • USB keyboard and mouse

*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.

To do this specific project, you will need the following circuit parts from your kit:

  • Male-male jumper wires (3)
  • Motion sensor

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.
Project Kit: $199.95
View Kit

Experimental Procedure

Getting Started

Have you ever wished that you could set off an alarm when someone comes into you room? Or, what if you want to throw a surprise party for someone, flashing lights and playing sound when they walk in? This project will let you do just that when you connect a motion sensor to your Raspberry Pi. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this video for a short demonstration of the project:

Writing Your Program

If you have never written a program in Scratch before, watch this video to learn how.

This program will monitor an input pin to determine when the motion sensor is activated. Then, it will play a sound and display an on-screen message for whoever is near your Raspberry Pi! See if you can create the following program in Scratch:

raspberry pi 3.1 scratch program
Figure 2

Here are a couple helpful tips for making the program. The blocks are color-coded, which makes them easier to find under the correct menu:

  • The when (green flag icon) clicked is available under Events.
  • To create a variable, click Data then Make a variable.
  • The wait __ secs, forever, and if __ then blocks are all available under Control.
  • The not __ block can be found under Operators. Along with an if block, you can use this block to check if a certain condition is not true.
  • The gpio __ is high? block is available under More blocks. If you do not see this block, click Add an extension, then click Pi GPIO and select OK.
  • The play sound __ block is availale under Sound. You can import additional sounds on the Sounds tab.
  • The say ___ for __ secs block can be found under Looks. This will make the on-screen sprite show a word bubble with text. You can type whatever you want in the text box to change the text, so you can change the message depending on whether you want to use the Raspberry Pi as an alarm, or to throw a surprise party!
raspberry pi 3.2 scratch program
Figure 3
raspberry pi 3.3 scratch program
Figure 4

Create your own program with customized sound effects and a message, and remember to save it when you are done!

Building Your Circuit

To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:

To build your circuit, you will need three M-M jumper wires and your motion sensor.

M-M jumper wires
Figure 5

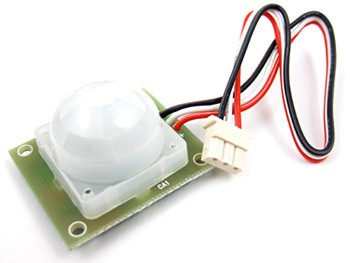

raspberry pi PIR sensor
Figure 6

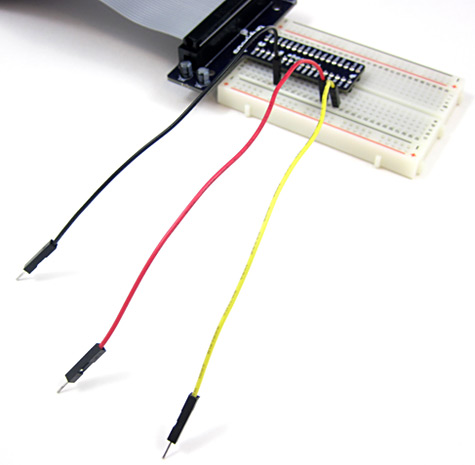

First, plug three jumper wires into your breadboard, as shown Figure 7.

Part Picture Hole
Black M-M jumper wire black M-M jumper A7
(Pi Wedge G4)
Red M-M jumper wire red M-M jumper A15
(Pi Wedge 5V)
Yellow M-M jumper wire yellow MM jumper A17
(Pi Wedge GND)

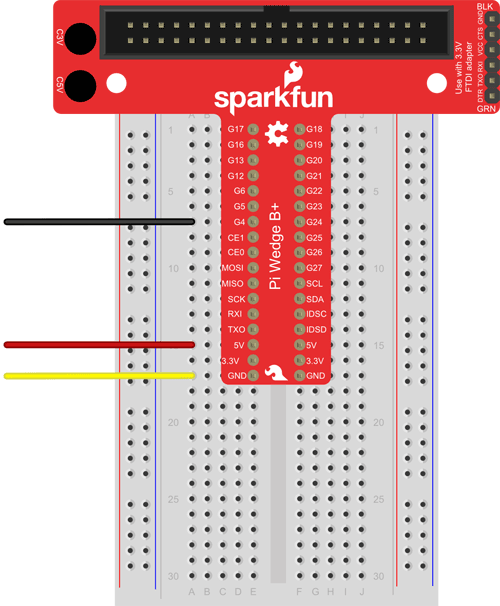

raspberry pi PIR breadboard jumpers
Figure 7

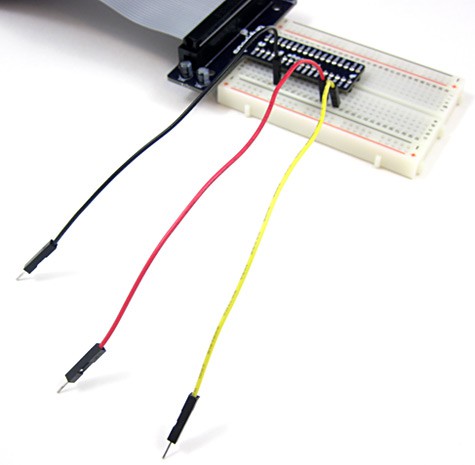

raspberry pi PIR breadboard jumpers photo
Figure 8

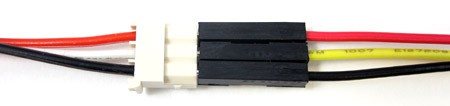

Next, plug the free ends of the jumper wires into the holes at the end of the motion sensor's cable, as shown in Figure 9. Note that there is no white jumper wire, so plug the yellow wire in so it matches up with the white part of the cable, as shown in Figure 9.

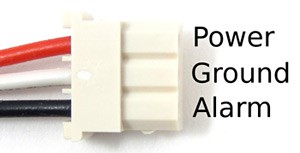

raspberry pi PIR cable
Figure 9

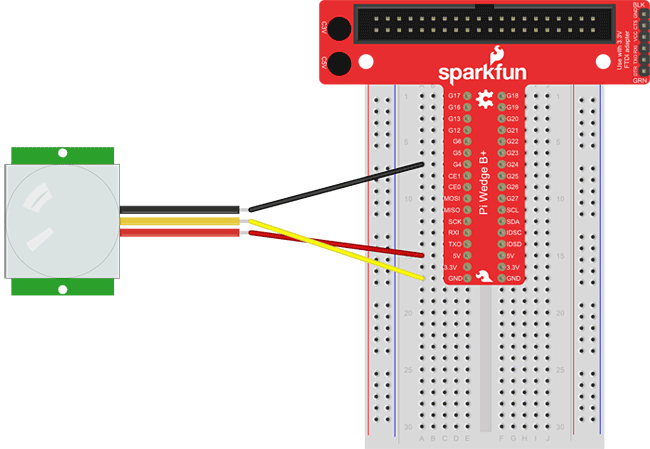

raspberry pi PIR breadboard
Figure 10

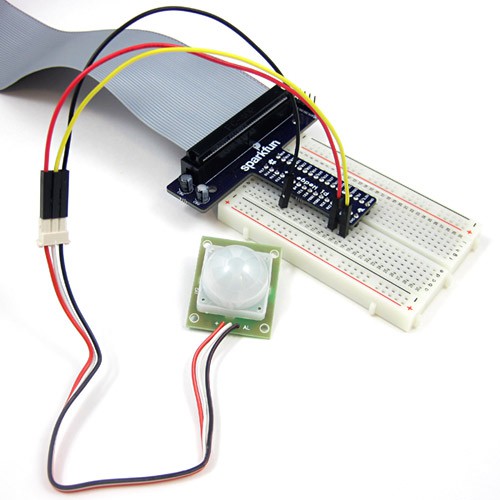

raspberry pi PIR circuit
Figure 11

icon learn

Learn More About:  How does the circuit work?

  [Show]

Testing Your Alarm

Now, position your motion sensor so the plastic dome is facing outward into the room (not down onto the tabletop). Run your program by clicking the green flag of the Scratch window. Try waving your arms around in front of the sensor. Your sound effect should play! Try experimenting with different sounds, and changing the "delay" variable to a number that works best for you (if the number is too small, the alarm might go off repeatedly). When you are ready, leave the program running and set up the sensor so it is aimed at a door to surprise the next person who walks in the room!


icon trouble

Troubleshooting:  My alarm does not work

  [Show]

Going Further

If you are having fun with your alarm, here are a few more things you can try:

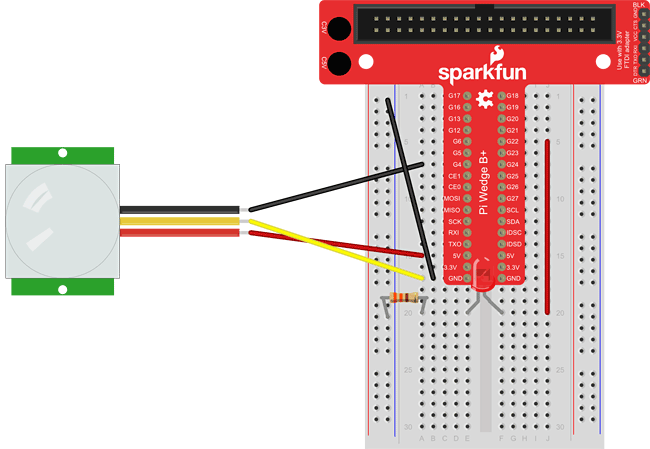

  • Add an LED to your circuit and make the LED flash when the alarm is triggered. Use the set gpio __ to ____ block under More blocks to control the LED.
  • Create a new variable called "count." When your program first starts, use a set count to __ block to reset count to zero. Then, use a change count by __ block to increase the count by 1 each time the alarm is triggered. This way, if you have to leave the room for a long period of time, when you get back you can see how many times the alarm went off!

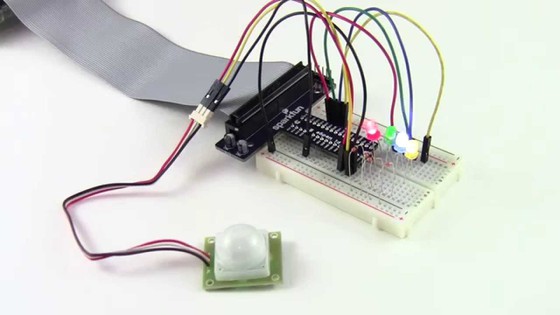

raspberry pi PIR breadboard LED
Figure 12
.

Troubleshooting

For troubleshooting tips, please read our FAQ: Make a Motion Sensor Alarm with a Raspberry Pi.

If you like this project, you might enjoy exploring these related careers:

remote sensing scientist analyzing data on computer

Remote Sensing Scientist or Technologist

Have you ever climbed up high in a tree and then looked at your surroundings? You can learn a lot about your neighborhood by looking down on it. You can see who has a garden, who has a pool, who needs to water their plants, and how your neighbors live. Remote sensing scientists or technologists do a similar thing, except on a larger scale. These professionals apply the principles and methods of remote sensing (using sensors) to analyze data and solve regional, national, and global problems in areas such as natural resource management, urban planning, and climate and weather prediction. Because remote sensing scientists or technologists use a variety of tools, including radio detection and ranging (radar) and light detection and ranging (lidar), to collect data and then store the data in databases, they must be familiar with several different kinds of technologies. Read more
electrical engineer aligning laser

Electrical & Electronics Engineer

Just as a potter forms clay, or a steel worker molds molten steel, electrical and electronics engineers gather and shape electricity and use it to make products that transmit power or transmit information. Electrical and electronics engineers may specialize in one of the millions of products that make or use electricity, like cell phones, electric motors, microwaves, medical instruments, airline navigation system, or handheld games. Read more
Computer programmer typing on a keyboard

Computer Programmer

Computers are essential tools in the modern world, handling everything from traffic control, car welding, movie animation, shipping, aircraft design, and social networking to book publishing, business management, music mixing, health care, agriculture, and online shopping. Computer programmers are the people who write the instructions that tell computers what to do. Read more
NASA flight software engineer

Computer Software Engineer

Are you interested in developing cool video game software for computers? Would you like to learn how to make software run faster and more reliably on different kinds of computers and operating systems? Do you like to apply your computer science skills to solve problems? If so, then you might be interested in the career of a computer software engineer. Read more


Share your story with Science Buddies!

I did this project Yes, I Did This Project! Please log in (or create a free account) to let us know how things went.

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.

Kit General Questions

Setting Up and Using Your Raspberry Pi FAQ

These answers apply to the Raspberry Pi Model 3B+ which comes with the Raspberry Pi Projects Kit. If you are using a different Raspberry Pi model you will need to do some research on your own—we suggest starting with the Raspberry Pi Foundation's Setting up your Raspberry Pi page.

Kit General Answers

Q: Who is the kit appropriate for?
A: The kit is meant for anyone (ages 8 and up) who wants to learn some basic programming and electronics skills while having fun. Students up to age 10, or older if their reading skills are behind grade level, may need adult assistance in reading and following the on-screen instructions. The projects included in the kit were beta tested and approved by students ages 8 to 16.

Q: Are the kit parts reusable?
A: Yes, all the electronics components in the kit can be re-used to do new projects or to repeat the projects.

Q: Aren't there other Raspberry Pi kits on the market? How is yours different?
A: Yes, there are other Raspberry Pi kits, and some of them are quite good! The Raspberry Pi Projects Kit and Raspberry Pi Circuit Parts Only Kit have been designed to contain the specific materials needed to do the accompanying Science Buddies Raspberry Pi projects. Our kit and associated projects are specifically meant for people who have no prior experience programming or connecting circuits. The projects are 100% beginner friendly with clear on-screen instructions, pictures, and videos. We think the kit, with its associated projects, is one of the most fun kits out there! But, if you are already an ace programmer or electronics guru, you may not find this the best fit for your own personal use. Even so, it may be a fun way for you to introduce others to programming and electronics.

Q: I already have a Raspberry Pi. Can I just buy the circuit parts separately?
A: Yes! We sell two different kits: the Raspberry Pi Projects Kit which includes a Raspberry Pi and the required accessories, and the Raspberry Pi Circuit Parts Only Kit, which only contains the additional circuit parts you need to do the Science Buddies projects. Both kits contain an SD card with the Raspbian operating system and a desktop shortcut to the Science Buddies project instructions.

Q: What programming language do the projects use?
A: The projects use Scratch 2. Scratch is a "graphical" programming language developed by the MIT Media Lab. It allows you to write code by clicking, dragging, and snapping together color-coded blocks. This allows beginners to write working code without worrying about formatting or typos. On the Raspberry Pi, Scratch allows you to control the general purpose input and output (GPIO) pins so your program can interact with a circuit in the physical world.

Note: three different versions of Scratch (1, 2, and 3) are available for the Raspberry Pi. The instructions for the Science Buddies projects (including example code) are specifically written for Scratch 2, which runs well on the Raspberry Pi model 3B+. If you have an older model Raspberry Pi, Scratch 2 may run more slowly, or may not run at all. If you want to use a different version of Scratch, you will need to consult the official documentation for Scratch 1.4 or Scratch 3 and modify the programming steps accordingly.

Setting Up and Using Your Raspberry Pi FAQ Answers

Q: How do I connect my Raspberry Pi to my TV or computer monitor?
A: The easiest way to set up your Raspberry Pi is to use an HDMI cable (included in the Science Buddies Raspberry Pi Projects Kit) to connect to a TV or computer monitor that has built-in speakers. If you are using a computer monitor with an HDMI port but no built-in speakers, you will also need separate speakers or headphones with a 3.5 mm audio plug (a regular "headphone jack").

If your TV or monitor does not have an HDMI port, you will need an HDMI to DVI or HDMI to VGA adapter (see pictures in table below). DVI and VGA do not transmit sound, so you will need separate headphones or speakers if you are using one of those options.

HDMI DVI VGA
HDMI port
DVI port
VGA port

Q: Can I use a laptop as a display and/or keyboard?
A: The short answer is "not easily." Many newer laptops have HDMI ports, but they only function as HDMI out, to send a video signal from the laptop to a television or projector. They do not work as HDMI in to display an external signal on the laptop's screen. The laptop's keyboard is only designed to work with the laptop itself, not as a standalone keyboard for an external device like the Raspberry Pi.

The longer answer is that, similar to the Remote Desktop feature on Windows and Mac computers, you can use special software to remotely operate a Raspberry Pi that is connected to the internet. This would allow you to control a Raspberry Pi using your laptop's screen and keyboard. This option is only recommended for advanced users, and you can find instructions here.

Q: How do I connect my Raspberry Pi to the internet?
A: Unlike earlier models, the Raspberry Pi 3B+ contains built-in Wi-Fi functionality. It does not require an external USB Wi-Fi adapter. You can connect your Raspberry Pi to the internet by clicking the internet icon in the taskbar and searching for available Wi-Fi networks, just like you would on a Windows or Mac computer. Your Raspberry Pi also has an ethernet port, which you can use to plug directly into a router for a hardwired connection.

Q: How do I shut down or reboot my Raspberry Pi? There's no power button!
A: Unlike most computers, the Raspberry Pi does not have a power button. You can shut down or reboot by clicking the raspberry icon in the upper left corner of your desktop, then select Shutdown. After the Raspberry Pi has shut down, it is safe to unplug the micro-USB power cable. Plug the cable back in to reboot. Important: never unplug the power cable while the Raspberry Pi is still running. This can corrupt the SD card.

Q: How can I adjust the Raspberry Pi's display resolution?
A: Click the Raspberry Pi logo in the top-left corner of your desktop. Select Preferences, then Raspberry Pi Configuration, then click the Set Resolution... button on the System tab.

Q: I have everything connected properly. Why can't I hear any sound?
A: Right-click the speaker icon on the desktop taskbar. This allows you to manually select HDMI or analog (the headphone jack) for sound output. Make sure you have the proper output selected. Also, make sure your Scratch program is set to play a sound. You can write a simple program to test if your sound is working using the "when space key pressed" and "play sound meow" blocks.

Q: Why won't my Raspberry Pi turn on?
A: If your Raspberry Pi will not turn on (the screen remains blank after everything is plugged in), go through this checklist to make sure everything is set up properly.
  1. Make sure your SD card is pushed in all the way (see Figure 1).
  2. Make sure the red power LED on your Raspberry Pi (labeled "PWR," near the micro-USB port, see Figure 2) is on. This means the Raspberry Pi is receiving power from the micro-USB port. If the LED is not on, make sure you pushed the micro-USB connector into the micro-USB port all the way.
  3. When you first plug the micro-USB cable in, the green LED (labeled "ACT," next to the PWR LED, see Figure 2) should flash several times. This LED flashes when the Raspberry Pi reads data from the SD card. After the Raspberry Pi is done booting up, it should turn off. If it does not flash at all, your SD card might not be inserted properly. Go back to step 1.
  4. Make sure your display (television or monitor) is turned on. If your display is turned off, you will not see anything on the screen, even if the Raspberry Pi is on.
  5. Make sure your display is set to the correct input. Many modern TVs have more than one HDMI input, and some computer monitors have DVI or VGA inputs in addition to HDMI.

Raspberry Pi SD card inserted properly and not all the way in
Figure 1. A micro-SD card that is inserted properly (left) and one that is not pushed in all the way (right).

Raspberry Pi status LEDs
Figure 2. The PWR (red) and ACT (green) LEDs near the micro-USB port.


Q: My Raspberry Pi starts to boot up, but then it freezes or the screen goes blank. What is wrong?
A There may be a problem with your Raspberry Pi or SD card. If you are using the Raspberry Pi or SD card that came with the Raspberry Pi Projects Kit or Raspberry Pi Circuit Parts Only Kit purchased from our partner Home Science Tools, please contact them directly at service@homesciencetools.com for assistance.

Q: My Raspberry Pi froze and is not responding to mouse or keyboard input. What should I do?
A: First, be patient and give the Raspberry Pi a few minutes to try and process whatever it was doing. If you click on a whole bunch of things in rapid succession, or run a really complicated Scratch program, the Raspberry Pi might slow down or freeze temporarily.

Next, if you are using a wireless keyboard and mouse, make sure they have fresh batteries.

Finally, as a last resort, if your Raspberry Pi is not responding, unplug the micro-USB cable and plug it back in. In general, you want to avoid doing this, because suddenly cutting power to the Raspberry Pi without properly shutting it down first can corrupt the SD card, and prevent the Raspberry Pi from working properly.

Q: My Raspberry Pi is acting strangely (e.g. it suddenly will not boot up properly, certain programs do not work, etc.). What is wrong?
A: If your Raspberry Pi is not "dead," but seems to be behaving strangely, there is a chance that your SD card has become corrupted. This can happen if you unplug the Raspberry Pi's power cord without properly shutting it down first. See the next question.

Q: I think I corrupted my Raspberry Pi's SD card. What should I do?
A: If the SD card came with the Raspberry Pi Projects Kit or Raspberry Pi Circuit Parts Only Kit you purchased from our partner Home Science Tools, please contact them directly at service@homesciencetools.com for assistance. Make sure to include a detailed description of the problem you are having. They will work with you to resolve the issue.
Q: I need help with a question, related to my Science Buddies Raspberry Pi Projects Kit or Raspberry Pi Circuits Parts Only Kit, not listed here. Who can I ask?
A: Science Buddies has a special area of our Ask an Expert forums dedicated to the Raspberry Pi Projects Kit. Please note that the forums are staffed by volunteers, and it may take a few days to get a response. If you are doing a science project, please do not wait until the day before the project is due to ask an urgent question.
