Abstract

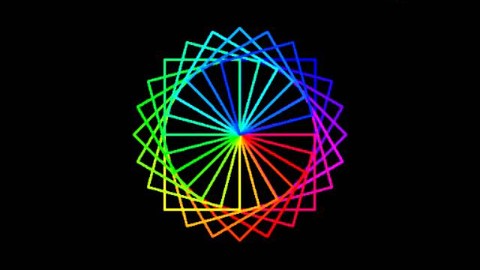

Have you ever used a toy like a Spirograph® to draw precise, repeatable patterns on a piece of paper? What if you could use a computer to automatically draw the patterns for you? This project will show you how to do just that using the Raspberry Pi Projects Kit. Check out the video to see what this simple, but fun, project looks like:

Share your story with Science Buddies!

I did this project Yes, I Did This Project! Please log in (or create a free account) to let us know how things went.

Credits

Ben Finio, PhD, Science Buddies

Cite This Page

General citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.

MLA Style

Finio, Ben. "Draw a Spirograph with a Raspberry Pi." Science Buddies, 22 Nov. 2019, https://www.sciencebuddies.org/science-fair-projects/project-ideas/CompSci_p060/computer-science/spirograph-raspberry-pi. Accessed 16 Dec. 2019.

APA Style

Finio, B. (2019, November 22). Draw a Spirograph with a Raspberry Pi. Retrieved from https://www.sciencebuddies.org/science-fair-projects/project-ideas/CompSci_p060/computer-science/spirograph-raspberry-pi


Last edit date: 2019-11-22

Introduction

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the button circuit in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.

raspberry pi 3B+
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).

You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your program to be able to do, then work through the rest of the design process until you have a completed project to show off at your science fair.

If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the patterns as a tool to help answer. For example, can you make patterns that create an optical illusion of some sort, and see how people react to them?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:

To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):

  • TV or computer monitor with HDMI input*
  • USB keyboard and mouse

*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.

To do this specific project, you will need the following circuit parts from your kit:

  • Male-male jumper wires (5)
  • Pushbuttons (2)

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.
Project Kit: $199.95
View Kit

Experimental Procedure

Introduction

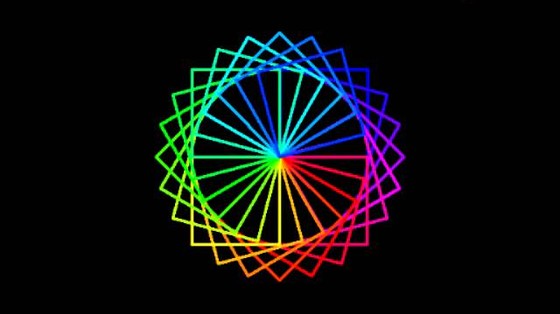

Have you ever been interested in computer graphics? What about the animated characters in video games or movies? This project will give you a simple introduction to drawing 2D graphics using Scratch. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch the video below to see several different designs:

Drawing a Simple Shape

If you have never written a program in Scratch before, watch this video to learn how:

To begin, you will make a program that will automatically draw a certain shape. Think about what motions you would make with your hand if you wanted to draw a simple shape, like a square. You would need to put your pen down on a piece of paper and draw four lines.

You can draw shapes in Scratch using the Pen menu, which contains the pen down block. Enter the following program and see what happens when you run it:

raspberry pi  scratch screen spirograph
Figure 2

The program should make your cat sprite move around the stage and draw a square, like this:

raspberry pi  scratch screen square stage
Figure 3

You can make the program a little less cluttered by using variables and loops, instead of repeating the same code four times. Try entering this code in a new program:

raspberry pi  scratch screen spirograph
Figure 4

Now, it is easy to change the size of your square by changing thedistance variable. There is just one problem, if you change distance and run the program again, your previous square will still be on the screen.

raspberry pi  scratch screen 2 squares
Figure 5

You can fix this by using the clear block (under Pen) at the beginning of your program, which erases anything previously drawn by the pen. You can also use the hide block (under Looks) to make the cat sprite invisible, so it does not clutter up your drawing (remember that each sprite has its own Scripts tab, so if you add more sprites, each one will need its own hide block). Finally, if the cat is moving too fast for you to see and you want to slow it down, you can add a wait block inside the loop.

raspberry pi  scratch screen
Figure 6

Now, each time you run the program, you should just see a single blue square on your stage. You will also see the angle and distance variables in the upper-left corner, but you can decide to hide them later.

raspberry pi  scratch screen single square
Figure 7

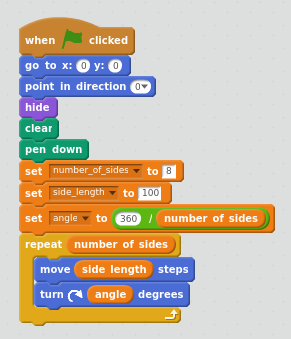

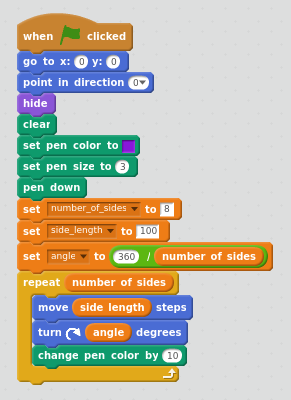

What if you want to create a shape with a different number of sides, like a triangle or a pentagon? It would be annoying to figure out the angle you need to use for each new shape in your program, and change the number of loops. Luckily, you can write a clever program that will do this automatically. All you have to do in the following program is change the number_of_sides variable to draw a new shape. You might want to save your previous program and start a new one, since this program has a different purpose.

raspberry pi  scratch screen spirograph
Figure 8

Try entering the program above and running it with different values for number_of_sides. Can you use the program to draw different shapes?


icon learn

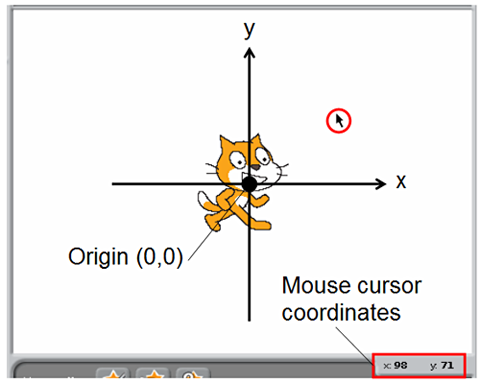

Learn More About:  The x-y coordinate system

  [Show]

Change How it Looks

You might think your drawings look a little boring with just a plain blue pen on a white background. It can also be annoying to have the variables that automatically display on the stage clutter up your drawing area. This section will explain how you can make your drawing more colorful!

To get rid of the variables on stage, you can add the hide variable ____ block at the beginning of your code, or uncheck the checkbox next to the variable's name in the Data menu.

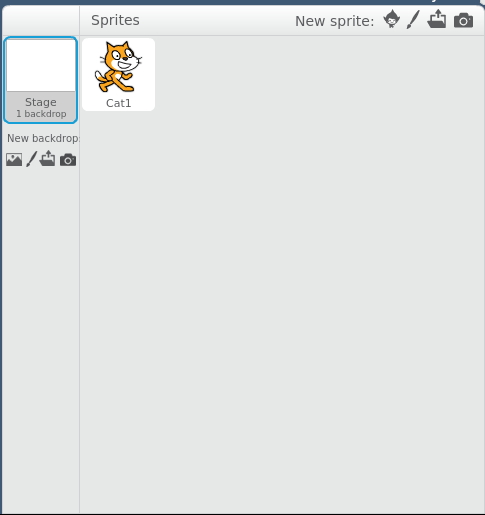

To change the background, use the buttons under Stage near the Sprites area on your screen. From left to right, the buttons will allow you to choose an image from the existing Scratch library, draw a new image, upload an image from your computer, or take a new picture with your computer's camera.

raspberry pi  scratch screen spirograph
Figure 9

You can change the appearance of the pen using various blocks in the Pen menu. For example, here is a program that will draw each side of the shape in a different color.

raspberry pi  scratch screen
Figure 10

Try experimenting with different pen sizes, pen colors, and background colors to decide what you think looks best. Remember to save your program!

Making a Pattern

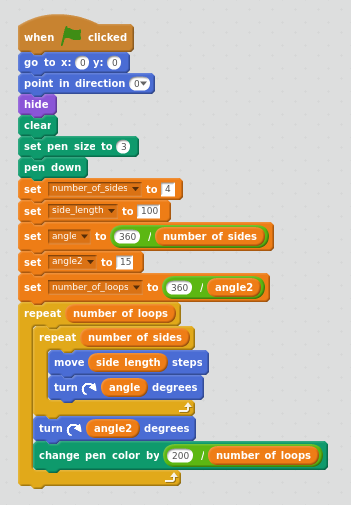

Now that you are familiar with the basics of controlling the pen, you can try creating more-advanced patterns. For example, what happens if you draw a whole bunch of shapes, but rotate each new shape a little bit from the previous one? The program below will result in multiple drawn polygons, each new one rotated by angle2 degrees. Create a new program to try it out.

raspberry pi  scratch screen spirograph
Figure 11

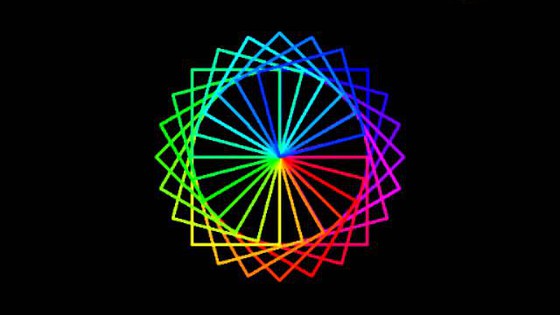

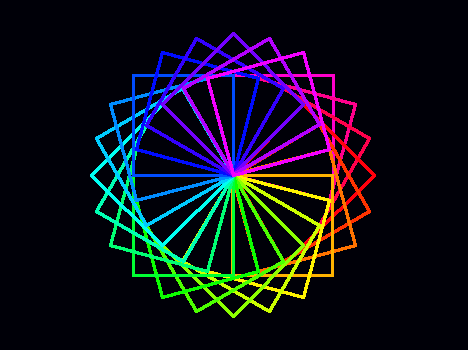

With the variable values in the screenshot above, the program creates this rainbow-colored pattern of squares:

raspberry pi  spirograph square pattern
Figure 12

Try entering the program above and playing around with different values for the variables to see what types of patterns you can create. Or, alter the program even further by adding additional move and turn commands to make more-complex shapes. Do not be afraid to experiment and try new things!


icon trouble

Troubleshooting:  My program does not work!

  [Show]

Making Your Pattern Interactive

So far, your drawing is not interactive at all. You click the green flag and your program runs on its own. What if you add buttons to change the pattern as it is drawing? You can do this by putting buttons on your breadboard, just like in the Design Your Own Video Game with a Raspberry Pi project. To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:

To build the circuit, you will just need jumper wires and the two pushbuttons:

M-M jumper wires
Figure 13
raspberry pi video game push buttoon
Figure 14

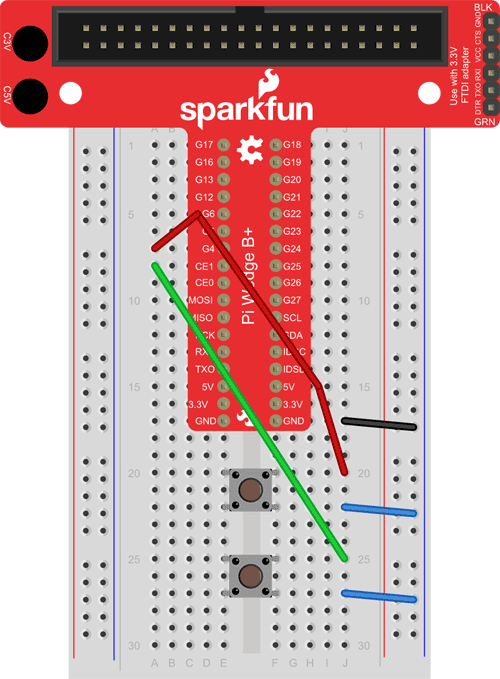

Follow the directions below to assemble the circuit. Note that the buttons each have four pins.



Part Picture Reference First Hole Second Hole
Black M-M jumper wire black M-M jumper J17
(Pi Wedge GND)
Ground bus
(right side)
Blue M-M jumper wire blue MM jumper J22 Ground bus
(right side)
Blue M-M jumper wire blue MM jumper J27 Ground bus
(right side)
Red M-M jumper wire red M-M jumper J20A7
(Pi Wedge G4)
Green M-M jumper wire green MM jumper J25A8
(Pi Wedge CE1)
Pushbutton raspberry pi video game push buttoon E20


E22
F20


F22
Pushbutton raspberry pi video game push buttoon E25


E27
F25


F27

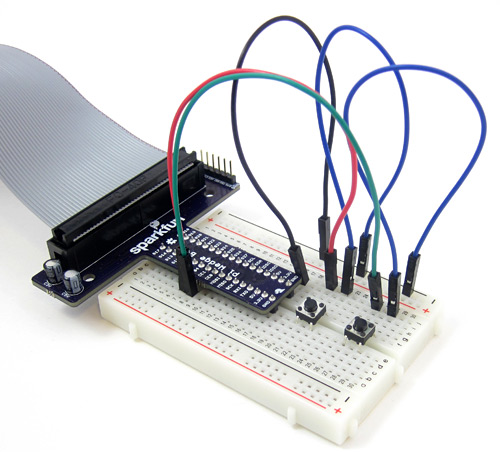

raspberry pi video game breadboard
Figure 15

raspberry pi video game controller
Figure 16

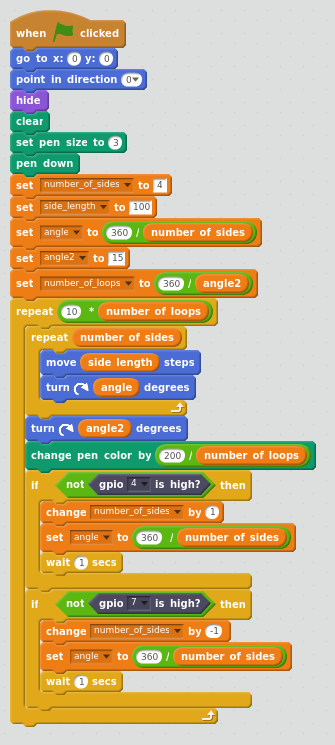

Now, modify your Scratch code to use button presses to change one of the variables in your program. The example below uses the buttons to increase or decrease the number of sides of the polygons. What happens if you run the program and push the buttons while the pattern is being drawn?

raspberry pi  scratch screen spirograph
Figure 17

Advanced: Making a Spirograph

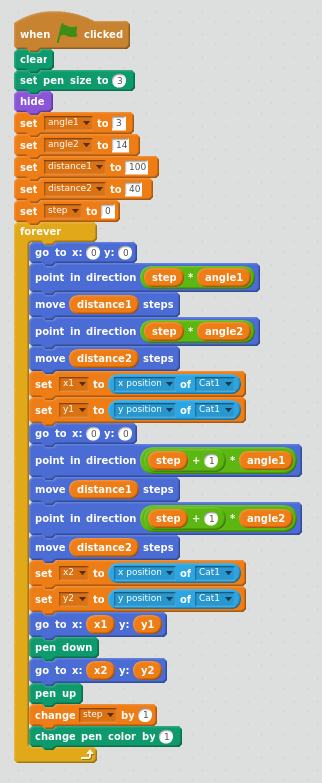

If you are ready for an even more advanced design, you can try making a spirograph. The code to make a spirograph can get pretty complicated, so be careful! Try entering the program below, then running it with different values for the angle1, angle2, distance1, and distance2 and variables. Changing the values can result in drastically different spirograph patterns.

raspberry pi  scratch screen
Figure 18

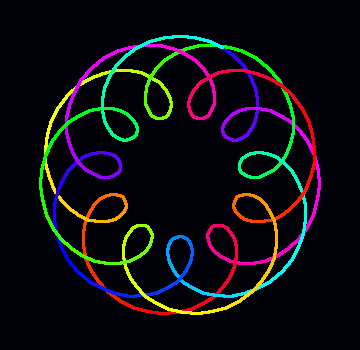

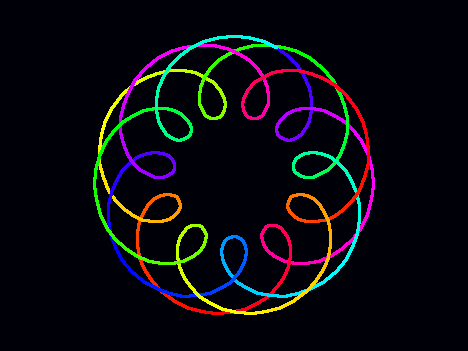

The values in the screenshot above should result in a spirograph like this:

raspberry pi   spirograph advanced
Figure 19

Try tweaking the variables or making your own edits to the code. How many different spirograph designs can you create?


icon learn

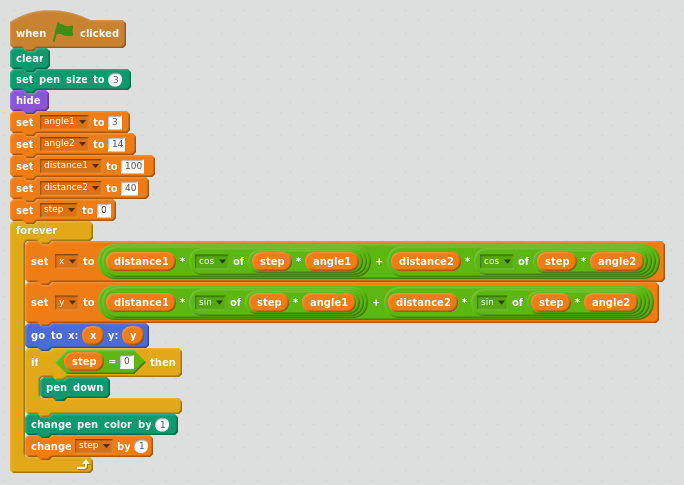

Learn More About:  Using advanced math

  [Show]

Going Further

Here are some ideas for you to continue exploring with creating your own graphics:

  • In this project, you wrote several programs that control the pen to automatically draw shapes. What about letting the user control the pen, perhaps with the arrow keys or the mouse? Can you make your own simple drawing program?
  • Can you use multiple inputs (from your keyboard and/or breadboard) to change different variables in the spirograph or pattern as it draws?
  • What about using other sensors that came with your kit, like the magnet, motion, or light sensors? See the other projects in your kit to learn how to use the other sensors.
.

Troubleshooting

For troubleshooting tips, please read our FAQ: Draw a Spirograph with a Raspberry Pi.
