Underground Water Flow and Darcy's Law
|Time Required||Average (6-10 days)|
|Material Availability||Readily available|
|Cost||Low ($20 - $50)|
AbstractThis project shows you how to build a simple model system to simulate underground water flow. Underground water flow is important for understanding replenishment of underground aquifers, migration of underground contaminant plumes, and cave formation. With your model system, you can simulate various underground conditions, and test your predictions about the effects they have on water flow.
The goal of this project is to model the flow of groundwater, and to calculate the flow rate using Darcy's formula.
Andrew Olson, Ph.D., Science Buddies
This project is based on:
- Gevorkian, G., 2004. "Darcy's Law and Underground Water Flow," California State Science Fair Abstract [accessed November 30, 2006] http://cssf.usc.edu/History/2004/Projects/J0606.pdf.
Cite This PageGeneral citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.
Last edit date: 2018-04-12
Fresh water exists not only in lakes and streams on the surface of the earth, but also underground. These subsurface sources of freshwater are called underground aquifers, and the water in them is called groundwater.
Like water on the surface, groundwater can also flow. And like water on the surface, groundwater also flows downhill. Groundwater can also move in response to differences in pressure from the overlying rock, soil, and water. The rate of groundwater flow will also depend on the material through which the water is flowing. Materials that are more solid will reduce the flow rate, while materials that are more porous will increase the flow rate.
Darcy's Law is a relationship that explains fluid flow in porous media, such as often seen in geological formations. The basic formula to calculate the flow rate, Q, is:
- K is a permeability coefficient (describes the porosity of the underground formation),
- A is the cross sectional area,
- h1 is the height of the inlet head,
- h2 is the height of the outlet head, and
- L is the path length of the flow.
Understanding how groundwater moves is important for predicting how quickly underground aquifers will be replenished when water is drawn up from wells drilled down from the surface. Sometimes groundwater can become tainted with salt water or even toxic compounds seeping from a contaminated source. In these cases it is especially important to understand groundwater movement, in order to contain the spread and prevent contamination of aquifers used for drinking water or irrigation.
In this project, you will use plastic soda bottles to make models of water flowing through underground formations. You will fill the bottles with different materials (e.g., sand, gravel, silty clay, etc.) and then measure water flow to see the effects of different types of formations. You can investigate the effects of pressure by making outlets at different heights on the bottle. The height of the water above the outlet creates the pressure, so the lower the outlet is, the more pressure there will be. By measuring the flow rate at the outlet, you can see how well Darcy's Law predicts your results.
Terms and Concepts
To do this project, you should do research that enables you to understand the following terms and concepts:
- Darcy's Law,
- artesian well,
These websites will help you get started with your background research on groundwater and Darcy's Law:
- FracFocus. (n.d.). Fluid Flow in the Subsurface (Darcy's Law). Ground Water Protection Council, Interstate Oil & Gas Compact Commission. Retrieved March 5, 2013, from http://fracfocus.org/groundwater-protection/fluid-flow-subsurface-darcys-law
- USGS Water Science School (2017, January 19). Groundwater. U.S. Geological Survey. Retrieved April 9, 2018, from https://water.usgs.gov/edu/mearthgw.html
- Encyclopedia Britannica, Inc. (n.d.). Darcy's law. Retrieved March 5, 2013, from http://www.britannica.com/EBchecked/topic/151481/Darcys-law
News Feed on This Topic
Materials and Equipment
To do this experiment you will need the following materials and equipment:
- 4 (or more) 2 L plastic bottles,
- plastic tubing (e.g., aquarium tubing, drinking straw). Plastic tubing may be available locally from aquarium or hardware shops or online from suppliers such as Carolina Biological, catalog #671784.
- sharp knife,
- modeling clay,
- graduated beaker for measuring outflow. A 400 ml glass beaker is available from Carolina Biological, catalog #721210. Alternatively, a large, graduated measuring cup may be used.
- timer or stopwatch,
- material to simulate subsurface, e.g.:
- pea gravel,
- aquarium gravel,
- clay soil,
- mixtures of clay and sand.
Disclaimer: Science Buddies occasionally provides information (such as part numbers, supplier names, and supplier weblinks) to assist our users in locating specialty items for individual projects. The information is provided solely as a convenience to our users. We do our best to make sure that part numbers and descriptions are accurate when first listed. However, since part numbers do change as items are obsoleted or improved, please send us an email if you run across any parts that are no longer available. We also do our best to make sure that any listed supplier provides prompt, courteous service. Science Buddies does participate in affiliate programs with Home Science Tools, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity. If you have any comments (positive or negative) related to purchases you've made for science fair projects from recommendations on our site, please let us know. Write to us at firstname.lastname@example.org.
Remember Your Display Board Supplies
Poster Making Kit
ArtSkills Trifold with Header
- Do your background research and make sure that you are knowledgeable about the terms, concepts, and questions, above.
Prepare at least four 2 L bottles for measuring flow rates, as described in Figure 1:

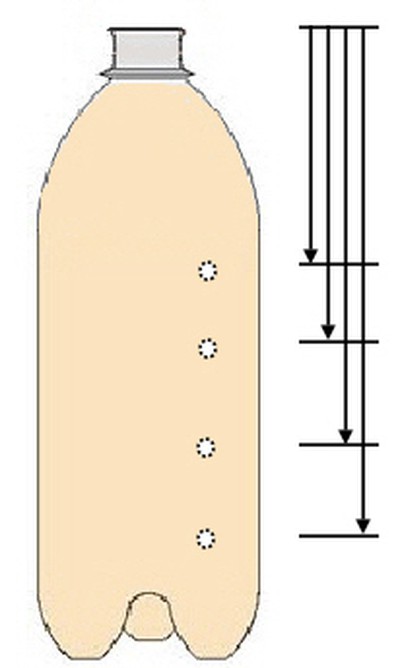

Figure 1. Each soda bottle should have a single outlet hole. Make four bottles, each with an outlet hole at a different height. To collect the outflow, connect a short length of drinking straw or aquarium tubing to the outlet hole, and seal the edges with modeling clay. Use a large measuring cup or other graduated container to catch the outflow. (Thanks to John LeVasseur for the soda bottle drawing from which this diagram was adapted.)
