Wearable Limp Detection Device

Abstract

Have you (or anyone you know) ever sprained an ankle or broken a leg? It might have taken some practice to walk again after recovering from an injury. Some people might even need to work with a physical therapist. In this project you will program a wearable device to recognize when someone is limping instead of walking normally.

Summary

Areas of Science

Human Biology & Health
Computer Science

Difficulty

Method

Engineering Design Process

Time Required

Very Short (≤ 1 day)

Prerequisites

None

Material Availability

micro:bit board required, see Materials section for details

Cost

Low ($20 - $50)

Safety

No issues

Credits

Ben Finio, PhD, Science Buddies

Science Buddies is committed to creating content authored by scientists and educators. Learn more about our process and how we use AI.

https://www.youtube.com/watch?v=4LHWjt0eqzQ

Objective

Use machine learning to train a micro:bit board to recognize when someone is walking with a limp.

Introduction

Most people walk with symmetry, meaning their gait (how their legs move when they walk) is the same on both sides. For a variety of reasons, including physical injuries like a sprained ankle, or neurological conditions like cerebral palsy, some people might walk with an asymmetric gait, or limp. For example, someone who has pain in one leg may try put less weight on that leg as they walk, taking shorter, quicker steps with the injured leg and longer steps with the uninjured leg.

A physical therapist might work with someone to help them regain or maintain a symmetric gait. To do this, they may use gait analysis, or study how the person walks. This could simply consist of observing the person as they walk, but it could also include filming the person while they walk so the video can be analyzed in more detail, or even using a motion capture system to track the person's movements (Figure 1). This analysis can give the physical therapist more detailed information about the person's gait.

Image Credit: Lars Lau Raket / Creative Commons Attribution-Share Alike 4.0 International

Figure 1. Motion-capture data of a person walking.

Gait analysis with video or motion capture data can be useful, but time consuming. The physical therapist may require additional training to interpret the data, and needs to sit down and review the data after the appointment. What if you could design a wearable device that could detect in real-time whether a person is limping? In this project, you will do that using a little programmable device called a micro:bit. The micro:bit has a built in accelerometer, a type of electronic sensor that can detect motion. Phones and video game controllers use accelerometers to know when you tilt or shake them. The micro:bit's accelerometer can detect acceleration, or a change in speed, along three different axes, or directions, called X, Y, and Z. If you have a micro:bit sitting on the table in front of you as shown in Figure 2, then the X axis measures motion side to side, the Y axis measures motion forward and backward, and the Z axis measures motion up and down. Note that these directions are always relative to the micro:bit board itself. For example, if you tilt the micro:bit board up on its front edge, the Z axis will still point out of the board, which is now "forward and backward" relative to your body instead of "up and down." See the reference in the bibliography to learn more about how accelerometers work.

Image Credit: Ben Finio / Science Buddies

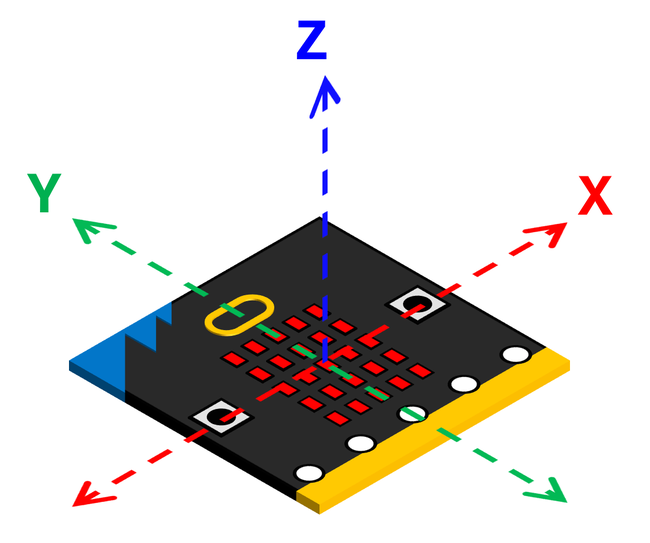

Figure 2. The X, Y, and Z axes of the micro:bit's accelerometer.

You can wear an accelerometer on your lower body (for example on your hip, thigh, or foot) to record data while you are walking (Figure 3). However, it can be difficult to interpret graphs of the accelerometer data to figure out what was going on and how someone was walking. Instead of trying to figure out the graphs yourself, in this project you will use machine learning to recognize different motions. You will provide training data to a computer model so it can learn the differences between accelerometer readings when a person is limping or walking normally. You can then program your micro:bit to react - for example by lighting up LEDs, making a sound, or even sending an alert to another micro:bit - depending on what type of movement the micro:bit detects. Imagine how your device could help monitor someone as they recover during physical therapy!

Image Credit: Ben Finio / Science Buddies

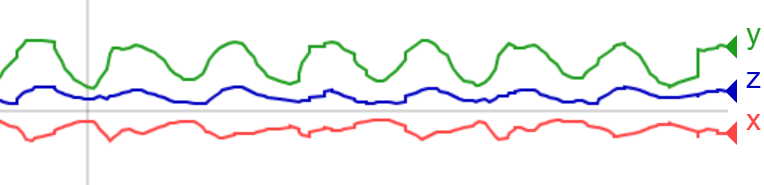

Figure 3. XYZ acceleromer data recorded while a person was jogging. The horizontal axis of the graph is time and the vertical axis shows the accelerometer values.

Terms and Concepts

• Symmetry
• Gait
• Asymmetric
• Limp
• Gait analysis
• Motion capture
• Accelerometer
• Sensor
• Acceleration
• Axes
• Machine learning
• Training data
• Model

Questions

• What are some reasons that a person might walk with a limp?
• What are some ways a physical therapist can evaluate a person's gait?
• What is machine learning?

Materials and Equipment

• micro:bit Go Bundle. This kit contains everything you will need to get started working with micro:bit:
  • micro:bit board
  • micro-USB cable
  • 2xAAA battery holder
  • AAA batteries (2)
• Computer with internet access and USB port.
• If your computer does not have Bluetooth enabled, you will need a second micro:bit.
• A way to wear the microbit and battery pack near or on your waist. They need to be held in place firmly so they do not bounce around when you walk. You could simply try tucking them into your waistband or putting them in a pocket, but you could also purchase a jogging belt or fanny pack like the type runners use to hold cell phones.

This project follows the Engineering Design Process. Confirm with your teacher if this is acceptable for your project, and review the steps before you begin.

1. Watch the introductory video on the micro:bit CreateAI website.
2. Click "Get Started" on that page then "New session."
3. Follow the on-screen instructions to connect your micro:bit to your computer.
4. Once your micro:bit is connected, look at the "Live data graph" at the bottom of the screen. Wiggle your micro:bit around. You should see the lines for the x, y, and z accelerometer readings change.
5. Attach the micro:bit to your waist. The exact location (front, back, or side) does not matter, but make sure you keep it consistent throughout your experiment.
6. Rename the default action "Walking" and choose an icon for it (like a smiley face).
7. Click the "Record" button and start walking around normally. Make sure you keep walking until the micro:bit is done recording the sample.
8. Record two more samples so you have three total.
9. Click the "Add action" button. Add a new action called "Limping" and choose an icon for it.
10. Record three new samples while you intentionally walk with an exaggerated limp (even if you are not really injured!). After you are done, your screen should look similar to Figure 4.

Image Credit: Ben Finio / Science Buddies

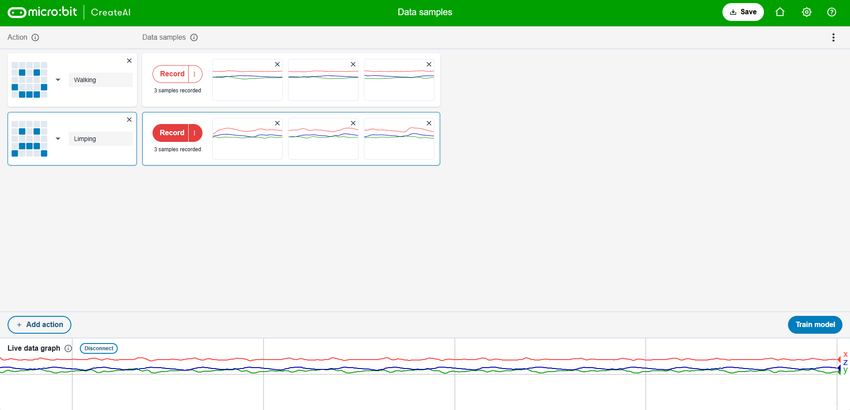

Figure 4. The CreateAI interface after recording three data samples each for two different actions.

11. Click "Train model" and wait for the model to train.
12. Now try walking around, both normally and with a limp, while watching the screen. The screen will now display a prediction of which action you are currently performing as a percentage between 0 and 100%. This percentage indicates the probability that you are currently performing that action. Is the prediction correct for each action?
13. If the prediction is not very accurate, try adding more training data to improve your model. Click the "Edit data samples" button to go back and record more data. Record at least 10 more samples for each action.
14. Train your model again, then walk around while looking at the new predictions. Are they better than they were before?
15. Keep adding more training data and re-training your model until it can correctly predict the motion most of the time.
16. Click "Edit in Makecode." Here, you can edit the program to make it do different things when the model detects different motions. By default, it will simply show the icons you selected when creating the model.
17. Think about how your micro:bit device could be used in a physical therapy setting or for someone recovering from an injury. How can you write a program to use your micro:bit? Figure 5 shows an example program.
    1. For example, maybe it would be helpful for that person to have an alarm if they start limping too much. Can you add some Music blocks to play sound when the person is limping? If so, add a stop all sounds block somewhere in your program. Otherwise, if you start playing a sound in the background, it will never stop.
    2. So far, you have only trained your model to recognize walking and limping. What if the person is doing something else, like standing still or sitting? You can use an on ML unknown start block to make your program react to other motions that were not included in your model.

Image Credit: Ben Finio / Science Buddies

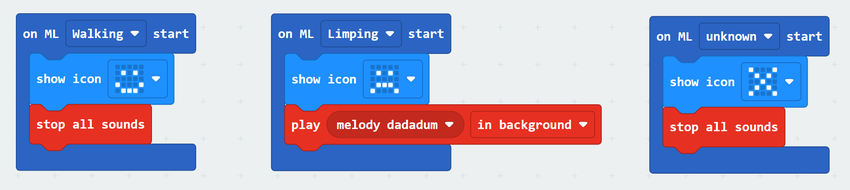

Figure 5. Example program to display different icons depending on the detected motion, and play a melody when limping is detected.

18. Follow the on-screen instructions to download your program to your micro:bit. You may need to reconnect the micro:bit to your computer with the USB cable to do this.
19. Make sure you put your micro:bit back on your body in the same place and orientation as when you collected your training data. Test your program. Does it work as you expected?
20. What other improvements or changes can you make to your program? There are many other things you can try - see the Variations section for more ideas.
