# Chain Reaction: Inversion and the Pappus Chain Theorem *

***Note:**This is an abbreviated Project Idea, without notes to start your background research, a specific list of materials, or a procedure for how to do the experiment. You can identify abbreviated Project Ideas by the asterisk at the end of the title. If you want a Project Idea with full instructions, please pick one without an asterisk.

## Abstract

Here is a challenging problem for anyone with an interest in geometry. This project requires background research to solve it, but it is an excellent illustration of visual thinking in mathematics.Figure 1 below shows a series of circles (*iC₁, iC₂, iC₃, ..., iC₃₀*), inscribed inside an arbelos. What is an arbelos? The arbelos is the white region in the figure, bounded by three semicircles. The diameters of the three semicircles are all on the same line segment, *AC*, and each semicircle is tangent to the other two. The arbelos has been studied by mathematicians since ancient times, and was named, apparently, for its resemblance to the shape of a round knife (called an arbelos) used by leatherworkers in ancient times.
The chain of inscribed circles is sometimes called a Pappus Chain, for Pappus of Alexandria, who studied and wrote about it in the 4th century A.D. The inscribed circles are tangent to one another, and to the boundaries of the arbelos. That is, *iC₁* is tangent to each of the three semicircles that form the boundary of the arbelos, while each successive circle is tangent to the preceding one and to two of the semicircles that bound the arbelos (note that, in its default position, the figure illustrates just one of three possible configurations of the chain). Pappus proved a theorem (which *he* called "ancient"), which states that the height, *h _{n}*, of the center of the

*n*inscribed circle,

^{th}*iC*above the line segment

_{n},*AC*is equal to

*n*times the diameter of

*iC*.

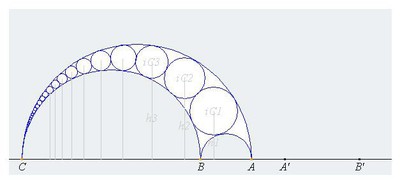

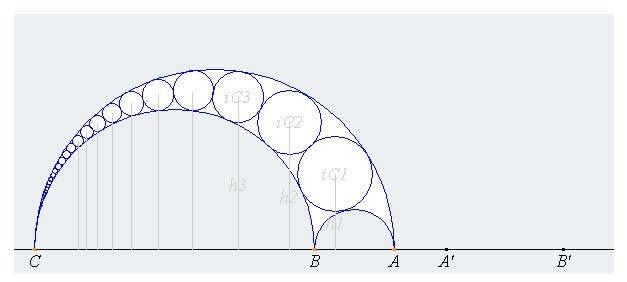

_{n}**Figure 1**. Chain of circles inscribed in the arbelos.

Pappus' proof, relying solely on Euclidean geometry, ran over many pages. The modern proof is much simpler and uses the powerful method of *circle inversion*, invented in the 1820's by Jacob Steiner. Your goal is to gain a sufficient understanding of the principles of circle inversion and their application to the arbelos so that you can prove Pappus' Theorem:

The references in the Bibliography will help you get started learning more about circle inversion.

## Objective

Prove that the height, *h _{n}*, of the center of the

*n*inscribed circle,

^{th}*iC*, above the line segment

_{n}*AC*is equal to

*n*times the diameter of

*iC*.
