Make a Magnetic Slime Robot

Summary

Areas of Science

Robotics

Difficulty

Method

Engineering Design Process

Time Required

Short (2-5 days)

Credits

Ben Finio, PhD, Science Buddies

Science Buddies is committed to creating content authored by scientists and educators. Learn more about our process and how we use AI.

https://www.youtube.com/watch?v=VmV3m0QqNOY

Abstract

Could you use a magnetic slime "robot" to retrieve a battery accidentally swallowed by a small child? Scientists think so! Watch this video to learn about magnetic slime that, when driven by external magnetic fields, can squeeze through small spaces and even grasp objects.

Can you make your own magnetic slime robot that can accomplish some of the same tasks demonstrated by the researchers? You can start by adding iron filings to slime to make your own magnetic slime (see this Science Buddies activity for a recipe).

Next, prop up a 1/8 inch sheet of acrylic (also called plexiglass) so there is a gap between the acrylic and the table. Put your slime on top of the acrylic. Mount a neodymium magnet on the end of a straw or skewer and hold it under the acrylic (Figure 1).

Can you use the magnet to manipulate the slime? Can you make the slime squeeze through an obstacle, grasp an object, or connect two wires? What about using multiple magnets to form more complex shapes with the slime?

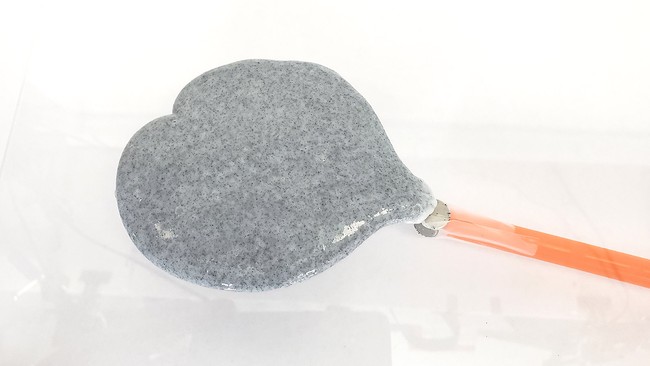

A blob of magnetic slime on a transparent piece of plexiglass, being pulled to one side by a magnet taped to a straw and held beneath the glass

Figure 1. Example experimental setup.

You may need to experiment to find the optimal slime recipe for this project. There are multiple factors you can change that will affect the physical properties of your slime, including

• The amount of contact lens solution (In general, more contact lens solution will make your slime more viscous.)
• The amount of iron filings
• Using neodymium iron boron (NdFeB) powder instead of iron filings (The slime recipe in the paper uses MQP-15-7 powder from Magnequench, Inc.)

If your slime sticks to the acrylic too much, try using it on a different surface. Just make sure the material is thin, since magnetic fields rapidly get very weak as you get farther from the magnet.
