Soft Robots with Built-In LEDs

Summary

Areas of Science
Robotics
Difficulty
Method
Engineering Design Process
Time Required
Short (2-5 days)
Prerequisites

None

Material Availability

Silicone rubber must be ordered online. An Arduino kit is available from our partner Home Science Tools® if you want to interface your project with an Arduino.

Cost
High ($100 - $150)
Safety

Wear gloves when mixing the silicone rubber.

Credits
Ben Finio, PhD, Science Buddies
Science Buddies is committed to creating content authored by scientists and educators. Learn more about our process and how we use AI.

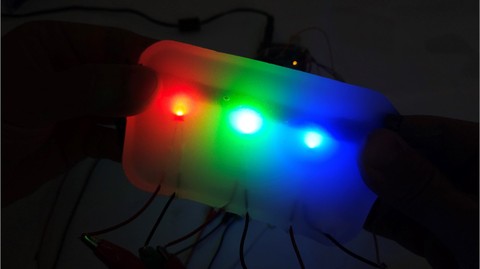

https://www.youtube.com/watch?v=BsSRQozNZk0
*Note: For this science project, you will need to develop your own experimental procedure. Use the information on this page as a starting place. If you would like to discuss your ideas or need help troubleshooting, use the Ask An Expert forum. Our Experts won't do the work for you, but they will make suggestions and offer guidance if you come to them with specific questions.

If you want a Project Idea with full instructions, please pick one without an asterisk (*) at the end of the title.

Abstract

Check out the soft robotic gripper and artificial robotic skin projects. These projects show you how to use flexible silicone rubber to make robots or robotic parts. The second project shows you how to connect external LEDs using an Arduino. The LEDs light up when an embedded piece of conductive fabric stretches. What about embedding LEDs in the silicone rubber? You can do this by embedding the LEDs between layers of silicone (Figure 1). The trick is to solder flexible stranded wires to the LEDs and then bend the wires back and forth to form springs. This allows the wires to stretch and compress along with the silicone.

Can you make your own soft robots with embedded LEDs? What interesting lighting effects can you generate, for example, with red, green, and blue LEDs and using the silicone rubber as a diffuser (Figure 2)? How can you control the LEDs' behavior when combined with a stretch sensor and an Arduino? What are some possible applications for soft robots with built-in lighting?

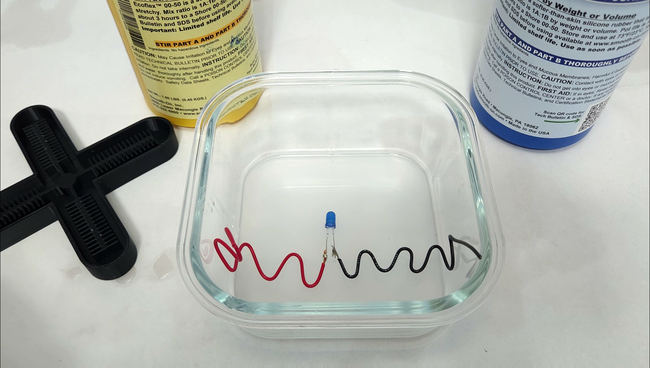

LED with wire springs embedded in siliconeImage Credit: Ben Finio / Science Buddies
Figure 1. An LED with bent wires placed upon the first layer of silicone for a soft robotic stretch sensor.

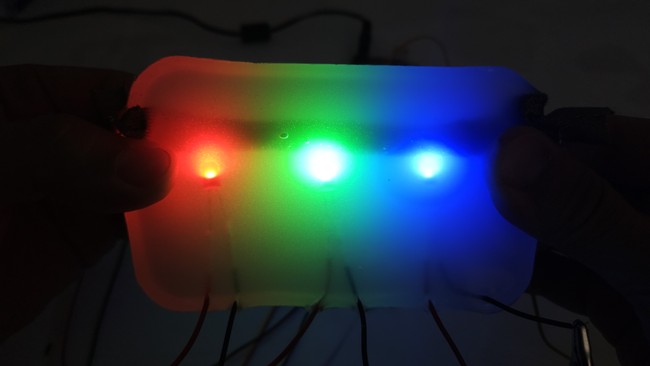

sheet of silicone rubber with embedded red, green, and blue LEDsImage Credit: Ben Finio / Science Buddies
Figure 2. Silicone stretch sensor with embedded red, green, and blue LEDs.
