Golf Clubs, Loft Angle, and Distance
AbstractIf your idea of a great weekend morning is taking some practice swings at a driving range, or heading out to the links to play a round, this could be a good project for you. This project is designed to answer the question, what is the relationship between club loft angle and the distance that the ball travels when struck.
ObjectiveThe goal of this project is to measure how the initial launch angle of a golf ball affects how far the ball travels.
This project idea is from:
- Goodstein, M., 1999. Sports Science Projects: The Physics of Balls in Motion. Berkeley Heights, NJ: Enslow Publishers, pp. 83-85.
Cite This PageGeneral citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.
Last edit date: 2017-07-28
As everyone knows, the goal in golf is to hit the small white ball into the cup on the green, using the smallest number of strokes possible. Golfers can carry up to 14 different clubs, each intended for a specialized purpose. There are drivers to get the maximum distance when teeing off, fairway woods for hitting long distances when the ball is no longer on the tee, irons for various distance ranges, pitching wedges and sand wedges for chipping shorter shots onto the green, and a putter for the final shot(s) on the green.
This project will focus on the irons, the mid-range clubs often used for shots approaching the green. The irons in a typical set of clubs are numbered 3-9. As the number of the iron increases, so does its loft angle—the angle of the club face with respect to the shaft of the club (see Figure 1). A three iron has a loft angle of 15°. The nine iron has a loft angle of 45°. In between, the loft angle increases by 5° with each iron.

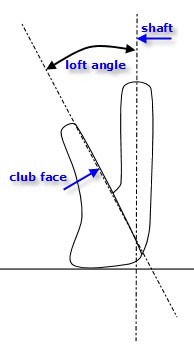

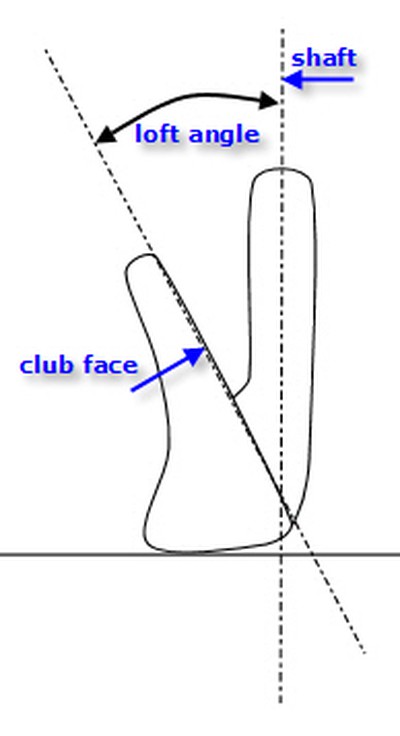

Figure 1. The angle between the club face and the shaft is the loft angle of a golf club. The diagram shows the club head as it would look if you were facing the golfer and your eyes were at the level of the ball.
As the loft angle of the club increases, the ball will be launched at a higher initial angle. The distance that the ball travels will be determined by how fast the club is moving when it hits the ball, the angle of the club face to the ball at impact, and the amount of spin imparted to the ball. Just after impact with the club, the ball will have an initial launch angle, an initial velocity, and an initial spin rate. These parameters will largely determine the flight of the ball (other factors such as wind or collision with an object can also influence the flight).
The goal of this project is to determine the relationship between the loft angle of the club and the initial launch angle of the ball, and between the loft angle of the club and the distance that the ball travels.
Terms and ConceptsTo do this project, you should do research that enables you to understand the following terms and concepts:
- Loft angle
- Launch angle
- Initial velocity
- Elastic collisions
- Inelastic collisions
- Projectile motion
- The irons in a set of clubs differ slightly in shaft length. What effect do you think these differences would have on:
- speed of the club head at impact with the ball?
- distance that the ball is hit?
- Are there differences in mass of the club head between the irons in your set of clubs? If so, what effect would these differences have on:
- speed of the club head at impact with the ball?
- distance that the ball is hit?
- For basic information on golf clubs (purposes of the different types, typical distances for clubs), see:
- Pinemeadow Golf Products, Inc., 2007. "Golf Lesson #1: The Basics of Golf Clubs," [accessed April 12, 2007] http://www.pinemeadowgolf.com/clubs101_1.html.
- Kelley, B., 2007. "Golf Club Distances," About: Golf, Golf.About.com [accessed April 12, 2007] http://golf.about.com/od/beginners/l/blclubdistance.htm.
- For more information on projectile motion and momentum, see:
- Henderson, T., 2004a. "Vectors and Motion in Two Dimensions," The Physics Classroom, Glenbrook South High School, Glenview, IL [accessed April 12, 2007] http://www.physicsclassroom.com/class/vectors.
- Henderson, T., 2004b. "Momentum and Its Conservation," The Physics Classroom, Glenbrook South High School, Glenview, IL [accessed April 12, 2007] http://www.physicsclassroom.com/class/momentum.
- This project idea is from:
Goodstein, M., 1999. Sports Science Projects: The Physics of Balls in Motion. Berkeley Heights, NJ: Enslow Publishers, pp. 83-85.
News Feed on This Topic
Materials and Equipment
- Three different golf clubs (irons)
- Driving range with yard markers
- For measuring the loft angle of your shots you will need:
- Video camera
- TV or monitor for video playback
- Plastic wrap
Remember Your Display Board Supplies
Poster Making Kit
ArtSkills Trifold with Header
- Do your background research so that you are knowledgeable about the terms, concepts, and questions above.
- It's a good idea to call ahead to the driving range and ask for a good time to conduct your experiment (sometime when the range is less busy). You want to make sure you'll have enough room to set up your video camera so that you can measure the initial angle of the shot.
- Select three (or more) different irons to test. Measure the loft angle for each iron.
- Set up the video camera so that you can record a good view of the ball as it is launched by the club.
- You want to be able to measure the initial launch angle by playing back the video. The ball travels fast, so you'll need a wide field of view in order to catch the ball.
- It's a good idea to take a practice swing or two, and then go back and review the video to make sure that you can see the ball as it takes off. That way you'll be confident that your video data will be useful.
- If you should happen to have access to a high-speed video camera, that would be even better.
- For each iron that you are testing, hit at least 20 balls. For each ball you should:
- Try your best to use a consistent swing. The speed of the club and the angle of the club face with respect to the ball should be the same (as near as possible) for each shot.
- Record video so that you can measure the launch angle.
- Measure the distance that the ball travels. Most driving ranges have yard markers that you can use for this measurement.
- It's also a good idea to note how much the ball deviated from a straight line. This will tell you how squarely you hit the ball.
- Here is how to measure the initial launch angle for each shot:
- Set up the video camera to play back on a TV monitor.
- Cover the screen with a piece of plastic wrap.
- Advance the video to the shot you wish to analyze.
- Use a marker to mark the starting position of the ball on the plastic wrap.
- Advance the video one frame at a time through the swing until the ball is hit and starts to fly. Mark the new position of the ball.
- Continue advancing one frame at a time, marking the position of the ball each time, until the ball leaves the frame.
- The initial positions of the ball should fall on a straight line. Draw this line.
- Measure the angle that this line makes with the horizontal. This is the launch angle for the shot.
- For each club, calculate the average launch angle.
- How does the launch angle compare the loft angle of the club?
- More advanced students should also calculate the standard deviation of the launch angle. Did you have a similar "spread" of launch angles for each club?
- Make a graph of the distance (y-axis) vs. launch angle (x-axis) for each shot. Make a separate graph for each club.
- How does the distance vary with the measured launch angle?
- Which club gives you the greatest distance?
- More advanced students should also calculate the standard deviation of the distance. Did you have a similar "spread" of distances for each club?
Communicating Your Results: Start Planning Your Display BoardCreate an award-winning display board with tips and design ideas from the experts at ArtSkills.
If you like this project, you might enjoy exploring these related careers:
Mechanical EngineerMechanical engineers are part of your everyday life, designing the spoon you used to eat your breakfast, your breakfast's packaging, the flip-top cap on your toothpaste tube, the zipper on your jacket, the car, bike, or bus you took to school, the chair you sat in, the door handle you grasped and the hinges it opened on, and the ballpoint pen you used to take your test. Virtually every object that you see around you has passed through the hands of a mechanical engineer. Consequently, their skills are in demand to design millions of different products in almost every type of industry. Read more
PhysicistPhysicists have a big goal in mind—to understand the nature of the entire universe and everything in it! To reach that goal, they observe and measure natural events seen on Earth and in the universe, and then develop theories, using mathematics, to explain why those phenomena occur. Physicists take on the challenge of explaining events that happen on the grandest scale imaginable to those that happen at the level of the smallest atomic particles. Their theories are then applied to human-scale projects to bring people new technologies, like computers, lasers, and fusion energy. Read more
Physics TeacherOur universe is full of matter and energy, and how that matter and energy moves and interacts in space and time is the subject of physics. Physics teachers spend their days showing and explaining the marvels of physics, which underlies all the other science subjects, including biology, chemistry, Earth and space science. Their work serves to develop the next generation of scientists and engineers, including all healthcare professionals. They also help all students better understand their physical world and how it works in their everyday lives, as well as how to become better citizens by understanding the process of scientific research. Read more
- Another important launch variable is the initial speed of the ball. This is determined by how fast the club is moving when it hits the ball. You need very high speed photography to measure this. You can find this type of equipment at some golf pro shops. Maybe you can think of ways to enhance your experiment using this "Ball Launch Monitor" technology to measure your swing with the various irons in your club set.
- If you'd like to explore the aerodynamics of golf balls, you might be interested in the Science Buddies project A Cure for Hooks and Slices? Asymmetric Dimple Patterns and Golf Ball Flight.
