Liquid Density Column – STEM Activity

Introduction

Did you know that not only can solid objects sink or float, but liquids can, too? It is actually possible to stack different liquids on top of each other in layers. The key is that all the different layers must have different densities. You can stack them by either picking several liquids with a range of densities, or by varying the density of one liquid by adding chemicals like sugar or salt to it. If you choose colored liquids, or add food coloring to each layer, you can even create a whole rainbow of colors in one single glass! Want to see for yourself? In this science activity, you will stack several liquids, one by one, and create a colorful density column.

This activity is not recommended for use as a science fair project. Good science fair projects have a stronger focus on controlling variables, taking accurate measurements, and analyzing data. To find a science fair project that is just right for you, browse our library of over 1,200 Science Fair Project Ideas or use the Topic Selection Wizard to get a personalized project recommendation.

Materials

  • Glass or cup
  • Tap water
  • Food coloring
  • Scissors
  • Ruler
  • Rubber band (wide)
  • Small piece of wax
  • Craft stick
  • Small, clear jars or transparent mini cups (2-oz) with lids (at least 2)
  • Permanent marker
  • Masking tape
  • Small piece of Styrofoam®
  • Tablespoons (3)
  • Dark corn syrup
  • Vegetable oil
  • Penny
  • Paper towels
  • Optional: Rubbing alcohol, dish-washing soap, and other liquids
  • Optional: Sugar or salt
  • Optional: Digital scale

materials needed for stacking liquid density science activity

Prep Work

  1. Gather all your materials at a workspace that can tolerate accidental spills of the liquids.
  2. Fill a cup with tap water and add a couple of drops of food coloring to the water.
  3. Ask an adult to help you cut and prepare small pieces (about 0.5 × 0.5 cm) of the rubber band, the Styrofoam, and the wax.
  4. Put the two empty cups in front of you (without the lids) and label them 1 and 2 with a piece of tape and the permanent marker.

Instructions

  1. Take a clean tablespoon and pour 1 tablespoon (Tbsp.) of dark corn syrup in Cup 1.

    A bottle of dark corn syrup standing next to a mini cup that has dark corn syrup inside.
  2. With the second tablespoon, carefully pour 2 Tbsp. of colored water into Cup 1 on top of the corn syrup.
    Think about:
    What happens to the water on top of the corn syrup? Does it mix or stay separate?

    A mini cup with dark corn syrup in it is standing next to a cup with green water. A tablespoon full of green water is poured into the mini cup.
  3. Use the third clean tablespoon to pour 2 Tbsp. of vegetable oil in Cup 1 on top of the colored water.
    Think about:
    Do you see the liquids mixing? What happens to the oil; does it float on top or sink to the bottom?

    A mini cup with dark corn syrup and green water in it is standing on a table. A tablespoon is held above the mini cup and is filled with vegetable oil from a container.
  4. Now take empty Cup 2 and add the same liquids, but in reverse order. Start by pouring in 2 Tbsp. of vegetable oil.
  5. Next, add 2 Tbsp. of colored water on top.
    Think about:
    What happens to the water this time? Does it stay on top or sink to the bottom?
  6. With a fresh tablespoon, carefully pour 1 Tbsp. of dark corn syrup into Cup 2, on top of the water.
    Think about:
    Does the corn syrup float on top of the other liquids? Where does it settle compared to the water and oil?
  7. Wait 1 or 2 minutes to let all the liquids settle in Cups  1 and  2. Then look at both cups and compare how the different liquids are layered.
    Think about:
    Is there a difference between Cup 1 and Cup 2? Did you expect this result? Why do you think the layers turned out this way?
  8. Now take Cup 1 and close it with a lid. Carefully turn it upside down and set it on the table again. Observe the different liquids.
    Think about:
    What is happening to each of the liquids? How are they layered once the cup is upside down? Did you know this would happen?

    Two mini cups filled with dark corn syrup, green water, and vegetable oil are placed next to each other. A hand turns one of the mini cups upside down.
  9. Compare the upside-down Cup 1 with Cup 2 after a couple of minutes.
    Think about:
    Do you see any differences in layering now? What happened to each of the liquids?
  10. Get all your cut-up objects and your penny ready, and drop the penny into Cup 2.
    Think about:
    What happens to the penny?
  11. Next, take the piece of rubber band and drop it into Cup 2. With the craft stick, push the rubber band piece all the way down to the bottom of the cup. Make sure it does not stick to the bottom and can float freely.
    Think about:
    Where does the rubber band settle? Does it float on top, in the middle, or sit on the bottom?

    A hand is holding a small piece of rubber band next to a mini cup filled with dark corn syrup, green water, and vegetable oil.
  12. Now drop the piece of wax into Cup 2. Again, push the wax all the way down into the cup with the craft stick, but make sure it does not stick to the bottom or to the sides of the cup. It should be able to float freely.
    Think about:
    What happens to the wax piece? Where does it settle compared to the rubber band piece?

    A hand is holding a small piece of candle wax next to a mini cup filled with dark corn syrup, green water, and vegetable oil.
  13. Last, take the piece of Styrofoam and drop it into Cup 2. Submerge it with the craft stick and wait for it to settle in one of the layers.
    Think about:
    On top of which layer does the Styrofoam piece float?

    A hand is holding a small piece of Styrofoam next to a mini cup filled with dark corn syrup, green water, and vegetable oil.
  14. Look at all four objects that you dropped into Cup 2 and compare their locations.
    Think about:
    Did they all settle in the same or in different liquid layers? If they are in different layers, why do you think this is the case?
  15. Finally, take Cup 1, which is still upside down, and shake it really hard. Be sure to hold the lid on tight! Then put it back on the table (this time, right-side up). Observe what happens for about 5–10 minutes.
    Think about:
    Did any of the layers mix while you shook the cup? How does the layering look after 5–10 minutes?

Cleanup

You can pour all the liquids from the cups down the drain. Use paper towels to clean up any spills.

What Happened?

Did you successfully stack all three liquids on top of each other to create a colorful density column? It actually does not matter in which order you add the three different liquids into your cup; the layers will always end up being the same: the corn syrup settles on the bottom, the colored water is in the middle, and the vegetable oil floats on the top. This is because corn syrup has the highest density of all the liquids, about 1.4 grams per cubic centimeter (g/cm³), whereas the density of water is about 1 g/cm³ at room temperature. Vegetable oil is lighter than water with a density of about 0.9 g/cm³ and thus floats on top of the water. Even if you turn the cup upside down, the layers rearrange to the original order due to their different densities. If you did the extra activity about weight described in the Further Exploration section, you should have found that corn syrup was the heaviest, followed by water, and then the vegetable oil.

The objects that you dropped into Cup 2 settled in the density column depending on their own densities. The rubber band piece probably settled on top of the corn syrup, whereas the penny fell all the way to the bottom of the cup. The wax should have rested on top of the water layer, and the Styrofoam should have floated all the way on top of the vegetable oil. Finally, if you shook Cup 1 really hard, you might have observed that the vegetable oil still separated and floated on top, but the corn syrup and the water layer started to mix and did not separate very easily anymore. This is due to the miscibility of the different liquids. If liquids have a very different chemical structure that makes one polar and the other one unipolar, they will not mix and will always stay separate. This is true for oil, which is an unpolar liquid, and water, which is a polar liquid. Corn syrup, on the other hand, has the ability to mix with water and thus, can dissolve in it. This is what happened when you shook the cup really hard.

You can experiment with many more objects and liquids to create even more layers; it is just a matter of density that will determine where they settle in your density column!

Digging Deeper

Whether an object sinks or floats depends on its density compared to the density of the liquid into which it is dropped. All types of matter—solids, as well as liquids—are made up of many different atoms. Depending on the mass of these atoms, their size, and the way they are arranged, different substances will have different densities. The density is different for each individual compound and defined as the mass of a compound divided by its volume. In other words, the more matter there is in a certain amount of volume, the denser a substance is. One cubic centimeter (cm³) of rock, for example, is much heavier than 1 cm³ of wood. This is because there is much more matter in the same volume of rock compared to the wood.

Liquids can also have different densities. Freshwater, for example, has a density of about 1 g/cm³ at room-temperature. Any substance—either liquid or solid—that has a higher density than water will sink, whereas substances with a lower density than that will float.

icon scientific method

Ask an Expert

Curious about the science? Post your question for our scientists.

For Further Exploration

  • With three liquids (vegetable oil, corn syrup, and colored water), there are six different combinations for adding the different layers on top of each other. Try all the combinations and change the order of adding the different liquids each time. Will you always end up with the same layering result?
  • In this experiment, you had three layers of different liquids. Can you find other household liquids that might make a fourth or fifth layer? Some liquids to try are rubbing alcohol or dish-washing soap. Where do you think they will settle in your density column?
  • You can even make a density column using the same liquid, such as water. You just have to change its density by adding different amounts of salt or sugar to it. Try three different layers of water (same volume of water, but one with 1 teaspoon (tsp.) of salt or sugar, one with 2 tsp. of salt or sugar, and one with 3 tsp. of salt or sugar). Add different colors to each liquid to see the layers more clearly. Which layer is on the top and which layer on the bottom? How does the amount of salt or sugar change the density of the water? What will happen this time if you shake the cup or turn it upside down?
  • Try to find different objects that might sink or float in the different layers of your density column. In which layer will they settle?
  • You can find out how much the densities of the three liquids vary by pouring the same volume of each liquid into a different cup and then weighing each of them. How much do the masses differ? Do these results agree with your findings of how the liquids are layered?

Project Ideas

Activities

    STEM Activity
    1
    2
    3
    4
    5
    24 reviews
    Have you ever wondered how a ship made of steel can float? If you drop a steel bolt in a bucket of water, the bolt quickly sinks to the bottom. Then how can a steel ship float? And better yet, how can a steel ship carry a heavy load without sinking? It has to do with the density, or the mass per volume, of the ship (and its cargo) compared to the density of water. In this science activity, you will make little "boats" out of aluminum foil to explore how their size affects how much weight… Read more
    STEM Activity
    1
    2
    3
    4
    5
    2 reviews
    Summertime often brings beautiful fireworks displays. Whereas you normally look up into the sky to see fireworks, in this activity we will take the bursts of color underwater—with chemistry. Although it is not exactly the same as real fireworks, you will be amazed by the color explosions you will see. Curious about what that looks like? See for yourself in this activity! Read more

Lesson Plans

    Lesson Plan Grade: 6th-8th

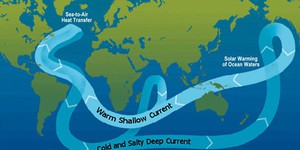

    Why is the ocean vital to our planet? There are many reasons, but one important one is that the ocean is a major player in regulating our weather and climate through currents. In this lesson plan, your students will model ocean currents with cups, water, and food coloring, and explore how temperature and density differences set deep ocean waters in motion to create a global oceanic circulation system. Read more
