Make 3D Printed Optical Illusions | Science Project

In this lesson your students will design their own 3D objects that exhibit "anomalous mirror symmetry"—that is, their reflections appear flipped left to right when you put them in front of a mirror. Students will start by defining the outline of a 2D shape using functions. They will then use MATLAB or Python code to convert the 2D shape into a 3D curve that replicates the outline of the 2D shape when viewed from a certain angle. Finally, they will convert the 3D curve into a solid 3D… Read more

The "impossible arrow" is an amazing optical illusion: an arrow that always seems to point to the right, even when you rotate it 180°. If you place the arrow in front of a mirror, however, its reflection points to the left! How does this illusion work? Can you design your own "impossible" shapes? Try this project and find out! Read more

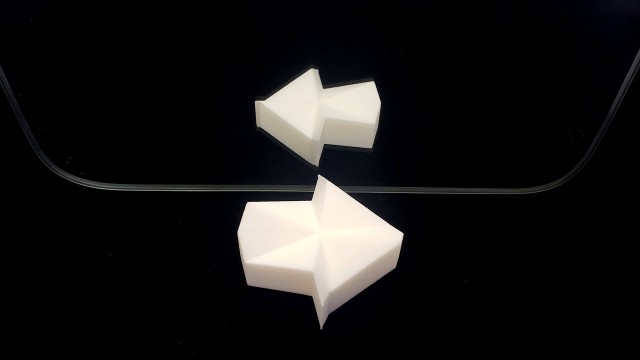

The Science Buddies project Design Your Own 3D Printed Optical Illusion shows you how to make your own 3D printed "anomalous mirror symmetry" illusions (Figure 1). The illusions are based on the work of Dr. Kokichi Sugihara. You can read his original paper about the illusions in the Bibliography. Figure 1. Two versions of the "impossible arrow" shape that appears to point to the right while its reflection in the mirror appears to point to the left. Which version of… Read more

3D printing, also called additive manufacturing, is a rapidly changing technology that allows for the quick creation of small batches of products. Traditional manufacturing usually involves cutting products out of raw materials or pouring raw materials into molds. In contrast, 3D printing creates a product by adding layer after layer of material using computer-controlled robotics. 3D printing processes are being used to create a growing number of products, from food to custom prosthetics. With… Read more
