Bombs Away! A Ping Pong Catapult

1
2
3
4
5
924 reviews

Abstract

If you were in a raiding army in the Middle Ages, a catapult would come in mighty handy for taking down castle walls. But only if you could aim it reliably! With this science project, you will try your hand at catapult technology. Using a rubber-band-powered catapult you will send ping pong balls flying through the air. The catapult's design makes it easy to measure and repeat how hard the ball is launched and its direction, so you can find the right catapult settings to hit the target reliably.

Summary

Areas of Science
Mechanical Engineering
Difficulty

Time Required
Very Short (≤ 1 day)
Prerequisites
None
Material Availability
A kit is available from our partner Home Science Tools. See the Materials tab for details.
Cost
Low ($20 - $50)
Safety
Do not aim the catapult at breakable objects or people; minor injury possible.
Credits

Ben Finio, Ph.D., Science Buddies

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.

View Kit

Objective

In this applied mechanics project, students will find the right settings to reliably launch a ping-pong ball from the catapult into a target (such as a bucket or a trash can) from a certain distance away.

Introduction

This fun project explores a simple machine, the catapult. In the Middle Ages these were used to hurl huge stones to break down castle walls—here you will be using a slightly smaller (and much less dangerous) version to toss ping pong balls. The catapult used for this project is easy to adjust; it also has convenient markings for reading out launch angle and "pull-back" angle (we will explain what those angles mean in the next paragraph).

An assembled ping pong catapult kit from HomeScienceTools.com

The catapult kit is made up of 3 main parts which include the base, disc and arm. The base is secured to a flat surface using an included clamp. The base and arm are both connected to a rotating disc that allows the arm to swing back and forth freely. A locking pin is inserted into the base and disc so only the arm may move freely. A rubber band connects the base of the arm to the disc so when the arm is pulled back the rubber band will launch it forward. At the end of the arm a small cup holds a ping pong ball that will be launched when the catapult is completely assembled.

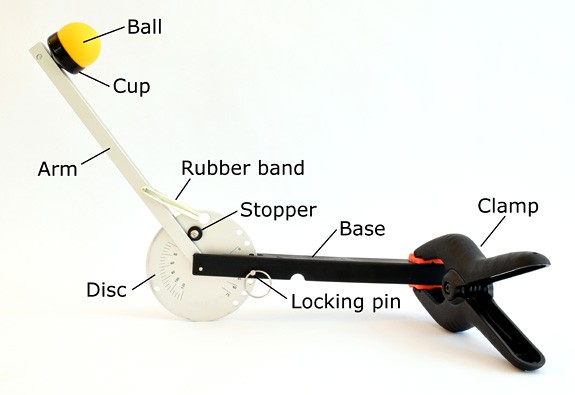

Figure 1. The catapult with all of its parts labeled. Note the paper towels between the surface of the table and the base of the catapult to avoid scratching the table.

The base of the catapult, shown in Figure 1 above, is attached to a surface (such as the edge of a table) with a clamp. The ball (either a ping pong ball or a Wiffle® ball) sits in a cup at the end of the "launch arm," which is attached to the base. The catapult is powered by rubber bands, which connect the launch arm to the "disk." The disk makes it easy to measure and set the launch angle and the pull-back angle. The pull-back angle is how far you pull the launch arm back before you launch the ball. The launch angle is the direction the ball travels (relative to the ground) when it is launched. So, a launch angle of 90 degrees means the ball will go straight up, and a launch angle of 0 degrees means the ball will go horizontal. You set the launch angle by placing the pin through holes that line up on the disk and the base of the catapult. Figure 2 below can help you understand these angles. We will explain how to measure them in the Experimental Procedure.

Diagram of a ping pong catapult arm being pulled back to launch a ball

When the arm of the ping pong catapult is pulled back the arc distance it travels is called the pull back angle. When the arm springs forward and launches a ping pong ball the angle it leaves the cup is the launch angle. The launch angle is measured from an imaginary line parallel to the ground at the center point of the ping pong ball just before it is launched.

Figure 2. The pull-back angle is how far back you pull the launch arm before you launch the ball. The launch angle is the direction the ball is going when it leaves the catapult..

You can change four things to adjust how far the ball goes:

  1. The type of ball (ping pong or Wiffle)
  2. The number of rubber bands (up to three)
  3. The launch angle (from 0 to 75 degrees)
  4. The pull-back angle (from 0 to 120 degrees)

Think about how each of these things will change how the ball is launched, and which ones you will want to adjust to make the ball hit your target.

Terms and Concepts

Before continuing with this project, make sure you understand the following terms and concepts. We have defined some of them for you in the Introduction, but you might need to look others up on your own.

Questions

Bibliography

  • Real-World Physics Problems. (2012). Catapult Physics. Retrieved September 27, 2012.
  • The Physics Classroom. (2012). Projectile Motion. Retrieved September 27, 2012.

Materials and Equipment Buy Kit

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.

View Kit

Disclaimer: Science Buddies participates in affiliate programs with Home Science Tools, Amazon.com, Carolina Biological, and Jameco Electronics. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity, and keep our resources free for everyone. Our top priority is student learning. If you have any comments (positive or negative) related to purchases you've made for science projects from recommendations on our site, please let us know. Write to us at scibuddy@sciencebuddies.org.

Experimental Procedure

Download PDF of Procedure

Safety Note: The catapult is designed to be safe, but it can hurt you if you are not careful! Never launch a ball at other people. The launch arm can move very fast (especially when using two or three rubber bands), so always make sure your fingers and other body parts are safely out of the way before you launch the ball.

  1. Watch this video to learn how to set up your catapult:
Ping Pong Catapult Instructions
Video instructions for using your ping pong catapult.
https://www.youtube.com/watch?v=pIEjwMhnAGo
  1. Set up the catapult and the target as shown in Figure 3.
    1. The recommended distance from the middle of the catapult disk to the middle of the target is 8 feet (ft.).
    2. Shoe boxes and buckets make good targets.
    3. The catapult clamp may scratch furniture, so you might want to use padding such as a paper towel when attaching the catapult.
    4. Make sure the catapult and the target are at roughly the same height.

Diagram of a ping pong catapult placed 8 feet away from a target
Figure 3. Using a tape measure, set up the catapult and the target 8 ft. apart. Make sure they are at about the same height.

  1. Insert the pin with the ring attached through the hole in the catapult base, lined up with a hole in the disk. This sets the launch angle (don't worry, you can always change this angle later). Figure 4 shows you how to do this in steps A through D.

A locking pin is inserted into the disk and base of a ping pong catapult to set the launch angle
Figure 4. Insert the pin with the ring into the catapult base to set the launch angle. Make sure the hole in the catapult base is lined up with a hole in the disk.

  1. Attach at least one rubber band (for safety reasons, no more than three) to the pins on the launch arm by threading it through the hole on the catapult's disk. Figure 5 shows you how to do this—ask an adult if you need help.

A rubber band connects a catapults launching arm to the disk which is locked in place by a pin
Figure 5. Attach the rubber bands to the catapult. Each rubber band goes through a hole at the top of the disk, and then attaches to short pins on opposite sides of the launch arm.

  1. You are almost ready to launch! First, you will need to understand how to measure the launch angle and pull-back angle from the markings on the catapult disk. Remember that the pull-back angle is how far back you pull the launch arm before you let go and launch the ball, and the launch angle is the direction the ball is going when it is launched. Refer back to Figure 2 in the Introduction tab if you need to understand the angles. Figure 6 shows you how to measure them on the catapult.

A catapults launching arm is pulled back to an angle of 60 degrees which is marked on the disk

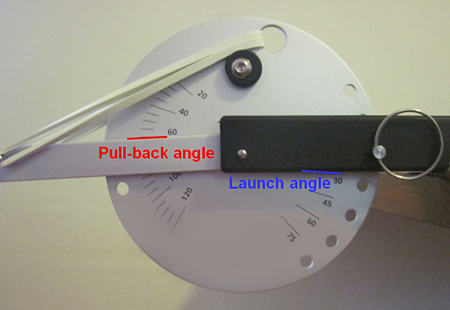

Figure 6. Measure the pull-back angle by reading the tick mark that lines up with the top of the launch arm (on the left). In this picture, the pull-back angle is about 60 degrees. Measure the launch angle by reading the tick mark that lines up with the bottom of the catapult base (on the right). In this picture, the launch angle is 30 degrees.

  1. Aim for the target, and fire away! Remember there are four things you can change: the type of ball, the number of rubber bands, the launch angle, and the pull-back angle. However, if you start changing multiple things at once, you no longer have a fair test and your results may be too confusing to interpret. So, for starters it makes sense to keep three things the same and only change one thing at a time.
    1. For example: you could pick the orange ping pong ball, one rubber band, and a launch angle of 75 degrees. Then you can experiment with different pull-back angles without changing anything else, and find out what pull-back angle works best to hit the target.
  2. Go back to the Questions outlined in the Background tab, and try to use those to help you hit the target.
    1. For example, do you think adding more rubber bands will make the ball go farther or less far?
    2. Maybe you find that your ball is always falling a few feet short of the target. If so, go back and pick another variable to explore. For example, should you make the pull-back angle bigger or smaller if that happens?
  3. See if you can find different combinations of settings that enable you to hit the target. Are some settings more reliable than others? An easy way to measure this is to take ten shots at the target with the same settings and count how many hit the target.
    1. Note that, depending on the material of your target, the ball may be more likely to bounce out (for example, a hard metal pot instead of a softer cardboard shoebox). But you can still count bounce-outs as a "hit."
    2. Also, the catapult may move or wiggle slightly if you launch the ball really hard. If you notice that you are missing your target far to the left or to the right, it is fine to adjust the clamp and re-aim your catapult.
  4. Write down your results in a table similar to Table 1. This shows just one example of how a data table could be used to keep track of results for a certain test.

Number of successful shots out of 10
Ping pong ball, 45 degree launch angle
Pull-back angle 1 rubber band 2 rubber bands 3 rubber bands
30 degrees
45 degrees
60 degrees

Table 1. A data table such as this could be used to keep track of the results of your experiments with settings. In this example, two things (the type of ball and the launch angle) are kept the same. Change the pull-back angle and the number of rubber band, one at a time. Then fill in each empty cell with the number of successful shots out of ten for that setting.
  1. Have you found some methods that are more successful at hitting the target than others? Why do you think this happens?

Troubleshooting

For troubleshooting tips, please read our FAQ: Bombs Away! A Ping Pong Catapult.

icon scientific method

Ask an Expert

Do you have specific questions about your science project? Our team of volunteer scientists can help. Our Experts won't do the work for you, but they will make suggestions, offer guidance, and help you troubleshoot.
Post a Question

Variations

You could do many things to make this project more fun or challenging. Here are just a few ideas:

  • The directions say to put the catapult and the target at the same height. What happens if you don't do this? For example, if you put the catapult on a table and the target on the floor, or the other way around? Do your results change if you try the same experiments?
  • Buckets and shoe boxes are pretty big targets. Is your aim good enough to hit a much smaller target, like a coffee mug?
  • What happens if you change the distance between the catapult and the target to something other than 8 ft.? How much do you have to adjust your settings to hit the target?
  • What happens if you launch an object other than the plastic balls supplied with the catapult kit? For example, a small toy, or a wad of paper? Do you have to use different settings to hit the target? Safety: remember, never aim the catapult at a person, and do not launch sharp objects or things that might break—for example, anything made of glass.

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.

The Science Buddies catapult kit is used in four projects:

The FAQs below are used for all four projects. General catapult questions are at the top of the FAQs list and project specific questions are at the bottom of the list.

Q: The ball doesn't travel exactly the same distance each time, even when I use the exact same settings. What am I doing wrong?
A: This is OK! Due to many small, random effects beyond your control, like the catapult wiggling a bit between shots, or even air currents in the room, the ball will not travel exactly the same distance every time. In almost all "real world" experiments, you will not get the exact same results every single time.
Q: My catapult seems to move side-to-side slightly after each shot. How can I prevent this?
A: Depending on the surface material you are clamping to, the single clamp provided with the catapult kit may not hold the catapult perfectly still, especially when using two or three rubber bands. The catapult may wiggle a bit after each shot. This wiggle will may affect your left-to-right aim but will not have a significant effect on your distance or vertical trajectory. If you would like to eliminate the wiggle try stacking heavy objects, like textbooks, on top of the catapult base — just make sure they don't interfere with movement of the launch arm.
Q: How do I set the launch angle on the catapult?

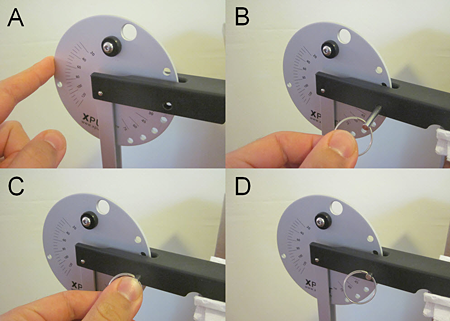

A: The launch angle is set by inserting a metal pin through holes on the aluminum disk that align with the black metal base of the catapult. This picture shows the process:
Four photos of a pin securing the disk of a catapult arm to the catapult base
Q: How do I attach the rubber bands to the catapult?
A: The rubber bands go through a hole in the circular aluminum disk, and hook onto pins on the launch arm. This picture shows the process in four steps:

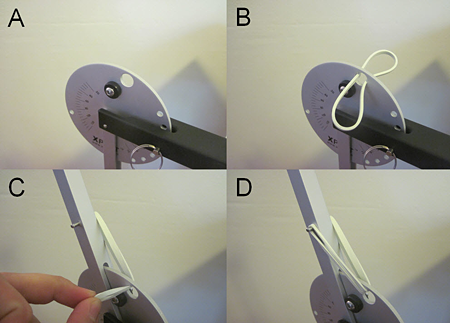

Four photos of a rubber band threaded through a hole in a disk and connecting to the launch arm of a catapult
Q: How do I measure the launch angle/pull-back angle?
A: The launch angle and pull-back angle are measured by tick marks on the side of the aluminum disk. When facing the writing on the side of the catapult, the launch angle tick marks will be on your right — they line up with the bottom edge of the base of the catapult (the black part that should be clamped to a table). The pull-back angle tick marks are on your left — they line up with the top edge of the launch arm. This picture shows how to read each angle:
A disc connects the arm of a catapult to a base and has markings for both pull-back and launch angles

Note: On older versions of the Xpult brand catapult, the pull-back angle may be read from the bottom edge of the launch arm. If you just ordered a new Science Buddies catapult kit for your project (as of October 2012), then you should follow the directions above.

Q: How can I stop the ball from bouncing out of the target in the Bombs Away! A Ping Pong Catapult project?
A: The ball is likely to bounce out of targets like metal pots or hard plastic trash cans, which can make chasing it all over the place annoying (especially if it rolls under furniture). Place a crumpled-up hand towel or t-shirt in the bottom of your target to reduce bouncing. Remember though - any shot that lands inside the target, even if it bounces out, still counts as a successful hit.
Q: I'm having trouble knocking over the box wall in the Under Siege! Use a Catapult to Storm Castle Walls project. What should I do?
A: First, make sure the box you are using for a castle wall isn't too big or heavy. We found that empty cereal boxes work well. A full cereal box will be much too heavy. Second, adjust your settings and aim — try using a different number of rubber bands, or switching your aim to a different part of the wall (top/bottom/middle). Remember, change one variable at a time and keep a good data table in order to figure out what is working!
Q: I'm having trouble filming the ball in Launch Time: The Physics of Catapult Projectile Motion project — it always looks blurry in each frame of my video. What can I do?
A: This is most likely due to poor lighting conditions. Many video cameras will automatically adjust their exposure time depending on the brightness of the scene. A poorly lit area will result in a longer exposure time, to let more light into the camera — however, this will also make fast-moving things appear blurry. If possible, try filming outside in direct sunlight (but not on a windy day!), or use extra lamps if filming indoors (remove lampshades to increase brightness).

Depending on your camera, you may also be able to manually adjust settings and decrease the exposure time. Consult your camera's manual to see if that is possible.

Q: My experimental results do not match up with my theoretical predictions in Launch Time: The Physics of Catapult Projectile Motion project. Am I doing something wrong?
A: If your theoretical and experimental results don't match up exactly, but are "reasonably" close to each other (for example, both show the ball going a couple meters before it hits the ground), then this is perfectly normal. There are parameters in both the theoretical predictions and the experiments that can vary slightly and affect your results. For example, the spring coefficient of your rubber bands could be slightly different than the number we provided, and if your catapult is not clamped down very well, the actual launch angle could be slightly different from the launch angle you set, as the catapult can "bounce" a bit during launch. All of these factors can contribute to make your experimental and theoretical results slightly different — but this is OK.

If your theoretical and experimental results are very different, there are a couple things you can check:

  • Are your theoretical predictions reasonable? You should be able to launch the ball across an average-sized room in your house — meaning it should go a couple meters before it hits the ground, for typical catapult settings. If your predictions indicate that the ball will travel several kilometers, or only a couple millimeters, then odds are you made a mathematical mistake. Double-check your calculations, and be extra careful to look for typos if you entered equations into a spreadsheet program.
  • Make sure you properly used a scale factor to convert the distances you measure on your computer screen to real-world distances for your experimental data. Again, make sure the distance the ball travels is reasonable — if your experimental data says that the ball traveled 100 meters, then you probably used the scale factor incorrectly.
Q: I can't get a nice histogram for the Bet You Can't Hit Me! The Science of Catapult Statistics project. What am I doing wrong?
A: The first thing you can do is try to adjust the bin size of your histogram — how you group and count the frequency of your data. A bin size that is too small or too large will make it difficult to see the true shape of the distribution. Here are four different histograms for the same set of data, all with different bin sizes:

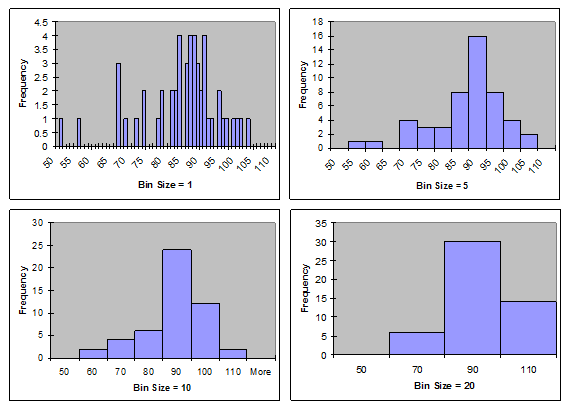

Four example histograms with the same data but bin sizes of 1, 5, 10 and 20

Four example histograms display the same data with bin sizes of 1, 5, 10 and 20. As the bin sizes change, the distribution of data becomes too compact or spread out to determine whether or not the data is normally distributed from a glance. Bin sizes of 5 and 10 show a clearly normal distribution of data, but bin sizes of 1 and 20 are less obvious.

Notice how the shape of the distribution is evident with bin sizes of 5 or 10, but rather difficult to see with bin sizes of 1 or 20. As a general rule of thumb, more data will allow you to use a smaller bin size, which will give you a more accurate picture of the distribution — so if you have time, try to do more than 50 trials with the catapult.

Q: I'm having trouble accurately recording the distance the ball travels in the Bet You Can't Hit Me! The Science of Catapult Statistics project. What am I doing wrong?
A: First, it is essential to have two people for this part of the project — one to operate the Xpult, and another to record the distance the ball travels. You won't be able to do both by yourself.

For the person recording distances, we recommend watching where the ball lands and immediately marking the location with your finger. Then take a reading from the tape measure. Trying to watch where the ball lands and simultaneously read the tape measure will be very difficult.

Also, you probably won't be able to get fraction-of-an-inch accuracy on your readings — getting the closest one-inch increment will be good enough.
