Use Machine Learning to Identify Lyme Disease-Transmitting Ticks

This project follows the Engineering Design Process. Confirm with your teacher if this is acceptable for your project, and review the steps before you begin.

Overview

In this project, you will collect image data on three different types of ticks (A. americanum, D. variabilis, and I. scapularis). You will perform data augmentation which will create even more data for our convolutional neural network model to train on. Your task will also include adjusting image augmentation parameters and explore how different parameters impact the model's accuracy.

Setting Up the Google Colab Environment

1. You will need a Google account. If you do not have one, make one when prompted.

2. Download the tick_identification.zip file from Science Buddies. Once you have downloaded the zip file, unzip it by right-clicking it in your Downloads and clicking ‘Extract all.’ If you are on a Mac, you can also do this by double-clicking on the file. This will create a new folder alongside the compressed zip file.

3. Upload the folder called tick_identification inside the newly extracted folder to Google Drive. You will need to sign in to your Google account at this point or make an account. Upload the file by clicking on the ‘New’ button on the upper left corner of the main Google Drive screen, then selecting the ‘Folder upload’ option. Be sure to select the file folder, not the compressed zip file.

4. There are two ways you can access the Google Colab notebook:

   1. Within your Google Drive, double-click the folder you just uploaded. Then, double-click on the file called ‘tick_identification.ipynb.’ This should automatically open the notebook in Google Colaboratory.

   2. Another option is to go directly to Google Colaboratory. On the pop-up menu, select ‘Google Drive’ then select the file called ‘tick_identification.ipynb.’

5. Change the Runtime type by clicking on ‘Runtime,’ then ‘Change runtime type.’ Next, click on the ‘T4 GPU’ option and save. Next, click on the 'T4 GPU' option (if it isn't already selected) and save. By switching the runtime type, you are switching from CPU (default) to a GPU, which can significantly speed up the execution of machine learning models or other compute-intensive tasks.

6. Read the Troubleshooting Tips and How to Use This Notebook sections. Follow the instructions you find there.

7. Run the blocks under Importing Libraries to ensure you have access to all the functions we will use for this project. The first block will provide us with functions to create the CNN model and make it easier to augment the image data. The second block will mount the Google Drive to use the data we uploaded there in our code.

1. Gathering the Data

We will be using user-generated data from iNaturalist for this project. Follow the steps below to gather images for three tick species.

1. Navigate to the iNaturalist website and search for images for each of the tick species listed below. We highly encourage you to pick the images that are marked as ‘Research Grade’ as those have been verified as the correct species. We will be collecting data for three different types of ticks:

   1. Amblyomma americanum (Lone Star TIck)
   2. Dermacentor variabilis (American Dog Tick)
   3. Ixodes scapularis (Eastern Black-legged Tick)

2. In the 'tick_identification' folder you uploaded earlier, there is a ‘data’ folder inside. Inside of the 'data' folder you will find three subfolders named A. americanum, D. variabilis, and I. scapularis. Download at least 50 images for each tick species from iNaturalist by right-clicking on the image and selecting ‘Save image as’ and upload them to the corresponding folder in your Google Drive.

   1. Tips for Selecting Images:

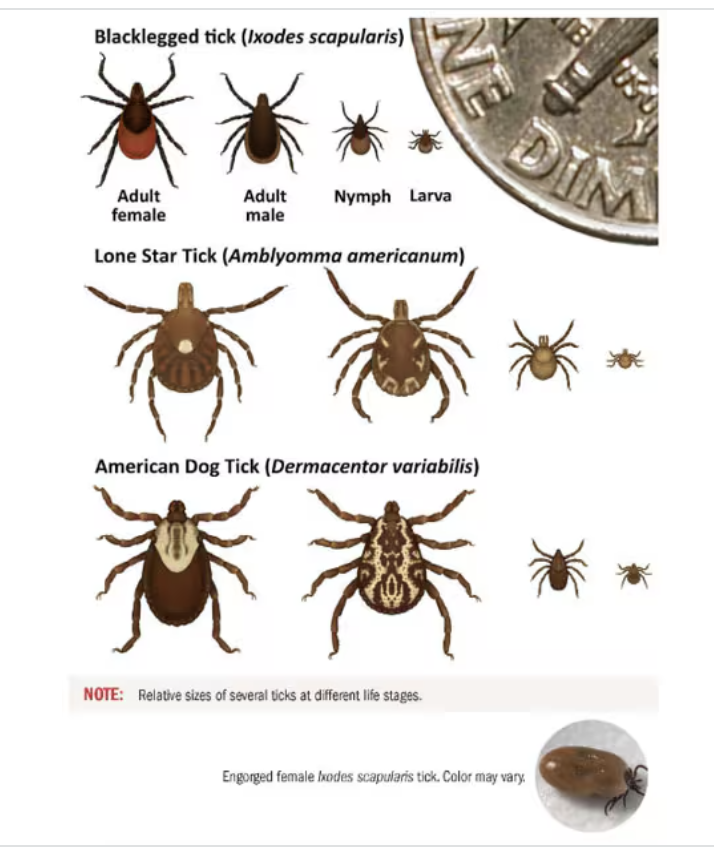

      1. Select images with ticks from a similar life stage (this will help the machine learning model learn more easily!).
      2. The tick should occupy most of the image.
      3. Avoid images where the tick is not the main focus of the image.
      4. Select images with minimal clutter or distractions in the background.

2. View Images

First, we will view the images within our code to make sure the images are readily available for use in our machine learning model.

1. (Code Block 2A) Run this code block to display five images of A. americanum ticks at a time. You can rerun the block as many times as needed to view more images.

2. (Code Block 2B) Next, run this code block to display five images of D. variabilis ticks. As with the previous step, you can rerun the block to load additional images.

3. (Code Block 2C) Finally, run this block to view images of I. scapularis ticks. This block also displays five images at a time, and you can run it multiple times to see more images.

4. (Code Block 2D) Once you have confirmed that all images load correctly, run this code block to convert the image files in each folder to JPG format. This ensures consistency in the data format for our machine learning model.

3. Split to Train, Validation, and Test

We will split our dataset into train, validation, and test to avoid overfitting and ensure the model is tested on data it has never seen before. Click on this link to learn more about splitting our data into train, validation, and test.

1. (Code Block 3A) We have provided the code to split the dataset into training, validation, and testing parts.

2. (Code Block 3B) This code block prints out the number of images in the train, validation, and test data sets. There should be about 70% of images in train, 15% in validation, and 15% in test.

4. Test Augmentation on a Single Image

We will now test augmentation on a single image before using it on the rest of the dataset. Remember that data augmentation creates more data for our model to train on by flipping an image, rotating an image, etc.

1. (Code Block 4A) In this code block, we are creating a data augmentation pipeline (sequence of steps) using tf.keras.Sequential, a class from the Tensorflow library that allows us to easily augment images and create CNN models and various augmentation layers. You can explore how changing the augmentation values impacts your image.

   1. Rotation: Try changing the value in RandomRotation(). Increase or decrease the percentage by which images are rotated.
   2. Translation: Modify the horizontal and vertical translation values in RandomTranslation(). What happens if you increase the range of translation?
   3. Zoom: Experiment with RandomZoom() by increasing or decreasing the zoom factor. How does zoom impact the image?
   4. Flip: You can flip images horizontally (already in the pipeline) or also vertically by adding RandomFlip(“vertical”). How does vertical flipping impact model performance on your data?
   5. Contrast & Brightness: Change the factors in RandomContrast() and RandomBrightness() to see how more extreme contrast or brightness variations affect the images.

2. (Code Block 4B) In this code block, we define a helper function to perform image augmentation given the image and its label. Helper functions are small, reusable pieces of code that perform specific tasks. Run this code block.

3. (Code Block 4C) In this code block, we will randomly select an image to perform image augmentation on. Run this code block.

4. (Code Block 4D) In this code block, we can visualize the randomly selected image. Run this code block.

5. (Code Block 4E) In this code block, we can visualize the augmented images from the randomly selected image. Note that these are not all the possible augmentations, and you may run it again to generate more. Adjust the values in Code Block 4A as you see fit. When creating augmented images, make sure the changes you apply make sense for your task. Do not make the images too different or too hard to understand. Try to create variety, but avoid repeating the same small changes over and over. Remember to rerun the blocks all the blocks in this section (4A-4E) whenever you make any changes.

   1. Note: The number of augmented images depends on how many times you run the code. The images will be randomly generated every time. We currently set the code to produce 10 augmented images for each image.

5. Augment all the train data

1. (Code Block 5A) This code block will perform image augmentation on all images in the training dataset and save the augmented images. Run this code block.

6. Train the Model

1. (Code Block 6A) This code block defines some helper functions that the model will be using. Run this code block. This may take some time to run.

2. (Code Block 6B) This code block defines the model and trains it on the training data set earlier. It will also adjust hyperparameters based on the validation data set and save the trained model. Run this code block. This may take some time to run. Feel free to grab a snack during this time!

7. Test the Model

1. (Code Block 7A) This code block will reload the saved model. Run this code block.

2. (Code Block 7B) This code block will prepare the data generator on the test data to test our model. Run this code block.

3. (Code Block 7C) This code block will evaluate and print out the accuracy of our model.

   1. Accuracy represents the percentage of correct predictions made by the model on the test data. In classification tasks, it's the ratio of correctly predicted labels to the total number of predictions. Remember that if your accuracy is 0.20, that means your model correctly identified 20% of ticks from the test data.

   2. Loss is a measure of how well the model's predictions match the actual labels for the test data. It quantifies the error between the predicted output and the true output. Click on this link to learn more about loss in machine learning.
      1. Lower loss means the model’s predictions are close to the actual labels.
      2. Higher loss means the predictions are further away from the actual labels.

4. (Code Block 7D) This code block will display the classification matrix for this model. Compare the accuracy for each tick species. Is it higher than the general public’s identification accuracy: 13.2% for A. americanum, 19.3% for D. variabilis, and 22.9% for I. scapularis?

   1. Accuracy is a measure used to evaluate the performance of a machine learning model. It represents the proportion of correctly predicted outcomes or labels compared to the total number of instances in the dataset. In simpler terms, accuracy tells you how often the model's predictions are correct.

      Mathematically, accuracy is calculated as:


      $$accuracy = \frac{number\ \:of \:correct \:predictions}{total\: number\: of\: predictions}$$

   2. Macro Average is a measure used to evaluate the performance of a machine learning model, particularly in multi-class classification problems. It computes the metric (e.g., precision, recall, or F1-score) separately for each class and then calculates the unweighted mean across all classes.

      In simpler terms, macro average treats all classes equally, regardless of their representation in the dataset, providing an overall sense of how the model performs across each class individually.

      Mathematically, macro average is calculated as:

      $$macro: average = \frac{1}{N} \sum_{i=1}^{N} metric_{i}$$

      Where $N$ is the number of classes and $metric_{i}$ is the value of the metric for class $i$ .

5. Precision is another measurement used to evaluate the performance of a machine learning model, and it focuses on the accuracy of positive predictions by the model. It answers the question: Of the instances the model predicted as positive, how many are actually positive?

   Mathematically, precision is calculated as:


   $$precision = \frac{true\: positives}{true\: positives\: +\: false\: positives}$$
6. Recall is yet another measurement used to evaluate the performance of a machine learning model. Recall measures the ability of the model to correctly identify all positive instances. It answers the question: Of all the actual positive instances, how many did the model predict correctly?

   Mathematically, recall is calculated as:


   $$recall = \frac{true\: positives}{true\: positives\: +\: false\: negatives}$$
7. F1 Score is a harmonic mean of precision and recall used to evaluate the performance of a machine learning model. It provides a balance between precision and recall, especially when the dataset is imbalanced. The F1 score answers the question: How well does the model perform, considering both the proportion of correct positive predictions (precision) and the ability to identify all positive instances (recall)?

   Mathematically, the F1 score is calculated as:



   $$F1: Score = 2 \times \frac{Precision \times Recall}{Precision + Recall}$$


8. Refine Your Model

Now, it is time to experiment and improve the model by creating different “prototypes.” By adjusting various settings, like the data you use and the augmentation parameters, you can find what works best to boost accuracy.

1. Consider downloading additional data to enhance model performance. Aim for at least 100 images for each tick species. Remember to delete the train, validation, and test data so that they can all be randomized with the new dataset. You can do this by selecting the folders called 'train_dataset,' 'val_dataset,' and 'test_dataset,' and delete all of them from the Google Drive. After adding the new data to the appropriate subfolders within the 'data' folder, make sure to run all of the code again by clicking on 'Runtime' and then 'Run all.'
2. Experiment with adjusting the augmentation parameters. Observe if these changes improve accuracy. Remember that we adjust the augmentation parameters in Code Block 4A. Before running the code again, remember to delete the train, validation, and test data so that you could randomize the augmentation data. You can do this by selecting the folders called 'train_dataset,' 'val_dataset,' and 'test_dataset,' and delete all of them from the Google Drive. After you finish adjusting the parameters in Code Block 4A, make sure to run all of the code again by clicking on 'Runtime' and then 'Run all.'
