How Are Antibodies Used for Blood Typing?
|Time Required||Very Short (≤ 1 day)|
|Material Availability||A kit containing specialty items is needed for this science project from our partner Home Science Tools. See the Materials tab for more details.|
|Cost||Average ($40 - $80)|
AbstractHave you ever heard about different blood types? Do you know what your blood type is? Antibodies help scientists determine different human blood types. This project is a practical introduction to the human immune system in which you will learn about what antibodies are, how they are formed, and how they can be used to identify different types of cells.
ObjectiveIdentify the unknown "blood types" of the synthetic samples and determine if any of the samples are compatible as donor-recipient pairs for a blood transfusion.
Editor: Andrew Olson, Science Buddies
Cite This Page
Last edit date: 2017-10-16
The human immune system has various ways of responding to an infection caused by pathogens like bacteria, viruses, or fungi. Our bodies produce proteins (antibodies) that are highly specific for the infectious agent as a part of our humoral immune response. The antibodies help stop the infection from spreading further and help to eliminate the pathogen from the body.
Antibodies are also used to help our bodies find and destroy "foreign" cells such as tumors. Because antibodies bind tightly to only one type of structure on the surface of cells (antigens), they can also be useful for identifying different types of blood cells. It is important to correctly identify blood cells in our bodies if we ever need to receive blood from someone else (transfusion) because we are sick.
Our blood type is determined based on the presence or absence of two different structures, antigen A and antigen B, on the surface of our red blood cells. There are four possible combinations of blood types namely: Type A (only antigen A), Type B (only antigen B), Type AB (both antigens A and B), and Type O (neither antigens A nor B). This is referred to as the ABO blood typing system. In addition, red blood cells have a Rhesus factor or Rh, which is either present or absent. If the Rh factor is present, the cells are referred to as Rh positive. Including both the ABO and Rh systems for blood typing, there are a total of 8 possible blood types, which are shown in Table 1 along with a summary of how to determine blood type based on whether the antigens and Rh factor are present.
|Blood Type||Antigen A Present||Antigen B Present||Rh Factor Present|
Table 1. Blood Types & Presence of Antigens and Rh Factors for Each
Table 2 shows these blood types along with approximately what percentage of the U.S. population is each blood type.
|Blood Type||% of U.S. Population|
Table 2. Blood Types & Proportion of U.S. Population for Each Type
Blood types are determined by using antibody reagents that specifically react with the A, B, and Rh antigens on the surface of red blood cells. First, three drops of blood are placed on a microscope slide. Next, a drop of anti-A reagent is added to one drop of blood, a drop of anti-B reagent is added to the second drop of blood and a drop of anti-Rh reagent is added to the third drop of blood. The slide is gently rotated and examined for clumping (agglutination). If clumps are seen in the anti-B and anti-Rh reagents but not the anti-A reagent, then the person's blood is considered "B positive."
When you donate blood, your blood type is determined by clinical laboratory technicians and is used to match your blood with someone who needs it. If someone got the wrong blood type during a transfusion, they could have a very severe reaction. Type O negative blood is considered the "universal donor" because anyone can receive that blood type without having a reaction. Type AB positive is considered the "universal recipient" because someone with that blood type can receive blood from anyone else without having a reaction.
In this project you will use synthetic blood samples, provided in the kit, to determine the blood type from four different people. Based on their blood types would any of the four people make good donor-recipient pairs for a blood transfusion?
Terms and ConceptsIn order to do this project, you should conduct background research that enables you to understand the following terms and concepts:
- Humoral immune system
- Blood type
- Rhesus factor
- Red blood cells
- The blood types in the Introduction are for red blood cells. There are other cell types in your blood though. What are the other cell types and do they have the same blood typing systems?
- What blood type is needed for a transfusion for a Type O positive patient?
- What would happen if someone was transfused with an incompatible blood type?
- American Red Cross (n.d.). Blood Types. Retrieved September 17, 2012 from http://www.redcrossblood.org/learn-about-blood/blood-types
- Edelson, Maureen F. (2011, February). Blood Types. Kids Health. Retrieved September 17, 2012 from http://kidshealth.org/teen/cancer_center/treatment/blood_types.html
- Dowshen, Steven (2009, November). Immune System. Teens Health. Retrieved September 17, 2012 from http://teenshealth.org/teen/your_body/body_basics/immune.html
News Feed on This Topic
- Blood typing slide (4)
- Antisera A and B
- Anti-Rh factor
- Mixing sticks
- Synthetic blood samples (4); Note: These do not contain real blood and thus are completely safe to handle. They will however accurately simulate the blood typing process.
- Disposable plastic pipettes (4); these are for moving the blood samples to the blood typing slide
- Chemical splash goggles
- Disposable gloves
Recommended Project Supplies
Remember Your Display Board Supplies
Poster Making Kit
ArtSkills Trifold with Header
- In your lab notebook make a data table, like Table 3, to record all your data and observations.
|Trial Number||Sample Number||Reaction with
|Determined Blood Type
(from Table 1, in the Background tab)
Table 3. You will need a data table like this to record your data.
- Using a disposable plastic pipette, place a drop of synthetic blood sample #1 in each well of a blood typing slide.
- Add a drop of synthetic anti-A to the well labeled A.
- Add a drop of synthetic anti-B serum to the well labeled B.
- Add a drop of synthetic anti-Rh serum to the well labeled Rh.
- Using a different color mixing stick for each well, gently stir the synthetic blood and antiserum drops for 30 seconds. Remember to discard each mixing stick after a single use to avoid contamination to your samples.
- After 30 seconds of stirring carefully examine the liquid in the wells.
- If the liquid is clear or light pink with no particles or cloudiness formed, then no reaction has occurred and you should mark "No" in the appropriate box in the data table.
- If there are solid particles that have formed in mixing the sample or antiserum (they may be darker or lighter than the original liquid), then a reaction has occurred and you should mark "Yes" in the appropriate box. Also, if the liquid has very small particles formed, giving a cloudy appearance to the liquid, then a reaction has occurred and you should mark "Yes" in the appropriate box.
- It is important to look very closely at the wells and only do one well at a time. Be sure to stir at least 30 seconds with the plastic stick. The final product may be clear, white or dark pink depending on the combination of blood sample and antiserum, so look carefully to see if small or large particles have formed in the well.
- Reference the photos in Figure 1 for help determining if a reaction has occurred or not. If you continue to have trouble read the FAQ for this project.

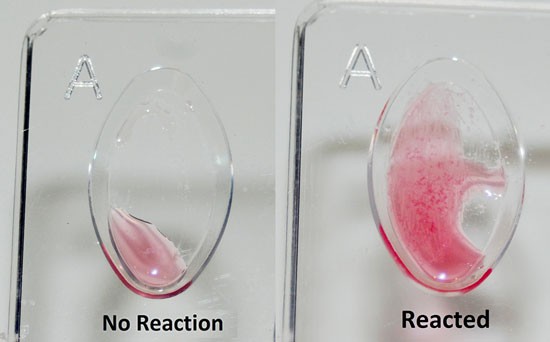

Figure 1. If the antiserum does not cause agglutination the sample will be free of floating particles like the picture on the left. If the antiserum does cause a reaction the sample will turn cloudy and you will see particles form as shown in the picture on the right.
- Record the results for the first blood sample in the data table.
- Thoroughly rinse the blood typing slide, then repeat steps 2 through 8 for synthetic blood samples 2, 3, and 4. Use a different pipette for each synthetic blood sample to prevent cross contamination.
- Repeat steps 2 through 9 two more times so that you have done a total of three trials.
- Once you have determined the blood type for each sample (by referring to Table 1, in the Background, you are ready to look at the data like a doctor. Would any of the samples make good donor-recipient pairs for a blood transfusion? Why or why not?
