Introduction

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the electronic drumset in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.

raspberry pi 3B+
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).

You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your electronic drum set to be able to do, then work through the rest of the design process until you have a completed drum set to show off at your science fair.

If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the electronic drum set as a tool to help answer. For example, in order for the drum set to work, your "drums" need to conduct electricity. Can you use the drum set as a test to determine which materials are electrically conductive, and which ones are not?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:

To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):

  • TV or computer monitor with HDMI input*
  • USB keyboard and mouse

*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.

To do this specific project, you will need the following circuit parts from your kit:

  • Male-male jumper wires (5)
  • Alligator clip leads (5)

You will also need the following items, not included in your kit:

  • Metal objects to use as drums (4)
  • Metal object to use as drumstick (1)

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.
Project Kit: $199.95
View Kit

Experimental Procedure

Getting Started

This project will let you take everyday metal objects and convert them into a customizable electronic drumset. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this short video for a demonstration of the project:

Writing Your Program

To make your drum set, you will need to write a program that tells your Raspberry Pi to play a sound each time the drumstick touches one of the drums. If you have never written a program in Scratch before, watch this video to learn how:

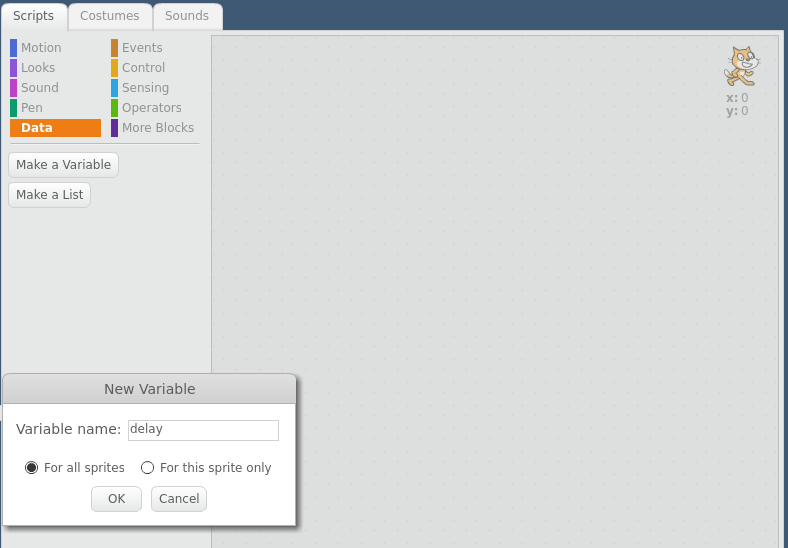

First, you will need to create a variable. You can do this by clicking Data and then Make a variable. Name your variable "delay" and then several new blocks will appear:

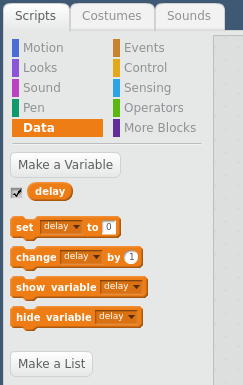

Adding a variable to Scratch screen shot
Figure 2

Data menu in Scratch screen shot
Figure 3

You will also need the following blocks:

  • when (green flag icon) clicked, available under Events.
  • set gpio __ to ____ and gpio __ is high?, available under More blocks. If you do not see these blocks, click Add an extension, then click Pi GPIO and select OK.
  • not, available under Operators.
  • wait, if ____ then, and forever, available under Control.
  • play sound __, available under Sound. You can import more sounds on the Sounds tab.

Using these blocks, write a program that looks like this (remember that you can import additional sound effects by clicking the Sounds tab). Note that some blocks snap inside each other. For example, the not block snaps inside the if ____ then block, then the gpio __ is high? block snaps inside the not block.

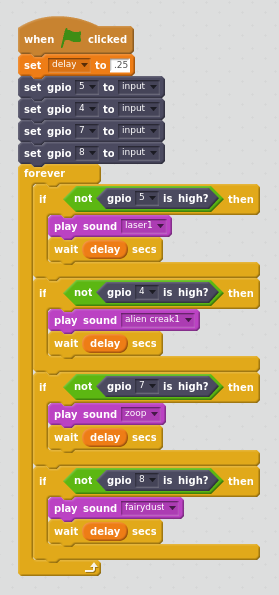

Drumset program in Scratch
Figure 4

icon learn

Learn More About:  Variables

  [Show]

icon learn

Learn More About:  Loops and if/then statements

  [Show]

icon learn

Learn More About:  Reading input pins

  [Show]

Building Your Circuit

To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:

To assemble the circuit, you will need male-male jumper wires and alligator clips from your kit (five of each).

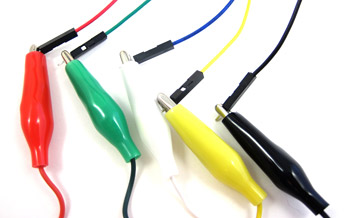

M-M jumper wires
Figure 5
red alligator clip
Figure 6

You will also need five metal objects (not included in your kit): four to use as drums, and one to use as a drumstick. The example project uses measuring cups and a whisk, but any metal objects will work as long as you can attach the alligator clips to them. For example, you could also use aluminum foil.

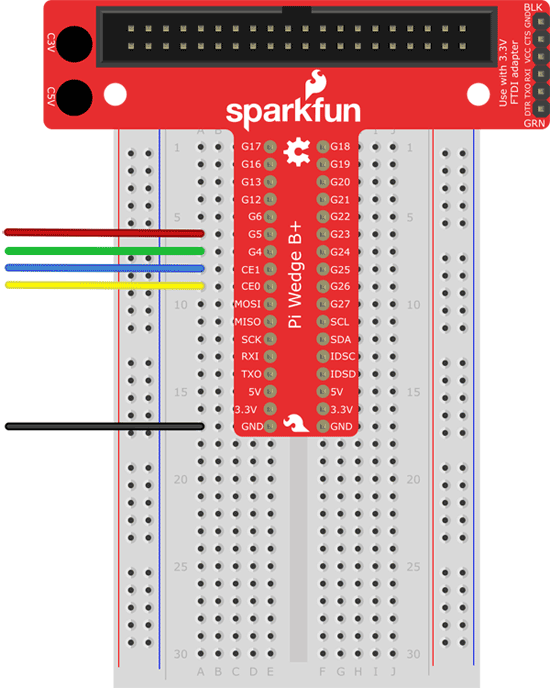

First, connect jumper wires to your breadboard, as shown in Figure 7. For this circuit, you will only plug one end of each jumper wire into the breadboard.

Part Picture Hole
Red M-M jumper wire red M-M jumper A6
Green M-M jumper wire green MM jumper A7
Blue M-M jumper wire blue MM jumper A8
Yellow M-M jumper wire yellow MM jumper A9
Black M-M jumper wire black M-M jumper A17

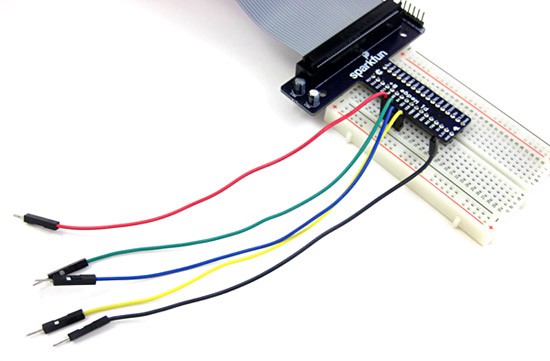

drumset jumper wires on breadboard
Figure 7

Your circuit should now look like this. Notice how only one end of each jumper wire is plugged into the breadboard, and the other ends are free.

drumset circuit
Figure 8

Next, use alligator clips to connect your jumper wires to each of your metal objects. Connect the colored jumper wires to your drums, and the black jumper wire to your drumstick. This video shows you how to use the alligator clips.

Here are some close-up pictures that show the alligator clips connected to the jumper wires. Note: There is no blue alligator clip or white jumper wire in your kit, but the colors do not need to match the ones we used.

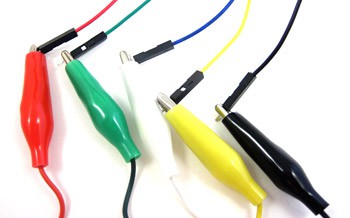

raspberry pi alligator jumpers
Figure 9

And to the drums:

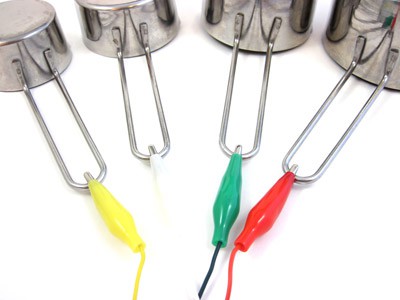

raspberry pi alligator cups
Figure 10

Finally, here is a picture of the complete setup, with four drums and one drumstick. Important: Remember to avoid short circuits! Do not let your drums or the exposed metal parts of the alligator clips touch each other.

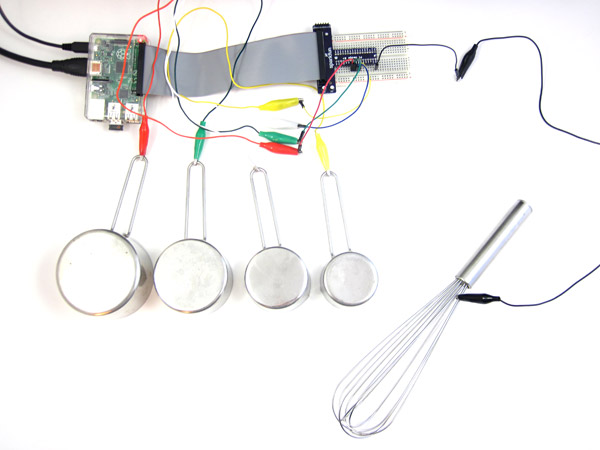

raspberry pi electronic drumset
Figure 11

Remember that you can also use aluminum foil if you do not have other metal objects handy.

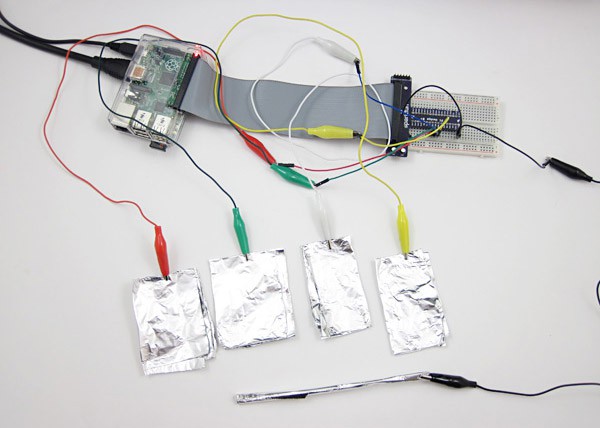

raspberry pi drumset with aluminum foil
Figure 12

icon learn

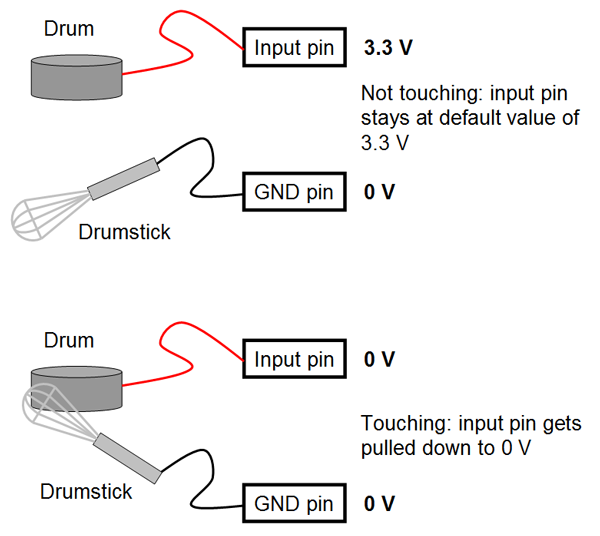

Learn More About:  How does the circuit work?

  [Show]

Testing Your Drum Set

Now it is time to test your drum set! You need to run your Scratch program by clicking the green flag toward the top of the Scratch window. Then, take your drumstick and tap it against each one of your drums, one at a time, to test the sound. Each drum should play the sound effect that you programmed! Now, have some fun playing with your electronic drum set. Try changing the sound effects to find the ones you like best.

icon trouble

Troubleshooting:  I do not hear any sound!

  [Show]

Going Further

Here are some suggestions you can try to modify or improve your drum set:

  • Make each drum play multiple sound effects.
  • Try using different objects as drums and drumsticks.
  • Add more than four drums (see note below about GPIO pins).
  • Make each drum light up an LED (see note below about LEDs).

icon learn

Learn More About:   Which GPIO pins can I use as inputs?

  [Show]

icon learn

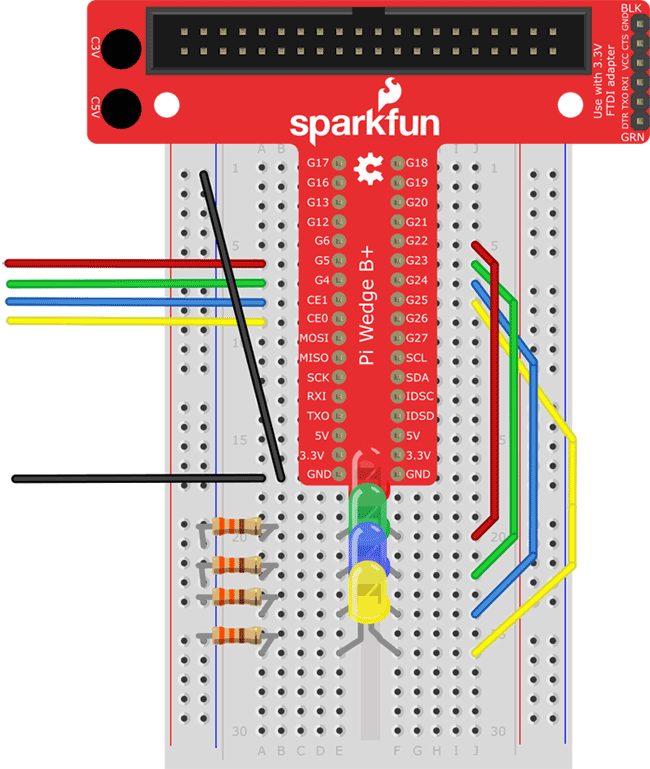

Learn More About:  Adding LEDs
