Construct a Carnival Buzzer Game with a Raspberry Pi
AbstractHave you ever played a game that tested the steadiness of your hands? Operation® is a popular board game that requires you to perform "surgery" without bumping a tool against the edges of the game. There are also popular amusement park or carnival games where you try to move a metal loop along a wavy metal wire without letting the two touch. You can build your own version of these games using the Raspberry Pi Projects Kit. Check out the video to see what this simple, but fun, project looks like:
Recommended Project Supplies
A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the buzzer game in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).
You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your hand-steadiness game to be able to do, then work through the rest of the design process until you have a completed game to show off at your science fair.
If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the game as a tool to help answer. For example, does age affect the steadiness of a person's hand? Have a large group of volunteers of different ages try the game. Do certain age groups score better than others?
- Raspberry Pi Foundation (n.d.). Teach, Learn, and Make with Raspberry Pi - Raspberry Pi. Retrieved August 28, 2019.
- Science Buddies (n.d.). Raspberry Pi Setup. Retrieved August 28, 2019.
This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:
- Raspberry Pi Projects Kit (if you do not already own a Raspberry Pi), comes with:
- Raspberry Pi model 3B+
- Micro-USB power cable
- HDMI cable*
- Clear plastic case for Raspberry Pi
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick link to Science Buddies instructions
- Raspberry Pi Circuit Parts Only Kit (if you already own a model 2B or higher), comes with:
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick links to Science Buddies instructions
To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):
- TV or computer monitor with HDMI input*
- USB keyboard and mouse
*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.
To do this specific project, you will need the following circuit parts from your kit:
- Male-male jumper wires (3)
- Alligator clip leads (3)
- Piano wire
You will also need the following materials, not included in your kit:
- Metal paper clips (2), not plastic coated
- Small piece of cardboard
In this project, you will make your own version of a classic carnival game, where you try to guide a metal loop along a bent metal wire without letting the two touch. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this video for an introduction to the project:
Writing Your Program
If you have never written a program in Scratch before, watch this video to learn how:
The objective of the game is to guide your paper clip "wand" down the bent wire, without letting the two touch, until you can tap the paper clip against the other paper clip at the bottom to win the game. If you touch the bent wire three times, you lose the game. So, you need a program that can do a few different things:
- Play a sound when the paper clip wand touches the wire
- Keep track of how many times the paper clip wand has touched the wire
- Play different sounds for winning and losing the game
- Automatically reset the game after you win or lose

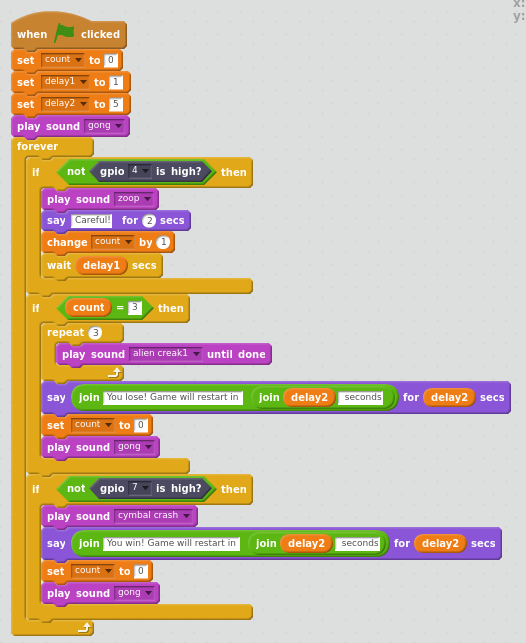

The following program does just that. It consists of three if statements inside a forever loop. In addition to playing sounds, it also displays on-screen messages when you win or lose the game. This is a big program! Take your time and create a program based on the screenshot below, one block at a time. Remember to save your program frequently! You can also choose whatever sound effects you prefer from the Sounds tab.
If you get stuck, here are some helpful reminders for creating the program:
- The set gpio __ to ____ and gpio __ is high? blocks are available under More blocks. If you do not see these blocks, click Add an extension, then click Pi GPIO and select OK.
- To create a variable, click Data then Make a variable. Variables are convenient when you need to use a number multiple times in a program.
- The __ = __ block can be found under Operators. You use this block to check if two numbers are equal to each other.
- The Say ___ for __ secs block can be found under Looks. This will make the on-screen sprite show a word bubble with text.
- The join __ __ block can be found under Operators. Use this to join together multiple strings of text, including variables.
- The not __ block can be found under Operators. Along with an if block, you can use this block to check if a certain condition is not true.
Building Your Game
To build the game, you will need some materials not included in your kit:
- Two metal paper clips. Make sure they are not coated in plastic.
- A small piece of cardboard
- Tape (any type of tape will work)
You will also need one of the piano wires from your kit (you can also substitute a sheet of aluminum foil rolled into a very tight tube):

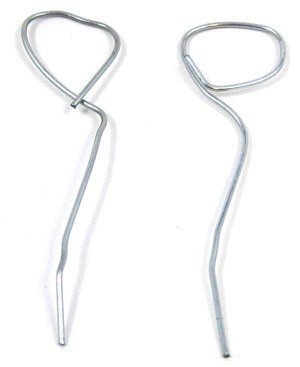

First, take two paper clips. Straighten them out, then bend one end of each paper clip into a loop.

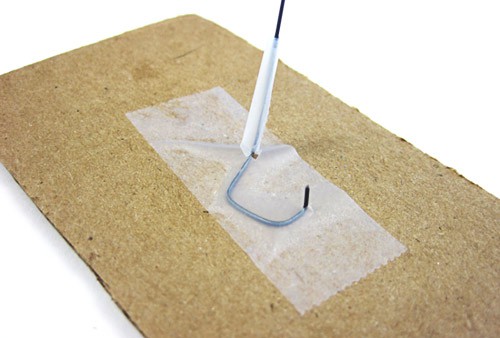

Next, bend one end of the piano wire into a "hook" shape, as shown below:
Then, tape the bent end of the piano wire down flat to a piece of cardboard. Make sure the tip of the piano wire is poking up out of the tape (you will need to attach an alligator clip to it later). Wrap a second piece of tape around the straight part at the bottom of the piano wire.

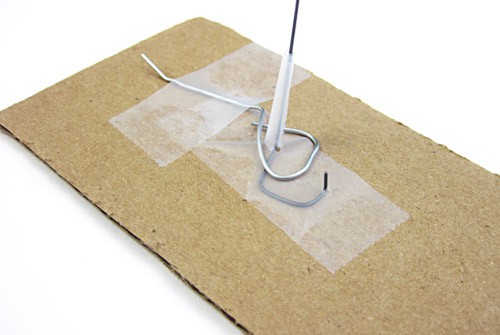

Loop one of the bent paper clips over the piano wire, and tape it down to the cardboard. Make sure there is tape in between the paper clip and the piano wire so they are not touching, or this will create a short circuit.

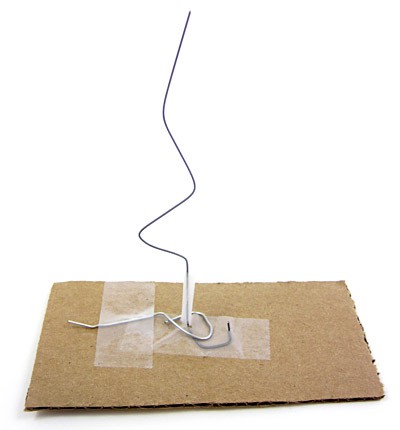

Finally, bend your piano wire into whatever shape you want. The more "bendy" you make the wire, the harder the game will be. If you would rather start out by leaving the wire straight, and bend it later, you can do that instead.

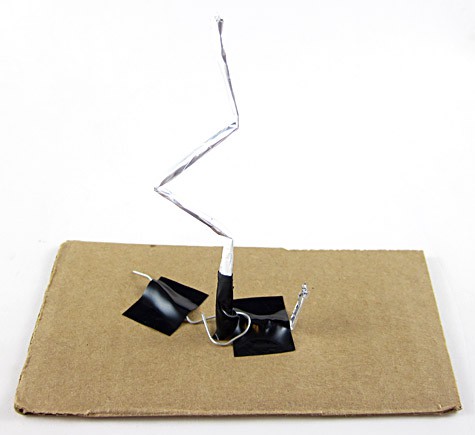

Here is an example where the piano wire has been replaced with a tightly rolled tube of aluminum foil:
Building Your Circuit
Next, you will need to build a circuit on a breadboard. If you have never used a breadboard before, watch this video to learn how:
To build the circuit, you will need three M-M jumper wires and three alligator clips:

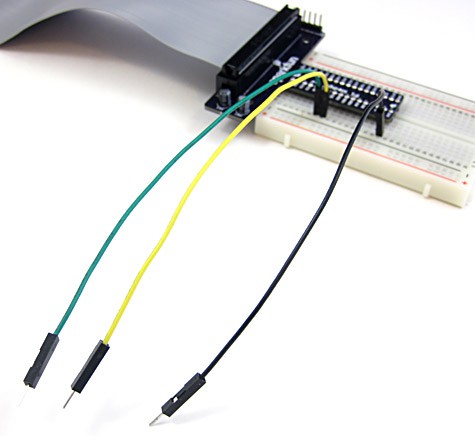

Connect the jumper wires to the breadboard, as shown in Figure 12.

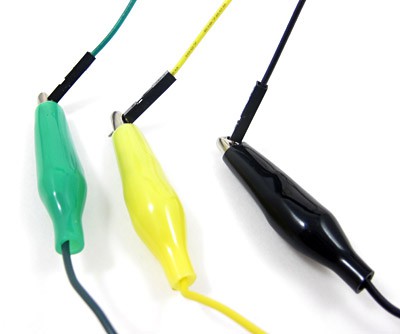

Then, connect alligator clips (with corresponding colors) to each of the jumper wires.
Finally, connect the other ends of the alligator clips to the parts of your game, as follows:
|Alligator Clip||Game Part|
|Green||Piano wire or aluminum foil|
|Yellow||Paper clip taped to cardboard|
|Black||Paper clip "wand"|

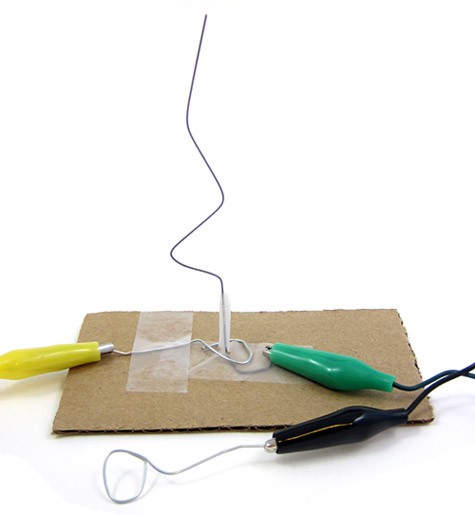

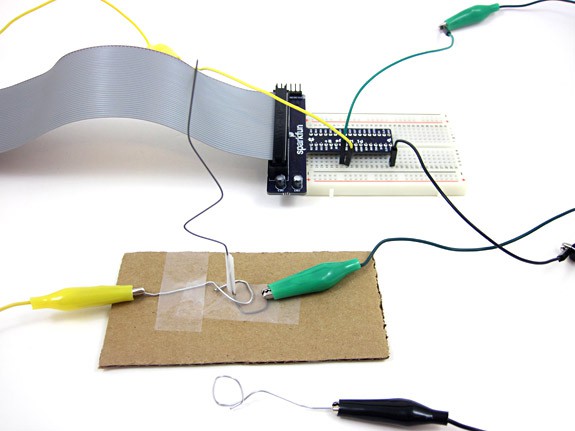

Here is a picture of the complete setup:
Testing Your Game
Now you should be ready to test your game. Remember, the objective is to carefully guide the paper clip along the bendy wire without touching it, until you can reach the other paper clip at the bottom.
Click the green flag to start your program. After the "gong" sound plays, try the game! Challenge your friends and family to play as well. If you find the game to be too easy or too hard, there are a few different things you can adjust:
- To make the game easier:
- Straighten out the piano wire.
- Make the paper clip loop bigger.
- Increase the delay1 variable.
- Increase the number of times you can touch the wire before losing (change the number in the count = 3 block in your program).
- To make the game harder:
- Put more bends in the piano wire.
- Make the paper clip loop smaller.
- Decrease the delay1 variable.
- Decrease the number of times you can touch the wire before losing (change the number in the count = 3 block in your program).
There are a lot of fun things you can do to expand your game. Here are just a few suggestions:
- Add a single LED to your circuit that lights up briefly when you touch the piano wire.
- Add three LEDs to your circuit, like at the end of the demo video. Make one more LED light up and stay lit each time you touch the piano wire. Turn all the LEDs off again when the game resets. See the diagram below if you need help hooking up the LEDs, and refer to the Light-Up Piano project if you need help with the Scratch code.
- Add a counter to the game by creating a variable that increases by 1 for every completion of the forever loop. Use this timer as a "score" for the player; the faster you complete the game, the better your score.
- Create a countdown timer that starts at a certain value and decreases by 1 for every completion of the forever loop. Make the player lose if time runs out. This will add some pressure to the game!
- For a big programming challenge, try to make a multi-player game. Let multiple players take turns trying the game, and keep score for each one (using one of the timer methods above, or based on who hits the wire the fewest times). Announce which player is the winner, based on who has the best score.
- For another challenge, make your program keep track of the "high score" (using one of the methods above). Display the current high score on screen, and update it if a player manages to beat the high score.

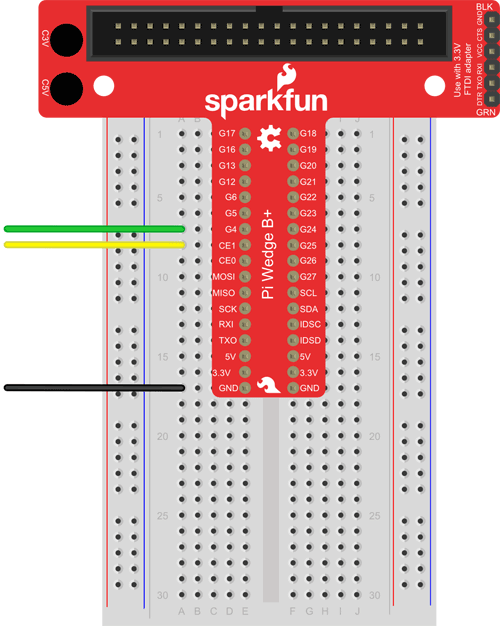

Here's a breadboard diagram of the circuit with three LEDs added (remember that the green, yellow, and black jumper wires on the left connect to the alligator clips):
For troubleshooting tips, please read our FAQ: Construct a Carnival Buzzer Game with a Raspberry Pi.
