Abstract

Have you ever tried to ride your bike up a flight of stairs? Vehicles with wheels are great at traveling on paved roads or flat ground, but when it comes to stairs or uneven ground in the woods, wheels are not always such a great option. Inspired by real-life all-terrain robots, in this engineering project you will design and build a LEGO® robot that can travel over bumpy ground, through your yard, or even up a stack of textbooks — and almost anything else you can think of!

Summary

Areas of Science
Difficulty

Time Required
Average (6-10 days)
Prerequisites
Experience building with LEGO® and programming for LEGO® Mindstorms® is required for this project.
Material Availability
This project requires a LEGO® Mindstorms® NXT kit and compatible programming software. See the Materials and Equipment list for details.
Cost
Very High (over $150)
Safety
No issues
Credits

Ben Finio, Ph.D., Science Buddies

Special thanks to Prof. Chris Rogers and the Tufts University Center for Engineering Education and Outreach for supplying the LEGO materials for this project, and to Ariana Riccio for NXT-G programming help.

  • LEGO and Mindstorms are registered trademarks of The LEGO Group.
  • Whegs is a registered trademark of The Center for Biologically Inspired Robotics Research at Case Western Reserve University.

Objective

Construct an all-terrain LEGO® robot capable of traveling over various rough surfaces and ascending a "staircase" made of textbooks, and then compare its performance to a robot using regular wheels.

Introduction

Have you ever gone somewhere on a bike, a school bus, a train, or in a car? Your answer is most likely yes — you might even ride more than one of them every day. All of these vehicles have one important thing in common — wheels. Around for thousands of years, wheels make vehicles very good at traveling on flat surfaces like paved roads. Some all-terrain vehicles (like tanks or dirt bikes) are even designed to be driven off-road through fields, rocks, and dirt. But when it really comes down to it, legs are sometimes better for getting around. For example, you might be able to ride your bike through mud and gravel, but chances are you probably would not ride it completely off-trail in the middle of the woods, or up a flight of stairs (we know some professional bike riders do this — but it is difficult and very dangerous).

Many different types of robots use wheels, legs, or something in between. The NASA Curiosity rover uses large wheels to help it handle the rough Martian terrain. Back here on Earth, Boston Dynamics has developed robots that can walk on four legs like a dog or even two legs like a human. In between these two. we have robots like RHex from the University of Pennsylvania and Whegs™ from Case Western Reserve University. These robots use attachments that spin continuously in one direction (like wheels), but they are not circular — they have at least one distinct point that comes in contact with the ground, like a leg (you might have figured out by now that the "Whegs" robot takes its name after a combination of the words "wheel" and "leg"). This gives the robots some of the advantages of wheels, like good balance and speed on flat ground, along with some of the advantages of legs, like climbing stairs and traveling over rough ground.

In this project, you will use a LEGO® Mindstorms® kit to build the body of a basic robot car, along with a series of different attachments to replace the wheels. You will then test the performance of the different attachments in three different ways — their ability to climb "stairs" (made from a pile of textbooks), speed on flat ground (like a wooden floor), and speed on rough ground (through grass or gravel outdoors). You will use these tests to determine if some attachments work better than others in different situations.

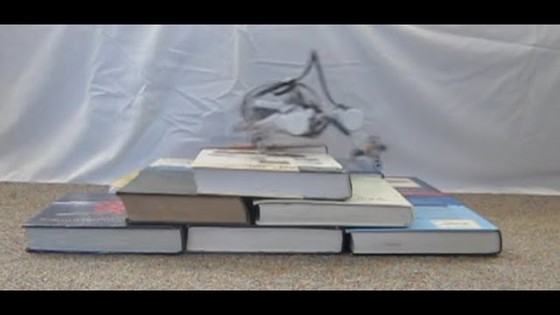

The video shows you how the robot we built at Science Buddies handled climbing a staircase made of textbooks with different motor attachments. We will provide some basic directions for building a robot similar to this one in the Procedure section, but remember that this is an engineering design project — you do not have to follow our directions exactly. The size, shape, and nature of your robot and its attachments are up to you — limited only by your imagination (and the size of your LEGO collection)!

This video shows an all-terrain LEGO Mindstorms robot inspired by the RHex and Whegs robots traveling up and down a staircase made of textbooks.

Terms and Concepts

Questions

Bibliography

These are the official lab webpages for the developers of the RHex and Whegs robots.

  • Kod*lab, University of Pennsylvania. (n.d.). The RHex hexapedal robot. Retrieved January 8, 2013.
  • Center for Biologically Inspired Robotics Research, Case Western Reserve University. (n.d.). WhegsTM series robots. Retrieved January 8, 2013.

Materials and Equipment

LEGO Mindstorms Availability

Note: The LEGO Mindstorms product line was discontinued at the end of 2022. However, many Mindstorms kits are still in circulation and you can probably borrow one or purchase a used one. The instructions for this project were written for the LEGO Mindstorms NXT 2.0 kit. You can do this project with an EV3 kit, but the programming software is different. Follow LEGO's online resources to learn how to program your EV3 robot.

Experimental Procedure

Note: This engineering project is best described by the engineering design process, as opposed to the scientific method. You might want to ask your teacher whether it's acceptable to follow the engineering design process for your project before you begin. You can learn more about the engineering design process in the Science Buddies Engineering Design Process Guide.

The procedure for this project has six main subheadings: Building Your Robot; Programming Your Robot; Testing Stair-climbing Ability; Testing Speed on Flat Ground; Testing Speed on Rough Ground; and Analyze Your Results.

Building Your Robot

Note: This project does not provide piece-by-piece directions for building a LEGO robot, like those that come with most LEGO kits. Instead, we provide suggestions for a basic "robot car" design. Depending on your LEGO-building skills and the size of your LEGO collection, you may wish to follow our suggestions, or design and build your own robot. It is up to you.

  1. First, start with the NXT brick (Figure 1).

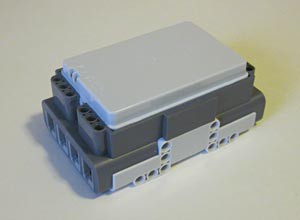

An upside down Lego NXT brick
Figure 1. The main "body" of your robot — the NXT brick (we show it here upside down — this will make more sense as you build your robot).
  1. Add beams to the sides of your NXT brick; these will enable you to attach motors. One possible configuration is shown in Figure 2.

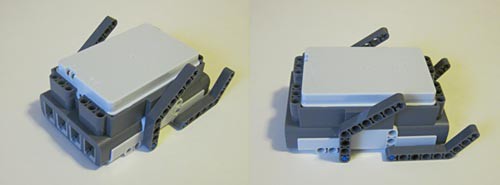

Two photos of four angled beam pieces attached to an upside down NXT brick
Figure 2. Angled beams are attached to the sides of the NXT brick, creating the structure that will hold the motors.
  1. You will probably need additional beams and some pegs to attach your motors. This is shown in Figure 3.

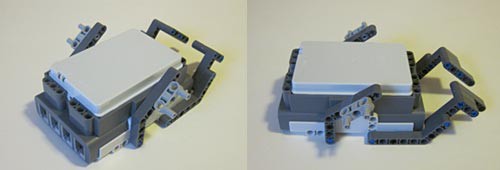

Two photos of motor mounts built from Lego pieces on an upside down NXT brick
Figure 3. Additional pegs and beams are attached to the beams added in step 2, creating the attachment points for the front and rear motors.
  1. Attach the motors. By now you should have created a structure like the one in Figure 4 with beams and pegs that will enable you to attach the motors to the body of your robot. You need to make sure your motors are positioned so that your robot has enough ground clearance — you do not want the belly of the NXT brick dragging on the ground when your robot moves!

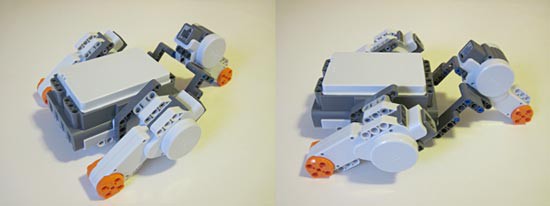

Two photos of three Lego motors mounted on an upside down NXT brick
Figure 4. Motors are attached to the structure created in steps 2 and 3. The motors are angled downward so the bottom of the robot does not come in contact with the ground.
  1. Attach additional supports if necessary. Your motors might be kind of wobbly at this point — especially your left and right motors. If you have enough LEGOs left, you can add more supports to make your robot sturdier. Figure 5 shows an example of adding a crossbeam to connect the left and right motors, making their support connection stronger.

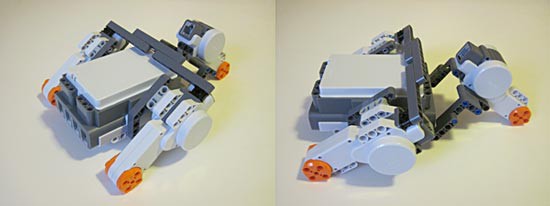

Two photos of a brace supporting the left and right motors on an upside down NXT brick
Figure 5. A crossbeam is added to connect the left and right motors, making them less wobbly. You can add more supports to your robot to make it sturdier if you have enough LEGO pieces.
  1. Attach the wheels to your robot. The NXT kit comes with four wheels but only three motors — so notice how, in Figure 6, we have attached one wheel each to the "front" motors (on the left and right), and two wheels to the "rear" motor (which is centered). This makes sure that the robot will balance properly.

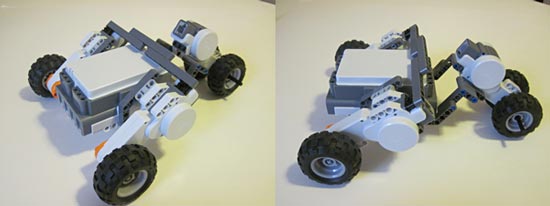

Two photos four wheels attached to three motors on an upside down NXT brick
Figure 6. Wheels are attached to the robot's motors.
  1. Connect your three motors to ports A, B, and C on the NXT brick with the supplied cables, as shown in Figure 7.
Two photos of three cables connecting three motors to an upside down NXT brick
Figure 7. Use the NXT kit's cables to connect the motors to ports A, B, and C. Make sure the cables do not interfere with the rotation of the motors, and that they will not get caught on obstacles on the ground.
  1. Build different attachments to replace the wheels. Figure 8 shows the different attachments used in the video in the Introduction. Did you watch the videos of the Whegs and RHex robots? Can you design your own attachments based on these robots or your own background research? What other shapes do you think you can try?
    Important: The plastic LEGO pieces tend to slip on hard surfaces like book covers and wood floors. This will put your attachments at a serious disadvantage against rubber wheels. So, we recommend using rubber bands (as shown in Figure 8) to add traction to your attachments and make it a fair comparison.

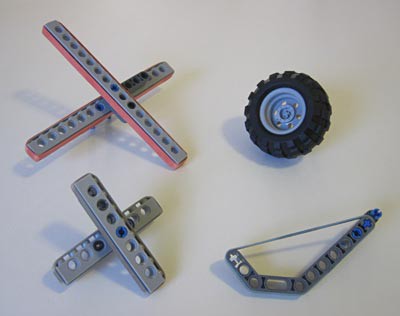

Various Lego attachments wrapped in rubber bands next to a rubber Lego wheel
Figure 8. Various attachments (shown next to a wheel for size comparison) of different shapes and sizes that can be used to replace the wheels. Rubber bands have been added to the attachments to prevent the plastic LEGO pieces from slipping on hard surfaces.

Programming Your Robot

  1. Because all you need your robot to do is drive forward when you turn it on, programming for this project is luckily pretty simple. In the NXT-G software, you can use the "Move" block to tell motors to spin forward or in reverse for a certain amount of time (we recommend setting the time to "Unlimited," so your robot will just continue to run until you turn it off). You can use a single block to control motors A, B, and C individually, or any combination of the three. Figure 9 has two example programs using "Move" blocks.
  2. Depending on how you attached the motors to your robot, you might need all your motors to spin in the same direction, or in different directions. The best way to find out is to download a program to your robot and test it.
  3. Figure 9 shows two possible programs. In the program on the top, all three motors (ports A, B, and C) spin in the same direction. In the program on the bottom, the "front" motors (ports A and C) spin forward, but the "rear" motor (port B) spins backward. Again, whichever configuration you use will depend on how you attached the motors to your robot. If you download and run your program and all of your robot's wheels spin in the same direction and your whole robot moves forward, then you are good to go, If the wheels are spinning in opposite directions, or all spinning in the same direction but your robot moves backward, then you need to reverse the direction of rotation of one or more of your motors. Change your program, download it to your robot, and try again. Repeat this until your robot moves forward.

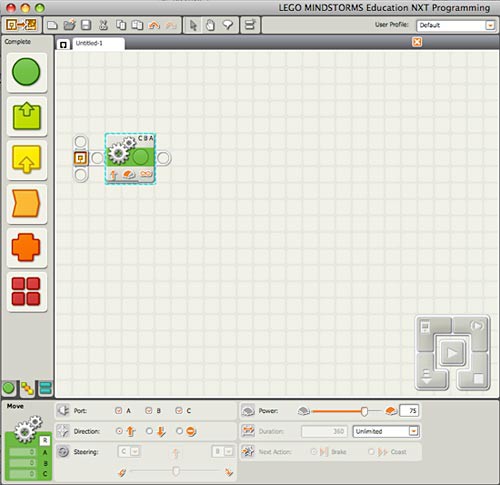

Screenshot of coding blocks in the LEGO Mindstorms NXT program

A screenshot of the LEGO Mindstorms NXT program shows a grid with a single green motor block. The motor block is designated by an icon with two gears and controls motors that are connected to an NXT brick. The program includes options for port, direction of the motor, power and the duration (bottom of the page).

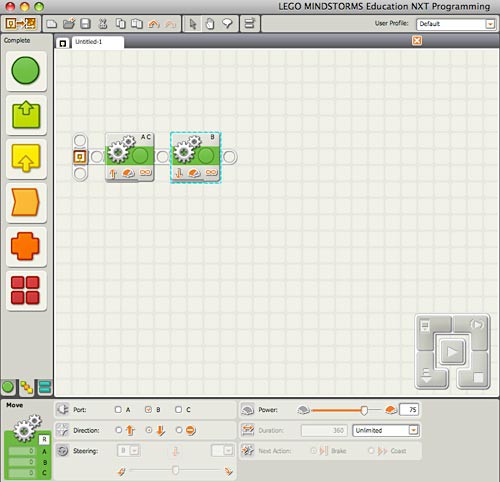

Another Screenshot of coding blocks
Figure 9. Two possible programs for your robot using NXT-G software. The program on top uses one block to make motors A, B, and C all spin forward for an "Unlimited" amount of time. The program on the bottom has motors A and C spin forward while motor B spins backward (again, for an "Unlimited" duration).

Testing Stair-climbing Ability

  1. Construct a staircase out of books, similar to the one shown in the video in the Introduction (a screenshot from this video is shown in Figure 10). Large, heavy books like textbooks or cookbooks will work better than small, light paperbacks. Make sure your staircase is wide enough for your robot so it does not fall off the edges (it might help to make your staircase two books wide).

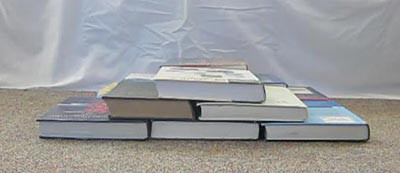

Six textbooks are laid flat and arranged into a pyramid
Figure 10. A staircase made from textbooks.
  1. Test the ability of your robot to climb the staircase with the normal NXT wheels attached. Can it make it all the way up and over the staircase? Does it make it up a couple of steps and then get stuck? Can it not even make it up the first step? Do at least three trials to make sure your first test wasn't a fluke, and record these results in your lab notebook.
  2. Swap out the wheels for one of your other attachments, and repeat step 2. Repeat step 2 until you have tested all of your attachments, and be sure to write down the results for each attachment in your lab notebook.
  3. If you have time, make some adjustments to your staircase and retest the wheels and each one of your attachments. What happens if you make the staircase steeper or shallower? What if you make each step two books high instead of one? Does this change your results?

Testing Speed on Flat Ground

  1. Set up a straight path on flat ground (such as a carpet, or wood or tile floor) with no obstacles. Make sure there are clear starting and finish lines (you can mark these with tape or other objects). We recommend making your path at least 2 meters long (or about 6 feet).
  2. Using your stopwatch, time how long it takes the robot with wheels to make it from the starting line to the finish line. Do at least three trials to ensure that your data is accurate, and record these results in your lab notebook.
  3. Repeat step 2 for each one of your different attachments, and be sure to record your results in your lab notebook.

Testing Speed on Rough Ground

  1. Set up a straight path on rough ground outside, such as through grass, gravel, or dirt. Make sure there are clear starting and finish lines. Again, we recommend making your path at least 2 m (about 6 ft.) long. Warning: Your NXT is not waterproof! We do not recommend running your robot through mud or puddles.
  2. Using your stopwatch, time how long it takes the robot with wheels to make it from the starting line to the finish line. Do at least three trials to ensure that your data is accurate, and record these results in your lab notebook.
  3. Repeat step 2 for each of your different attachments, and be sure to record your results.

Analyze Your Results

  1. You have now tested your robot's climbing ability, speed on flat ground, and speed on rough ground with wheels and several other attachments. Which attachment was the best at climbing stairs? Which was fastest on flat and rough terrain? Do you think there was an overall "best" attachment, or does the best attachment depend on the situation?
    1. To determine which attachment or wheel was best you will need to graph the data you collected. Make a bar chart showing the number of successful stair climbing trials for each attachment. Make scatter plots and bar graphs of the speed data for the attachments. For the scatter plots, add all the trials for each attachment so that you can see the range for your data. For the bar charts try graphing the average time for each attachment under each ground condition.
  2. Based on your results, if you could only pick one type of wheel or attachment to put on your all-terrain robot, which one would it be? Do you have to decide between trade-offs in performance, like sacrificing speed for climbing ability? This is the kind of decision that real design engineers have to make every day, with no guarantee that there will be a single "best" answer. Try creating a decision matrix to help you display the advantages and disadvantages of each attachment.
icon scientific method

Ask an Expert

Do you have specific questions about your science project? Our team of volunteer scientists can help. Our Experts won't do the work for you, but they will make suggestions, offer guidance, and help you troubleshoot.

Global Connections

The United Nations Sustainable Development Goals (UNSDGs) are a blueprint to achieve a better and more sustainable future for all.

This project explores topics key to Industry, Innovation and Infrastructure: Build resilient infrastructure, promote sustainable industrialization and foster innovation.

Variations

  • If you watched the video of the RHex robot, you may have noticed that it can keep moving forward even if it flips upside down! Can you modify your LEGO robot so that it keeps moving even if it flips over?
  • Can you build an obstacle course for your robot using different objects (besides a staircase of books)? Outdoors, can your robot climb over sticks and rocks? Indoors, can it climb over your other toys? What about blankets or pillows? Which of your attachments works the best for these different cases?
  • If you used a basic Mindstorms kit and followed our directions, your robot in this project probably only had four wheels. The RHex and Whegs robots each have six wheel-like attachments because they are modeled after a hexapod (the cockroach). If you have enough LEGO pieces, can you build a new six-legged/wheeled version of your robot?
  • In this project we only designed a robot that was supposed to go straight, and did not really worry about turning ability. Can you program your robot to turn? Do you need to modify your design to make it easier for the robot to turn? Are different attachments better at turning?
  • What happens if you use combinations of different attachments — for example, Whegs-style attachments on the front motors and regular wheels on the back motors? Can you repeat your tests with different combinations?

Careers

If you like this project, you might enjoy exploring these related careers:

Career Profile
Have you watched "The Transformers" cartoon series or seen the "Transformers" movies? Both shows are about how good and evil robots fight each other and the humans who get in the middle. Many TV shows and movies show robots and humans interacting with each other. While this is, at present, fantasy, in real life robots play a helpful role. Robots do jobs that can be dangerous for humans. For example, some robots defuse landmines in war-stricken countries; others work in harsh environments like… Read more
Career Profile
Robots are no longer futuristic machines. Robots are here and now and are used in manufacturing, health care, service industries, and military applications. They perform tasks that are repetitive and hazardous—things that humans don't want to do or are unsafe to do. But robots are still machines, which means they require humans to build, maintain, program, and keep them functioning efficiently. Robotics technicians work with robotics engineers to build and test robots. They are… Read more
Career Profile
Computers are essential tools in the modern world, handling everything from traffic control, car welding, movie animation, shipping, aircraft design, and social networking to book publishing, business management, music mixing, health care, agriculture, and online shopping. Computer programmers are the people who write the instructions that tell computers what to do. Read more
Career Profile
Mechanical engineers are part of your everyday life, designing the spoon you used to eat your breakfast, your breakfast's packaging, the flip-top cap on your toothpaste tube, the zipper on your jacket, the car, bike, or bus you took to school, the chair you sat in, the door handle you grasped and the hinges it opened on, and the ballpoint pen you used to take your test. Virtually every object that you see around you has passed through the hands of a mechanical engineer. Consequently, their… Read more
