Abstract

The Science Buddies Bluebot Kit contains parts to build four different robots:

  • A motion-activated robot that uses a passive infrared (PIR) sensor
  • A light-tracking robot that uses photoresistors
  • A line-following robot that uses infrared emitter-detectors
  • An obstacle-avoiding robot that uses bump sensors

However, in each project, the sensors are hard-wired to control the robot's motors. This allows the robot to steer left and right based on input from two sensors, but it does not allow the robot to perform more complex behaviors. For example, it cannot back up and turn around, drive through a pre-planned path, or use multiple types of sensors at once. That is where a programmable microcontroller like an Arduino comes in. You can use the Arduino to take readings from multiple sensors and program how the robot should respond. Can you add an Arduino to your Bluebot kit and design an autonomous robot that can drive around your home? You will need to do some of your own research, prototyping, and testing to figure out how to do this. The suggestions below and resources in the Bibliography section will help you get started.

  • Power: you will need a 9V battery and snap connector with barrel jack to power your Arduino (not included in the Bluebot kit).
  • Motors: do not attempt to drive the motors directly from the Arduino's pins! The Arduino's pins cannot supply enough current to drive the motors directly. Your Bluebot kit comes with an L293D H-bridge motor driver chip. This chip allows you to control the speed and direction of two motors. It has pins for two power sources: digital logic (5V from the Arduino) and external power for the motors (6V from your 4xAA battery pack). Be careful not to accidentally short-circuit the 5V Arduino power and 6V battery power on your breadboard! The Bibliography section contains a tutorial for using the L293D with an Arduino.
  • Sensors: as mentioned above, you can use multiple sensors simultaneously. The instructions for the four Bluebot projects linked in the Bibliography section contain more information about each of the sensors included in your kit.
    • Photoresistors: also called photocells or light-dependent resistors (LDRs). Their resistance changes in response to light. Can be used to detect and navigate towards (or away from) light sources.
    • Infrared emitter/detectors: these emit infrared (IR) light and detect when IR light is reflected back. Their range is very short—only a few millimeters. They can be used to detect edges, like a dark line on a light surface, or the edge of a table. They can also be pointed forward and used to detect objects that reflect IR light.
    • Bump sensors: these are lever switches that can detect when the robot bumps into an object.
    • PIR sensor: the type of sensor used in home security systems and motion-activated lights. It detects movement by looking for infrared light (i.e. body heat). Can be used to detect when a person or pet walks in front of the robot.
  • Arduino commands: the following Arduino commands will be useful. See the Arduino Language Reference resource in the Bibliography section for more details.
    • pinMode(): sets the Arduino's pins as inputs or outputs.
    • digitalWrite(): sets the status (high or low) of an output pin. Use this to control the direction of the motors with the H-bridge.
    • digitalRead(): reads the status (high or low) of an input pin. Use this to take readings from digital sensors like the PIR sensor.
    • analogWrite(): generates a pulse width modulation (PWM) signal on an output pin, which rapidly turns the pin on and off. Use this to control motor speed along with the H-bridge.
    • analogRead(): reads an analog value on one of the analog input pins. Use to take readings from analog sensors like a potentiometer or photoresistor.

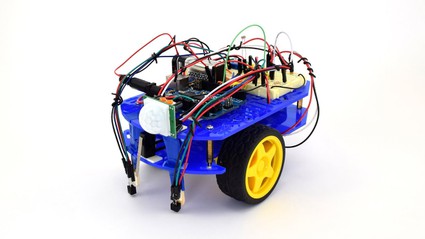

Bluebot robot chassis with a breadboard circuit and Arduino Uno mounted on top.
Figure 1. A Bluebot with an Arduino and multiple sensors.
