Electric Play Dough Project 2: Rig Your Creations With Lots of Lights!

1
2
3
4
5
186 reviews

Abstract

Have you tried our first electric play dough project, and now you are looking for more to do? Do you want to learn more about circuits and add even more lights? Check out this project for part 2 of our play dough circuits series!

Summary

Areas of Science
Difficulty

Time Required
Very Short (≤ 1 day)
Prerequisites
You should understand the Introduction material in Light Up Your Play Dough!—the first project in this series—before doing this project.
Material Availability
A kit is available from our partner Home Science Tools. See the Materials section for details.
Cost
Low ($20 - $50)
Safety
Never connect the battery pack's terminals directly to each other; this is called a short circuit and can make the batteries and wires get very hot. Do not connect the LEDs directly to the battery pack without using play dough; this will burn out the LEDs.
Credits

Ben Finio, PhD, Science Buddies

This project idea is based on work done by Dr. AnnMarie Thomas at St. Thomas University.

Objective

Use play dough and batteries to create simple series and parallel circuits that light multiple LEDs (light-emitting diodes).

Introduction

In Project 1 of our play dough circuits project series, you learned about the basic ideas of closed, open, and short circuits. If you need to review this information, you can always go back to the Light Up Your Play Dough! background section. You can also learn more about electricity in the Science Buddies Electricity, Magnetism, & Electromagnetism Tutorial. In Project 1, you only learned how to hook up one light to your creation. Imagine how cool your creations can be if you hook up lots of lights—this project will show you how!

In order to do this, first you will need to learn about two new kinds of circuits. The examples will explain a circuit that has one battery and three lightbulbs. There are different ways to connect multiple lightbulbs to a battery: in "series" or in "parallel." We will explain what these words mean next.

In a series circuit, the lightbulbs are all connected in a row, and form a single loop. The path the electricity takes from the positive end of the battery to the negative end has to go through each lightbulb. This is shown in Figure 1.

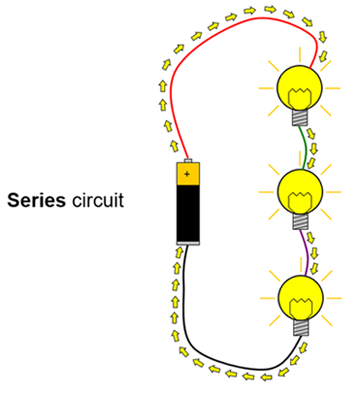

Drawing of three lightbulbs and a battery connected in series
Figure 1. Three lightbulbs connected to a battery in series. Notice how there is only a single "loop," and the path that the electricity takes (represented by the yellow arrows) has to go through each lightbulb in order.

In a parallel circuit, the lightbulbs are connected next to each other, and form multiple loops. Any path electricity takes to get from the positive end of the battery to the negative end only goes through one lightbulb. This is shown in Figure 2.

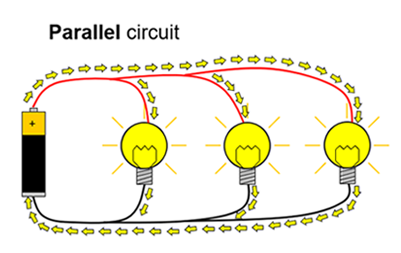

Drawing of three lightbulbs and a battery connected in parallel
Figure 2. Three lightbulbs connected to a battery in parallel. Notice how there are multiple "loops," and any path the electricity takes (represented by the yellow arrows) only goes through one lightbulb.

One important thing to know is that the shape the wires connecting the lightbulbs makes does not matter. In other words, you can move the lightbulbs and wires around, but as long as the connections stay the same, you will not change if a circuit is series or parallel. Look at Figures 3 and 4; the lightbulbs have been moved around (and the shapes the wires make have changed), but they are still the same kind of circuit as Figures 1 and 2.

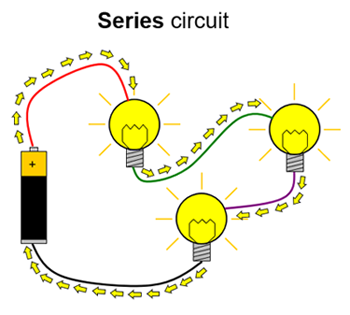

Drawn diagram of a closed circuit with a battery and three lightbulbs in series
Figure 3. The lightbulbs in this figure have been rearranged relative to those in Figure 1. However, there is still only one path for the electricity to take, which goes through all three lightbulbs, so this is still a series circuit!

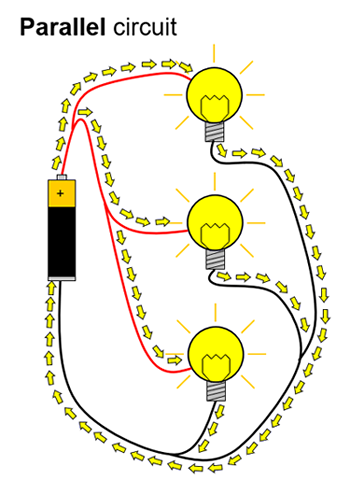

Drawn diagram of a closed circuit with a battery and three lightbulbs in parallel
Figure 4. The lightbulbs in this figure have been rearranged relative to those in Figure 2. However, there are still multiple paths for the electricity to take, and each path only goes through one lightbulb, so this is still a parallel circuit!

So, now that you know the difference between series and parallel circuits, it is time to apply this knowledge to your play dough circuits! First let us see what happens when we try hooking up first one, then two, then three LEDs (light-emitting diodes, which are a type of tiny lightbulb found in many electronic devices) in series using play dough circuits. This is shown in Figure 5.

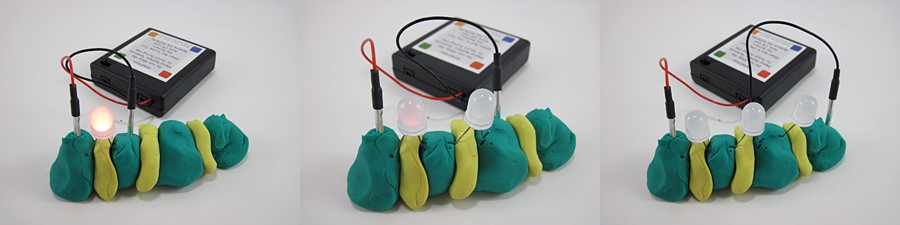

Photos of 1, 2 and 3 LEDs being connected in series to a battery using balls of Play-Doh
Figure 5. (From left) One, two, and then three LEDs connected to the battery pack in series using play dough circuits. The LEDs get much dimmer as each new LED is connected.

Uh-oh! Do you see a problem in Figure 5? The LEDs get dimmer each time a new LED is plugged in. With only three LEDs, you can barely see them light up at all! This is certainly going to be a problem if you want to hook up lots of lights to your creation. So, let us find out what happens if we connect the three LEDs in parallel instead. This is shown in Figure 6.

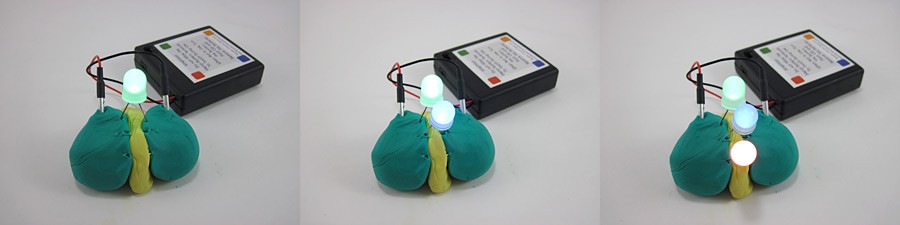

Three photos of one, two and three LEDs lit in parallel using conductive play dough and a battery pack
Figure 6. (From left) One, two, and then three LEDs connected to the battery pack in parallel using play dough circuits. Each new LED is just as bright as the previous one.

That is much better! In Figure 6, all the LEDs are the same brightness. This means that when you hook lots of lights up to whatever you build, you need to connect them in parallel. Now, why does this happen? Because in a series circuit, some electricity is "lost" each time it goes through an LED. So, by the time the electricity has already gone through one or two LEDs, there is not enough energy left to power the rest of them. In a parallel circuit, the electricity goes straight from the battery to each LED without losing energy first. This allows you to light up more LEDs (you'll find a more detailed explanation in the Technical Note section, but only if you are curious; you do not need to understand that information to do this project).

One more important thing to note: even in parallel, your LEDs will start to get dimmer if you make a very big structure or have very long sections of conductive Play-Doh, and use lots of LEDs. This is because some electricity is lost as it flows through the Play-Doh, and there is a limited amount of electricity that the batteries can supply. You can see this in Figure 7; the LEDs that are closer to the battery wires are brighter than the ones that are far away.

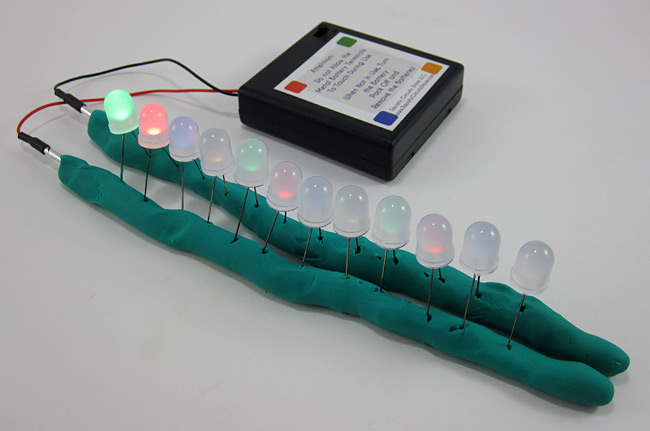

Ten LEDs are connected in parallel using long ropes of Play-Doh
Figure 7. All ten of these LEDs are connected in parallel. The electricity does not have to travel as far to get to the LEDs that are closer to the battery pack, so those LEDs are brighter. The LEDs on the far right are dimmer because the electricity has to travel much farther to get to them.

Now that you are an expert on series and parallel circuits, you are ready to start making designs with lots of lights!

Technical Note

You may be wondering why the LEDs stay bright when you connect three of them in parallel, but barely light at all when you connect three in series. After all, you are connecting the same three lights to the same battery pack; shouldn't they be the same brightness either way?

It turns out this is because of how voltage works in series and parallel circuits. The battery pack uses four AA batteries, and supplies 6 volts (abbreviated as V). Each LED requires a "voltage drop" of about 2.5 V to fully light up. So, if you connect three LEDs in series, that is 3 × 2.5 = 7.5, which is more voltage than the battery pack can supply! This is why the LEDs are so dim. However, if you connect three LEDs in parallel, they are each connected directly to the positive and negative terminals of the battery, with the full 6 V available to power each one of them. So, you can attach many more LEDs in parallel and they will remain at full brightness.

Terms and Concepts

Questions

Bibliography

Here are some additional resources on series and parallel circuits.

Materials and Equipment Buy Kit

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.

View Kit

Optional: in addition to the dough included in the kit, you can make your own conductive and insulating dough (for example, if you want other colors). See Electric Play Dough Recipes for materials and directions for making your own dough. You can also use store-bought Play-Doh® (replaces conductive dough) and modeling clay (replaces insulating dough).p

Experimental Procedure

  1. Optional: if you are making your own homemade conductive and insulating in addition to using the dough in the kit, follow the instructions on Electric Play Dough Recipes.
  2. Insert the four AA batteries into the battery pack that came with your kit.
  3. First, do an experiment to see how many LEDs you can connect in series.
    1. Start by connecting one LED to the battery pack using Play-Doh. Remember from Project 1 in our series that you should use insulating modeling clay between the conductive Play-Doh pieces to prevent short circuits between the LED leads.
    2. Now, add a second LED in series, like in Figure 5 from the Introduction. Do the LEDs get dimmer?
    3. Add a third LED in series. Do they get even dimmer?
    4. Continue this process until the LEDs do not visibly light up at all.
  4. Now, do an experiment to see how many LEDs you can connect in parallel.
    1. Start by connecting one LED to the battery pack using Play-Doh. Remember from Project 1 that you should use modeling clay between the Play-Doh pieces to prevent short circuits between the LED leads.
    2. Now, add a second LED in parallel, like in Figure 6 from the Introduction. Do the LEDs get dimmer?
    3. Add a third LED in parallel. Do they get dimmer?
    4. Continue to add LEDs in parallel. Do they eventually get dimmer? Can you make them brighter by keeping them very close together?
  5. Now, plan out the shape that you want to make (drawing it first is a good idea) and how you want to add lights. Remember that if you want to use a lot of LEDs, you will need to connect them in parallel, and that the actual shape of the Play-Doh does not matter, as long as each LED has its own "loop" formed with the battery. You might need to use modeling clay in some places to prevent a short circuit. Figure 8 shows an example design.
  6. Build your shape and start adding lights! Remember from Project 1 that LEDs only work in one direction (the longer lead should be connected to the positive side of the battery pack, with the red wire), so if one does not light up, try flipping it around. If your circuit is not lighting up at all, make sure you remembered to turn your battery pack on, and that you do not have a short circuit somewhere. If you are still having trouble, you can refer to our FAQ section.

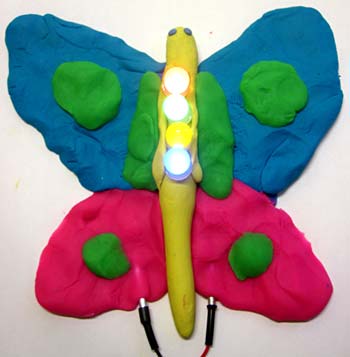

Four LEDs are attached to the body of a butterfly made out of Play-Doh
Figure 8. An example design with four LEDs in parallel. The wings of the butterfly are made from conductive Play-Doh and the body in the middle (yellow) is made from insulating modeling clay.

Troubleshooting

For troubleshooting tips, please read our FAQ: Electric Play Dough Project 2: Rig Your Creations With Lots of Lights!.
