Invent an Interactive Toy with a Raspberry Pi
|Areas of Science||
Electricity & Electronics
|Time Required||Very Short (≤ 1 day)|
|Material Availability||This project requires a Complete Raspberry Pi Projects Kit, available from our partner Home Science Tools. The kit can be used to do seven other projects.|
|Cost||Very High (over $150)|
AbstractDid you ever have a favorite toy like an action figure or doll that could light up, make noise, or move? This project will show you how to make your own interactive toy using the Raspberry Pi Projects Kit. Check out the video to see what this simple, but fun, project looks like. The version you make does not have to be a robot; it can be any shape and have any sound effects you want.
Cite This PageGeneral citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.
Last edit date: 2020-04-01

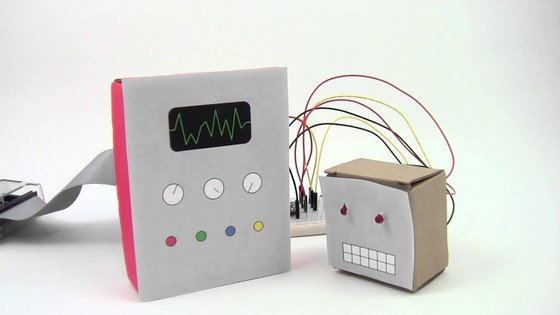

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the magnet-sensing circuit in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).
You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your toy to be able to do, then work through the rest of the design process until you have a completed project to show off at your science fair.
If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the art project as a tool to help answer. For example, how sensitive is the magnetic sensor? How close does the magnet need to be in order to trigger the lights and sound effects?
- Raspberry Pi Foundation (n.d.). Teach, Learn, and Make with Raspberry Pi - Raspberry Pi. Retrieved August 28, 2019 from https://www.raspberrypi.org
- jimblom (n.d.). Reed Switch Hookup Guide. SparkFun Electronics. Retrieved August 28, 2019 from https://learn.sparkfun.com/tutorials/reed-switch-hookup-guide/all
- Science Buddies (n.d.). Raspberry Pi Setup. Retrieved August 28, 2019 from https://www.sciencebuddies.org/science-fair-projects/project-ideas/raspberry-pi
News Feed on This Topic
This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:
- Raspberry Pi Projects Kit (if you do not already own a Raspberry Pi), comes with:
- Raspberry Pi model 3B+
- Micro-USB power cable
- HDMI cable*
- Clear plastic case for Raspberry Pi
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick link to Science Buddies instructions
- Raspberry Pi Circuit Parts Only Kit (if you already own a model 2B or higher), comes with:
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick links to Science Buddies instructions
To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):
- TV or computer monitor with HDMI input*
- USB keyboard and mouse
*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.
To do this specific project, you will need the following circuit parts from your kit:
- Male-male jumper wires (3)
- Male-female jumper wires (4)
- LEDs (2)
- Resistors (2)
- Magnetic sensor
You will also need the following materials, not included in your kit:
- Arts and crafts supplies to build your toy (cardboard, fabric, pipe cleaners, googly eyes, glue, etc.)
Recommended Project Supplies

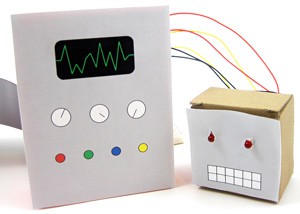

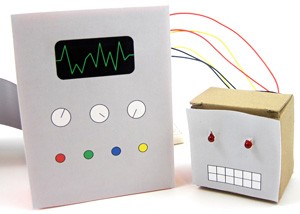

Playing with toys you buy at the store is fun, but imagine playing with a toy you have designed and made! In this project, you will learn how to design an interactive toy like the robot in the video below. The robot is made with a magnet sensor that can detect when a magnet is nearby. If you have not already, you will need to set up your Raspberry Pi before you can start the project.
Writing Your Program
If you have never written a program in Scratch before, watch this video to learn how:

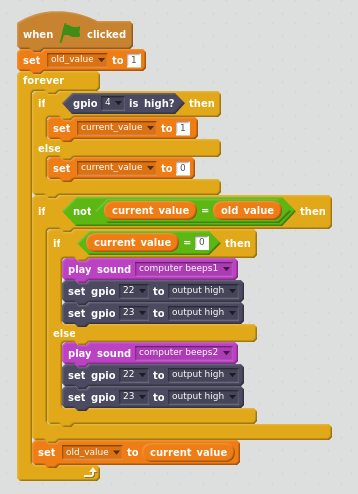

The program for this project will tell your "puppet" to do one thing when you bring the magnet close to the magnet sensor, and something else when you move the magnet away. Create the following program in Scratch. Read the tips below the screenshot if you need help.
- If you do not see the set gpio __ to ____ blocks, click More blocks then Add an extension to add the Pi GPIO extension.
- To create a variable, click Data then Make a variable. Variables are convenient when you need to use a number multiple times in a program.
- The __ = __ block can be found under Operators. You use this block to check if two numbers are equal to each other.
- The not __ block can be found under Operators. Along with an if block, you can use this block to check if a certain condition is not true.
Building Your Circuit
To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:
Before you build your "toy" for this project, it is a good idea to get a sense of how the circuit works on a breadboard. This video gives a quick demonstration of how the circuit works (without the sound effects):
To build the circuit, you will need jumper wires, LEDs, and resistors.

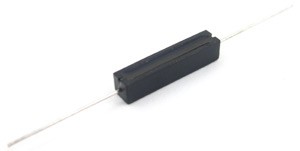

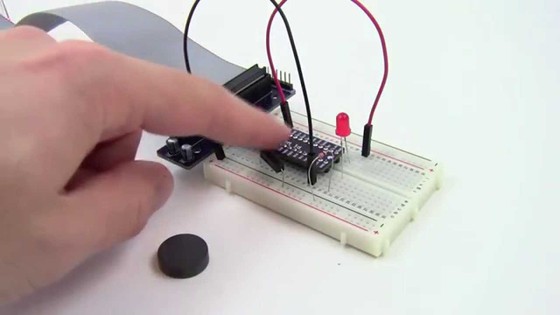

You will also the magnet sensor:

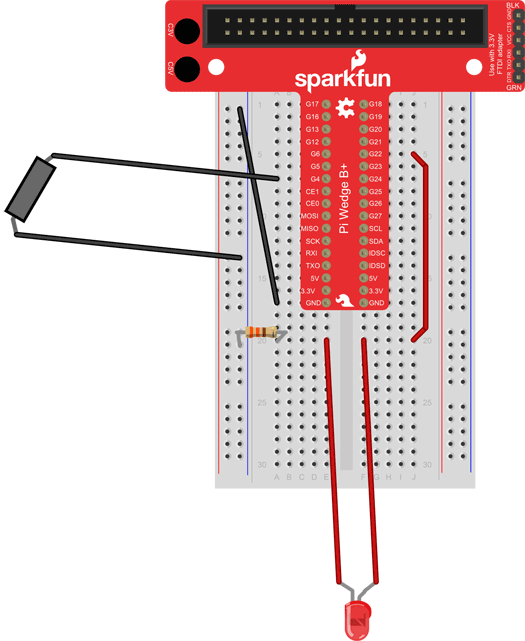

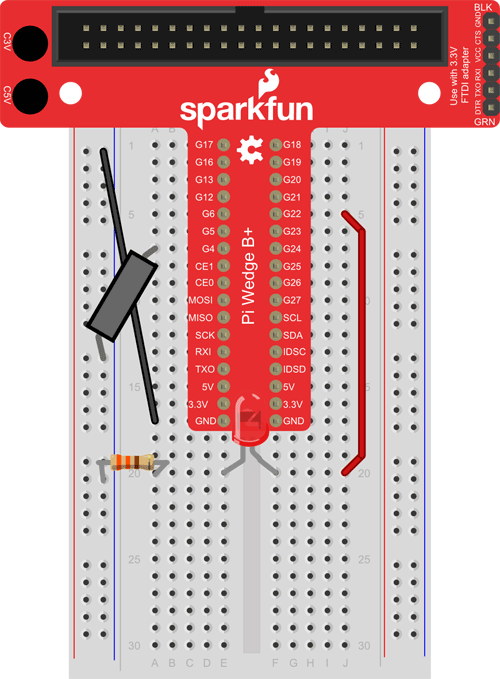

Connect the parts to your breadboard as shown in Figure 7. Note: The instructions list a red LED, but you can pick any color you want.
|Part||Picture Reference||First Hole||Second Hole|
|Red M-M jumper wire||J5 |
(Pi Wedge G22)
|Black M-M jumper wire||A17 |
(Pi Wedge GND)
|Magnet sensor||A7||Ground bus|

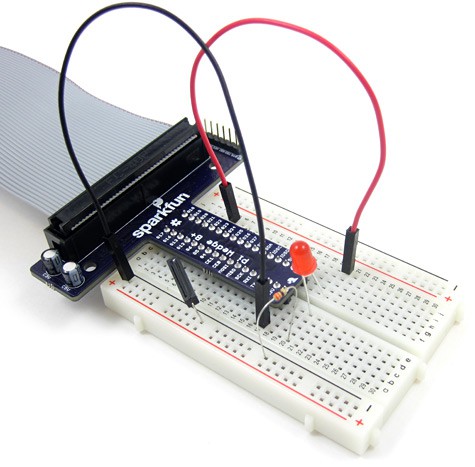

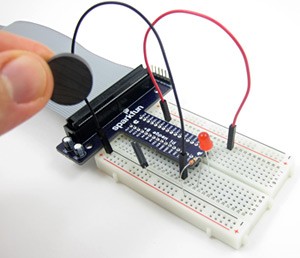

Your circuit should now look like this (you can add more LEDs later):
Testing Your Circuit

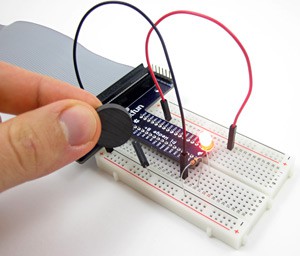

Now, make sure your program and circuit work. Click the green flag to run your program, and then hold the magnet close to the magnet sensor. The LED should light up, and the sound effect you picked should play once. When you move the magnet away, the LED should turn off, and the other sound effect should play once. If everything works properly, then you are ready to connect the circuit to your puppet.
Connecting Your Puppet

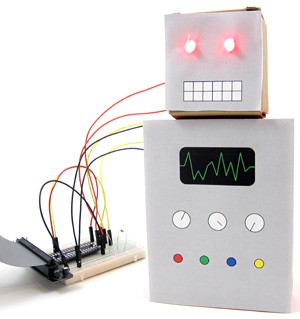

Now you are ready to connect your circuit to your "puppet." In addition to connecting the LEDs, you also need to connect the magnet and magnet sensor so they will be close enough to each other. This video shows you how everything is connected inside the robot from the demonstration video:
Take some time to plan out how you want to connect everything to your puppet. Be creative with what action you want to use to activate the magnet sensor. For example, you could design a hat with a magnet inside, and put the magnet sensor inside the top of the puppet's head. Or, you could put the magnet in the puppet's hand, and the magnet sensor somewhere in the puppet's body, so it activates when you bend the arm.
Make sure you securely attach the magnet, magnet sensor, and LEDs to your puppet using tape or glue (tape might be easier to remove if you want to re-use the parts for a different project later). Also make sure you still have access to the leads of the LEDs and magnet sensor, so you can connect the female ends of jumper wires to them. Use the male-female (M-F) jumper wires to connect the components to the same holes where they were originally placed on the breadboard. Refer to the Create Light Up Artwork with a Raspberry Pi project if you need help figuring out how to use the M-F jumper wires.

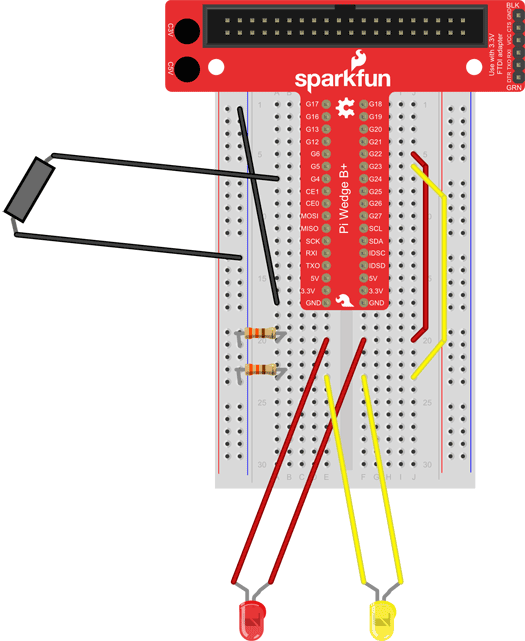

Your program already has the code to light a second LED, connected to pin G23 on the Pi Wedge. Can you figure out how to connect this LED to your circuit? Look at the troubleshooting tip below if you need help.
Testing Your Puppet

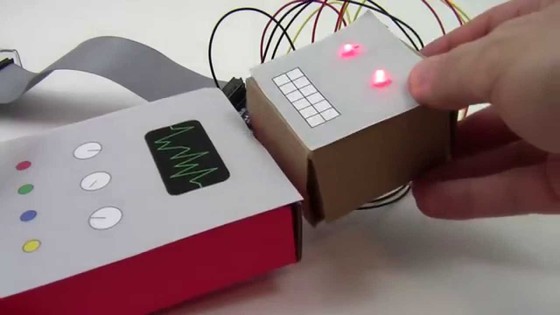

Once you have everything assembled, click the green flag to run your program. Adjust your puppet to bring the magnet close to the magnet sensor, then move it away. Do the LEDs turn on and off, and the sound effects play properly? If so, congratulations, you have created your own interactive toy! If something does not work, see the troubleshooting tips below.
There are plenty of possibilities for how you can modify or improve your puppet. Here are just a few ideas:
- Your kit contains two magnets and two magnet sensors. Add a second magnet and sensor to make the puppet respond to two unique actions.
- Add more LEDs to your puppet. Make the LEDs flash or blink in a certain pattern instead of just staying on or staying off. See the Build an Electronic Piano with a Raspberry Pi project for instructions on adding more LEDs.
- Make your puppet respond to motion. See the Make a Motion Sensor Alarm with a Raspberry Pi project for instructions on using the motion sensor.
- Make your puppet react to light and darkness. See the Create Light Up Artwork with a Raspberry Pi project for instructions on using the light sensor.
For troubleshooting tips, please read our FAQ: Invent an Interactive Toy with a Raspberry Pi.
Keep the fun going! Find local opportunities related to this project.Register on ActivityHero
If you like this project, you might enjoy exploring these related careers:
