Introduction

A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the light-sensing circuit in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.

raspberry pi 3B+

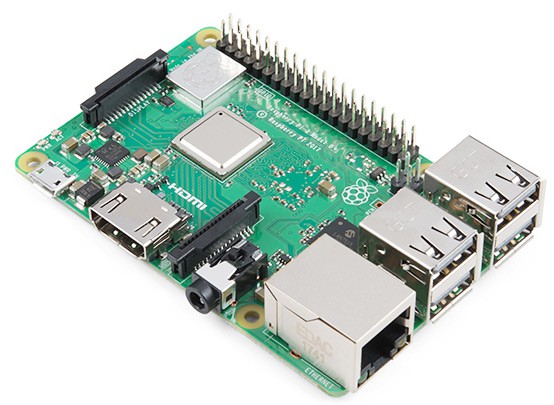

Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).

You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your darkness-activated art project to be able to do, then work through the rest of the design process until you have a completed project to show off at your science fair.

If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the art project as a tool to help answer. For example, how sensitive is the light sensor to different lighting conditions? At what threshold will it cause your project's lights to turn on or off? How do people of different ages interact with the art?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment Product Kit Available

This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:

To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):

  • TV or computer monitor with HDMI input*
  • USB keyboard and mouse

*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.

To do this specific project, you will need the following circuit parts from your kit:

  • Male-male jumper wires (5)
  • Male-female jumper wires (8)
  • LEDs (4)
  • Resistors (4)
  • Light sensor

You will also need the following materials, not included in your kit:

  • Art supplies for a project of your choice (for example, paper and paint for a painting, or clay for a sculpture)
  • Tape

Recommended Project Supplies

Get the right supplies — selected and tested to work with this project.
Project Kit: $199.95
View Kit

Experimental Procedure

Introduction

In this project, you can let your artistic side "shine" by lighting up a drawing, painting, or sculpture. You will add LEDs to a piece of art that will automatically turn on when the room gets dark. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this video for a demonstration:

Writing Your Program

If you have never written a program in Scratch before, watch this video to learn how:

The program for this project uses a loop to constantly monitor a GPIO pin that is connected to the light sensor. Depending on whether that GPIO pin is high or low, it uses other GPIO pins to turn the LEDs on or off. Create the following program in Scratch. Be careful: this program uses the if/else block, which is not the same as the if block.

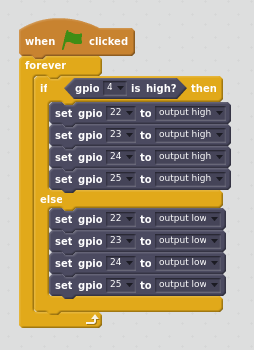

raspberry pi 5.1 scratch screen shot
Figure 2

icon learn

Learn More About:  How does the program work?

  [Show]

Building Your Circuit

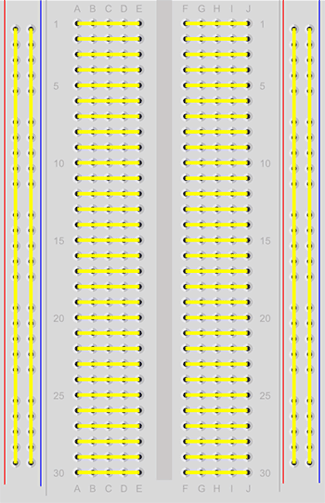

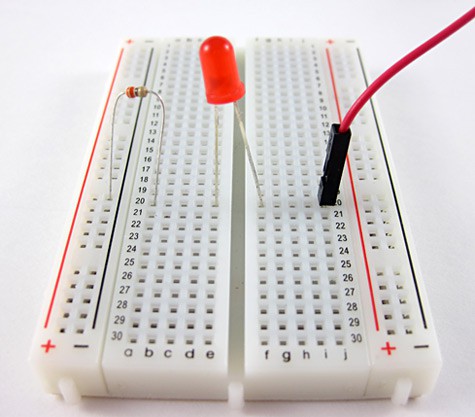

To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:

To build the circuit for this project, you will need your male-male (M-M) jumper wires, LEDs (colors of your choice), and resistors. If you have not done the Build an Electronic Piano with a Raspberry Pi project yet, that is a good place to start to learn about these circuit components.

M-M jumper wires
Figure 3
raspberry pi alligator clip red
Figure 4
330 resistors
Figure 5

You will also need the light sensor, which looks like this:

raspberry pi  photoresistor
Figure 6

Connect everything to the breadboard, as shown in Figure 7.


icon reminder

Helpful Reminder:  How to use a breadboard

  [Show]

Part Picture Reference First Hole Second Hole
Red LED LED red F20
(long lead)
E20
(short lead)
Green LED LED green F23
(long lead)
E23
(short lead)
Blue LED LED blue F26
(long lead)
E26
(short lead)
Yellow LED LED yellow F29
(long lead)
E29
(short lead)
Black M-M jumper wire red M-M jumper A17
(Pi Wedge GND)
Ground bus
(left side)
Red M-M jumper wire red M-M jumper J5
(Pi Wedge G22)
J20
Green M-M jumper wire green MM jumper J6
(Pi Wedge G23)
J23
Blue M-M jumper wire blue MM jumper J7
(Pi Wedge G24)
J26
Yellow M-M jumper wire yellow MM jumper J8
(Pi Wedge G25)
J29
Resistor resistor 330 A20 Ground bus
(left side)
Resistor resistor 330 A23 Ground bus
(left side)
Resistor resistor 330 A26 Ground bus
(left side)
Resistor resistor 330 A29 Ground bus
(left side)
Light sensor raspberry pi  photoresistor narrow A7
(Pi Wedge G4)
Ground bus
(left side)

raspberry pi  starry night 4 LEDs on breadboard

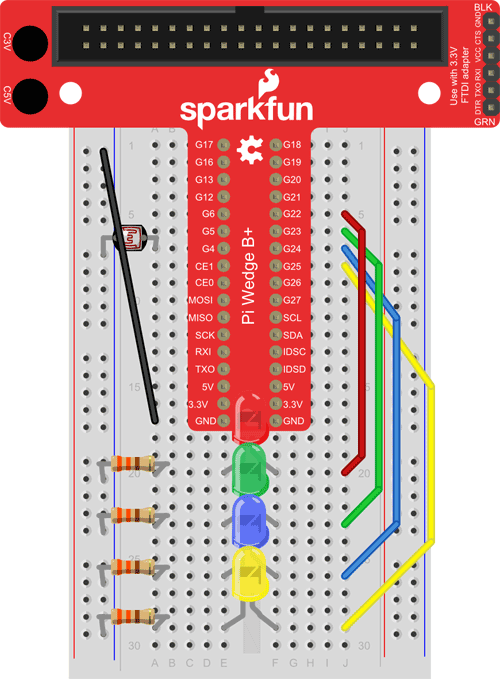

Figure 7

Your circuit should now look like this:

raspberry pi  starry night circuit

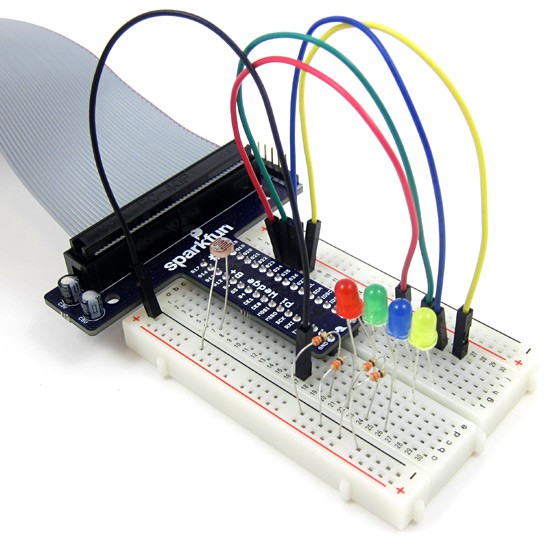

Figure 8

icon learn

Learn More About:  How does the circuit work?

  [Show]

Testing Your Program on the Breadboard

It is a good idea to make sure your program and circuit are working while you have everything assembled on the breadboard, before you start connecting things to your art project. Run your program by clicking the green flag towards the top of the Scratch window. Nothing should happen, which is good! The LEDs are supposed to turn on automatically when it is dark. Now, turn off all the lights in the room, and close the blinds on any windows. The LEDs should automatically turn on. If this works, you are ready to connect the LEDs to your artwork.

If you are in a room where you cannot reduce the light levels very much (for example, a room with a skylight, or without blinds or curtains on the windows), try covering the light sensor with your finger or your entire hand, or covering the sensor with an opaque object like a plastic cup. This will block light from reaching the sensor, and should cause the LEDs to turn on.

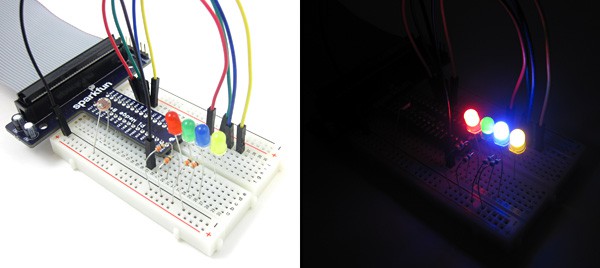

raspberry pi  starry night LEDs breadboard
Figure 9

icon trouble

Troubleshooting:  My LEDs do not turn on!

  [Show]

Creating Your Art and Connecting the LEDs

Once you are sure that your program and circuit are working correctly, you are ready to connect the LEDs to your art project. You can do this using the male-female (M-F) jumper wires from your kit. The M-F jumper wires are longer than the M-M wires, and they only have a metal pin on one end.

raspberry pi  M F jumper wires
Figure 10

You can connect an LED to the jumper wires by pressing the leads of the LED into the female ends of two wires, as shown below. The wires' grip on the LED is not super tight, and the LED may fall out if you tug on it gently or when you move your artwork around, so it helps to use a piece of tape to secure the LED to the wires.

raspberry pi  LED M F jumper wires
Figure 11

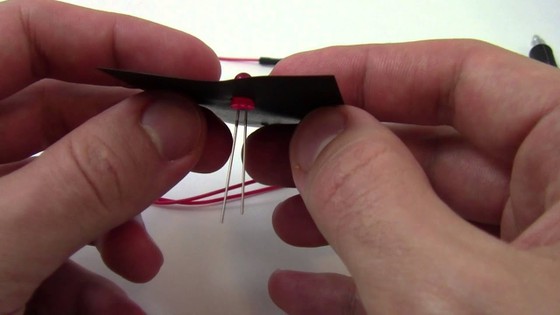

This video shows you how to securely attach the LEDs to your art project and the female ends of your M-F leads:


As you saw in the video, you need two M-F leads for each LED. Attach the female ends, as shown in the video above. Then, you will need to plug the male ends of the jumper wires back into the same breadboard holes where the LEDs' leads were originally. Here is a simplified diagram that just shows the red LED. On the left is the original connection with the LED directly in the breadboard. On the right, the LED is connected with jumper wires. It is still important to connect the LED's long lead to hole F20, and the LED's short lead to hole E20.

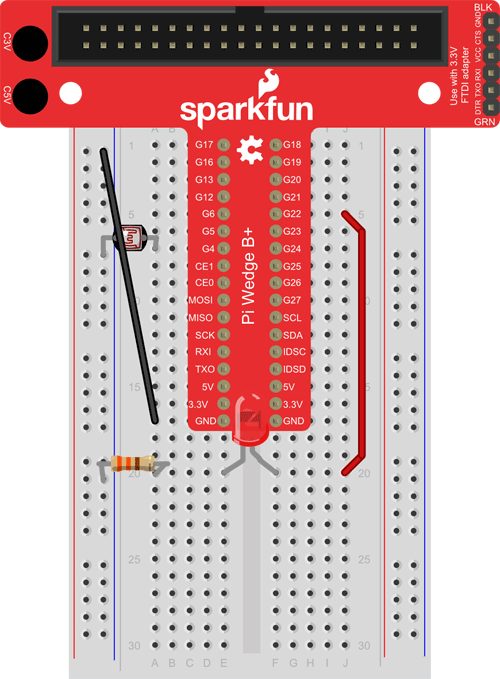

raspberry pi  starry night 1 LED
Figure 12

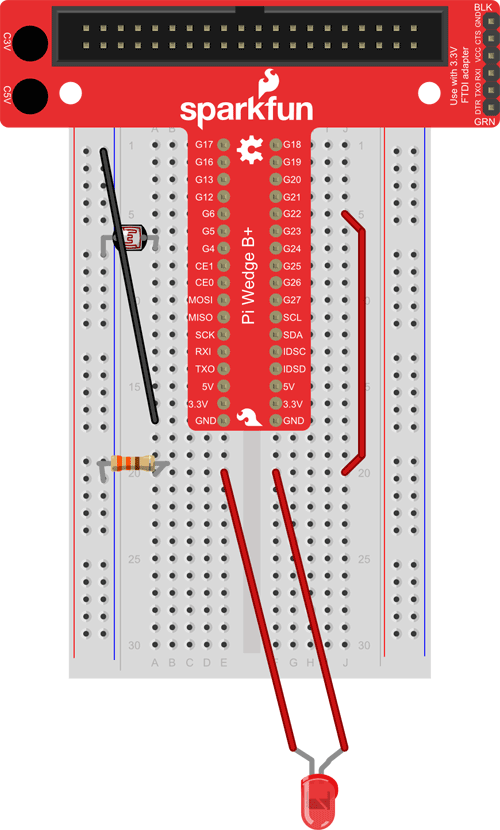

raspberry pi  starry night 1 LED jumpers
Figure 13

Here is a picture of all four LEDs connected to an art project. Be careful, those long jumper wires can get tangled!

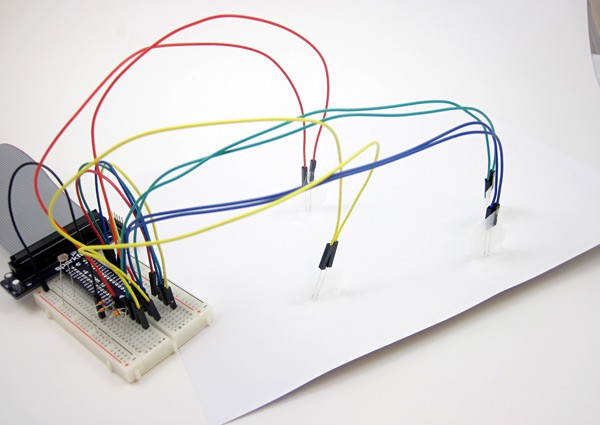

raspberry pi  starry night setup
Figure 14

Now, run your program again by clicking the green flag. Turn off the lights in the room (and close doors and windows if necessary), and your LEDs should light up your artwork!

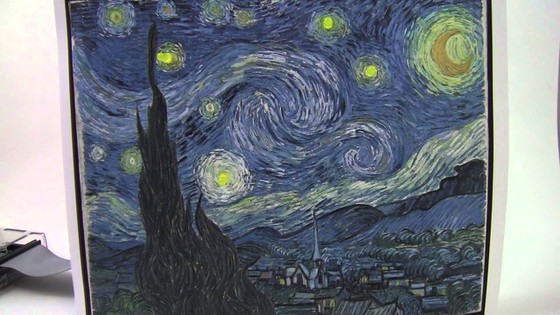

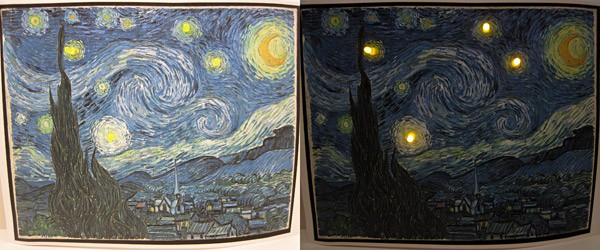

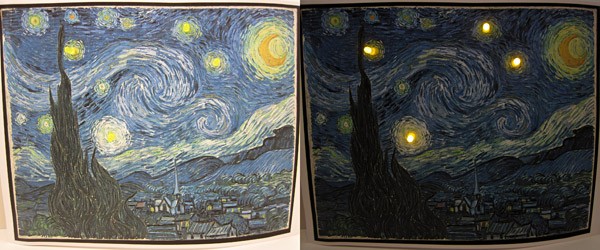

raspberry pi  starry night  painting
Figure 15

icon trouble

Troubleshooting:  One or more of my LEDs do not light up!

  [Show]

Going Further

Your imagination is the only limit with what you can do with the Raspberry Pi and your artwork. Here are a few ideas.

  • Make the LEDs flash or blink instead of just staying on all the time. You can do this by putting wait commands in between turning the LEDs on and off.
  • Make your program play sound effects when the LEDs change status from on to off, or vice versa. It will be a bit of a programming challenge to figure out how to make the sound only play once, instead of over and over again. You can skip ahead to the Invent an Interactive Toy with a Raspberry Pi project if you want to figure out the Scratch code to do this.
  • Use the motion sensor to make your artwork interactive. For example, you could make the program flash the LEDs or play a sound when a visitor walks by. See the Make a Motion Sensor Alarm with a Raspberry Pi project for instructions on using the motion sensor.

icon reminder

Helpful Reminder:  Using Sound Effects

  [Show]
.

Troubleshooting

For troubleshooting tips, please read our FAQ: Create Light Up Artwork with a Raspberry Pi.



Share your story with Science Buddies!

I did this project Yes, I Did This Project! Please log in (or create a free account) to let us know how things went.

Frequently Asked Questions (FAQ)

If you are having trouble with this project, please read the FAQ below. You may find the answer to your question.

Kit General Questions

Setting Up and Using Your Raspberry Pi FAQ

These answers apply to the Raspberry Pi Model 3B+ which comes with the Raspberry Pi Projects Kit. If you are using a different Raspberry Pi model you will need to do some research on your own—we suggest starting with the Raspberry Pi Foundation's Setting up your Raspberry Pi page.

Kit General Answers

Q: Who is the kit appropriate for?
A: The kit is meant for anyone (ages 8 and up) who wants to learn some basic programming and electronics skills while having fun. Students up to age 10, or older if their reading skills are behind grade level, may need adult assistance in reading and following the on-screen instructions. The projects included in the kit were beta tested and approved by students ages 8 to 16.

Q: Are the kit parts reusable?
A: Yes, all the electronics components in the kit can be re-used to do new projects or to repeat the projects.

Q: Aren't there other Raspberry Pi kits on the market? How is yours different?
A: Yes, there are other Raspberry Pi kits, and some of them are quite good! The Raspberry Pi Projects Kit and Raspberry Pi Circuit Parts Only Kit have been designed to contain the specific materials needed to do the accompanying Science Buddies Raspberry Pi projects. Our kit and associated projects are specifically meant for people who have no prior experience programming or connecting circuits. The projects are 100% beginner friendly with clear on-screen instructions, pictures, and videos. We think the kit, with its associated projects, is one of the most fun kits out there! But, if you are already an ace programmer or electronics guru, you may not find this the best fit for your own personal use. Even so, it may be a fun way for you to introduce others to programming and electronics.

Q: I already have a Raspberry Pi. Can I just buy the circuit parts separately?
A: Yes! We sell two different kits: the Raspberry Pi Projects Kit which includes a Raspberry Pi and the required accessories, and the Raspberry Pi Circuit Parts Only Kit, which only contains the additional circuit parts you need to do the Science Buddies projects. Both kits contain an SD card with the Raspbian operating system and a desktop shortcut to the Science Buddies project instructions.

Q: What programming language do the projects use?
A: The projects use Scratch 2. Scratch is a "graphical" programming language developed by the MIT Media Lab. It allows you to write code by clicking, dragging, and snapping together color-coded blocks. This allows beginners to write working code without worrying about formatting or typos. On the Raspberry Pi, Scratch allows you to control the general purpose input and output (GPIO) pins so your program can interact with a circuit in the physical world.

Note: three different versions of Scratch (1, 2, and 3) are available for the Raspberry Pi. The instructions for the Science Buddies projects (including example code) are specifically written for Scratch 2, which runs well on the Raspberry Pi model 3B+. If you have an older model Raspberry Pi, Scratch 2 may run more slowly, or may not run at all. If you want to use a different version of Scratch, you will need to consult the official documentation for Scratch 1.4 or Scratch 3 and modify the programming steps accordingly.

Setting Up and Using Your Raspberry Pi FAQ Answers

Q: How do I connect my Raspberry Pi to my TV or computer monitor?
A: The easiest way to set up your Raspberry Pi is to use an HDMI cable (included in the Science Buddies Raspberry Pi Projects Kit) to connect to a TV or computer monitor that has built-in speakers. If you are using a computer monitor with an HDMI port but no built-in speakers, you will also need separate speakers or headphones with a 3.5 mm audio plug (a regular "headphone jack").

If your TV or monitor does not have an HDMI port, you will need an HDMI to DVI or HDMI to VGA adapter (see pictures in table below). DVI and VGA do not transmit sound, so you will need separate headphones or speakers if you are using one of those options.

HDMI DVI VGA
HDMI port
DVI port
VGA port

Q: Can I use a laptop as a display and/or keyboard?
A: The short answer is "not easily." Many newer laptops have HDMI ports, but they only function as HDMI out, to send a video signal from the laptop to a television or projector. They do not work as HDMI in to display an external signal on the laptop's screen. The laptop's keyboard is only designed to work with the laptop itself, not as a standalone keyboard for an external device like the Raspberry Pi.

The longer answer is that, similar to the Remote Desktop feature on Windows and Mac computers, you can use special software to remotely operate a Raspberry Pi that is connected to the internet. This would allow you to control a Raspberry Pi using your laptop's screen and keyboard. This option is only recommended for advanced users, and you can find instructions here.

Q: How do I connect my Raspberry Pi to the internet?
A: Unlike earlier models, the Raspberry Pi 3B+ contains built-in Wi-Fi functionality. It does not require an external USB Wi-Fi adapter. You can connect your Raspberry Pi to the internet by clicking the internet icon in the taskbar and searching for available Wi-Fi networks, just like you would on a Windows or Mac computer. Your Raspberry Pi also has an ethernet port, which you can use to plug directly into a router for a hardwired connection.

Q: How do I shut down or reboot my Raspberry Pi? There's no power button!
A: Unlike most computers, the Raspberry Pi does not have a power button. You can shut down or reboot by clicking the raspberry icon in the upper left corner of your desktop, then select Shutdown. After the Raspberry Pi has shut down, it is safe to unplug the micro-USB power cable. Plug the cable back in to reboot. Important: never unplug the power cable while the Raspberry Pi is still running. This can corrupt the SD card.

Q: How can I adjust the Raspberry Pi's display resolution?
A: Click the Raspberry Pi logo in the top-left corner of your desktop. Select Preferences, then Raspberry Pi Configuration, then click the Set Resolution... button on the System tab.

Q: I have everything connected properly. Why can't I hear any sound?
A: Right-click the speaker icon on the desktop taskbar. This allows you to manually select HDMI or analog (the headphone jack) for sound output. Make sure you have the proper output selected. Also, make sure your Scratch program is set to play a sound. You can write a simple program to test if your sound is working using the "when space key pressed" and "play sound meow" blocks.

Q: Why won't my Raspberry Pi turn on?
A: If your Raspberry Pi will not turn on (the screen remains blank after everything is plugged in), go through this checklist to make sure everything is set up properly.
  1. Make sure your SD card is pushed in all the way (see Figure 1).
  2. Make sure the red power LED on your Raspberry Pi (labeled "PWR," near the micro-USB port, see Figure 2) is on. This means the Raspberry Pi is receiving power from the micro-USB port. If the LED is not on, make sure you pushed the micro-USB connector into the micro-USB port all the way.
  3. When you first plug the micro-USB cable in, the green LED (labeled "ACT," next to the PWR LED, see Figure 2) should flash several times. This LED flashes when the Raspberry Pi reads data from the SD card. After the Raspberry Pi is done booting up, it should turn off. If it does not flash at all, your SD card might not be inserted properly. Go back to step 1.
  4. Make sure your display (television or monitor) is turned on. If your display is turned off, you will not see anything on the screen, even if the Raspberry Pi is on.
  5. Make sure your display is set to the correct input. Many modern TVs have more than one HDMI input, and some computer monitors have DVI or VGA inputs in addition to HDMI.

Raspberry Pi SD card inserted properly and not all the way in

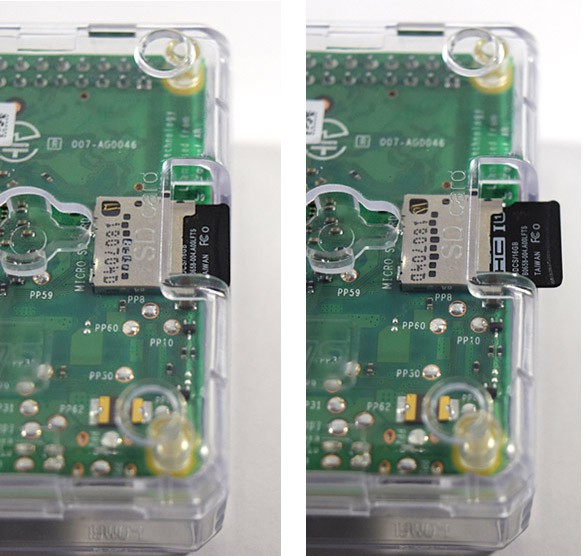

Figure 1. A micro-SD card that is inserted properly (left) and one that is not pushed in all the way (right).

Raspberry Pi status LEDs

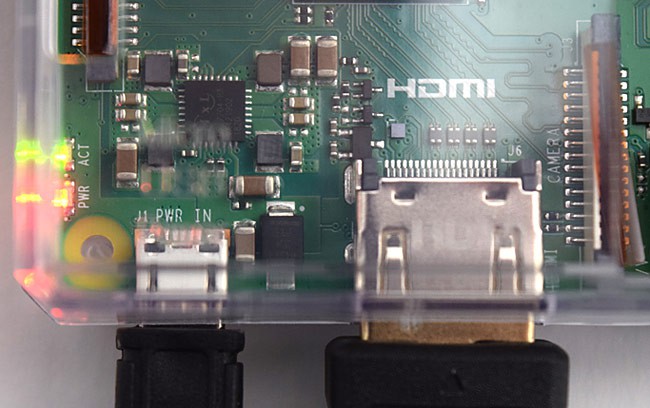

Figure 2. The PWR (red) and ACT (green) LEDs near the micro-USB port.
