Flippy, the Dancing Robot

Difficulty
Time Required Average (6-10 days)
Prerequisites None
Material Availability This project requires robotics parts from an electronics vendor. See the Materials and Equipment list for details. Estimated project time includes shipping for the parts.
Cost Low ($20 - $50)
Safety Adult supervision is required when using a hot glue gun or super glue.

Abstract

Have you ever seen a robot dance? In this project you will build your own simple flipping, tumbling robot that can dance around on the floor or a tabletop! If you have never made a robot before and would like to get started with a fun, easy project, this is a great place to begin. You will follow directions to make a basic robot, and then make your own additions to make it even better!

Objective

Build a dancing robot and improve its design to make it sturdier.

Credits

Ben Finio, PhD, Science Buddies

Cite This Page

MLA Style

Finio, Ben. "Flippy, the Dancing Robot" Science Buddies. Science Buddies, 28 July 2017. Web. 21 Sep. 2017 <https://www.sciencebuddies.org/science-fair-projects/project-ideas/Robotics_p027/robotics/flippy-the-dancing-robot>

APA Style

Finio, B. (2017, July 28). Flippy, the Dancing Robot. Retrieved September 21, 2017 from https://www.sciencebuddies.org/science-fair-projects/project-ideas/Robotics_p027/robotics/flippy-the-dancing-robot

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.


Last edit date: 2017-07-28

Introduction

Imagine inviting your friends over for a dance party. You've got delicious snacks and some great music on, but when they walk in the door it's not you they see dancing around, but a dancing robot! In this project you will build a robot, like Flippy the dancing robot, shown in Figure 1, that can dance, flip, and tumble around the floor. The video after Figure 1 shows the robot in action.

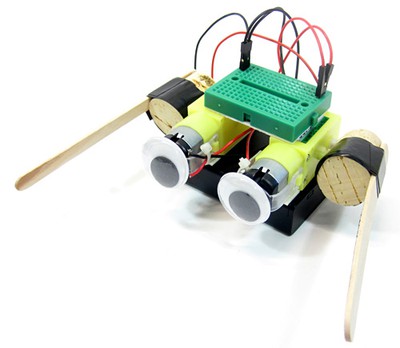

flippy the dancing robot
Figure 1. Flippy the dancing robot (Note: We decided to name this robot Flippy, but you can name your robot whatever you want).

A video demonstration of the dancing robot.

The robot uses two small motors in order to move. Each motor spins around when it is turned on, and has a popsicle stick attached to it as a "leg," which pushes the robot around when it moves. In order to power the motors, the robot also needs a battery, which provides electricity to the motors. Electricity powers battery-operated devices that you use every day, like toys or television remotes, and also powers things that plug into wall outlets like lamps. When you connect the motors to the battery, you complete an electrical circuit, which allows electricity to flow and make the motors spin. Electricity cannot flow to the motor without a complete circuit. If you want to learn more about electricity, you can read the Electricity, Magnetism, & Electromagnetism Tutorial.

In this project, you will use a breadboard (the green rectangular piece in Figure 1) to make it easier to connect the wires in your circuit. Breadboards make it very easy for beginners to make circuits, because the wire connections are not permanent. You can just pull the wires out if you make a mistake. You can learn how to use a breadboard in the Science Buddies reference How to Use a Breadboard.

There is just one problem—all that flipping and tumbling around can be pretty hard on the robot. If you are not careful, it could even cause some of the pieces to fall off! In this project, you will put your engineering skills to the test to see if you can design and build a sturdier dancing robot.

Terms and Concepts

  • Robot
  • Motor
  • Battery
  • Electricity
  • Circuit
  • Breadboard
  • Row
  • Column

Questions

  • Why is a battery required to make the motors spin?
  • What is a breadboard, and what is it useful for?
  • If your robot falls apart, how do you think you could re-connect the pieces to make it stronger?

Bibliography

News Feed on This Topic


, ,
Note: A computerized matching algorithm suggests the above articles. It's not as smart as you are, and it may occasionally give humorous, ridiculous, or even annoying results! Learn more about the News Feed

Materials and Equipment

The following electronic components can be purchased from Jameco Electronics:

  • Geared DC motors with leads (2), part #2260834. Note that the motors are sold in a two-pack.
  • 3xAA battery holder with cover and switch, part #216144
  • Mini breadboard, part #2155452
  • AA batteries (must be ordered in multiples of 4, but this project only requires 3), part #198707

You will also need the following tools and supplies:

  • Corks (2)
  • Popsicle sticks (2)
  • Double-sided foam tape
  • Electrical tape or duct tape
  • Scissors
  • Small Phillips head screwdriver
  • Hot glue gun or super glue
  • Other materials you could use to help attach parts of your robot together. Here are some suggestions:
    • Rubber bands
    • Twist ties
    • String
    • Modeling clay
  • Lab notebook
  • Optional: Arts and crafts materials to decorate your robot (pipe cleaners, googly eyes, etc.)
  • Optional: Camera to take pictures of your robot

Disclaimer: Science Buddies occasionally provides information (such as part numbers, supplier names, and supplier weblinks) to assist our users in locating specialty items for individual projects. The information is provided solely as a convenience to our users. We do our best to make sure that part numbers and descriptions are accurate when first listed. However, since part numbers do change as items are obsoleted or improved, please send us an email if you run across any parts that are no longer available. We also do our best to make sure that any listed supplier provides prompt, courteous service. Science Buddies does participate in affiliate programs with Amazon.com, Carolina Biological, Jameco Electronics, and AquaPhoenix Education. Proceeds from the affiliate programs help support Science Buddies, a 501(c)(3) public charity. If you have any comments (positive or negative) related to purchases you've made for science fair projects from recommendations on our site, please let us know. Write to us at scibuddy@sciencebuddies.org.

Remember Your Display Board Supplies

ArtSkills sparkle letters

Holographic Poster Letters

ArtSkills buy now button
ArtSkills vinyl letters

Vinyl Letters & Numbers

ArtSkills buy now button
ArtSkills supplies trifold

ArtSkills Trifold with Header

ArtSkills buy now button

Share your story with Science Buddies!

I did this project I Did This Project! Please log in and let us know how things went.

Experimental Procedure

Note: This engineering project is best described by the engineering design process, as opposed to the scientific method. You might want to ask your teacher whether it's acceptable to follow the engineering design process for your project before you begin. You can learn more about the engineering design process in the Science Buddies Engineering Design Process Guide.

Building Your Robot

  1. Gather all the materials you need to build your dancing robot (see the Materials list). Figure 2 shows the main parts of the robot.

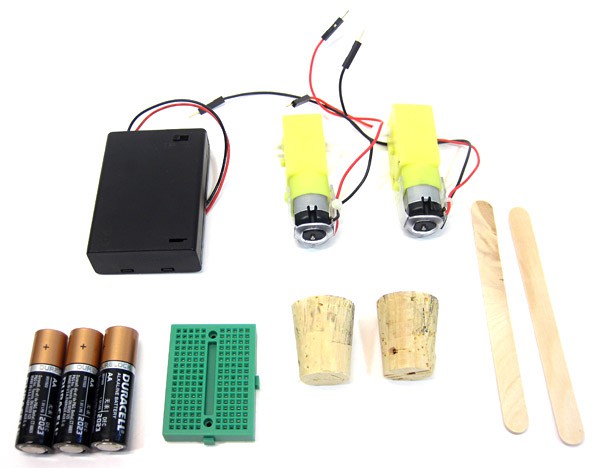

materials to build dancing robot
Figure 2. Some of the materials to build your dancing robot (note: some materials and tools, like scissors and tape, are not shown).

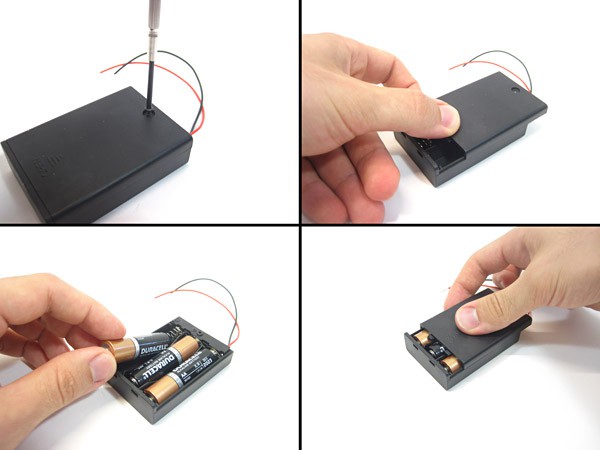

  1. Put the batteries in the battery holder as follows, and as shown in Figure 3.
    1. Use a small Phillips head screwdriver to remove the screw that holds the cover on the battery holder.
    2. Press down on the cover and slide it off the battery holder.
    3. Place the batteries into the battery holder. Make sure the "+" symbols on the batteries line up with the "+" symbols inside the battery holder.
    4. Slide the cover back onto the battery holder. It should click into place. You do not need to replace the screw.
Dancing robot battery holder
Figure 3. Put the batteries in the battery holder.

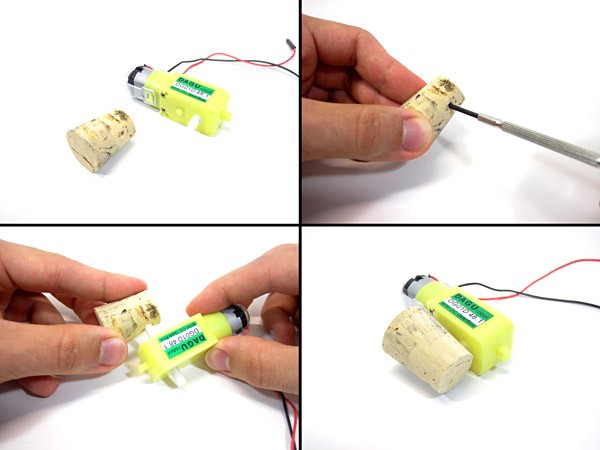

  1. Press corks onto the motor shafts as follows, and as shown in Figure 4.
    1. Carefully use the Phillips head screwdriver (or another pointy object, like a pen) to poke a hole in one side of the cork.
    2. Find the motor's shaft (the white part sticking out from the side), which is on the opposite side from the motor's wires. Firmly press the motor's shaft into the hole you made in the cork.
    3. Repeat steps 3.a.–3.b. for the second cork and motor.
attaching cork to motor for dancing robot
Figure 4. Mount the cork to the motor shaft.

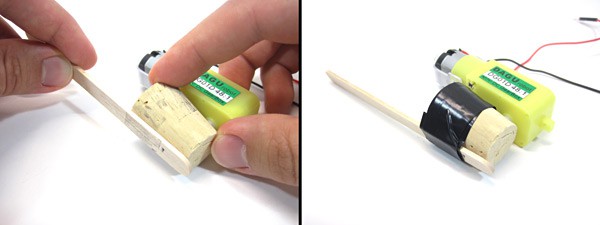

  1. Use electrical tape or duct tape to tape a popsicle stick to the cork, as shown in Figure 5. One end of the popsicle stick should be flush with the bottom of the cork and motor. Do this for both motors.
taping popsicle stick to cork for dancing robot
Figure 5. Tape a popsicle stick to the cork.

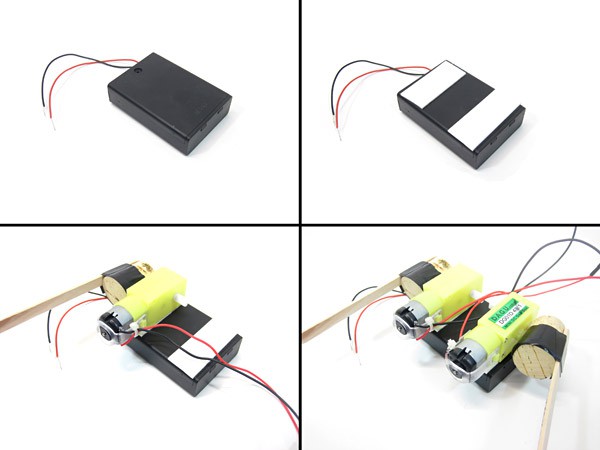

  1. Use double-sided foam tape to tape the motors to the battery holder, as shown in Figure 6.
    1. Cut two pieces of double-sided foam tape and place them on opposite ends of the back side of the battery holder (the side without the power switch).
    2. Firmly press the motors onto the double-sided tape so the corks are suspended from the sides (both left and right), as shown in Figure 6. The motors should be pointing in the same direction.
taping motors to battery holder for dancing robot
Figure 6. Tape the motors to the battery holder.

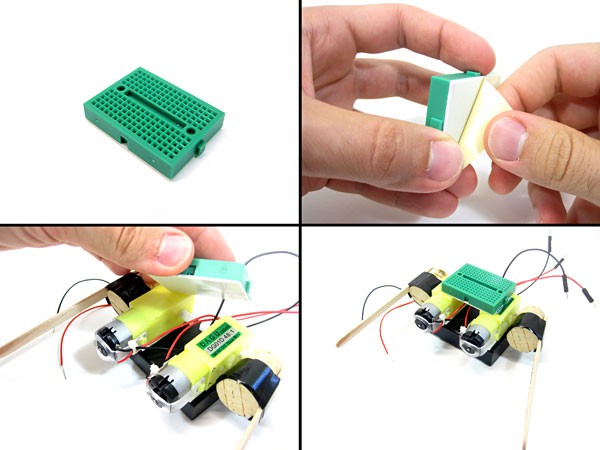

  1. Mount the breadboard on top of the motors, as shown in Figure 7.
    1. Peel the paper backing off the bottom of the breadboard, exposing the sticky adhesive.
    2. Firmly press the adhesive part of the breadboard onto the top of the motors.
mount breadboard to dancing robot
Figure 7. Mount the breadboard to the motors.

Connecting the Circuit

Before you connect your circuit, remember to check out the Science Buddies reference How to Use a Breadboard to learn more about breadboards. To connect the circuit for your robot, follow these steps:

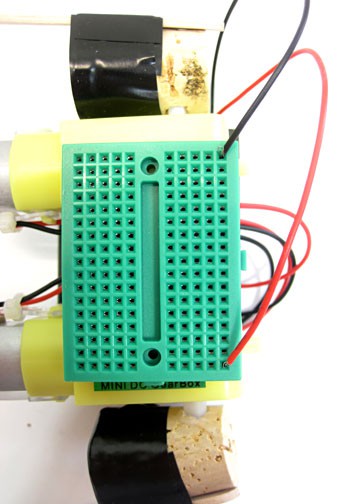

  1. Connect the battery holder to the breadboard, as shown in Figure 8.
    1. Orient the robot so the black and silver parts of the motors are pointing to the left, as shown in Figure 9.
    2. Plug the battery holder's black wire into the upper-right hole of the breadboard (where the first row and the far right column meet).
    3. Plug the battery holder's red wire into the lower-right hole of the breadboard (where the last row and the far right column meet).
connecting battery holder wires to dancing robot breadboard circuit
Figure 8. Connect the battery holder's wires to the breadboard.
  1. Connect one motor's wires to the breadboard, as shown in Figure 9.
    1. Make sure your battery holder's switch is in the OFF position.
    2. Pick one motor (it does not matter which one).
    3. Plug the motor's black wire into the first row of the breadboard, next to the battery holder's black wire.
    4. Plug the motor's red wire into the last row of the breadboard, next to the battery holder's red wire.
breadboard circuit
Figure 9. Connect the first motor's wires to the breadboard.
  1. Now it is time to test your first circuit.
    1. Hold your robot carefully in one hand, so your fingers and arm will be out of the way of the popsicle sticks when they spin.
    2. Use your other hand to turn the battery holder's switch to ON. Just one of the motors (the one you connected to the breadboard) should start spinning.
    3. If the motor does not spin, make sure you have the wires firmly pushed into the breadboard, and that they are arranged as shown in Figure 9.
      1. Remember, you need a complete circuit in order for the motors to work. If even one wire is disconnected, the motors will not spin.
      2. If you accidentally pushed a wire into the wrong hole, you can just pull it out and re-insert it into a different hole. This is the nice thing about breadboards; they make it very easy to fix mistakes when you are building a circuit.
    4. If the motor still does not spin, open up your battery pack and double-check to make sure the "+" symbols on the batteries line up with the "+" symbols inside the battery pack.
    5. If the motor still does not spin, try using fresh batteries.
    6. Once the motor is working, turn the battery holder's switch back to the OFF position.

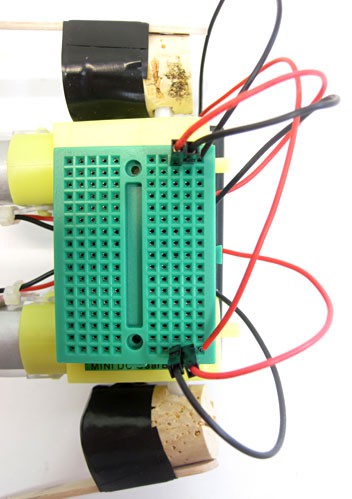

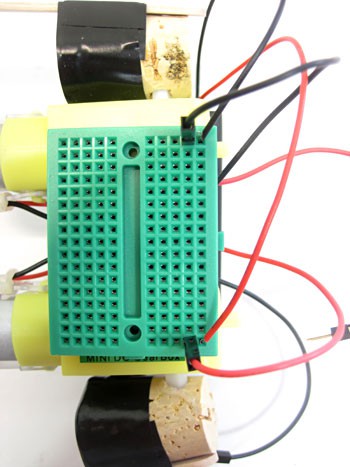

  2. Connect the second motor's wires to the breadboard, as shown in Figure 10.
    1. Note: You will plug this motor's wires in "backwards" (compared to how you plugged in the other motor's wires). This will make the motor spin in the opposite direction of the first one, causing the robot to "dance" instead of just rolling in a straight line.
    2. Plug the motor's red wire into the first row of the breadboard (next to the black wires from the battery holder and other motor). From left to right, the wires in the top row of the breadboard should now be red, black, black.
    3. Plug the motor's black wire into the last row of the breadboard (next to the red wires from the battery hold and other motor). From left to right, the wires in the bottom row of the breadboard should now be black, red, red.
connecting motor wires to dancing robot breadboard circuit
Figure 10. Connect the second motor's wires to the breadboard.
  1. Now, test your circuit again.
    1. Carefully hold the robot in one hand and turn the power switch to the ON position.
    2. The motors should spin in opposite directions. If one motor does not spin at all, or the motors spin in the same direction, double-check that your wiring matches what is shown in Figure 10.
  2. Congratulations, you just built your first robot! Spend some time admiring your creation, and start thinking about how you might want to decorate it or make it sturdier. Move on to the next section when you have some ideas.

Building a Better Robot

Now you are ready to follow the engineering design process to test and redesign your robot.

  1. First, you might want to spice your robot up by adding some decorations like googly eyes, as shown in Figure 11. How you decorate your robot is entirely up to you. You could add stickers, pipe cleaners, use markers to draw on the robot, or do anything else you want; googly eyes are just one idea to help you get started!

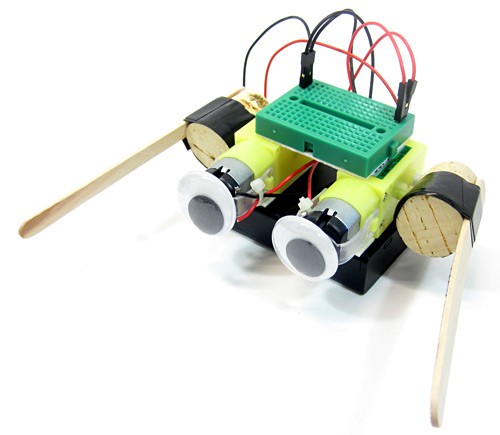

flippy the dancing robot
