Create Light Up Artwork with a Raspberry Pi
|Areas of Science||
Electricity & Electronics
|Time Required||Very Short (≤ 1 day)|
|Material Availability||This project requires a Complete Raspberry Pi Projects Kit, available from our partner Home Science Tools. The kit can be used to do seven other projects.|
|Cost||Very High (over $150)|

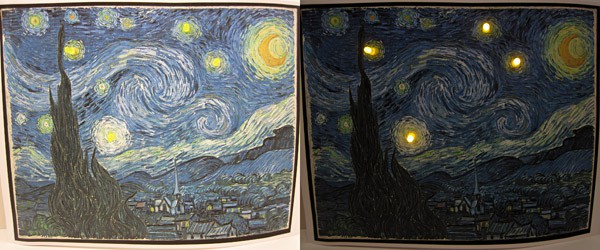

AbstractHave you ever seen night lights that automatically turn on when it gets dark? What about art projects, like paintings or sculptures, with embedded lights? This project will let you combine the two, by adding lights to an art project of your choice. You can make the lights automatically turn on when it gets dark using the Raspberry Pi Projects Kit. Check out the video to see what this simple, but fun, project looks like:
Cite This PageGeneral citation information is provided here. Be sure to check the formatting, including capitalization, for the method you are using and update your citation, as needed.
Last edit date: 2020-01-12
A Raspberry Pi (Figure 1) is a tiny computer that you can use to write programs and build and control your own electronic circuits, like the light-sensing circuit in this project. The circuit uses sensors to gather information from the world around it. You can use information from those sensors to tell your computer program what to do. Many electronic devices we use every day, like phones and video game controllers, use sensors in the same way.
Figure 1. A Raspberry Pi computer. (Image credit SparkFun Electronics, licensed under Creative Commons Attribution 2.0).
You can do this project just for fun, or turn it into an engineering or science project. To make it an engineering project, you will need to follow the engineering design process. Start by defining what you want your darkness-activated art project to be able to do, then work through the rest of the design process until you have a completed project to show off at your science fair.
If you want to use this for a science project, you will need to follow the scientific method. Start by coming up with a question for which you can use the art project as a tool to help answer. For example, how sensitive is the light sensor to different lighting conditions? At what threshold will it cause your project's lights to turn on or off? How do people of different ages interact with the art?
- Raspberry Pi Foundation (n.d.). Teach, Learn, and Make with Raspberry Pi - Raspberry Pi. Retrieved August 28, 2019 from https://www.raspberrypi.org
- lady ada (n.d.). Photocells. Adafruit. Retrieved August 28, 2019 from https://learn.adafruit.com/photocells/overview
- Science Buddies (n.d.). Raspberry Pi Setup. Retrieved August 28, 2019 from https://www.sciencebuddies.org/science-fair-projects/project-ideas/raspberry-pi
News Feed on This Topic
This project is written for the Science Buddies Raspberry Pi Projects Kit. There are two kit options available:
- Raspberry Pi Projects Kit (if you do not already own a Raspberry Pi), comes with:
- Raspberry Pi model 3B+
- Micro-USB power cable
- HDMI cable*
- Clear plastic case for Raspberry Pi
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick link to Science Buddies instructions
- Raspberry Pi Circuit Parts Only Kit (if you already own a model 2B or higher), comes with:
- All the circuit components to do all 8 Science Buddies Raspberry Pi projects
- 16GB SD card preloaded with Raspbian and quick links to Science Buddies instructions
To set up your Raspberry Pi, you will also need the following parts (not included in either kit option):
- TV or computer monitor with HDMI input*
- USB keyboard and mouse
*If you have a TV or monitor with a DVI or VGA input, you will need an adapter. If your monitor does not have built-in speakers, you will need external speakers or headphones. See FAQ for more information.
To do this specific project, you will need the following circuit parts from your kit:
- Male-male jumper wires (5)
- Male-female jumper wires (8)
- LEDs (4)
- Resistors (4)
- Light sensor
You will also need the following materials, not included in your kit:
- Art supplies for a project of your choice (for example, paper and paint for a painting, or clay for a sculpture)
Recommended Project Supplies

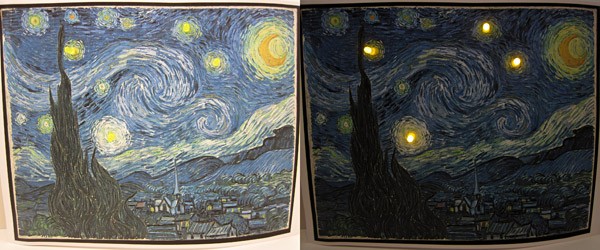

In this project, you can let your artistic side "shine" by lighting up a drawing, painting, or sculpture. You will add LEDs to a piece of art that will automatically turn on when the room gets dark. If you have not already, you will need to set up your Raspberry Pi before you begin. Watch this video for a demonstration:
Writing Your Program
If you have never written a program in Scratch before, watch this video to learn how:

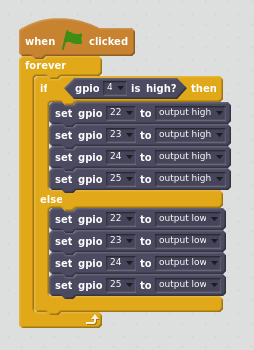

The program for this project uses a loop to constantly monitor a GPIO pin that is connected to the light sensor. Depending on whether that GPIO pin is high or low, it uses other GPIO pins to turn the LEDs on or off. Create the following program in Scratch. Be careful: this program uses the if/else block, which is not the same as the if block.
Building Your Circuit

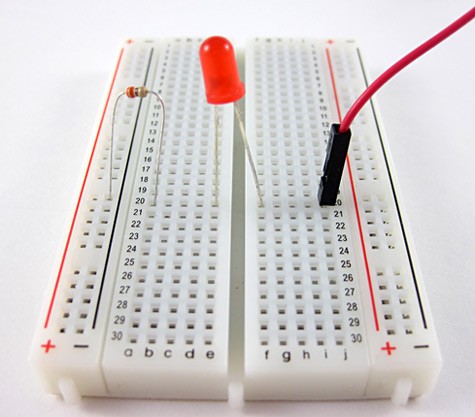

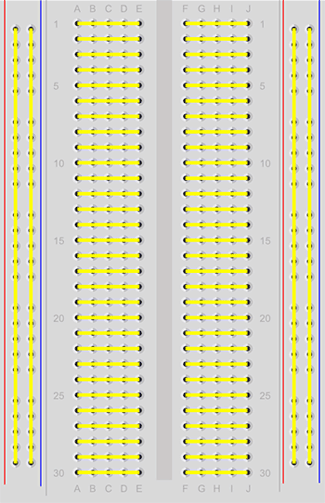

To build your circuit, you will need to use a breadboard. If you have not used a breadboard before, watch this video before you continue:

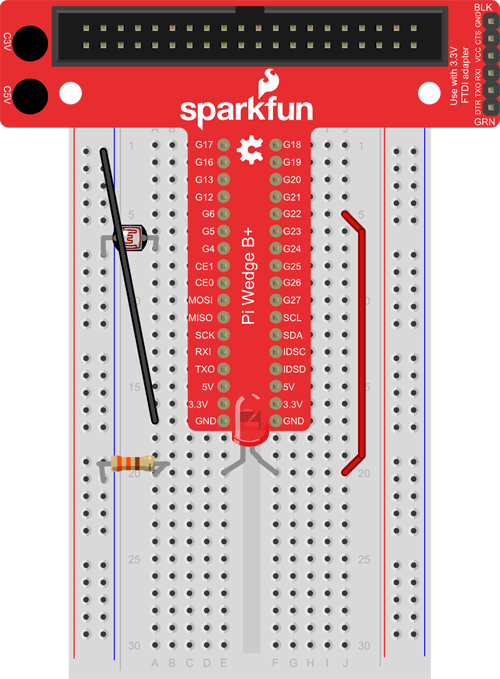

To build the circuit for this project, you will need your male-male (M-M) jumper wires, LEDs (colors of your choice), and resistors. If you have not done the Build an Electronic Piano with a Raspberry Pi project yet, that is a good place to start to learn about these circuit components.
You will also need the light sensor, which looks like this:

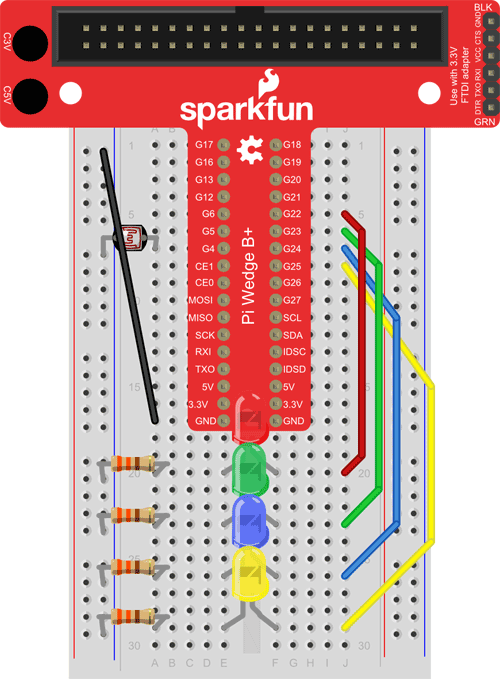

Connect everything to the breadboard, as shown in Figure 7.
|Part||Picture Reference||First Hole||Second Hole|
|Blue LED||F26 |
|Black M-M jumper wire||A17 |
(Pi Wedge GND)
|Red M-M jumper wire||J5 |
(Pi Wedge G22)
|Green M-M jumper wire||J6 |
(Pi Wedge G23)
|Blue M-M jumper wire||J7 |
(Pi Wedge G24)
|Yellow M-M jumper wire||J8 |
(Pi Wedge G25)
|Light sensor||A7 |
(Pi Wedge G4)

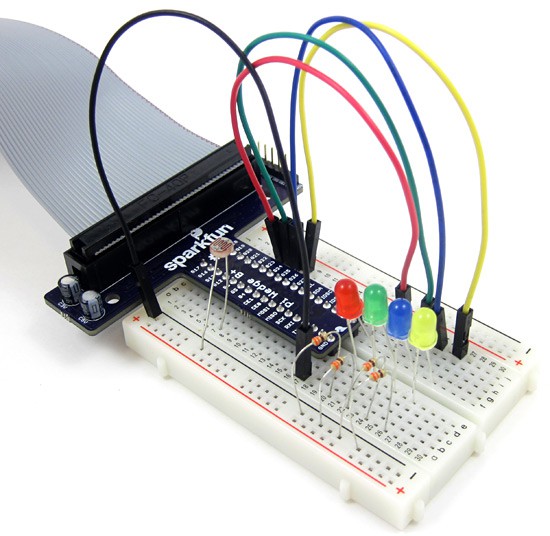

Your circuit should now look like this:

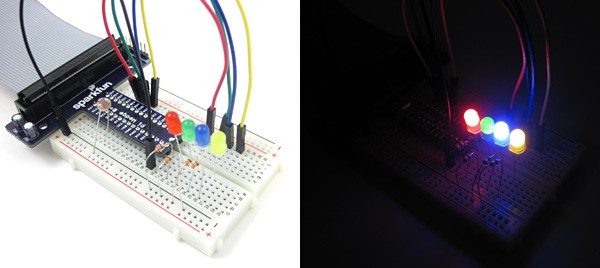

Testing Your Program on the Breadboard
It is a good idea to make sure your program and circuit are working while you have everything assembled on the breadboard, before you start connecting things to your art project. Run your program by clicking the green flag towards the top of the Scratch window. Nothing should happen, which is good! The LEDs are supposed to turn on automatically when it is dark. Now, turn off all the lights in the room, and close the blinds on any windows. The LEDs should automatically turn on. If this works, you are ready to connect the LEDs to your artwork.
If you are in a room where you cannot reduce the light levels very much (for example, a room with a skylight, or without blinds or curtains on the windows), try covering the light sensor with your finger or your entire hand, or covering the sensor with an opaque object like a plastic cup. This will block light from reaching the sensor, and should cause the LEDs to turn on.

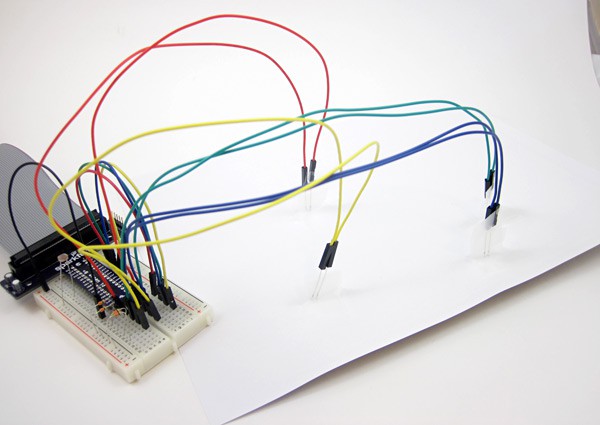

Creating Your Art and Connecting the LEDs
Once you are sure that your program and circuit are working correctly, you are ready to connect the LEDs to your art project. You can do this using the male-female (M-F) jumper wires from your kit. The M-F jumper wires are longer than the M-M wires, and they only have a metal pin on one end.

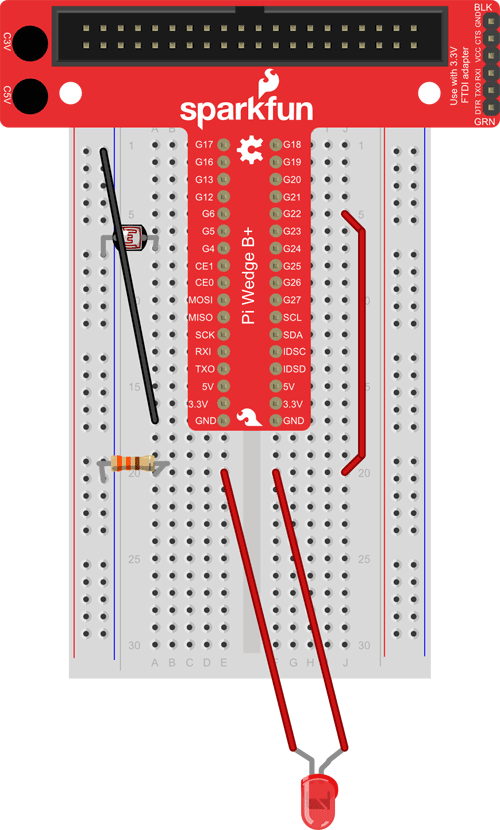

You can connect an LED to the jumper wires by pressing the leads of the LED into the female ends of two wires, as shown below. The wires' grip on the LED is not super tight, and the LED may fall out if you tug on it gently or when you move your artwork around, so it helps to use a piece of tape to secure the LED to the wires.

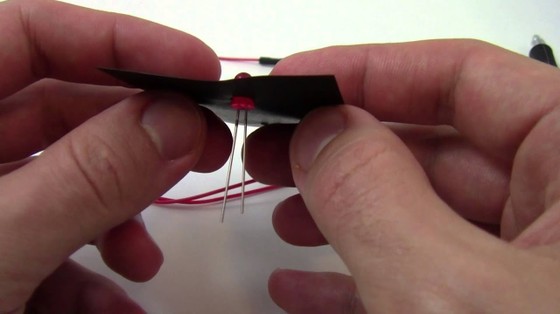

This video shows you how to securely attach the LEDs to your art project and the female ends of your M-F leads:
As you saw in the video, you need two M-F leads for each LED. Attach the female ends, as shown in the video above. Then, you will need to plug the male ends of the jumper wires back into the same breadboard holes where the LEDs' leads were originally. Here is a simplified diagram that just shows the red LED. On the left is the original connection with the LED directly in the breadboard. On the right, the LED is connected with jumper wires. It is still important to connect the LED's long lead to hole F20, and the LED's short lead to hole E20.
Here is a picture of all four LEDs connected to an art project. Be careful, those long jumper wires can get tangled!
Now, run your program again by clicking the green flag. Turn off the lights in the room (and close doors and windows if necessary), and your LEDs should light up your artwork!
Your imagination is the only limit with what you can do with the Raspberry Pi and your artwork. Here are a few ideas.
- Make the LEDs flash or blink instead of just staying on all the time. You can do this by putting wait commands in between turning the LEDs on and off.
- Make your program play sound effects when the LEDs change status from on to off, or vice versa. It will be a bit of a programming challenge to figure out how to make the sound only play once, instead of over and over again. You can skip ahead to the Invent an Interactive Toy with a Raspberry Pi project if you want to figure out the Scratch code to do this.
- Use the motion sensor to make your artwork interactive. For example, you could make the program flash the LEDs or play a sound when a visitor walks by. See the Make a Motion Sensor Alarm with a Raspberry Pi project for instructions on using the motion sensor.
For troubleshooting tips, please read our FAQ: Create Light Up Artwork with a Raspberry Pi.
